Manufacturer supply cnc router for wood furniture with the rotary 3d wood carving cnc router machine price

FOB Reference Price:Get Latest Price
$3,900.00 - $6,900.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China
Brand Name:
senke
Model Number:
SKW-1325
Voltage:
220V/380V/410V
Dimension(L*W*H):
1300*2500*200mm
Certification:
CE,ISO,FormA
Working area:
1300*2500*200mm/customized
Spindle:
3kw
Spindle power:
3KW/4.5KW/ 6KW/optional
Control system:
NC-studio,DSP/Mach3/Syntec
Motor:
Leadshine Stepper Motor/Servo
Driving system:
stepper/servo driver
Transmission:
Gear Rack
Guide rail:
Taiwan HIWIN Square Rail
Application:
3d wood/foam ect
size:
as demand
Weight:
1100KGS/as model
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
2 Years
Power(W):
3.0KW
Supply Ability
Supply Ability:
200 Set/Sets per Month
Packaging & Delivery
Packaging Details
export wooden box/plywood box
Port
Qingdao/Tianjin/Shanghai
Lead Time :
within 8-10 working days
Product Description

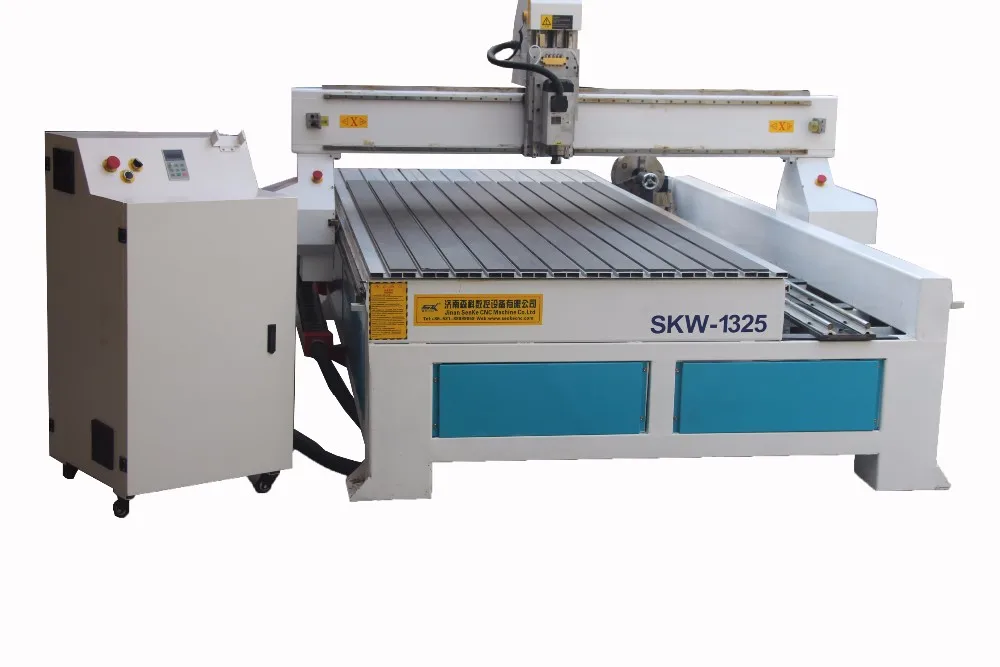

Manufacturer supply cnc router for wood furniture with the rotary 3d wood carving cnc router machine price

Main Features


1.All of the spindles can work together to save your time and costs,while any one of them can work alone,too.

2.We can supply 2-8 spindles for a machine.The number and power of the spindle are to be adjusted by the costumer's needs.
3.You can adjust the distance between two spindles to satisfy your requirements.
4.The solid and permanent structure plus unique design make the machine with long service lite performs well.

Technical parameter

Model

SKW-1325 / size as needed

X, Y, Z axis working area
1300*2500*200asmm/size needed
X, Y movement
Rack and pinion
Z movement
Ballscrew transmission
Guide
Taiwan HIWIN/PMI 20 square rails
Max idling speed
60000mm/min
Max engraving speed
4000mm/min
Spindle power
3KW/4.5KW/6KW watercooling/aircoolimg (choose)
Spindle speed
18000-24000rpm
Inverter
3.7KW/7.5KW (depend on spindle choose)
Drive motors
Stepper motors(servo motors and drives optiona )
Drivers
Leadshine
Control system
NC-studio as standard/DSP
Working voltage
220V/380V or customized
Command code

G code

Sofware
Artcam , Type 3 , etc
Standard equipment included
1.Automatic oil injection system
2. Tool sensor
Detailed Images

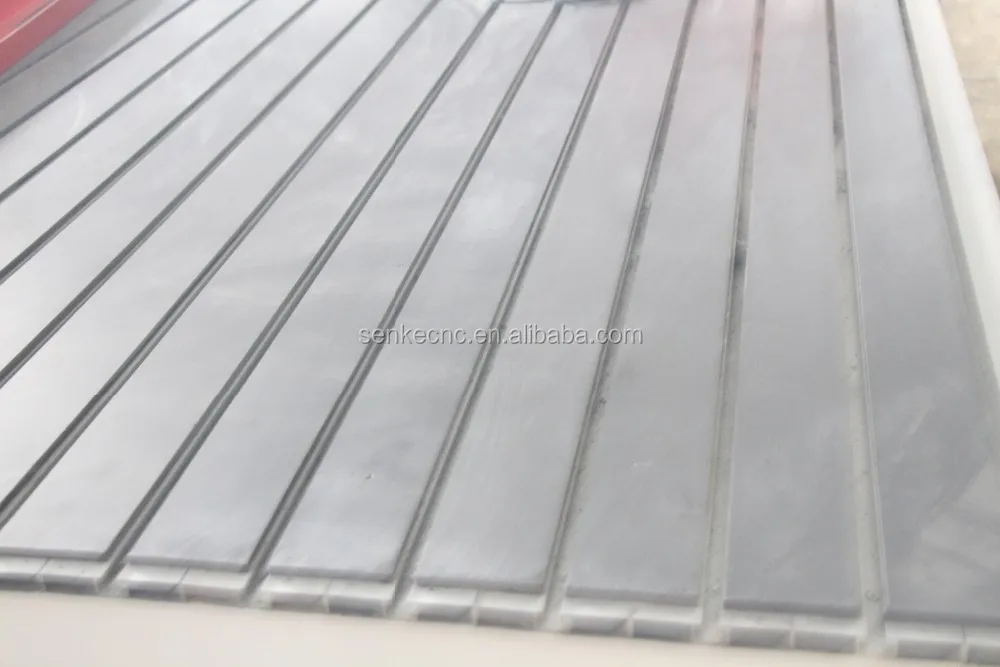

T-slot table

Taiwan TBI Brand ball screw

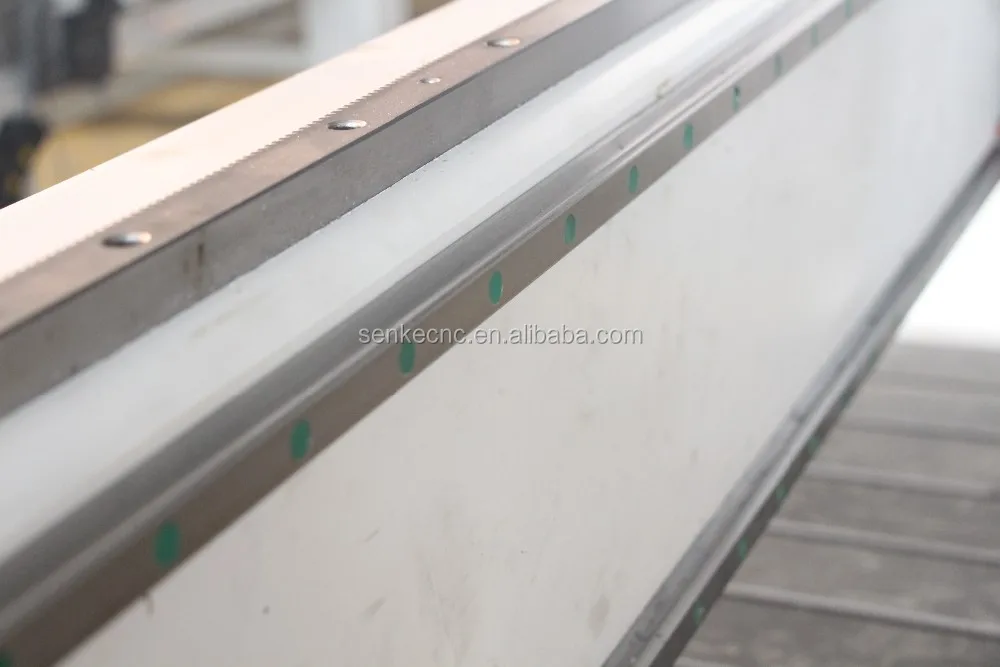

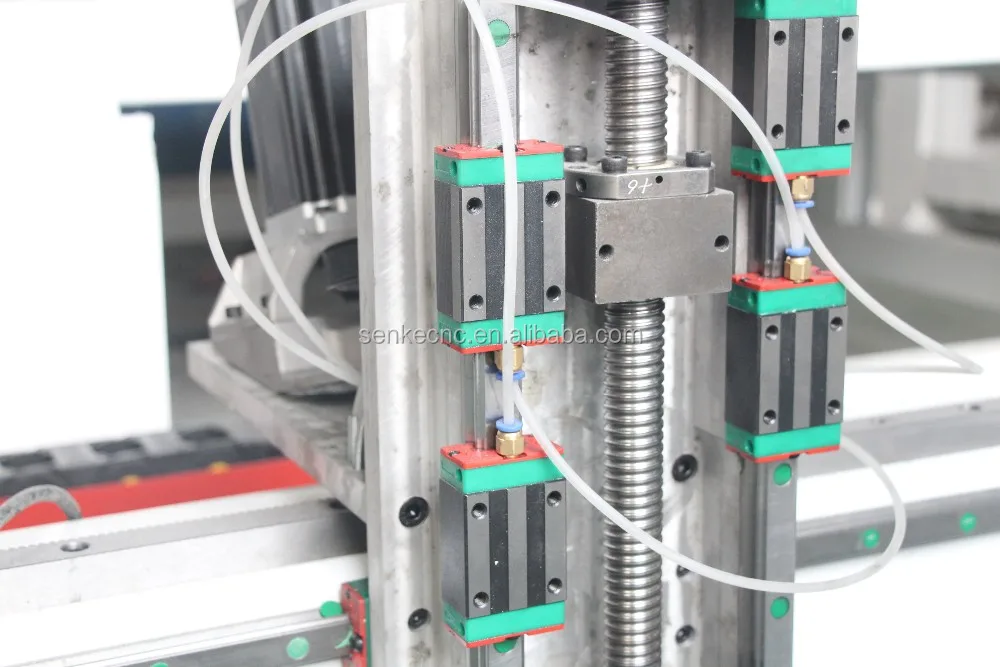

Taiwan hiwin squarea rails

Water cooling spindle

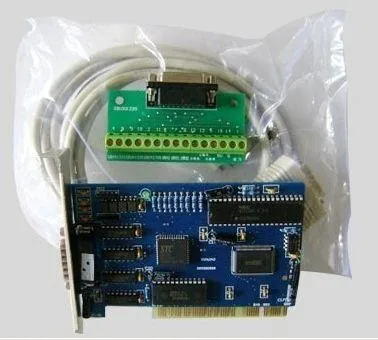

NC-studio control system

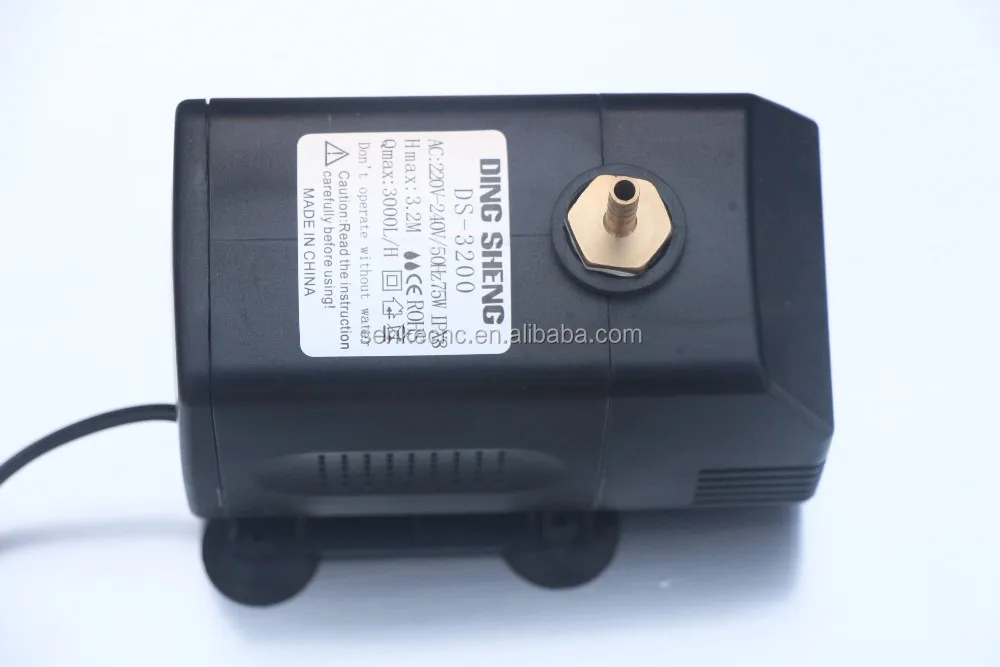

Waterpump,use to cooling down watercooling spindle

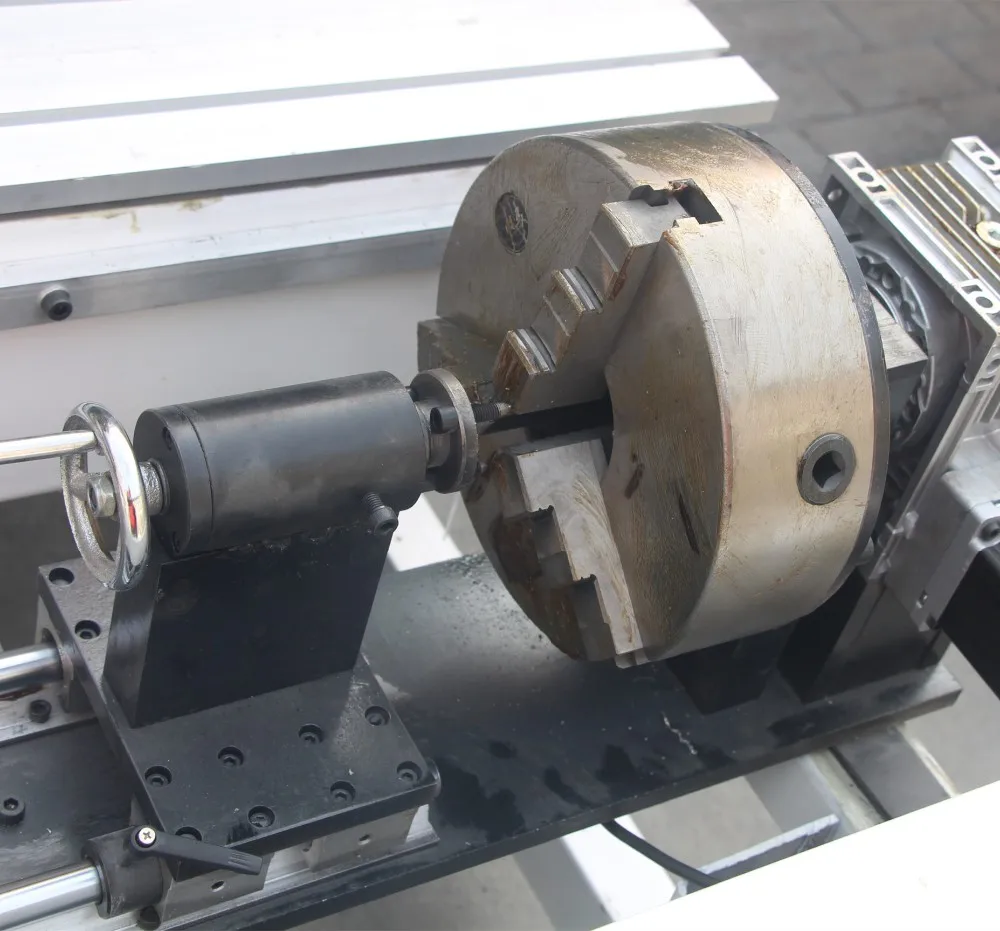

rotary (different diameter)

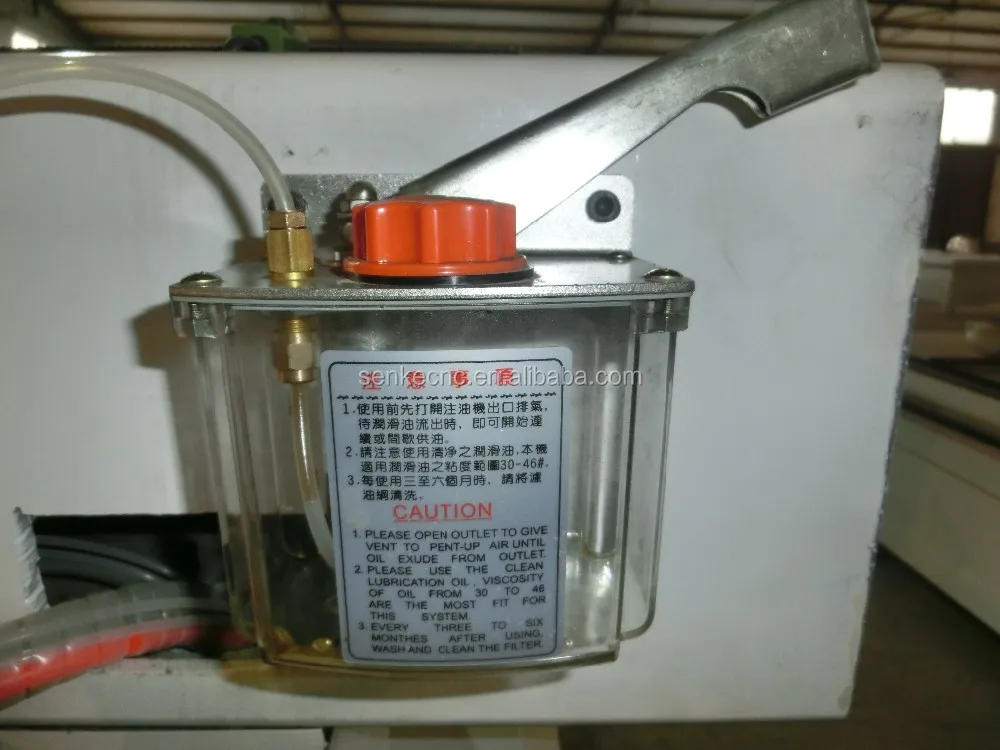

auto oil lubricating system

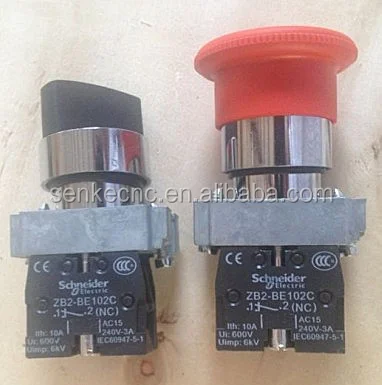

Schneider brand electrical parts

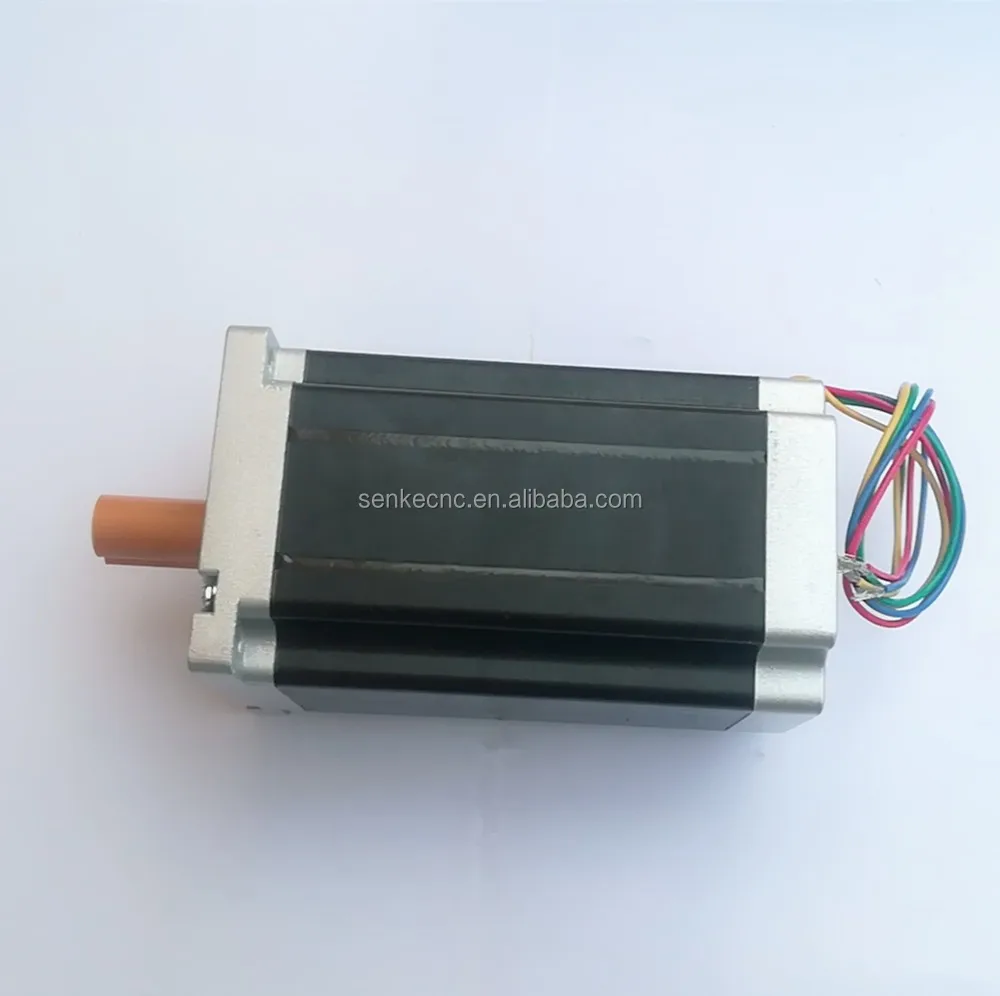

Stepper motors

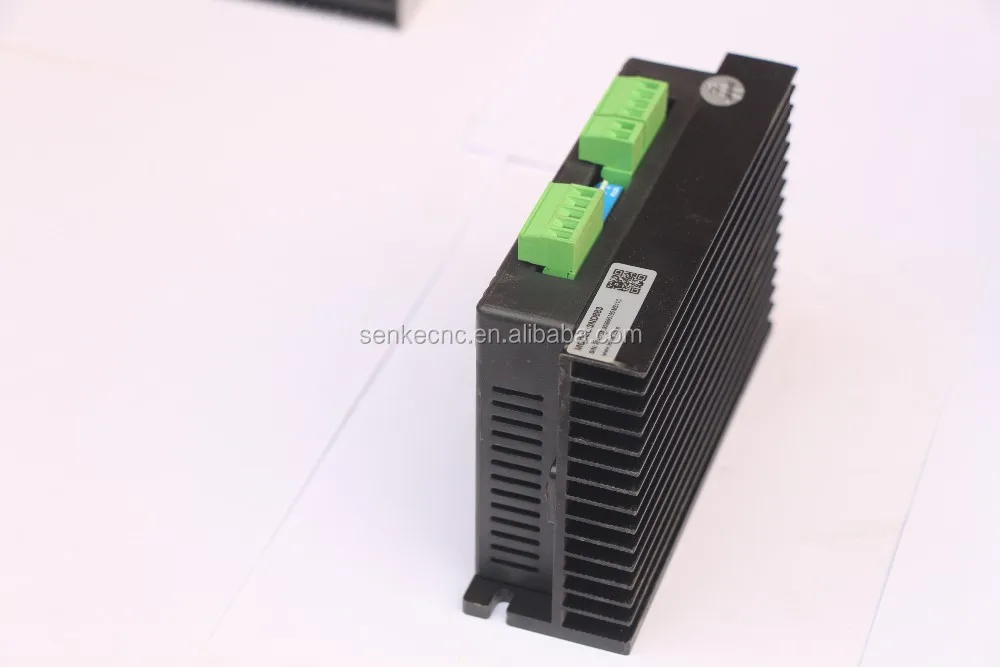

      Leadshine brand drivers

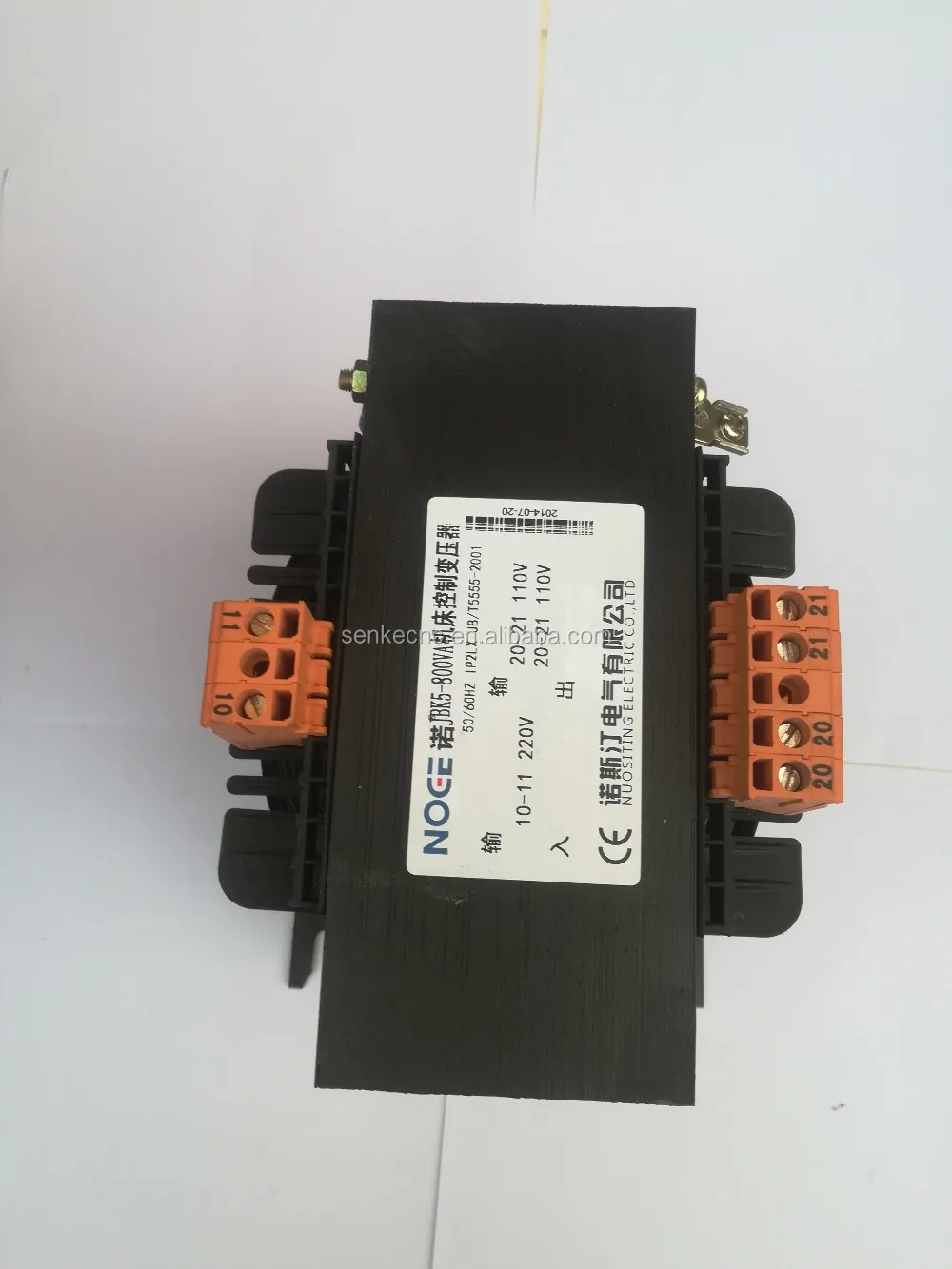

NOCE 100% cooper transformer

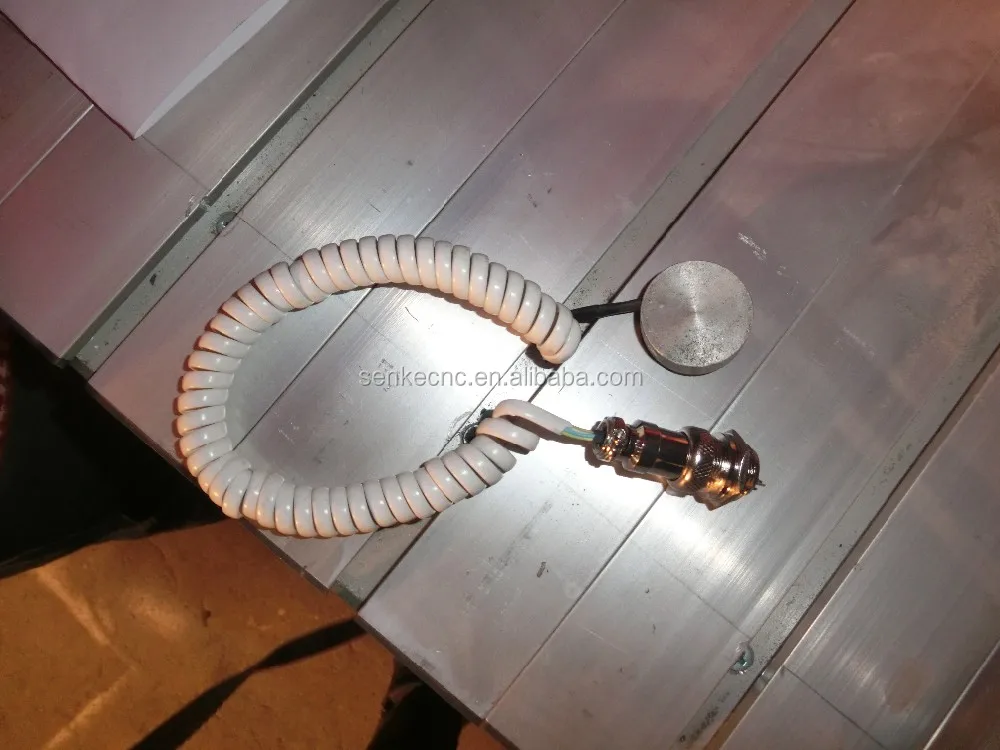

Tool senser

Japan OMRON limited

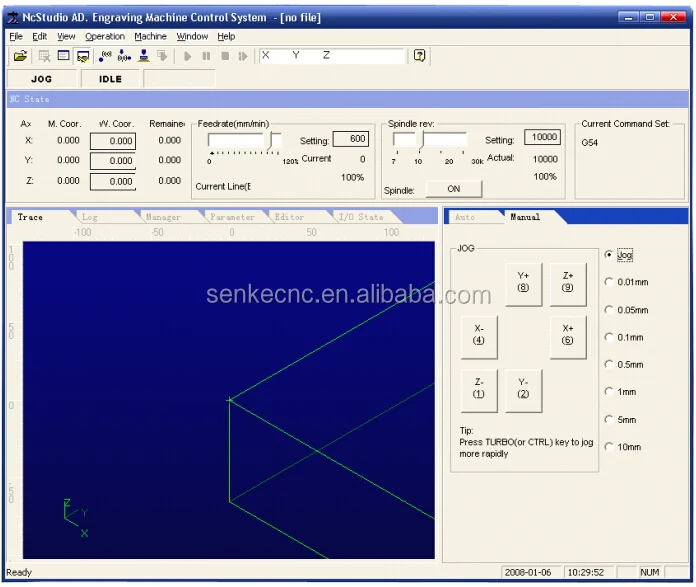

Nc-studio software

Optional parts

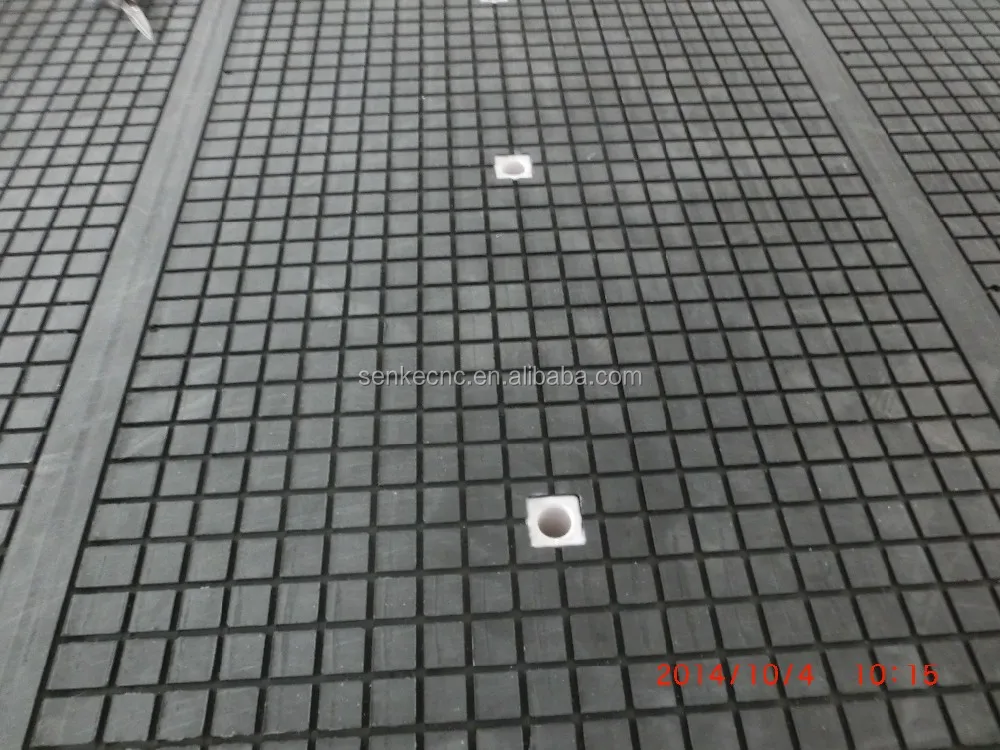

Vacuum table&vacuum pump


The vacuum table hold the materials(non-metal) automatically,save time,at the same time,the matched vacuum pump included

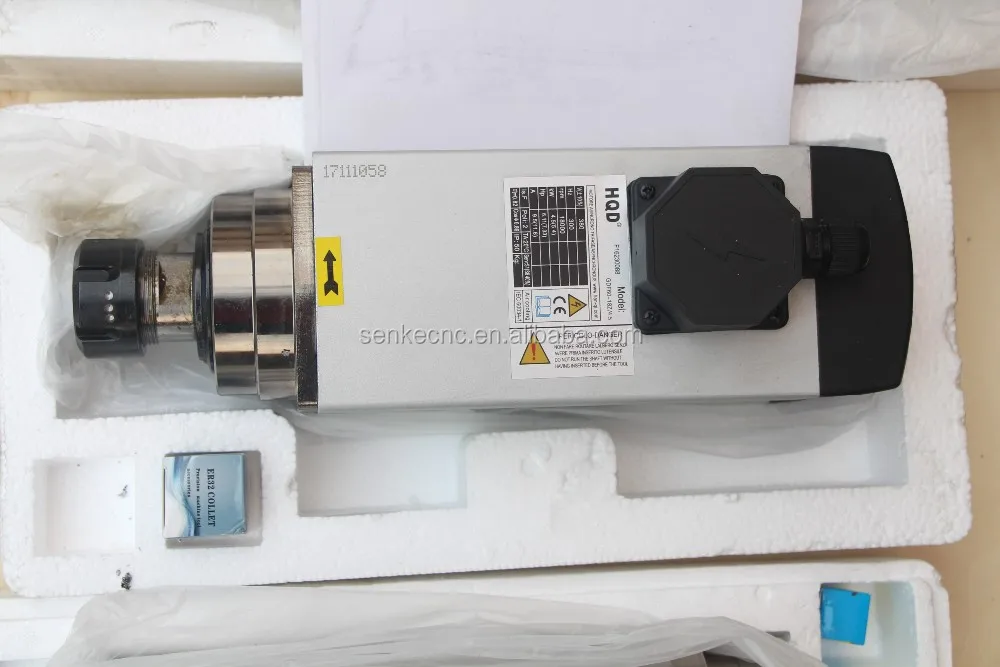

Aircooling spindle


Different brand(HQD/HSD),differet prices,please check with senke

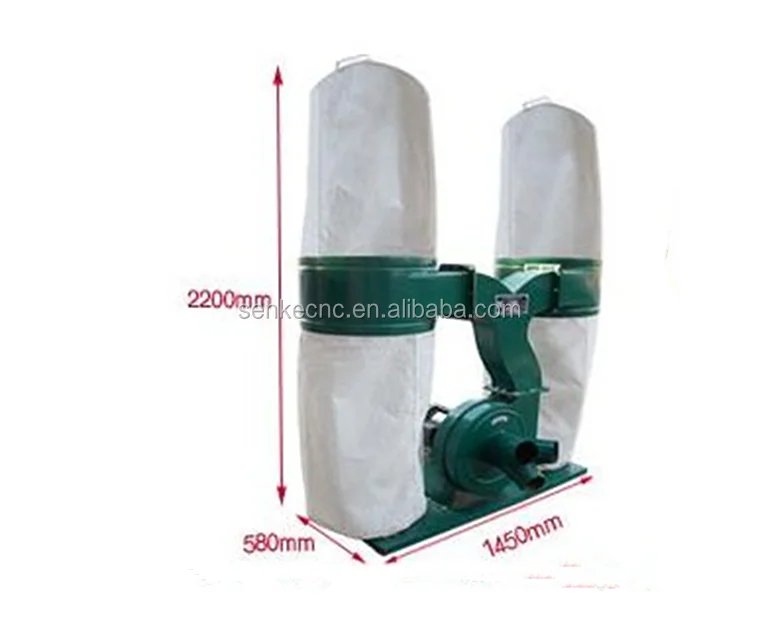

Dust collection


When working,there is scrap brings,the dust collection clean them,keep the working process clearly and working environment clean

Product Application

wood cnc router can be used for 2D&3D engraving and cutting hard wood, rosewood, insulation, plastic and chemical, PCB, PP, PE, PVC, MDF, acrylic, aluminum, brass and so on.

1) Furniture Industry: doors, cabinets, tables, chairs
2) Advertising Industry: signage, logo, badges, display board, meeting sign board, billboard
3) Artwork and Decoration Industry: wood crafts, gift box, jewelry box.
4) Electronic Industry: circuit board, insulation material
5) Music Industry: musical instruments, loudspeaker box
6) Soft Metal: aluminum, brass

Samples
Our Service

1.Manufacturer directly
2.Quatity guarantee for 2 years
3.Door to door service available
4.First class engineersgive 24-hour service on Internet and telephone , free instructions and problem solving
5.Free training to mack sure you master the operating of our machine.

Packing & Delivery

Packaging Details : export wooden box/plywood box

Delivery Time : within 8-10 working days




Our Company

ABOUT SENKE CNC

Jinan senke cnc machine co.,ltd. committs to the industralization of CNC equipment development ,

Our mainly products included stong engraving machine, metal engraving machine, glass cutting machine, wood rngraving machine, adveristing engraving machine, CO2 laser engraving/cutting machine,fiber laser marking machine, plasma cutting machine, 3D scanner,etc .

the company 's products cover the stone ,wood, advertisting,art craft, building models, electronics CAD/CAM industry mold,contruction decoration, identification signs and other industries.

Jinan Senke CNC Machine Co.,ltd. adhering to the "integrity as fundamental to quality of survival, innovation and development "business philosophy, is willing to work with with people who with insight, cooperation,mutual trust,win-win and common development.

Certificate
Customer feedback
FAQ

Q.how shall I choose the models?
different models suitable for different materials,just tell us,what your mainly materials,what the materials size and what the mainly job need the machine do. we senke engineer will supply you the best solutions.

Q.what kind materials your machine can process?
according to parts adopt,the senke cnc equipment suitable for all kinds of materails,including metals and non-metals,such as types of wood,marble,granite,metals(aluminum,brass,cooper,steel etc),foam(EPS),PVC,PCB board,double-colour board,glass,tiles etc etc.

Q.tell me about the controller?
the commonly market use for cnc machine including,NC-studio,mach 3,DSP,SYNTEC etc,according to models choose,senke adopt NC-studio as standard

Q.what other accessories included?
please kindly contact we seller,we will supply you the detailed senke machine packing list.
