Manufacturing multi-cores outdoor fiber optic network cable ADSS double sheath in 100/200 span length

FOB Reference Price:Get Latest Price
$119.00 - $800.00 / Kilometers | 2 Kilometer/Kilometers (Min. Order)
Lead Time:
Quantity(Kilometers) 1 - 100 >100
Est. Time(days) 7 Negotiable
Customization:
Customized logo (Min. Order: 2 Kilometers)
Customized packaging (Min. Order: 2 Kilometers)

More

Graphic customization (Min. Order: 2 Kilometers) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
WANBAO
Model Number:
ADSS
Number of Conductors:
≥ 10
Jacket:
PE or AT
operating temperature:
-40 to +70
Certification:
ISO9001
Cable diameter(mm):
12.5-14.9
Central strength components:
FRP or steel wire
Fiber mode:
G.652 or on your request
Loose tube:
jelly filled
Supply Ability
Supply Ability:
10000 Kilometer/Kilometers per Week
Packaging & Delivery
Packaging Details
2-4km/wooden drum
Port
SHANGHAI PORT
Lead Time :
Quantity(Kilometers) 1 - 100 >100
Est. Time(days) 7 To be negotiated
Product Description

ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.
The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed. For overhead power lines under 110kV, PE outer sheath is applied. FOR power lines equal to or over 110kV, AT outer sheath is applied. The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans.

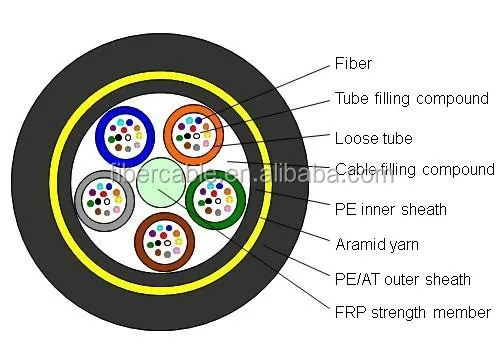

Crossing Section


1. Can be installed without shutting off the power
2. Light weight and small diameter reducing the load cause -d by ice and wind and the load on towers and backprops
3. Large span lengths
4. Good performance of tensile strength and temperature
5. The design life span is 30 years
6. Package : 2~4km/ wooden drum


Cable Parameter
Applications

1. Outdoor aerial applications
2. Low voltage transmission system(≤12 kV)
3. Railway & Telecommunication pole route
4. Subscriber & Local Area Network
5. Voice, data, video & imaging system

Packing & Delivery
Fiber
Cable length (KM)
N.W. (kg)
G.W. (kg)
packing size (cm)
2-30
2
190
245
100*100*70
3
285
345
110*110*70
4
380
470
125*125*90
32-60
2
220
275
100*100*70
3
330
390
110*110*70
4
440
530
125*125*90
60-72
2
240
295
100*100*70
3
360
420
110*110*70
4
480
570
125*125*90
