Maytech 6374 170KV Dual driver electric skateboard motor and SuperESC based on VESC vedder Pcb BLDC speed controller

Feedback Ratings
US $325.80 / Set | 1 Set (Min. Order)
Quantity:
- + Sets available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
2 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Use:
Vehicles & Remote Control Toys
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
Maytech
Model Number:
MTO6374-170-HA+MTVESC50A Dual driver electric skateboard motor ESC
Product name:
electric skateboard motor ESC based on VESC BLDC speed controller
Brand:
Maytech
Application:
For e-skateboard/e-bike
Motor:
MTO6374-170-HA
SuperESC based on VESC:
MTVESC50A
Motor Shaft:
8mm
Include:
1pcs motor + 1pcs ESC
Model No.:
MTO6374-170-HA+MTVESC50A
Company:
Manufacture
Certificate:
CE ROHS

Packaging & Delivery

Selling Units:
Single item
Single package size:
12X8X8 cm
Single gross weight:
1.5 kg
Package Type:
Maytech Plastic Bag + Box HS Code: 8504409990 for Maytech 6374 170KV Dual driver electric skateboard motor and SuperESC based on VESC vedder Pcb BLDC speed controller
Lead Time :
2

Product Description



Maytech 6374 170KV Dual driver electric skateboard motor and SuperESC based on VESC vedder Pcb BLDC speed controller



1. Maytech 6374 170KV brushless motor with hall sensor

Shaft8mm
Idle Current0.8A
Max Current60A
Max.Output watt3550W
BrandMaytech
Model No.MTO6374-170-HA
Input Volt2-12S Lipo cell
Rated Current65A
Max Pull13000g
Motor Weight668g

Notice:

1.   Mount your motor with the included screws tightly on your front cover of model.

2.   Our motors provide high efficiency stator design.

3.   Small size, lightweight and long life.

4.   Maytech motors are designed for running clockwise or counterclockwise. To change the turning direction, you just simply exchange 2 of the 3 cables.

 ATTENTION:

1.   Please make sure your motor has enough cooling while running.

2.   Our motors providing best performance with the recommended propeller size. If you consider changing the propeller size, pls be aware that motor be overheat and damaged.

3.   Keep motors away from moisture, dust, scrap and small items to avoid damages.

2. Maytech 50A SuperESC based on VESC

Application

e-skateboard
BEC5V BEC
Lipo3-12Cells
Voltage8V-60V
Hardware version4.12
Firmware version2.18
Capacitors3pcs 680uf 63V
Dimension of VESC board60x40mm
Power wireSilicon wire
BrandMaytech

Features:
•Strong, Reliable and Progressive Electric Brakes
•Start from a stop with Unsensored Motors as if it was Sensored
•Many Safety Features such as Current Control and Temperature Control Features
•Sensored and Unsensored (FOC) Field Oriented Control allows your electric skateboard to run with barely any motor noise.
•Built in 5V BEC
•Voltage: 8V to 60V (Up to 3S to 12S LiPo Voltage)
•Current: Up to 240A for a few seconds or 50A continous
•Regenerative Braking
•Sensored or Sensorless operation
•Great start-up torque with sensorless motors

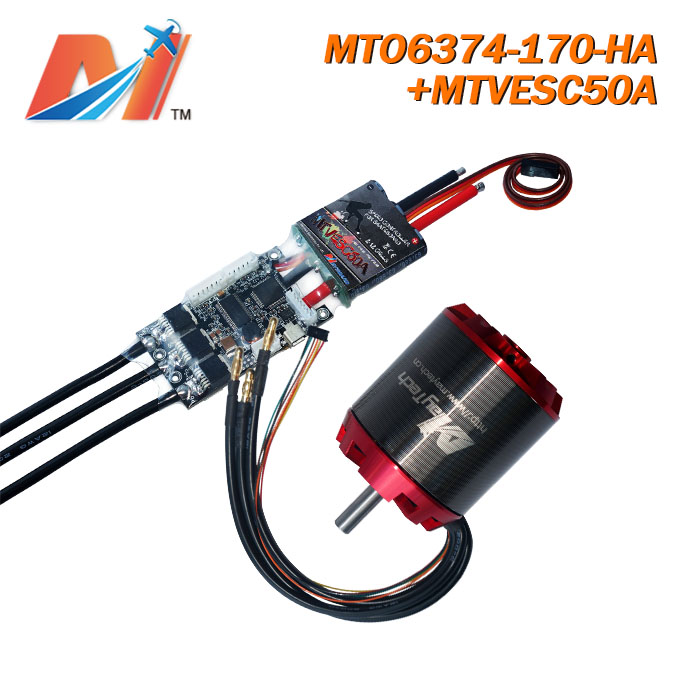

MTO6374-170-HA+MTVESC50A
