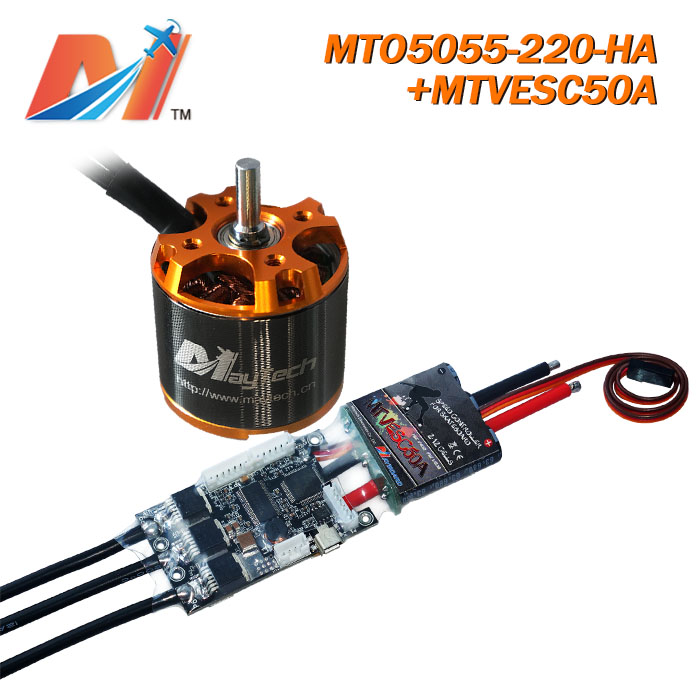

Maytech electric skateboard boosted 5055 220KV sensored and sensorless motor with SuperESC based on VESC controller

Feedback Ratings
US $261.80 / Set | 1 Set (Min. Order)
Quantity:
- + Sets available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
2 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Use:
Vehicles & Remote Control Toys
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
Maytech
Model Number:
MTO5055-220-HA+MTVESC50A 5055 220KV motor with ESC controller
Product name:
5055 220KV motor with SuperESC based on VESC controller
Brand:
Maytech
Application:
For e-skateboard/e-bike
Motor:
MTO5055-220-HA
SuperESC based on VESC:
MTVESC50A
Motor Shaft:
6mm
Material:
Metal
Model No.:
MTO5055-220-HA + MTVESC50A
Company:
Manufacture
Certificate:
CE ROHS

Packaging & Delivery

Selling Units:
Single item
Single package size:
12X8X8 cm
Single gross weight:
1.5 kg
Package Type:
Maytech Plastic Bag + Box HS Code: 8504409990 for Maytech electric skateboard boosted 5055 220KV sensored and sensorless motor with SuperESC based on VESC controller
Lead Time :
2
Product Description

Maytech electric skateboard boosted 5055 220KV sensored and sensorless motor with SuperESC based on VESC controller



Part 1. Maytech 5055 220KV hall sensor motor

KV

220

Size

50X55

Shaft

6mm

Max Current

30A

Max Power

1170W

Weight

270g

Max Lipo Cell

2-10 lipos

Max. Pull

5400g

With

Hall sensor



Part 2. Maytech 50A SuperESC based on VESC BLDC Speed Controller

Application

e-skateboard
BEC5V BEC
Lipo3-12Cells
Voltage8V-60V
Hardware version4.12
Firmware version2.18
Capacitors3pcs 680uf 63V
Dimension of VESC board60x40mm
Power wireSilicon wire
BrandMaytech



Advantages:

1. Uses 3pcs high voltage capacitors to reduce the speed controller's damage from peak current when motor starts, while other brand's is using 2pcs.

2. Uses 1pcs plate to fixate the 3 capacitors, which is more durable and artistic.

3. Mosfets are original.

4. And the 2pcs 1mhom resistances are orignal.



Features:
•Strong, Reliable and Progressive Electric Brakes
•Start from a stop with Unsensored Motors as if it was Sensored
•Many Safety Features such as Current Control and Temperature Control Features
•Sensored and Unsensored (FOC) Field Oriented Control allows your electric skateboard to run with barely any motor noise.
•Built in 5V BEC
•Voltage: 8V to 60V (Up to 3S to 12S LiPo Voltage)
•Current: Up to 240A for a few seconds or 50A continous
•Regenerative Braking
•Sensored or Sensorless operation
•Great start-up torque with sensorless motors



Links to Maytech remote contrller and 120A 12S ESC:

Remote controller for e-skateboard



120A 12S high voltage ESC for e-skateboard



Notice:

1.   Mount your motor with the included screws tightly on your front cover of model.

2.   Our motors provide high efficiency stator design.

3.   Small size, lightweight and long life.

4.   Maytech motors are designed for running clockwise or counterclockwise. To change the turning direction, you just simply exchange 2 of the 3 cables.



ATTENTION:

1.   Please make sure your motor has enough cooling while running.

2.   Our motors providing best performance with the recommended propeller size. If you consider changing the propeller size, pls be aware that motor be overheat and damaged.

3.   Keep motors away from moisture, dust, scrap and small items to avoid damages.






.jpg
