Meitk 10 x TF Memory Card to SATA SSD Hard Disk Adapter Card RAID Quad 2.5 SATA Converter

Feedback Ratings
  • 50-99 Pieces
    $18.00
  • >=100 Pieces
    $14.50
Color:
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
8 day(s) after payment received
Customization:
Customized logo (Min. Order: 5000 Pieces)
Customized packaging (Min. Order: 5000 Pieces)

More

Graphic customization (Min. Order: 5000 Pieces) Less
Contact Supplier
Samples - $10.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Brand Name:
Meitk
Model Number:
MCA1307A
Place of Origin:
Guangdong, China (Mainland)
Use:
Computer
Products Status:
Stock
Type:
SATA
Delivery time:
3-7 business days
Warranty:
one year
Packing:
Anti-static bag
OEM:
Yes

Packaging & Delivery

Selling Units:
Single item
Single package size:
40X50X60 cm
Single gross weight:
20.0 kg
Package Type:
Packed in Anti-static bag ,or to your special requirement .
Lead Time :
Quantity(Piece) 1 - 1000 >1000
Est. Time(days) 8 To be negotiated



Meitk 10 x TF Memory Card to SATA SSD Hard Disk Adapter Card RAID Quad 2.5 SATA Converter





Product Description







Replace sata with 10 Micro SD cards (TF cards), which can be guided by Micro SD.

Support sata hot plug

No need to drive

UHS-I is not supported

Support system: Windows 3.1, NT4, 98SE, Me, 2000, XP, Vista, 7, 8, Mac, Linux (Note: EXT4 file system is not supported)

10 TF card to SATA adapter card instructions:

1. Before using this product, please insert the TF card into the corresponding TF socket, then connect the SATA power supply and SATA data cable to the SATA host device. After the power is turned on, the LED light flashes, indicating that the TF card data is read normally.

2. After the initial use and TF card configuration changes, the TF card needs to be initialized and formatted. Once the formatting is complete, you can perform any data manipulation on the TF card.

Precautions for use:

1 Overview

H1001A's programs are stored in the SPI to replace the dynamics of different T-cards (without re-downloading the code). Every time you replace any T card in the SSD, we will treat it as a new SSD and will recalculate the capacity and initialize the SMART information.

2. Instructions for use

One H1001A controls 10 T cards or eMMCs, one card for each channel, from left to right, from top to bottom: CHP0L, CHP0H, CHP1L, CHP1H, CHP2L, CHP2H, CHP3L, CHP3H, CHP4L, CHP4H.

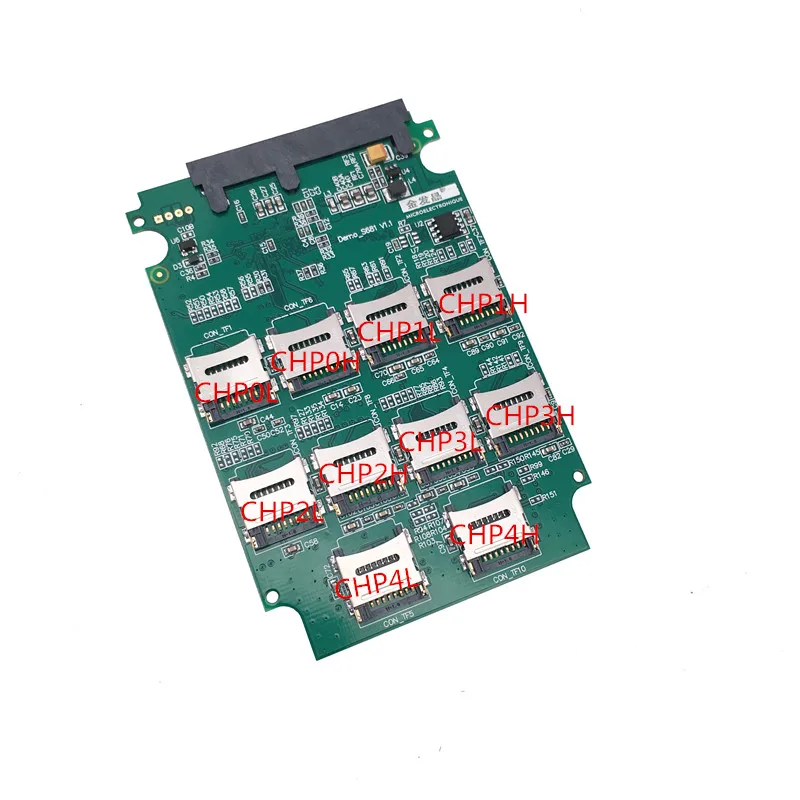

The physical layout of H1001A is as follows:



After the SSD is powered off, insert the T card and power it on again. After the disk is recognized in the disk management, format it and use it. If you need to replace the T card, repeat the above operation.

The order of the cards, we recommend:

When 1 card is inserted, it is inserted in CHP0L;

2 cards, inserted in CHP0L, CHP1L or inserted in CHP0L, CHP0H;

When 4 cards are inserted, they are inserted in CHP0L, CHP1L, CHP2L, CHP3L or CHP0L, CHP0H, CHP1L, CHP1H;

When 8 cards are inserted, CHP0L, CHP4H are externally inserted in CHP0L, CHP0H, CHP1L, CHP1H, CHP2L, CHP2H, CHP3L, CHP3H;

When 10 cards are used, they are all plugged in.

Precautions:

1. After replacing the T card, the SMART information will be initialized;

2. The current version does not support three-way (CHP0 CHP1 CHP2). If you insert these three-way T-cards, then we will consider it as 2-way processing with a capacity of only two channels;

3. The identification of the number of roads is from low to high. The low one does not recognize the T card. The chip will give up the card for detecting higher roads. For example: CHP0L has card, CHP0H has card, CHP1L has no card, CHP1H has Card, then only CHP0L and CHP0H are finally recognized;

4. If the first way does not have a T card, the SSD will not be recognized.

5. The device can support up to 35MB/S for each channel and up to 350MB/S for 10 channels. The actual speed depends on the speed of the T card.

6. The speed and capacity overlay rule of the device is: when using multiple T cards for pairing and superimposing, the device is superimposed with the multiple of the lowest card with the lowest card capacity; for example: use one 8GB card and 9 16GB The card is superimposed. The device is superimposed at 10 times the 8GB, and the speed overlay is similar.

7. It is recommended to use the same brand, capacity, speed T card for pairing and superimposing in order to maximize the performance of the device.
