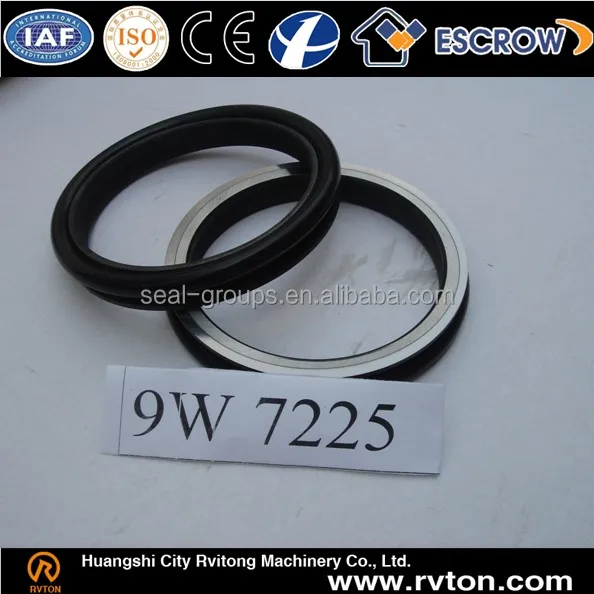

Metal cased 9W 7225 Rotary shaft oil seal

FOB Price: US $3.5 - 4.5 / Set Get Latest Price
Min.Order Quantity: 1 Set/Sets
Supply Ability: 50000 Set/Sets per Month
Port: any port of China
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,before shipment
Add to My Favorites

Quick Details

Standard or Nonstandard:
Nonstandard
Style:
Floating Seal
Material:
Metal,100cr6/Gcr15/E52100/534A99/SUJ2
Place of Origin:
Hubei China (Mainland)
Brand Name:
Rvton
Model Number:
9W7225
name of seal:
Metal cased 9W7225 Rotary shaft oil seal
Lifetime:
5000HRS
Hardness:
58-62HRC
Dimension:
50mm-1000mm
Process:
forging
Cover of Ring:
NBR/Viton/Silicone
OEM accept:
YES
Shape:
Ring Gasket
Warranty:
18 months

Packaging & Delivery

Packaging Detail: Metal cased 9W7225 Rotary shaft oil seal Inner packing with plastic bags and box, outer packing with carton
Delivery Detail: 2 - 4 weeks if no stocks

Specifications

shaft oil seal
1.Made of High-alloy Cast Iron
2.Hardness:58-62HRC
3.Life Time: 5000 Hours
4.Certificate:ISO9001&CE

Metal cased 9W7225 Rotary shaft oil seal :

  •      Rvton Floating Seal Group is used in construction and mining machinery.
  •      the outer diameter is from 50mm-1,000mm.
  •      The material is chrome molybdenom casting iron.
  •      The hardness is HRC58-62 , the working face precision within 0.015um.
  •      Flatness up to 0.1um-0.2um ,the lifetime is more than 5,000HRS.
  •      My factory can produce floating seal according to OEM codes or customize.





1. Drawing: floating seal is produced drawing to our standard drawing or customer's drawing







L Type

type de produitODdiameterheight

u17386

62.1

47.1

10

u16187

72

54

10

u16186

87

66.9

11.6

655973c91

93

73.5

10


xy Type

type de produitODdiameterheight

7t4080

70.5

53.7

31.5

7t0158

82.2

66.5

31

7t0159

93

76

32.5

7t0157

99

82

32.5



iron plate type
type de produitODdiameterheight

Tz300a-1010

180

164

9.7

Tz310b-1027

185

158.7

12.3

Tz550a-1010

210

186

11.4

Tz850a-1010

230

201

13.3

Tz150a-1010

260

216

13.3

Tz150f-1027

284

247

13.3

Tz200b-1010

290

248

13.3



standand type

type de produitODdiameterheight

Tz300a-1010

180

164

9.7

Tz310b-1027

185

158.7

12.3

Tz550a-1010

210

186

11.4

Tz850a-1010

230

201

13.3

Tz150a-1010

260

216

13.3

Tz150f-1027

284

247

13.3

Tz200b-1010

290

248

13.3





2. Grinding : to improve the working surface accuracy and finish











3. Packing : neutral packing, yellow box, white box, and welcome your logo in packing



4. Installation Methods:



  1.        Using specialized tools installation: The pressure will apply to the O-ring directly. As shown, the special tool is mounted between the metal floating ring and the rubber ring, toward the seat hole, the rubber ring is evenly pressed into the hole.







      2.     Other installation methods: One auxiliary O-ring is fixed between the conical ring surface of the floating oil seal and sealing O-ring (as shown). The ring of the floating oil seal is applied uniformly by pressure and the auxiliary O-ring braces the sealing O-ring to ensure the other correct mounting positions.









5. Application: Farm and construction machinery...











Company Description

Huangshi Rvitong Machinery Ltd. is a professional factory on floating seal, founded in 2004. Our factory absorb the Italian GNL advanced technology of production as many years and research and experience, we have a special system to reach different customers requirement.



The inner diameter of floating seal is from 50-1,000mm. Now my factory have two production line: one is for forgeable piece, hardness is HRC58-62, worktime is 5000HRS; the other is for cast, hardness is HRC62-68, worktime is 8000HRS. There are four different types: stander type, XY type, L type and iron plate type.



Our products are selling nationally worldwide, such as USA, Italy, France, Japan, Pakistan, Malaysia ,Singapore, Indonesia, Thailand and other countries for few years.We have 8 years experience in trading service.


Customers Design and Small Quantity Trial Orders are welcomed. We are doing my best to reach your requirement in good service, reputation and faith for long and strong relationship.
We sincerely welcome you to join us.
