Metal crash barrier/Highway guard rail/H post with flange

FOB Reference Price:Get Latest Price
US $595-692 / Tons | 25 Ton/Tons crash barrier (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Hengfeng
Model Number:
Standard 4320*310*85*3mm or your requirement
Accessories:
W beams,posts,spacers,bolts and nut
Length:
4320mm or as your request
Protective Finish:
Galvanized
Material:
Q235(SJ235R), Q345(SJ345R)
Surface treatment:
Hot Dipped Galvanized (or Powder Coated available)
Thickness of galvanized (double sides):
550g/m2 or 1100 g/m2 or 1200 g/m2 r as per your request.
Technology:
Cold Rolled
Applicable standards:
JT/T281-2007(China), AASHTO M-180(USA), RAL-RG620 (German)
Certificate:
ISO9001:2000, ISO14000, SGS, CE, etc.
SupplyAbility
SupplyAbility:
40000 Ton/Tons per Year crash barrier
Packaging & Delivery
Packaging Details
1,Standard Export Package
2, As client's requirements
Port
Tianjin, Qingdao
Lead Time :
Within 30 days after payment

Metal crash barrier with H post with flange

H_POST_CRASH_BARRIER



Production Description:

Normal SizesL:3200/3810/4000/4300/4320× W:306/310/312/380X
Height : 80/82/83/85×  Thickness :2.75/3/4mm.
Available in different sizes.
MaterialQ235,Q345
PorfileW-beam, Three-beam.
Surface TreatmentHot dipped galvanized or plastic sprayed coating
Applicabele Standards

JT/T2811995(Corrugated Sheet Steel Beams For Expressway

Guardrail - China), AASHTO M180(Corrugated Sheet Steel

Beams For Highway Guardrail - USA), RAL RG620

(German) or any other International Standards.

Base Steel

Grade Q235B (equivalent to S235JR according to DIN

EN 10025 and Gr. Daccording to ASTM A283M) or Q345

(S355JR / ASTM A529M 1994).

The Thickness of Galvanized

(Double Sides):

550g/m2 (40µ) or 1100 g/m2 (80µ) or 1200 g/m2 (85µ)

or as per your request.

Features

Great corrosion resistant, high intensity, long and durable,

with good impact resistance, low cost, long life, higher

security,environmental protection, etc.

Relevant Parts Required

for Guardrails:

Post, Spacer (C, U and Sigma types etc) and Fasteners,

Bolts&Nuts,Terminal,Reflectors

MOQone 20 feet container
Price TermsFOB,CFR,CIF
Payment TermsT/T,L/C at sight
Other special specification as per client's requirement or drawings



crash_barrier_accessory

Accessories:



W Beam >>>

Cold roll formed section

3mm /2.7mm thick HR sheet.

S235JR/S275JR/S355JR grade steel or equivalent

Hot dip galvanised - 550 gms/m2 or 460 gms/m2

Yield Strength: 240-310 N/mm2

Tensile Strength: 410-490 N/mm2

Elongation: 15-25%



Post >>>

Anchored to foundation on Ground & Bridges

Channel section of 75x150x75x5mm

5mm thick HR sheet

S235JR/S275JR/S355JR grade steel or equivalent

Hot dip galvanised -550 gms/m2 or 610 gms/m2



Spacer >>>

Buffer between Post & W-Beam

Channel section of 150x75x5mm.

5mm thick HR sheet

S235JR/S275JR/S355JR grade steel or equivalent

Hot dip galvanised -550 gms/m2 or 610 gms/m2



End Section >>>

Anglised, Fish Tail or Tubular end terminals



Fasteners >>>

Hot dip galvanised or electro galvanised bolts, nuts and washers conforming to IS 1367 of grade 4.6 MS

16mm dia Button head bolts for W-beam to W-beam & W-beam to spacer connection

16mm dia hexagonal head type bolts for spacer to post connection



crash_barrier_post

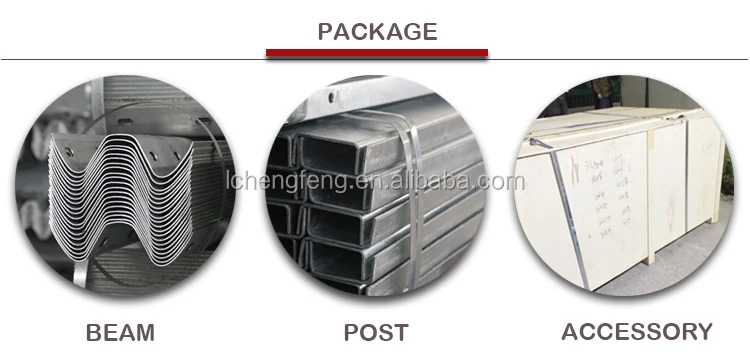

Packaging Details:

1.Mill's standard seaworthy packing.

2. Customer's requirements are also available.

CRASH_BARRIER_PACKAGE





Delivery Detail:

1.7-10 days after receiving the deposit or the LC at sight.



crash_barrier_stock




steel_crash_barrier
