Micro 360 Degree Contactless 3mm stainless shaft Hall Angle Sensor P3015

Feedback Ratings
  • 1-9 Pieces
    $40.00
  • 10-49 Pieces
    $35.00
  • 50-99 Pieces
    $28.00
  • >=100 Pieces
    $26.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Customization:
shaft (Min. Order: 1 Pieces)
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
CALT
Model Number:
P3015-V1-CW360
Usage:
angle sensor
Theory:
Hall Sensor
Output:
hall sensor, 0-5V
Resolution Ratio:
4096(12bits)
Operating Current(MAX):
<16mA
Voltage:
DC 5v
Angle:
360°
Protection class:
IP40
Outer size:
15mm
Application:
Manipulator, Textile machine
Warranty:
12 Months
Material:
Shaft: Stainless Steel

Packaging & Delivery

Selling Units:
Single item
Single package size:
10X12X14 cm
Single gross weight:
1.5 kg
Package Type:
export carton
Lead Time :
Quantity(Piece) 1 - 20 >20
Est. Time(days) 5 To be negotiated
Product Description

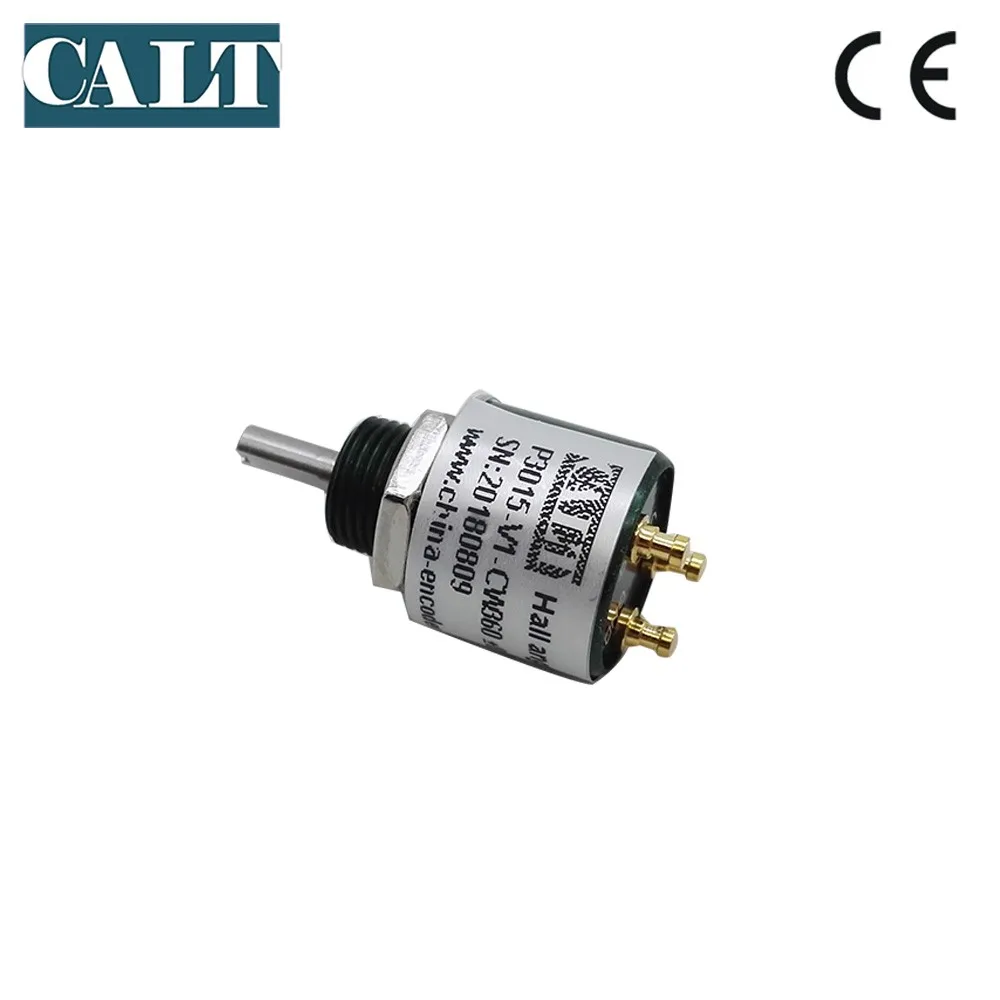

Micro 360 Degree Contactless 3mm stainless shaft Hall Angle Sensor P3015

Key Features
Small size, the maximum outer diameter of 15mm
 Full 360 ° no dead angle measurement
 Linearity is ±0.3% F.S.
 Output signal 0-5V DC
 Supply voltage 5V DC
 Angle Direction: Clockwise rotation of the rotary shaft
 Long product life.
 Small rotational torque
 Aluminum shell
 Easy to install
P3015 series of miniature non-contact angle sensor works through the principle of electromagnetic induction, the angle is converted to an electrical signal. When the rotation angle of the object passed to the axis of rotation sensors, P3015 angle sensor outputs an electrical signal that is proportional to the rotational angle.
This series of products using hard aluminum alloy material shell; Hall-type non-contact technology, P3015 series angle sensor has the advantages of non-contact angle sensor, and the use of high-quality imported high quality stainless steel high speed bearing member, so that it reduced frictional resistance when measuring the minimum, not because of the wear surface measurement component caused decrease measurement accuracy, long service life theoretically unlimited; the product compact structure, small size, optional strong, high resolution, smooth rotation dynamic noise in addition to the excellent performance suitable for electromagnetic interference outside the water, oil, vibration, shock and other harsh industrial environment, is a cost-effective non-contact angle sensor.

Application

Manipulators, Textile Machinery, Construction machinery, Hydraulic cylinders Systems, Testing Machine, Automotive Test
medical instruments

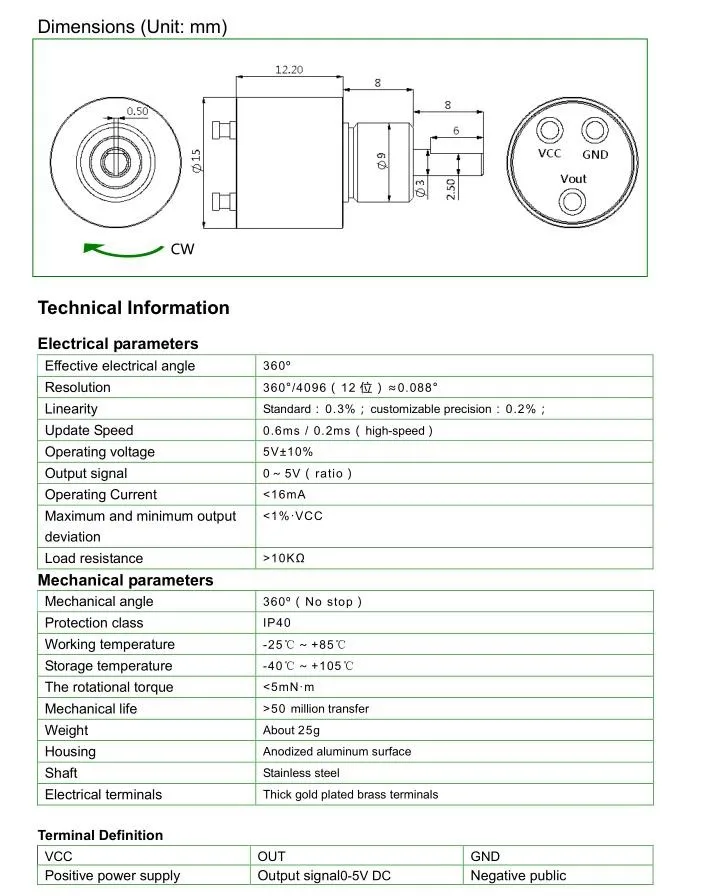

Detailed Images
Related Products
Packing & Delivery
Our Company

Shanghai Qiyi Electrical & Mechanical Equipment Co., Ltd. is a professional rotary encoder supplier, located in Chinese business and port center, Shanghai. CALT brand product ranges: Optical incremental rotary encoder, single-turn and multi-turn absolute encoder, draw-wire position sensor and couplings, and other instruments, which widely used in CNC machinery, textile machinery, steel rolling machinery, linear guide system, hydraulic system, lifting machinery and servo motor, all get a very good reputation! Qiyi company has got independent import and export qualification in 2013, CALT brand products have been exported to Southeast Asia, Europe, America and Russia and other countries and regions in the world.
