Micro SIMcard Type SIM800H GSM GPRS Breakout Board

Feedback Ratings
  • 1-49 Sets
    US $8.50
  • >=50 Sets
    US $8.00
Quantity:
- + Sets available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
3 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
SIMCOM
Model Number:
SIM800H
Product name:
SIM800H GSM GPRS Breakout Board
Frequency band:
850/900/1800/1900MHz
FM band limits:
76~109MHz
Bluetooth:
compatible3.0+EDR
SIM card interface:
3V/ 1.8V
FAX:
Group 3, class 1
Supply voltage:
3.4~4.3V
Operating temperature range:
- 40℃ ~ 85℃

Packaging & Delivery

Selling Units:
Single item
Single package size:
1X2X1 cm
Single gross weight:
0.02 KG
Lead Time :
3

  Micro SIMcard Type SIM800H GSM GPRS Breakout Board

Product Description
                                   Key  Features of SIM800H Module
ProductFrequency BandsData SpeedDemensionOther Features
SIM800H

GSM/GPRS:

850/900/1800/1900MHz

Max.DL:85.6kbps

Max.UL:85.6kbps

17.8*15*8*2.4mm

*Control via AT commands

*TCP/UDP/FTP/HTTP/POP3/SMTP

*USB,GPIO,ADC,SPI,etc

*Bluetooth 3.0

*FM

It can transmit Voice,SMS and data information with low power consumption,featuring with Blurtooth,FM and Embedded AT.



SIM800H Breakout Board

SIM800H-10SIM800HSIM800H-11





D100

LED indicator

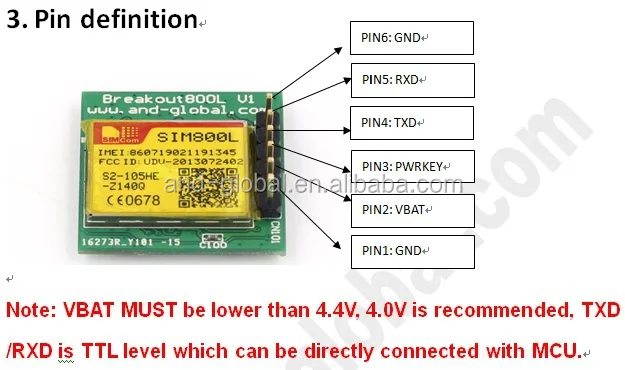

CN101

6pin 2.54mm header interface

J100

GPRS/GSM ANT

J102

BT ANT(only for SIM800H)

CN100

Micro SIM card socket

C102

VRTC(Not mounted by default)

TEST

2.8V











4.Accessories:

Name

Qty/pc

SIM800L/H board

1

GSM antenna

1

BT antenna (Only for SIM800H)

1



Packaging & Shipping

 --Shipping



Our Services

More using steps, we will provide the documents for your reference.

1.Breakout SIM800H-L Board user manual

2.SIM800 series_AT Command Manual

3.SIM800H schematic

4.SIM800H hardware design manual

5.Termite 26
