Milk Spray Drying Machine/used Laboratory Spray Dryer/used Spray Dryer For Sale

Feedback Ratings
US $4583.00 - 18792.00 / Set | 1 Set (Min. Order)
Model Number:
US $4583.0
- +
US $7521.0
- +
All 4 Options
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Quick Details
Spray Drying Equipment
Place of Origin:
Shaanxi, China (Mainland)
Brand Name:
One Year
After-sales Service Provided:
Engineers available to service machinery overseas
Max capacity:
Temperature range of Inlet air:
40°C -300°C
Temperature range of outlet air:
40°C -140°C
Precision of temperature:
± 1 °C
Dryer time:
1.0-1.5 S
Speed of squirt pump:
Spray system:
two liquid nozzle (0.5/0.7/0.75/1.0/1.5/2.0/2.5mm)
Spray direction:
downwards co-current
Heater power:
3KW 220V
Other name:
Lab spray dryer

Packaging & Delivery

Selling Units:
Single item
Single package size:
88X81X146 cm
Single gross weight:
180.0 KG
Package Type:
Wooden box Based on your need
Lead Time :
Quantity(Set) 1 - 1 >1
Est. Time(day) 5 To be negotiated
Product Description

Product Description

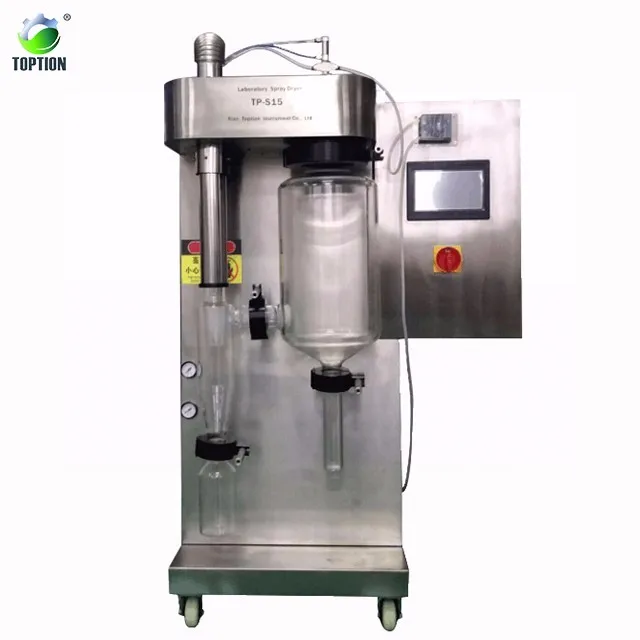

Labratory Spray Dryer
Mini Spray Dryer
Easy operation
LCD touch screen
Min.50ml Max. 2000ml/h
Two-Fluid Airflow Spray Nozzle

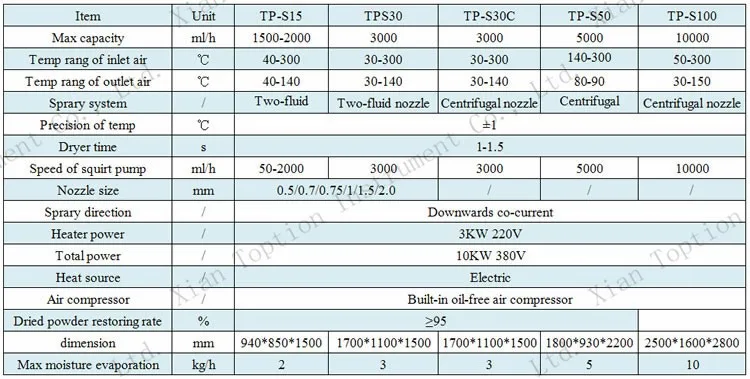

Technical Specification
TP-S15 spray dryer
Max capacity
Temperature range of Inlet air
40°C -300°C
Temperature range of outlet air
40°C -140°C
Precision of temperature
± 1 °C
Dryer time
1.0-1.5 S
Speed of squirt pump
Spray system
two liquid nozzle (0.5/0.7/0.75/1.0/1.5/2.0/2.5mm)
Spray direction
downwards co-current
Heater power
3KW 220V

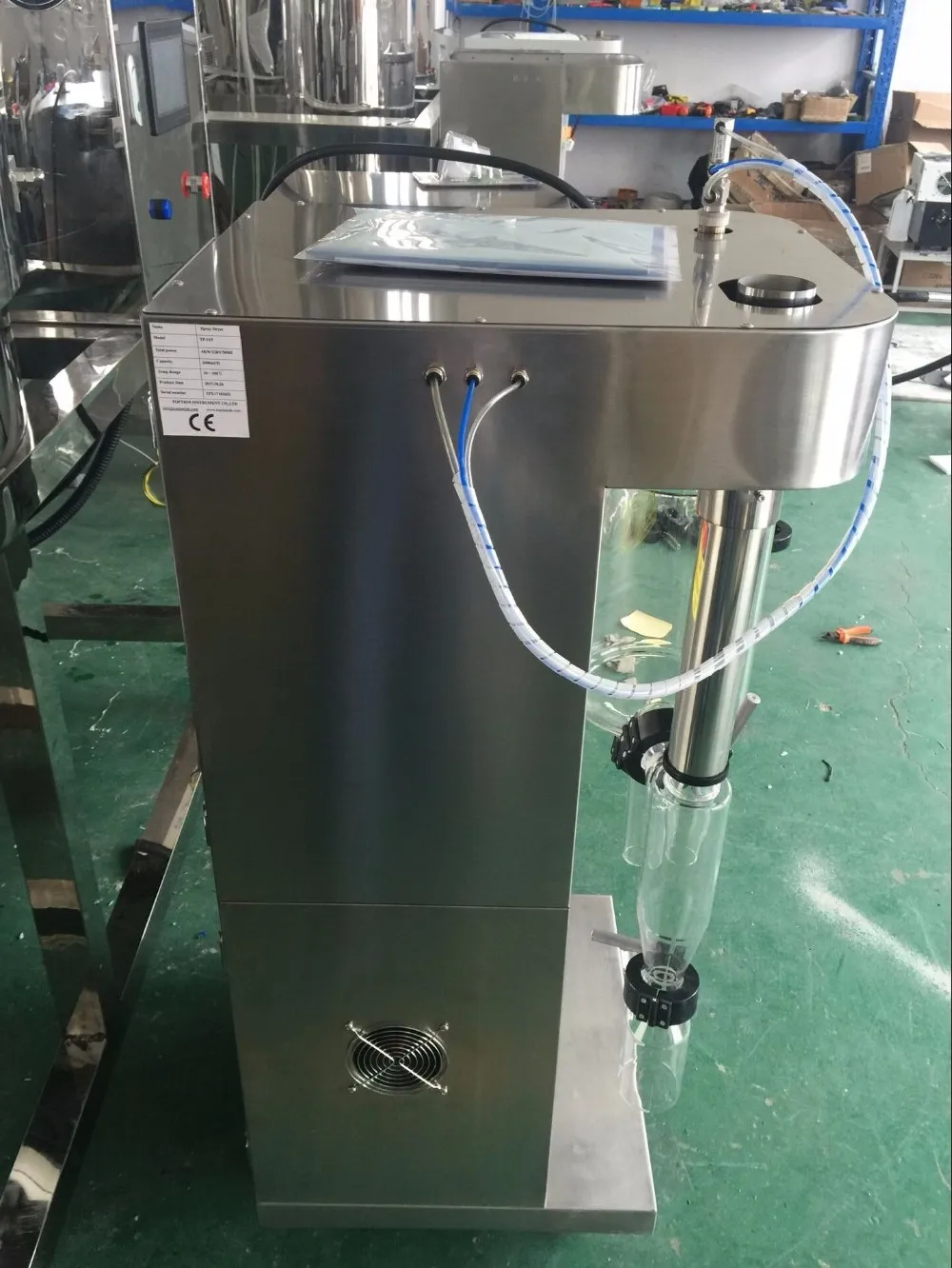

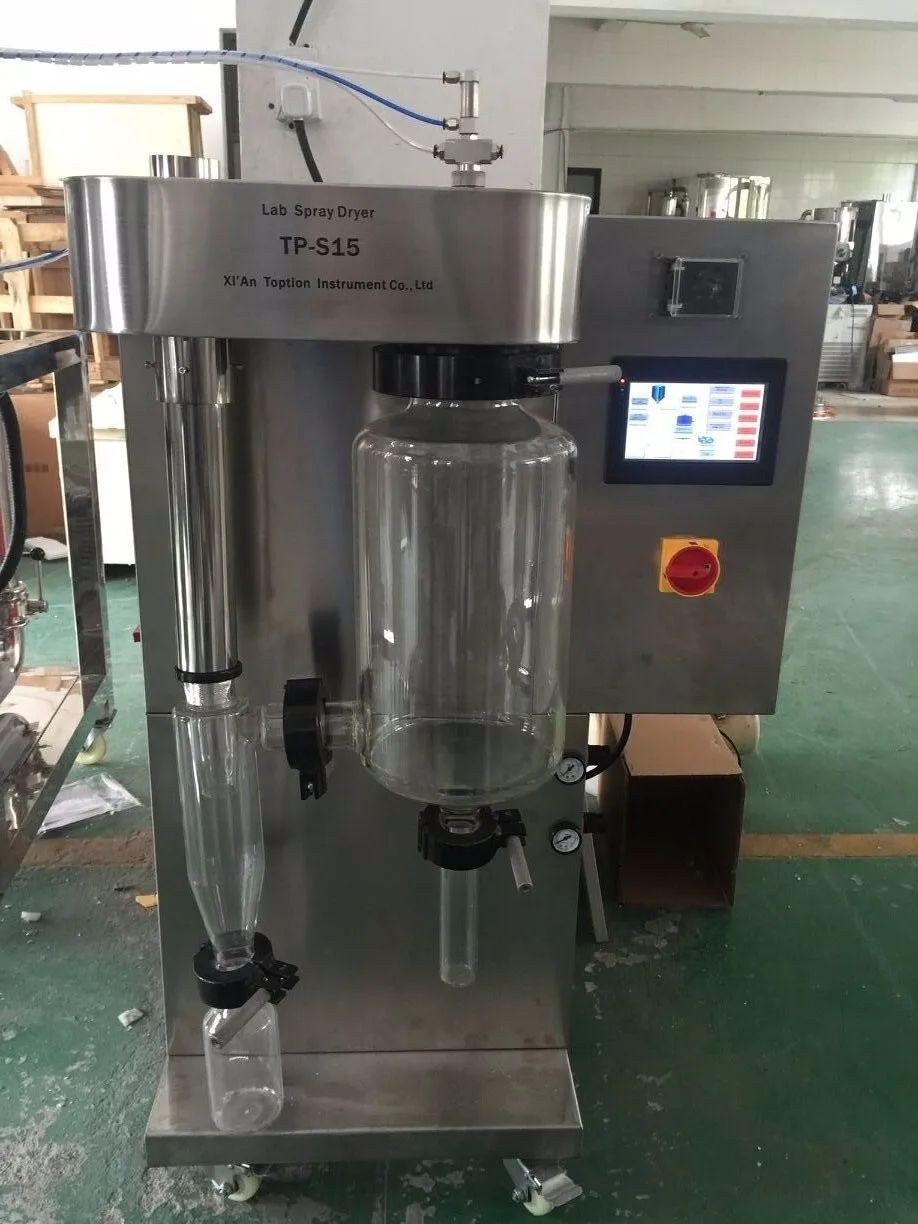

Detailed Images

Key feature

1.High efficient jet imported.
2.LCD touch screen displays temperature, airflow, air pressure, pump speed and jet cleaner frequency.
3.Auto controlling: one touch on/off, once processing parameters are set, peristaltic pump will be auto started; screen displays animation of the whole process of experiment.
4.Manual controlling is available, be able to adjust technical parameters during the process of experiment.
5.With jet cleaner (stylet), its frequency can be automatically adjusted.
6.Power off thermal-protection, push off button and the equipment will stop at once, except draught fan, make sure equipment won’t be burned out by incorrect operation (Forcibly shut fan).
7.Spray chamber, cyclone separator, and receiving tank are all made of transparent heat-resistant high-borosilicate glass; it creates a no-pollution environment for the drying process. All the spare parts are easy to install and wash.
8.Build in oil-free air compressor. The sound is low than 60db, and following the GMP standards.

9.Two-flow spray atomizing structure, whole machine is made of high quality stainless steel, compact design no accessory equipment is needed.
10.Use PID controller, the accuracy of heating temperature is around±1°C.
11.A filter has been equipped to the inlet unit to prevent the sample from contamination.
12.The self-priming peristaltic pump delivers the sample liquid from a container through a small diameter jet into the main chamber to avoid secondary pollution. To make sure the process conducted steady and smoothly.
13.Narrow size distribution, more than 95% of the dry powders are in the same range of particles.
14.Automatic jet cleaner (stylet) prevents the jet from becoming blocked and variably controlled.
15.Innovative tower wall purging device, improves the material recycling rate.


1.Beverages, Flavours and Colouring, Milk and Egg Products, Plant and Vegetable Extracts, Pharmaceuticals, Heat sensitive Materials, Plastics, Polymers and Resins, Perfumes, Ceramics and Advanced Materials, Soaps and Detergents, Blood, dyestuffs.

2.Most solutions and supernsions can be spray dried providing.

3.Food, biology, material, pharmacy, university, and R&D institute.

4.Food Stuffs, Adhesives, Oxides, Textiles, Bones, Teeth and Tooth Amalgan and many others.


TOPTION as a professional lab solution provider is specialized in manufacturing and selling photochemical glass reactor ,UV glass reactor system, xenon glass reactor, single-layer glass reactor,double-layer glass reactor, three-layer glass reactor,thermostatic equipment, ice maker, ultrasonic instrument, spray dryer, air dryer,extracting device and so on, who are work in chemistry, biology, pharmaceutical, environment analysis, food, academic research, etc. Regardless of the field you work in, we keep striving for the same goal: to provide you with the most suitable solutions & products, to make your research more accurate & efficient.

TOPTION has passed the “ISO9001:2008 Quality Management System”certification and most of our products have passed CE certification,the quality can be assured.

Packing & Delivery

Packaging and Shipping
-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent.

Our Company

Toption Instrument Instrument Co., Ltd is a famous manufacturer of lab equipment, located in the central china. We specialized in rotary evaporator, jacketed glass reactor, single layer glass reactor, high-pressure reactor, photochemical reactor, ultrasonic dispenser/homogenizer, freeze dryer(lyophilizer), spray dryer and so on.

Our Service

Pre-Sales Service

1.Inquiry and consulting support.
2.Quick response with detailed quotation
3.Confirm price, quantity, shipment, lead time and payment terms)
4.Make order and sealed PI. (Trade assuranceorder is recommend to new clients for securing payment)

After-Sales Service

1.One year warranty for the products described here.
2.Beyond the warranty period, product problems can also be solved by our company, but charge component cost and maintenance cost properly.
3.Reliable quality and thoughtful after-sale service:If you encounter problems when using our products,please contact us by telephone or e-mail,we will be ready to provide consulting,maintenance and other services immediately.

Related Products
Contact Us

Welcome customers from all over the world, please feel free to contact us if you need our professional service on these great quality
spray dryer!!!
