Milling machine with magnetic table X713 bed type universal milling machine

  • 1-4 Sets
    $7,700.00
  • 5-9 Sets
    $7,650.00
  • >=10 Sets
    $7,600.00
Table Size:
1525*320mm
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 year
After-sales Service Provided:
Online support, Video technical support
Place of Origin:
China
Brand Name:
Luzhong
Model Number:
X713
Condition:
New
Dimension(L*W*H):
2565*2045*2290mm
Type:
Universal
Certification:
CE ISO9001
Voltage:
220V/380V
Year:
2019
Range of Spindle Speed(r.p.m):
70 - 3620
Spindle Taper:
ISO40
Table Travel (mm):
1050x407mm
Applicable Industries:
Manufacturing Plant
Key Selling Points:
Long Service Life
Weight (KG):
2300
Table Travel (X) (mm):
1050
Table Travel (Y) (mm):
470
Name:
X713 bed type universal milling machine
Table size:
1525*320mm
Table stroke:
1050*470mm
T-type slot numbers / width /space:
3-14-80mm
spindle axis to column guide way:
450mm
spindle nose to table surface:
70-570mm
Spindle taper:
ISO40
Spindle quill travel:
127mm
Spindle speed range:
70-3620rpm
Spindle motor power:
5HP
CNC or Not:
Normal
Power (kW):
5
Product Certification certification
CE Certified.
Valid from 2018-11-30 until 2023-11-29

Packaging & Delivery

Selling Units:
Single item
Single package size:
280X230X250 cm
Single gross weight:
2600.0 kg
Package Type:
Machine model:Milling machine with magnetic table X713 bed type universal milling machine Package:one machine with one plywood case and steel set below
Lead Time :
Quantity(Sets) 1 - 5 >5
Est. Time(days) 15 To be negotiated

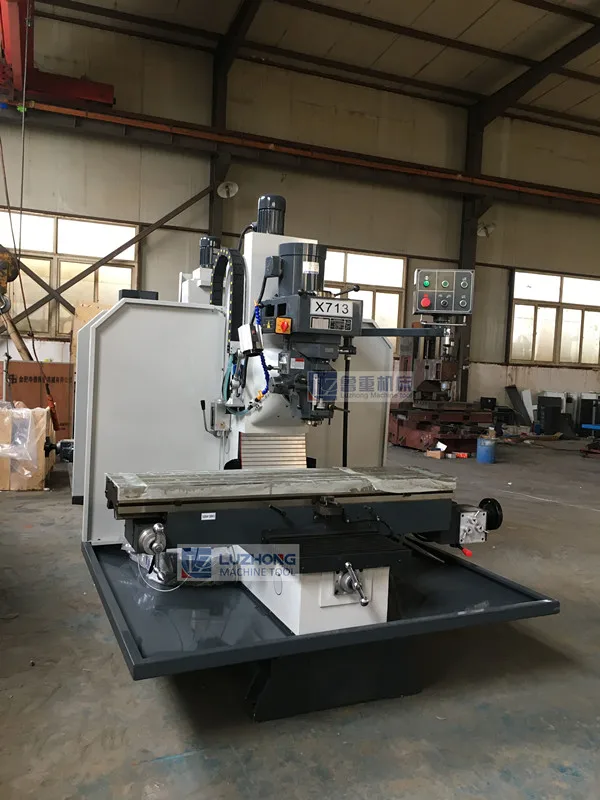

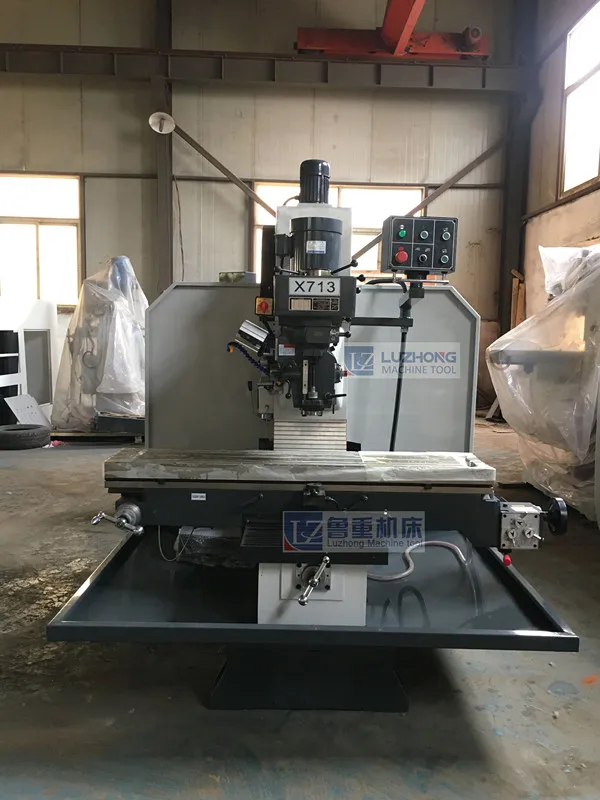

Milling machine with magnetic table X713 bed type universal milling machine

Product Description





The main performance characteristics:

Using MEEHANITE cast iron,

Using rectangular guide machine is Rigid good,

Work table and guide rail through the ultra audio spark quenching.

Milling head can be rotated 30 degrees,

Import frequency conversion and frequency conversion technology to make the spindle more convenient

Application:

This machine is a kind of general metal cutting machine tool.

Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.

Product main technical parameters:

Specifications



X713

Table size

mm

1525x320

Table stroke

mm

1050x470

T-type slot numbers / width /space

mm

3-14-80

Distance from spindle axis to column guide way

mm

450

Distance from spindle nose to table surface

mm

70-570

Spindle taper



ISO40

Spindle quill travel

mm

127

Spindle speed range

rpm

70-3620

Spindle motor power

KW

5HP

Overall dimensions

mm

2565x2045x2290

Machine weight

Kg

2300
