Mini Controller ATMEGA32U4 Steven Controller for Arduino

Feedback Ratings
  • 1-4 Pieces
    US $8.99
  • 5-9 Pieces
    US $8.50
  • >=10 Pieces
    US $8.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
2 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
ALSRobot
Model Number:
RB-01C102
Material:
PCB
Size:
30mm*50mm

Packaging & Delivery

Selling Units:
Single item
Single package size:
13X8X9 cm
Single gross weight:
0.5 kg
Package Type:
Aluminum Foil Bag
Lead Time :
Quantity(Piece) 1 - 100 >100
Est. Time(day) 2 To be negotiated

Description

Builded with master chip ATMEGA32U4, the mini controller is easy to use and very powerful. It is in a small volume with a digital IO, an analog IO and an I2C interface, which is very suitable for more stringent requirements to control the volume of the occasion. By supplying an external power(7-15V), the digital port can drive servos work. There are four M3 mounting holes onboard, using immersion gold process, flexible in using and elegant in appearance.

Specifications

  •  Product Name: Steven Controller
  •  Item No: RB-01C102
  •  Microcontroller: ATMEGA32U4 (processing speed of up to 16MIPS)
  •  Working Voltage: DC + 5V (USB direct power supply)
  •  The external power supply voltage: Recommended DC + 7V ~ + 15V
  •  Output voltage: DC + 5V
  •  Digital Interface: D2, D3, D10 (D2, D3 for I2C)
  •  Analog Interface: A1
  •  Size: 30mm x 50mm
  •  Weight: 8g
  •  The pin definition:

       D2: digital pin 2
       D3: digital pin 3
       10: digital pin 10
       1: Analog Pin 1
       - / G: Power ground
       + / V:. power positive

Features

  • I2C interface connects directly LED bar in I2C pins (GPIO 2 pick SDA, GPIO 3 pick SCL)
  • Digital IO interface directly connected to the 360-degree steering
  • Analog interface A1 is directly connected to the ultrasonic sensor URF02

picturesRB-01C102-Steven (4)

Product Appearance Positive Figure,All Surfaces Open

RB-01C102-Steven (5)

More Interface,Cimple and Useful



RB-01C102-Steven (1)

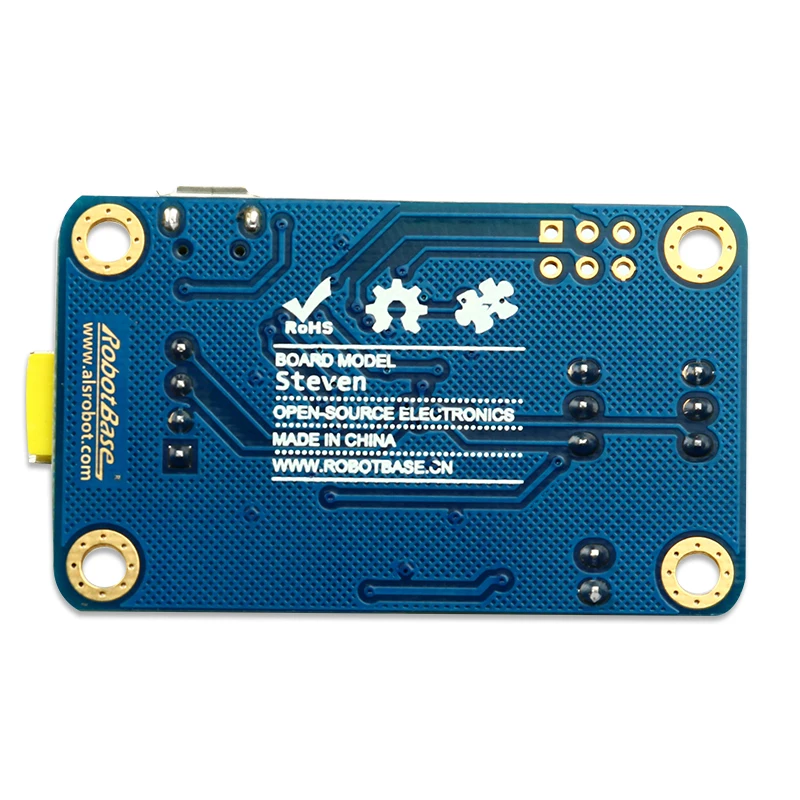

Attention to details,More beautiful

RB-01C102-Steven (3)



  Steven Controller Compared with Coins

-

For more information, please click the home page:

http://robotbase.en.alibaba.com

Please feel free to contact us if you have any inquires.
