Mini Jaw Crusher for quartz rock and limestone, stone small crusher

FOB Reference Price:Get Latest Price
US $1-2,999 / Unit | 1 Unit/Units as request (Min. Order)
Supply Ability:
100 Unit/Units per Month as request
Port:
Qingdao, Shanghai, Tianjin
Overview
Quick Details
Condition:
New
Type:
Jaw Crusher
Application:
Quarry,Mining,Chemical&Construction
Motor Type:
AC Motor
Power(W):
Please refer to the specification
Capacity(t/h):
1-60
Place of Origin:
Henan, China (Mainland)
Brand Name:
Great Wall
Model Number:
PE
Dimension(L*W*H):
Please refer to the specification
Weight:
0.85-1.65 t
Certification:
ISO & CE
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Used for:
Coarse and Medium crushing
Max. Feeding Size (mm):
200
Output Size (mm):
0-50
Installation:
Engineer guide
After-sale service:
Lifetime warranty
Wear parts:
Durable and Anytime will supply.
Advantage:
High quality with reasonable price
Factory visit:
Welcome
Packaging & Delivery
Packaging Details
Mini Small Jaw Crusher: Waterproof Wooden Package or as clients' request
Delivery Time
10-15 days after receiving deposit

"Great Wall Make Great Machine"

Different Colors&Packages are avaialble

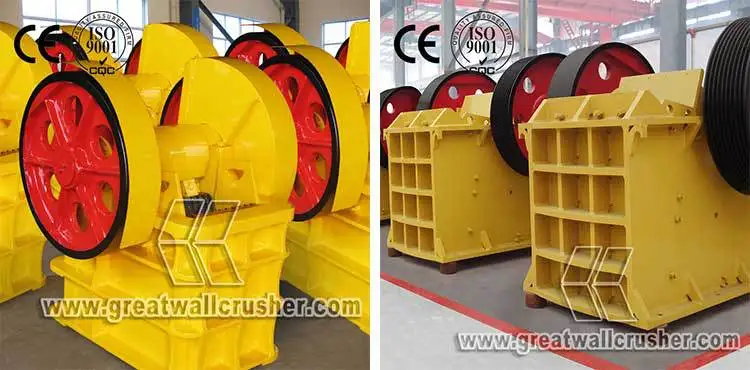

Great Wall Mini Jaw Crusher for quartz rock and limestone



I. Mini Jaw Crusher Usage and Application



Mini jaw crusher is widely used in the industry of mining, building materials, chemical industry, metallurgy and fodder. It can crush materials with middle or less than middle hardness into secondary of fine granularity. Such as, barite, limestone, terrazzo, silica sandstone, coal, coke, gypsum, aluminum sulfate, slag, etc.




II. Mini Jaw Crusher Structure and Working Principle



Structure
The mini jaw crusher is mainly composed of frame, fixed jaw plate,movable jaw plate, left and right guard plates, movable jaw, eccentric shaft,toggle plate, adjustable base, adjustable screw stem, adjustable wedge block, fitting of tension spring and so on.



Working Principle
The electric motor drives the rotor and the rotor moves, making the hammer rotate in high speed. The materials are crushed in the crusher by the rotated hammer. The end products come out via the strips of the screen under the machine. The size of the granularity can be adjusted by changing the gap among the screen strips. The advantages of the machine are simple in operating, high in productivity, and very low investment cost.



III. Mini Jaw Crusher Main Specifications



Mini Jaw Crusher



Model

Feed Opening Size
(mm)

Max. Feeding Size
(mm)

Adjustable Range of Output Size
(mm)

Capacity
(t/h)

Motor Power
(kw)

Weight
(t)

Overall
Dimension
(mm)

PE250×400

250×400

200

20-50

5-20

15

2.9

1430×1310×1340

PE400×600

400×600

350

40-100

15-60

30-37

6.8

1700×1732×1653

PE500×750

500×750

425

50-100

40-100

45-55

11.2

2035×1921×2000

PE600×900

600×900

480

65-160

60-140

55-75

16.5

2290×2206×2370

PE750×1060

750×1060

630

80-150

80-230

90-110

29

2655×2302×3110

PE900×1200

900×1200

750

95-165

140-320

110-132

54.5

3789×3050×3025

PE1000×1200

1000×1200

850

105-185

180-400

160-200

56.5

3900×3320×3280

PE1200×1500

1200×1500

1020

150-300

250-650

220-250

99.6

4300×3540×4043

PEX150×250

150×250

125

10-40

1-3

5.5

0.85

896×745×935

PEX150×750

150×750

125

12-45

5-16

15

3.8

1205×1495×1203

PEX250×750

250×750

210

25-60

10-40

22-30

5

1667×1545×1020

PEX250×1000

250×1000

210

25-60

15-50

30-37

6.8

1964×1550×1380

PEX250×1200

250×1200

210

25-60

20-60

37-45

8.5

2192×1605×1415

PEX400×1200

400×1200

320

35-95

28-95

45-55

11.7

2256×2100×1960





Working site picture







Packaging & Shipping



The machine is fixed tightly when it is sent to the port by professionale truck. Before shipped, it is covered by waterproof material to avoid moisture and rough handling.







Relevant product



Recommend procduct

    diesel engine crusher               cone crusher                          impact crusher                 mobile crusher plant





Certifications







About Us



With more than twenty years' history, Zhengzhou Great Wall Heavy Industry Machinery Co.,Ltd. is a manufacture which specialized in R&D, manufacturing and selling big and middle size heavy industry machinery. Since establishment, we make a good image in the market with scientific management, qualified products and perfect service.



Our main products are crushers, grinding mills, other equipments for crushing plant and grinding plant, as well as building construction equipments. They are widely used in mining, building material, metallurgy, chemical, traffic, reservoir and so on. Our products are not only sold well in more than twenty provinces and cities in China, but also in tens of countries and regions in Eastern Europe, Middle East, Asia, Africa, North America, South America, and Oceania.



Now we have domestic top ranking production equipments and precise testing instrument, each process of products is strictly inspected to guarantee the products to achieving high ex-factory standard. Besides, we cooperate with many famous universities and scientific research institutions, so that can make technical warrantee for the products in it's developing, updating and improving.



"Persons of ability guarantee the quality". Our company takes in persons of ability and gives training to the staffs annually to their quality and skill to meet the development of the company.With the right of importing and exporting, the company owns an international trading department which is specialized in sales and exports, we provide the best service to the foreign clients.



During the past years, we stick to "Honest, truth-seeking, innovation and hard working". To keep "Great Wall" brand, we will improve ourselves and try our best to make perfect products and the best service.







Our Services



1.Pre-sales Service
 Offering comprehensive technical and business consultation services;
  Proposing th e most suitable scheme and equipment for our clients;

  Designing and fabricating targeted products according to the special requirements of clients;
  Training periodically high qualified service technician.



2.After-sales Service

  Highly inspecting equipments in every working procedure, quality comes first;
  Fast & Safe Delivery;
  Assisting our clients for foundation construction of equipments;
  Dispatching engineers to install and debug equipments;
  Training the first-line operators on site;
  Regularly visit clients to solve production problems;
  Providing life-long maintenance service;
  Providing technical exchanging;







Why choose us



1. We are Manufacturer  (Not Dealer):

All machineries from Great Wall Heavy Industry Machinery CO., LTD are made by ourselves, with good quality, Competitive price and assured full after service.



2. If you are new for this business:

We can provide you with design scheme for complete production lines, spot inspection and operator training according to your demands and the conditions of applied spot, we can help you choose the right equipments.



3. We’d like to recommend a suitable model for you and send you a best quotation. So please give us this information about your requirement in your enquiry:



1. What is the raw material to be processed? And maximum feeding size of raw material?

2. What is the required output size after crushing?

3. How many tons per hour do you want?



Do not hesitate send us inquiry for more details about the mini jaw crusher.
