Mini Linear Transducer displacement position sensor KTC-115mm DC 5v Voltage output Sensor

Feedback Ratings
  • 1-49 Pieces
    $31.50
  • 50-99 Pieces
    $29.50
  • >=100 Pieces
    $25.50
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Customization:
length (Min. Order: 1 Pieces)
Contact Supplier
Samples - $31.50 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
CALT
Model Number:
KTC-115
Usage:
Position Sensor
Theory:
Resistance Sensor
Output:
Voltage, Voltage
Range:
115mm
Current:
1mA
Resistance:
5kΩ
Motion Speed:
Max. 10m/s
Repeatability Precision:
±0.01mm
Linear Precision:
±0.1%FS
Material:
Aluminium Case
Application:
Wide Range
Warranty:
12 Months

Packaging & Delivery

Selling Units:
Single item
Single package size:
35X15X10 cm
Single gross weight:
3.0 kg
Package Type:
export carton
Lead Time :
Quantity(Piece) 1 - 10 >10
Est. Time(days) 5 To be negotiated
Product Description

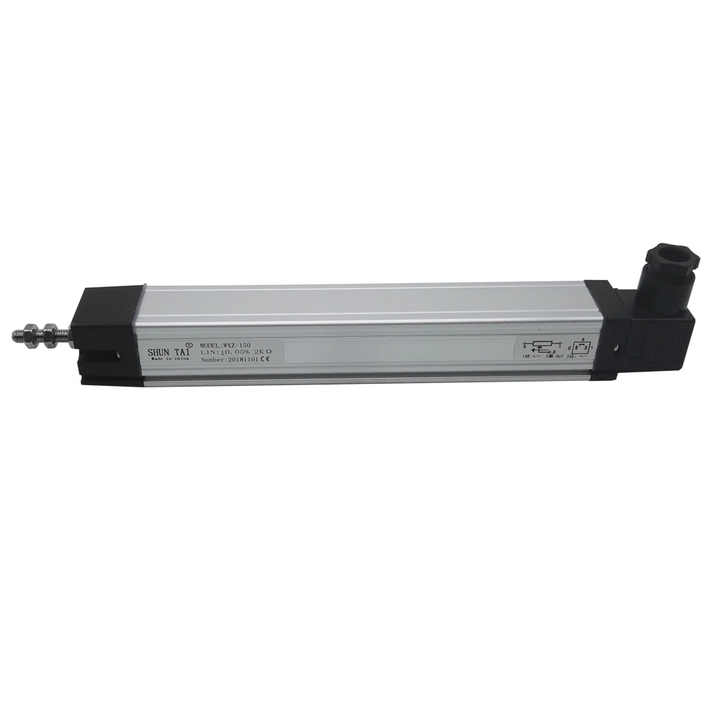

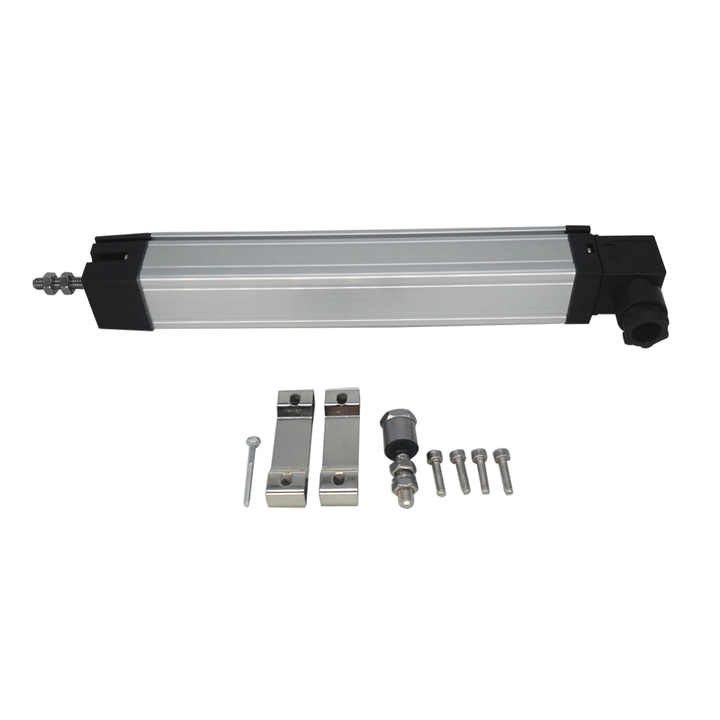

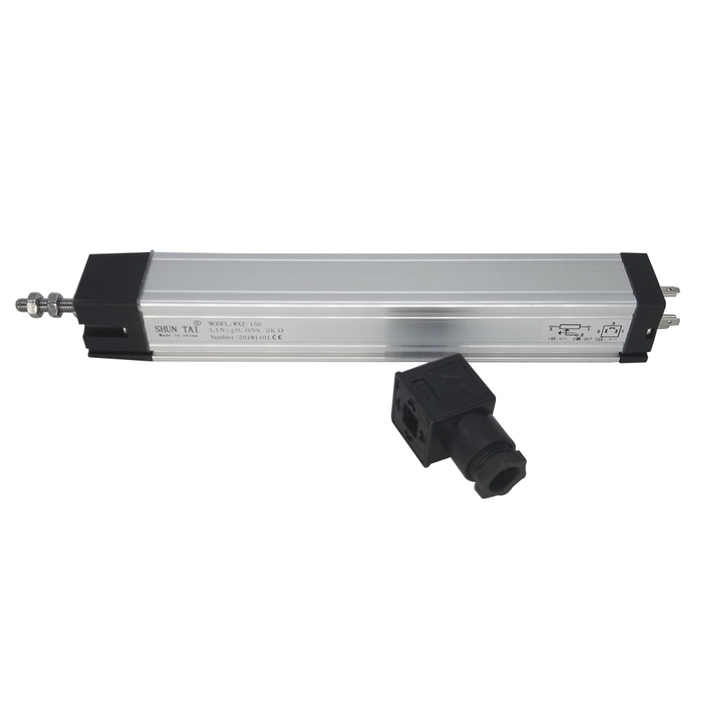

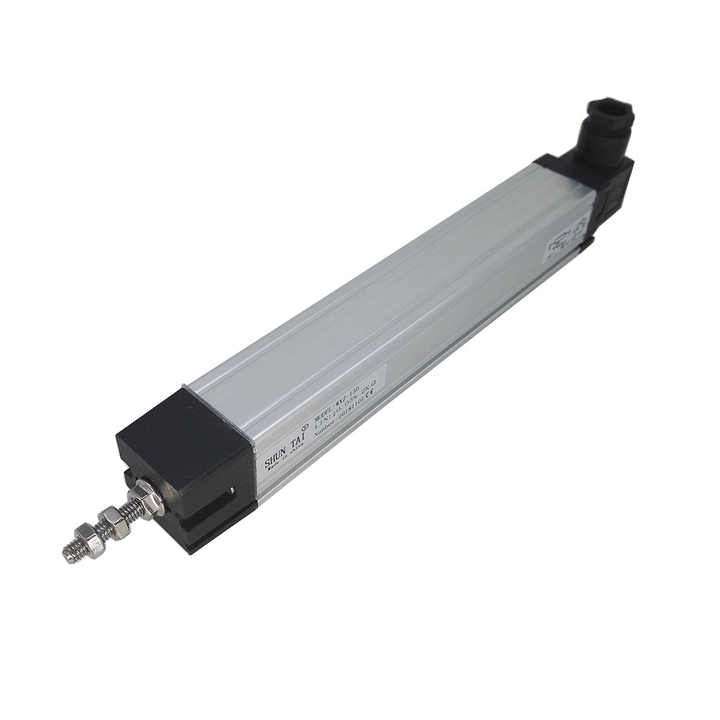

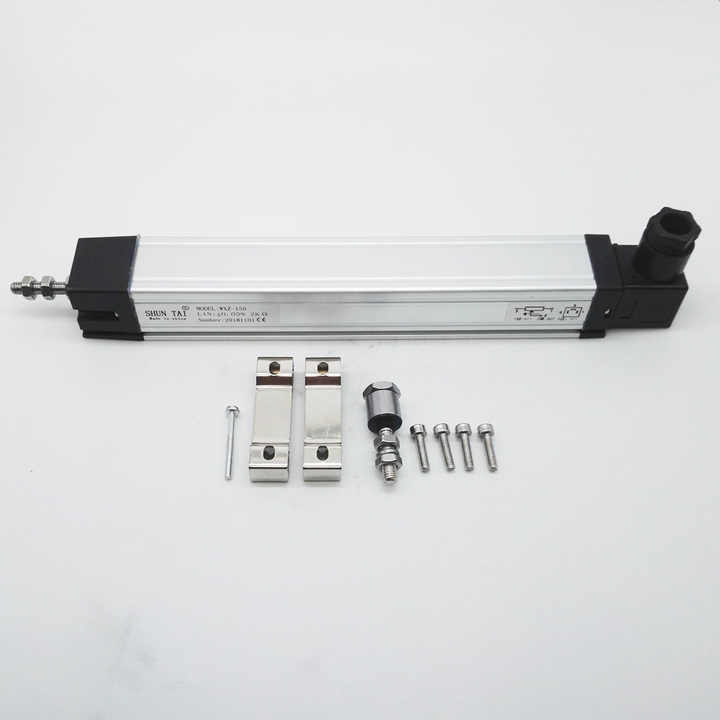

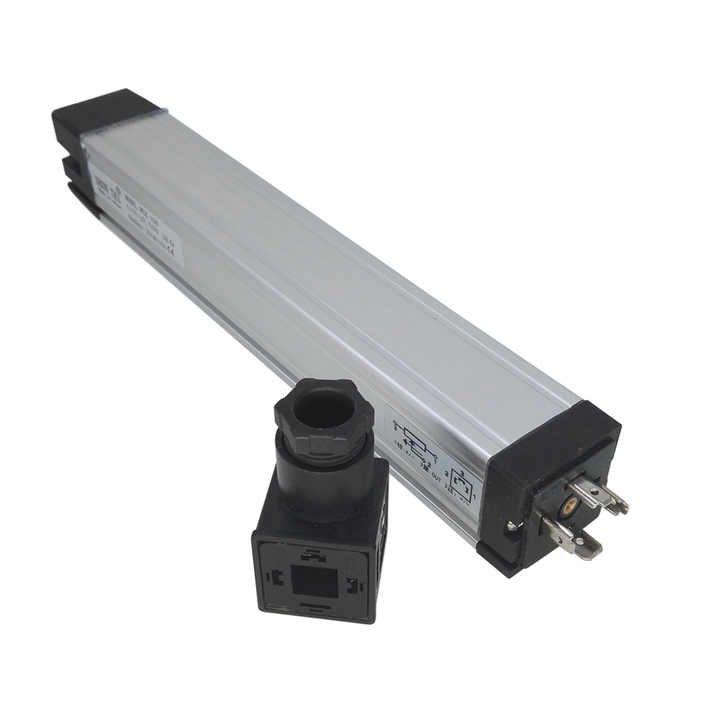

Mini Linear Transducer displacement position sensor KTC-115mm DC 5v Voltage output Sensor
About Voltage and output.
1. If supply Voltage is 5v, the output is 0-5V. 10V, 12V, 24V supply Voltage as same as this.
2. If supply Voltage is 12-24V, and you need the output is 0-5V, 0-10V or 4-20mA, you need extra transmitter moduel.
Default 1 type, If any other needs, Please leave us message for what you want.

Application
injection molding machine, die-casting machine, bottle blowing machine, shoe machine (front, rear, EVA injection molding machine), woodworking machinery, printing machinery, packaging machinery, paper machinery, manipulator, aircraft rudder, ship steering, IT equipment and other automation control fields.
Detailed Images
Related Products
Packing & Delivery
Our Company

Shanghai Qiyi Electrical & Mechanical Equipment Co., Ltd. is a professional rotary encoder supplier, located in Chinese business and port center, Shanghai. CALT brand product ranges: Optical incremental rotary encoder, single-turn and multi-turn absolute encoder, draw-wire position sensor and couplings, and other instruments, which widely used in CNC machinery, textile machinery, steel rolling machinery, linear guide system, hydraulic system, lifting machinery and servo motor, all get a very good reputation! Qiyi company has got independent import and export qualification in 2013, CALT brand products have been exported to Southeast Asia, Europe, America and Russia and other countries and regions in the world.
