Mini Wood Router China CNC Machine 3040Z-DQ 3 Axis 230W Spindle With Ballscrew
Outstanding features for this Mini Wood Router CNC 3040Z-DQ 3 Axis
USB Interface
1. BAll Screw
2. 3 Axis can be updated into 4 axis, no need to replace controller box.
3. 230W DC spindle
4. Limited switch added
5. Auto checking function added
6. Easy operate
7. High performance low cost
8. Technical support always avaible, vedio supported.
9. Softwarere: Mach3 or USB CNC software
10. CE approved
11. Can be connected with computer and notebook by USB interface
This Mini Wood Router CNC 3040Z-DQ 3 Axis can be widely used as below
Widely used in Industry,Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes, Building Model Making, PCB, Adverstising Signs, Artwork,Crafts, Aircraft Models, RC Model parts, etc.
Can engrave wood,MDF board, native wood, PVC, Acrylic,
Technical detailes for this Mini Wood Router CNC 3040Z-DQ 3 Axis
| Effective working travel | 370(X)mm*280(Y)mm*55(Z)mm |
| Shape dimension | 625*510*410mm |
| Table size | 520*320 |
| Frame materials | aluminum alloy 6063 and 6061 |
| Driving units X/Y/Z axis | 1204 Ball Screw |
| Sliding units X axis | Dia.16mm chrome plate shafts |
| Sliding units Y axis | Dia.20mm chrome plate shafts |
| Sliding units Z axis | Dia.13mm chrome plate shafts |
| Stepping motor type | 57 two-phase 2.5A |
| Spindle motor | Brand new 500w dc motor 1000~8000PRM/Min |
| Principal axis collet | ER11/3.175 mm |
| Repeat accuracy | 0.05mm |
| Spindle precision | radial beat acuities 0.03 mm |
| Carving Instructions | G code, or any MACH3 support format file |
| Software environment | Windows xp/ Windows 7 |
| Maximum speed | 0-3500mm/min |
| Carving speed | 300-2500mm/min (different materials differ) |
| Computer connection | On board parallel port and USB port |
| Acceptable software | Mach3, USB CNC, EMC2 |
| Protection | Emergency stop button |
| Operating Voltage | AC220V/110v |
| The 4th axis | |
| Size | 54*59*73mm |
| Top diameter | 15mm |
| Centre-height | 50mm |
| Clamping diameter | 40mm finger tight fitting |
| Reduction tatio | 1:03 |
| Error Range | 0.1 |

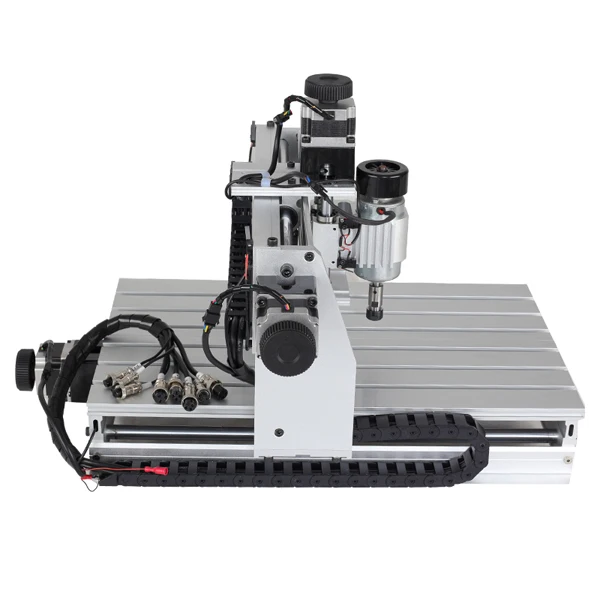

More pictures for this Mini Wood Router CNC 3040Z-DQ 3 Axis
Limit Switches and Tool Auto Checking Instrument

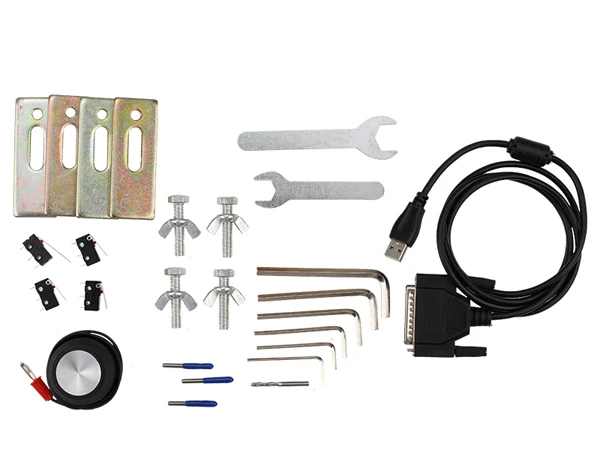

Packing list for this Mini Wood Router CNC 3040Z-DQ 3 Axis
1 Engraving machine
1 Controller box with invertor installed in it
1 230w air cooling spindle
1 USB cable
1 Parallel cable
1 Power cable
4 Engraving bit
4 Limited switch
1 Auto-checking tool
1 set of clamp tool
Packing : Standard 7-layer corrugated carton box with protective foam
MOQ : 1 Sample welcomed, it will be a nice try.
Shipping : By express DHL, UPS, EMS, Fedex and Sea.
Software: If use parallel port, use Mach3 software
If use USB port, use USB CNC software.
User Manual : English user manual will send with the machine
Vedio : Vedio Supported in Pre-sales and After-sales service
