Mini enclosed Electrics Fiber laser marking machine

  • 1 Sets
    $3,800.00
  • >=2 Sets
    $3,600.00
Model Number:
fiber laser marking machine
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
After-sales Service Provided:
Online support, Field maintenance and repair service, Video technical support
Laser Type:
Fiber Laser
Power(W):
10W/20W/30W
Working Accuracy:
±0.001mm
Graphic Format Supported:
AI, BMP, DST, DXF, PLT, JPG GIF TIF Etc
Application:
Laser Marking
Condition:
New
CNC or Not:
Yes
Cooling Mode:
Air Cooling
Control Software:
EZCAD
Place of Origin:
Shandong, China
Brand Name:
Lansen
Certification:
CE, ISO, FDA
Warranty:
2 Years
Name:
Electrics Fiber laser marking machine
Laser power:
20W/30W/50W
Minimum Line Width:
0.02mm
Minimum Character:
0.15mm
Laser Wavelength:
1064nm
Divergence:
0.3mard
Q-frequency:
20KHz~30KHz
Marking Range:
112*112
Beam Quality:
M2:1.2~1.8
Laser source:
IPG Raycus Max

Packaging & Delivery

Selling Units:
Single item
Single package size:
87X77X45 cm
Single gross weight:
68.0 kg
Package Type:
CE Standard Plywood Package
Picture Example:
package-img
Lead Time :
Quantity(Set) 1 - 30 >30
Est. Time(days) 7 To be negotiated
Product Description

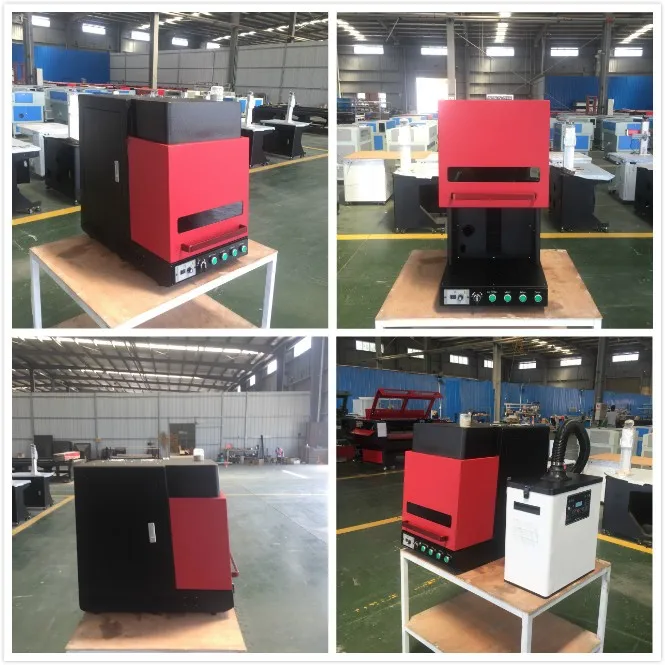

Mini enclosed Electrics Fiber laser marking machine

Machine color can be custimized
Model
Mini enclosed Fiber laser marking machine with Air purifier
Laser Power
10w
20w
30w
50w
Laser Wavelength
1064nm
Q-frequency
20KHz~30KHz
Divergence
0.3mard
Marking Range
112*112mm
Minimum Line Width
0.02mm
Minimum Character
0.15mm
Marking Depth
0 ~0.5mm
Engraving Line Speed
<=7000mm/s
Repeatability Accuracy
0.001mm
Beam Quality
M2:1.2~1.8
Marking Format
Graphics, Text, Bar Codes, Two-dimensional Code, Automatically
Marking the Date,Batchnumber,Serialnumber,Frequency,etc.
Graphic Format Supported
BMP,IPG,GIF,TGA,PNG,TIF,AI,DXF,DST,PLT,etc
Working Voltage
220V+-10%/50Hz/4A
Unit Power
<0.5kw
Use of the Environment
Clean and Dust Free or Dust less
Working Condition:Humidity
5%-75%,Free of Condensed Water
Laser Module Life
>100000 hours

Application materials:

1.Many type of metals: Gold,Silver,Stainless Steel,Copper,Aluminum,chrome Brass,etc

2.Alloy and metal oxides: Anodized Aluminum

3.Some non-metallic materials & Special surface treatment:silicon wafer, Poly urethane, ceramics, plastic, rubber, epoxy resin, PVC, PC, ABS, Coating film etc.




Samples

High frequency fiber q-switch marking machine samples

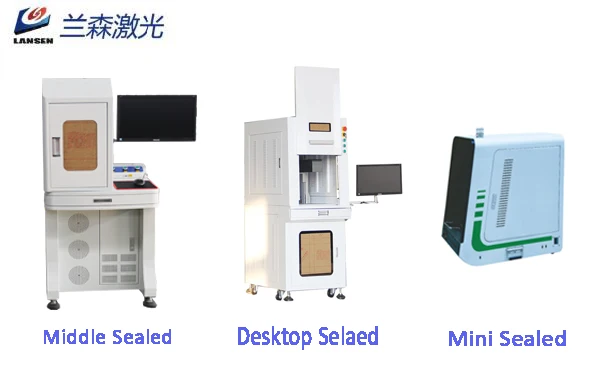

Machine Model
About us
Packing & Delivery
FAQ and Contact

Q: How can I choose suitable machine?
A: Please communicate with us via inquiry or email, we can guide you. Please kindly tell us:
1) .What work table size you will need?
2).What work you will do?

Q: What's your payment terms? Delivery time and MOQ?
A: We accpet T/T(bank transfer), L/C, Paypal, Western union etc. Usually we need 30% as deposit, balance paid before shipment.
Delivery Time: 3-5 days after payment
MOQ: 1set

Q: If I bought a machine, how could you make it safe while shipping.
A: We have a professtional package suitable for oversea transpotation. Machine will be fixed well in the case.

Q: What's your quality control system?
A: All machines will be tested after finished. We have QC department response for this job. And we already got CE approved.

Q: If I don't know how to use the machine, can you teach me?
A: 1) There is a DVD disc including machine user manual and software user manual c/w machine.
2) Online (skype & phone)
3) Remote desktop software (Teamviewer)
4) Demo Video
