Motorcycle and bike and three wheel tyre spring turn up building shaping machine STB type

FOB Reference Price:Get Latest Price
US $12,000-13,500 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
15 Set/Sets per Month
Port:
Qingdao port
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Shandong, China (Mainland)
Brand Name:
awi
Model Number:
STB
Voltage:
220V/380V
Power(W):
3KW
Dimension(L*W*H):
2300L*2200W*2050H
Weight:
3000KG
Certification:
ISO9001:2008
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Size of tire:
8''-18''
Cord fabric roll diameter:
400mm
Inner cloth roll diameter:
300mm
Revolution of drum:
35-120r/min
Main drive motor:
2.2kw
Under stitcher:
0.75kw
Ply servicer motor:
1/2HP*4P*1/20/each ply
Compressed air:
5-7kg/cm2
Overall dimension:
2300L*2200W*2050H
Building speed:
400-500pcs
Packaging & Delivery
Packaging Details
In standard wooden case and plastic film from dumproof.Suitble for long time sea delivery.
Delivery Time
Shipped in 30 days after payment
Product Description

Product Application

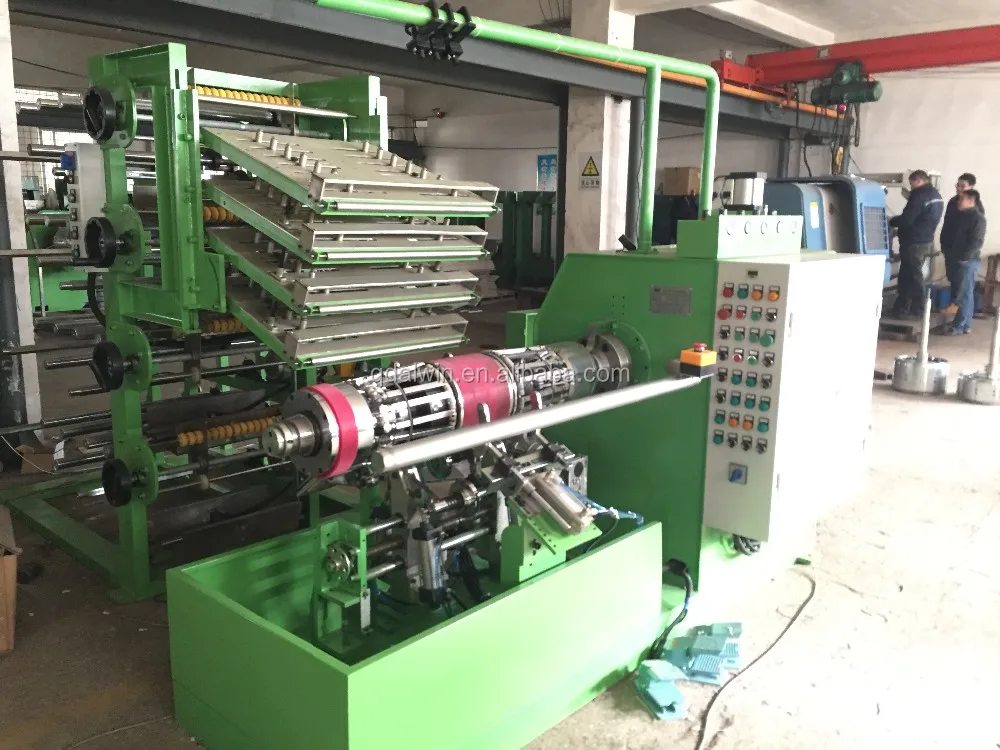

This machine is mainly used to build motorcycle tyres. It is mainly applicable to build common tyres and motorcycle tyres without inner tubes. This machine is a combination of sticking fabric cord, assembling steel wire ring, turning up the fabric cord and sticking the tread. It is a kind of supermatic tyre building machine. It is characterized by easy operation and good tyre carcase shaping quality.

Specification of tyre
Tyre
Cord fabric
8”-18”
Max. diameter of cord fabric roll (mm)
400
Max. diameter of inner cloth roll (mm)
300
Revolving speed of shaping drum (r/min)
35-120
Main drive motor power (kw)
2.2
Roller motor power (kw)
0.75
Ply servicer motor
1/2HPx4Px1/20/each ply
Pressure of compressed air (kg/cm2)
5-7
Overall dim. (LxWxH) (mm)
2300x2200x2050
Building speed
2PLY building 500pcs/8hrs

Main Features

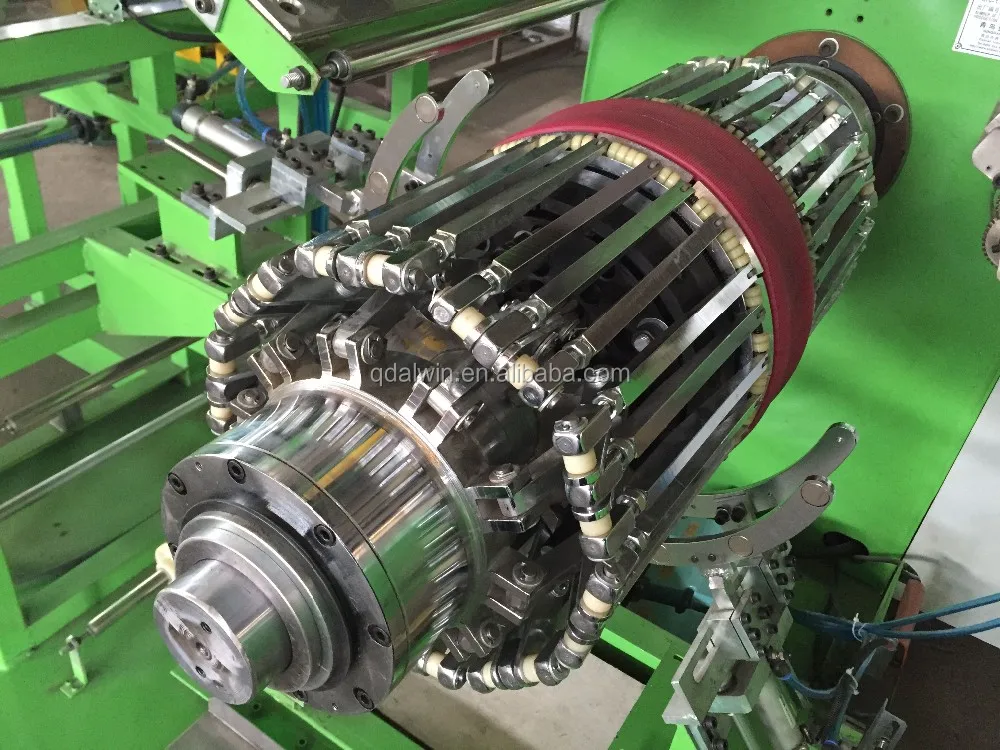

1.Shaping Drum

     Shaping drum adopts flat drum expansion and spring ball reversed pack, which can expand and shrink automatically. The expansion and shrinkage of the drum is fulfilled by the conical cylinder’s reciprocating axially. The range of the diameter of expanding and shrinking drum can be adjusted according to the max. size and the min. size of tyres so that it can be in accordance with the size of the steel wire ring of different tyres. The width of the drum is adjustable too so that it can be consistent with different tread’s width. The outer ring of the drum is covered by a rubber ring which adapts the expansion and shrinkage of the drum.
     The move of the right and left reversed pack cylinders push the finger type reversed pack device moved forward which finishes packing the left and right edges of the drum.
     When the width of the shaping drum needs to be changed, the place of the drum tile can be widen and shorten to proper size, and adjust the reversed pack device to proper position at the same time.
2.Spindle Drive System
The spindle axis is made up of 22319 spherical roller bearing and UCFC217 spherical bearing with a convex circular seat top wire outside. The spindle axis connects the main motor on the right side. The main motor is equipped with a gear reducer to fulfill frequency control, and belt drive. Both of them ensure the main motor operates smoothly with low noise.
3.Steel Wire Positioning Device
There is a set of steel wire positioning device in front and back of the shaping drum. There is a magnet in the two sides’ steel wire positioning rings which is used to absorb and position the steel wire. The axial size of the steel wire is adjustable to meet the shaping of treads with different widths. Different sizes of drums use different steel wire positioning rings.
4.Lower Pressing Wheel Device
There is a set of pressing device below the drum which is used to press the fabric cord and the tread. This device is equipped with two sets of pressing wheels. The turbine reducer drives the right and left spiral direction of screw by the chain wheel. When pressing the tread, the pressing wheel moves from middle to both sides and the drum twirls counter clockwise at the same time. The position of pressing wheel can be adjustable by limit switch according to different shaping widths.
5.Cord Fabric Servicer Shelf
The frame of the servicer is made up of section steel with good integral structure. The size of nylon batching scroll is 31x31mm which is equipped with brake wheel. The size of placemat scroll is 31x31mm, which is controlled by driving the right limit switch of the cloth storage device by the turbine reducer. This switch is used to control the start and stop of the main motor. The cloth storage quantity depends on the maximum quantity of fabric cord needed in the process of building of the drum. There is a row of guiding rollers and a set of fabric cord guide apparatus. The right and left rotary screws drive the fabric cord guide apparatus which can be adjustable according to the width of the fabric cord to align the center of the fabric cord with that of the shaping drum. There is a cord adjusting device in front of the cord frame of the servicer used to adjust and align the center of the cord.


Certifications
Detailed Images

Machine Parts

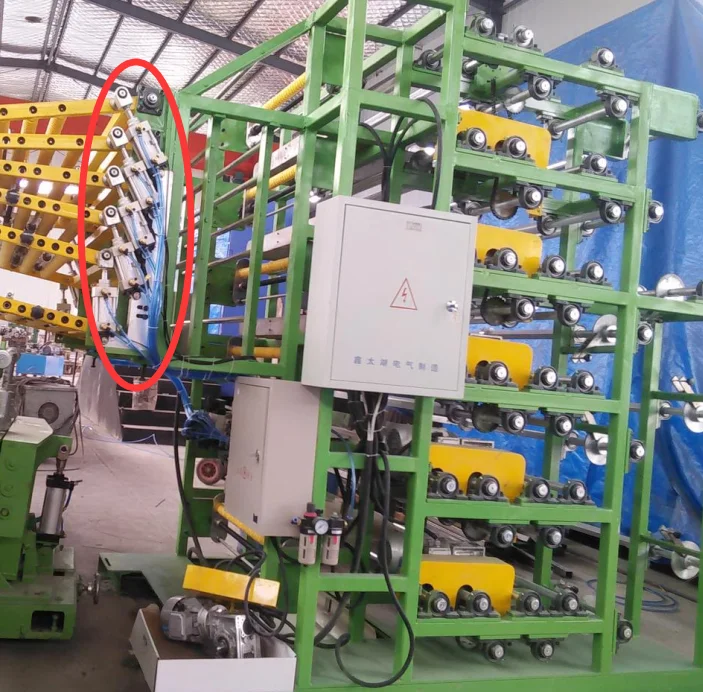

Name: AIR Cylinder

Brand: FESTO AIRTAC

Original: Germany  TAIWAN

Domestic famous engines, strong driving force, low fuel consumption, high economic benefits 12F+4R sliding sleeve shift.

Main Features

Name: PLC
Brand: MITSUBISHI
Original: JAPAN
For better PLC system control.

Machine Parts

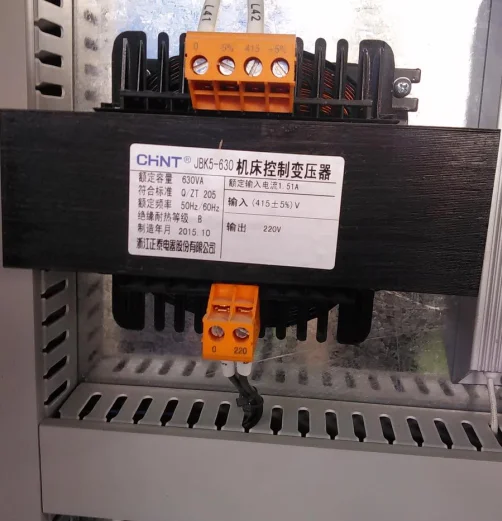

Name: Transformer
Brand: CHNT
Original: China
Change the voltage.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory and our customer's factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

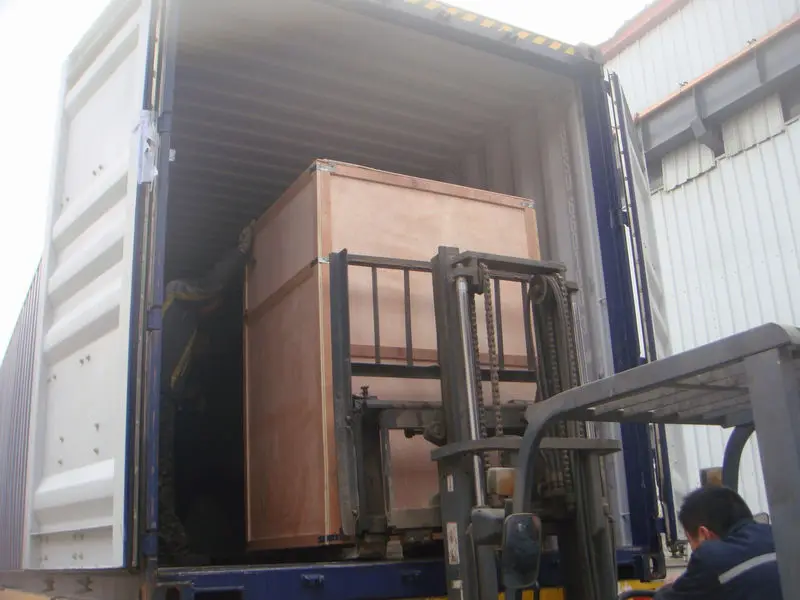

Packing & Delivery

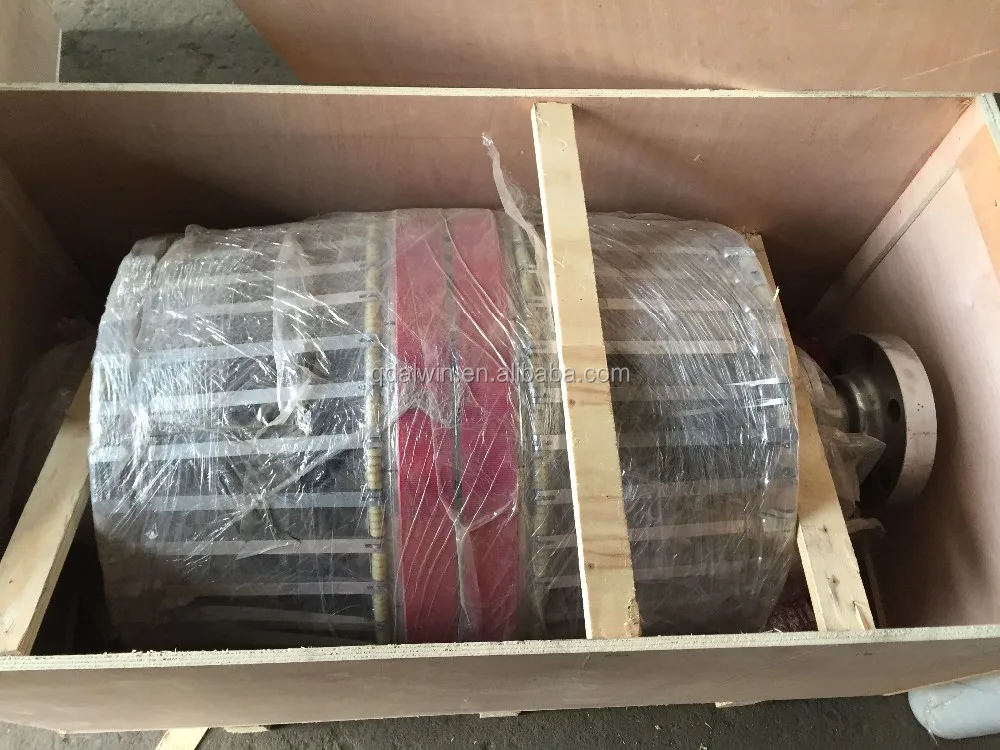

Packaging
Size
2300 (L) * 2200(W) * 2050 (H)mm
Weight
2.8T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
