Multi high pressure comparator calibration

FOB Reference Price:Get Latest Price
$1,100.20 - $2,000.00 / Pieces | 1 Piece/Pieces Multi high pressure comparator calibration (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shaanxi, China (Mainland)
Brand Name:
Yunyi
Model Number:
YK-201C
Item:
Multi high pressure comparator calibration
Pressure range:
-0.1~0~100MPa
Function:
calibration pressure transmitter or gauge
Accuracy:
0.1 , 0.05
Display:
4.7 inch large LCD screen display
Power supply:
Battery-powered oradapter power supply
Size:
180*150*320
Work Condition:
On site or laboratory
Weight:
7KG
Delivery time:
7 days
Supply Ability
Supply Ability:
80 Piece/Pieces per Week Multi high pressure comparator calibration
Packaging & Delivery
Packaging Details
Multi high pressure comparator calibration
Antistatic plastic bags and Corrugated box.
Other package mode also can be customized.
Port
any port of China
Lead Time :
7days
Pressure Calibrator
Product Description

Description of Multi high pressure comparator calibration

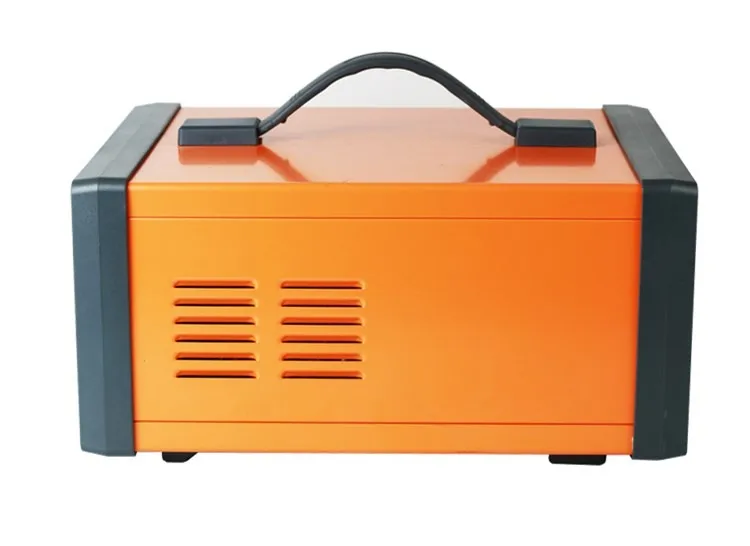

YK-201C desktop digital pressure comparator with host and pressure module separation, this pressure calibrator is easy to operate,One digital table can be configured any number of intelligent modules from negative to positive pressure. The pressure comparator calibration is mainly used for calibration pressure (differential pressure) transmitter, precision Pressure gauges, general pressure gauges, blood pressure monitors and other pressure instruments and meters, and precision pressure measurement.
Detailed Images
Specification
Item
Multi high pressure comparator calibration
Pressure range
-0.1 ~ 0 ~ 100MPa (range optional) (absolute/

gauge/differential pressure optional)
Accuracy
0.1 , 0.05
Power supply
dual power supply, internal battery-powered or special adapter power supply, with a dedicated fast charger
Display
4.7 inch large LCD screen display, more intuitive (iPhone 6 screen size)
Key mode
touch screen button
Modules Numbers
Up to 36 pressure modules can be connected
Size
180 * 150 * 320 (L * W * D)
Weight
8kg/set
Model
Parameter
Model
Parameter
Module YKM01
-100~0kP
Module YKM15
0~1.6MP
Module YKM02
0~2kPa
Module YKM16
0~2MPa
Module YKM03
0~5kPa
Module YKM17
0~2.5MPa
Module YKM04
0~10kPa
Module YKM18
0~4MPa
Module YKM05
0~20kPa
Module YKM19
0~6MPa
Module YKM06
0~25kPa
Module YKM20
0~10MPa
Module YKM07
0~40kPa
Module YKM21
0~16MPa
Module YKM08
0~60kPa
Module YKM22
0~20MPa
Module YKM09
0~100kPa
Module YKM23
0~25MPa
Module YKM10
0~160kPa
Module YKM24
0~30MPa
Module YKM11
0~250kPa
Module YKM25
0~40MP
Module YKM12
0~400kPa
Module YKM26
0~60MP
Module YKM13
0~600kPa
Module YKM27
0~80MP
Module YKM14
0~1MPa
Module YKM28
0~100MPa
Panel Display

pressure comparator calibration Panel

Zero: The clear key
Units: Rotate between KPA MPA PSI BARs
Settings: can set the data acquisition frequency and other communication parameters.
On/off key (1): On OFF
Air plug (2): plug pressure module
Display: Dynamic 5-bit display

Digital pressure comparator Packing list

1 .host x1
2. lines x2
3. Pressure module number (according to customer requirements)
4. Power adapter x1

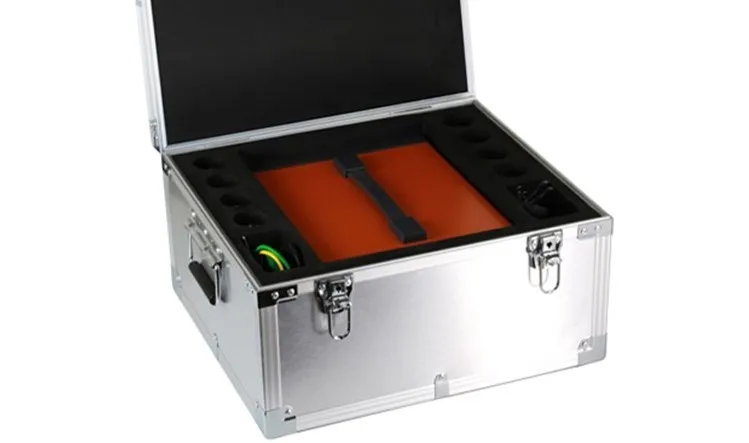

5. Aluminum alloy instrument box x1
