Multifunctional vehicle car truck gps tracker with Fuel sensor rfid reader microphone speaker camera etc.

Feedback Ratings
  • 50-99 Sets
    $35.00
  • 100-499 Sets
    $32.00
  • >=500 Sets
    $28.00
Screen Size:
105(L)*85(W)*27(H) mm
Color:
Silver
Memory Capacity:
1M
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
3 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Type:
Gps Tracker
Use:
Automotive
Function:
Tracking, locating & monitoring
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
KESON
Model Number:
KS668
Warranty:
12 Months
work current:
< 30mA
GPS chip:
GT1612
Color:
Silvery
Weight:
200g
Network:
GSM/GPRS/GPS
GSM/GPRS Module:
SIM900 or SIM900A
Material:
Aluminium
Work Voltage:
DC 9V-36V
Band:
900/1800MHz or 850/900/1800/1900MHz
Battery:
Chargeable changeable 3.7V / 1.2A 500mAh Li-ion bettery

Packaging & Delivery

Selling Units:
Single item
Single package size:
20X14X5 cm
Single gross weight:
0.65 kg
Package Type:
Neutral package
Lead Time :
Quantity(Set) 1 - 2 >2
Est. Time(days) 3 To be negotiated

 Multifunctional vehicle car truck gps tracker with Fuel sensor rfid reader microphone speaker camera etc.



Product Description







Application



1. Vehicle Rental/Special Tracking System

2. Finance and Insurance Business Tracking System

3. Car Commanding and Dispatching System

4. Heavy Construction Vehicles Tracking Device

5. Shipping Cargoes Tracking



Main functions

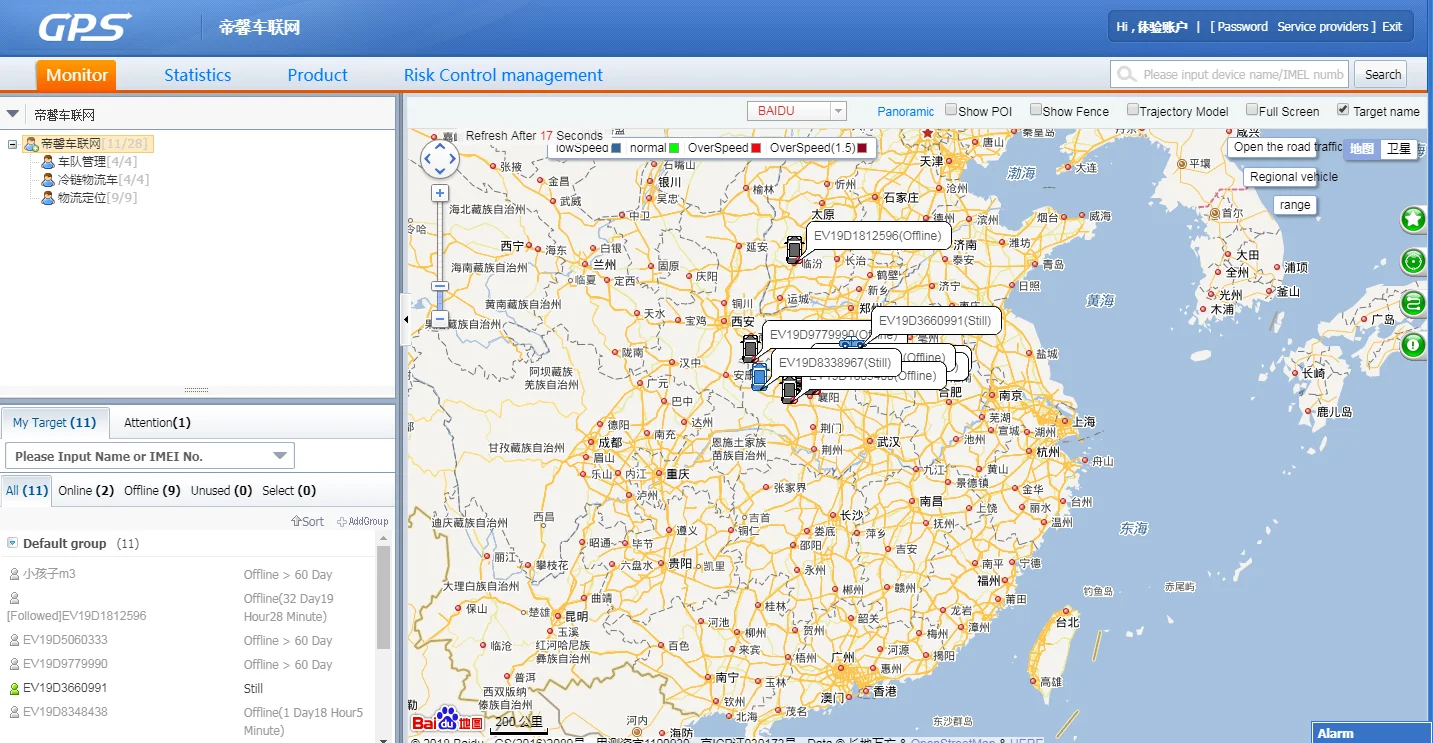

1. Positioning and Tracking: Through the on-line Positioning Platform or the cell phone to locates at times, and get the working status. You can choose the Positioning Platform by yourself.
2. Triggering Emergency Alarm: When there is a emergency happened on the vehicle, you can put on the button and the installed unit will send out alarm to the authorized numbers.

3. Remote controlling oil and circuit: you can control the oil and circuit via the unit by SMS in anywhere and anytime.

4. Remote Monitoring: In anywhere and anytime, call the phone number in the unit, when it connects, you can monitor the sound around 5 meter.
5. Movement Alert: Send SMS to the unit to start the movement alert function. When the vehicle is moving, the unit will send the movement alert to all authorized numbers.

6. Overspeed Alert: Send SMS to the unit to start the movement alert function. When the vehicle is overspeed, the unit will send the overspeed alert to all authorized numbers.

7. Geo-fence: Set up a geo-fence for the unit to restrict its movements within a district. The unit will send the message to all authorized numbers when it breaches the district.

8. Restart the unit: send SMS to resume the default of unit.

9. Auto Track: You can set up auto track by SMS or on-line positioning platform.

10. Mileage statistics; ACC checking; cutting off power and alarm.





Support OEM







Modify the IP and Port of Communication Protocol for different on-line positioning platform



Specs.

Content

Specs.

Dim.

105(L)*85(W)*27(H) mm

Weight

200g

Network

GSM/GPRS/GPS

Band

900/1800MHz or 850/900/1800/1900MHz

GPS chip

GT1612

GSM/GPRS Module

SIM900 or SIM900A

GPS sensitivity

-159dBm

GPS accuracy

5 m

Time To First Fix

Reacquisition  0.1s

 Cold status  45s

Warm status  35s

 Hot status  1s

Work Voltage

DC  9V-36V

Battery

Chargeable changeable 3.7V / 1.2Ah Li-ion 500mAh battery

Standby work current

< 30mA

Storage Temp.

-40°C to +85°C

Operation Temp.

-20°C to +70°C

Humidity

5%--95% non-condensing






Packaging & Shipping



 Standard Packaging

1> Host

2>GPS Antenna

3>GSM Antenna

4>Power Line

5>Trigger Alarm Line

6>Microphone

7>Memory

8>SIM Card Slot

9>Tape

10>User Manual

11>Packaging Box



Optional: relay (12V or 24V)









Company Information








FAQ





Q1, How many minutes is the update frequency?



It is up to you, for me, roughly once a day is enough. P.S. update frequently like update every 30 seconds, continued use of GPS running in the background can dramatically decrease battery life. Just choose a best time gap you need.



Q2, I purchased this item and. Charged and set everything up properly a d it’s not working what do I do now ? It’s not working





On the KS668 device (same manufacturer), when you start it for the first time, you have to move it around a bit so the motion can be detected. Then it will show up on the map. I just walked outside and put it in the car about 50ft. away. It sorta goes into "sleep" mode after a long period without motion. Upon "waking" it will show the last point detected, then as it moves, it will go to its current location. You can adjust this in the settings. I hope this helps.



Q3, How to use it?



1): Insert a SIM card ( 2G GSM 850 / 900/1800/1900MHz with sufficient fund) in the GPS tracker.Switch the battery button to ON outdoors.(when the blue light are stay on , you can do setting by step as below:)
2): Set admin number,APN and open GPRS to active device.
     Step1. admin123456+space+your phone number
     Step2. apn123456+ space+local apn content
     Step3. position  ( You'll received a message with coordinates, time, date.)
     Step4. google(You'll get a message with google link.)
