Mypin Intelligent programmable RELAY output temperature controller ,temperature indicator, process controller(TA4-RNR)

Feedback Ratings
  • 10-99 Pieces
    $20.00
  • >=100 Pieces
    $19.00
Usage:
Indoor
Theory:
Temperature Controller
Accuracy:
0.3%F.S
Temperature range:
-1999~9999
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Mypin
Model Number:
TA4-RNR
Dimension:
48*48*80mm
Power supply:
85-265V AC/DC
warranty:
18 months
temperature process controller:
temperature process controller

Packaging & Delivery

Selling Units:
Single item
Single package size:
54X54X86 cm
Single gross weight:
0.2 kg
Package Type:
Each packed in plastic bag, then packed in one box
Picture Example:
package-img
Lead Time :
Quantity(Piece) 1 - 100 >100
Est. Time(days) 7 To be negotiated

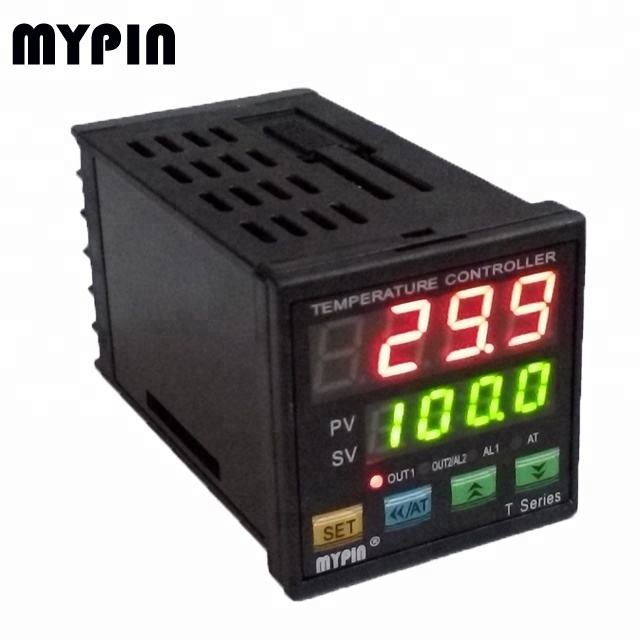

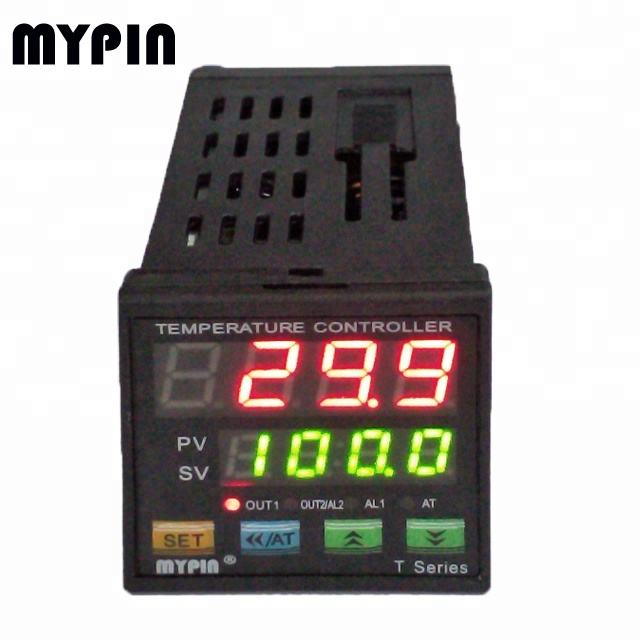

Mypin Intelligent programmable  RELAY output temperature controller ,temperature indicator, process controller(TA4-RNR)



This is a bid for a dual display universal digital programmable temperature controller that

supports many type of thermocouple sensor. It can be powered by 85-265V AC/DC,

Comsumption: 5VA. DIN 1/16.

3 build-in Auto-Tuning Time proportion PID Algorithms to choose for different

applications or environments to be controlled. (for variety of industries or home projects

heating or cooling applications.)






Product Description





1, Features



Compact desig;:DIN 1/16, great form-factor to be included/build-in to your product.

One key operation, Auto-tuning PID control.Easy operation,Reliable performance

24V/30mA supply available for standard transmitter)

P, I, d, controlling period, digital filter coefficient, and more… (for control theory experts only)



Relay ouput controll over your equipment directly



2, Specifications



Model no.:TA4-SNR

Dimensions: 48W×48H×80L mm

Input Signal:TC(K,J,E,S)/PT100

Main output: RELAY,
1 no.s of relay output----for control alarm

Power supply:85-265V AC/DC

Weight: about 150g



3, Technical Parameters





Display: Dual display for Fahrenheit(F) and Celsius(C)



Range: -1999 to 9999 (depends on the input signal)



Input: Thermo Resistor: PT100



          Thermocouple: J,S,K,E,



Main output: RELAY, capacity 250V/5A AC, 30V/5A DC

Auto-tuning PID cooling/heating control( can choose normal alarm output by software)



Alarm Output: 1 no.s of RELAY: capacity 250V/5A AC, 30V/5A DC



7 different Dual Output modes with: high / low / high deviation / low deviation/ interval / out of interval /breakage alarm



Accuracy: 0.3%



Width switch power: 85-265V AC/DC



Dedicate size: DIN: 1/16 (48WX48HX80Lmm)



Weight: about 150g



4, Functions for choice



Size: TA6(48W*96H*80Lmm),  TA7(72W*72H*80Lmm)

        TA8(96W*48H*80Lmm),   TA9(96W*96H*80Lmm)

        TA10(160W*80H*100Lmm)

Other main output:SSR/SCR/ 0-10V / 4-20mA

Input signal: 0-10V / 4-20mA/PT100  or 0-10V / 4-20mA/0-75mV

Control output: SSR/RELAY/0-10V DC/ 4-20mA

Power supply: 12V DC or 18~30V DC





5, Diagram---TA4-RNR

(subject to that in the real item)







6,More choices









Packaging & Shipping

1.The complement packing contains 1 meter, 1 manual and 1 pair of brackets.

2.Items are usually shipped within 3 to 15 business days after payment has been received, which according to the quantities.

3.Shipment is by Sea, Freight or Courier(DHL/FEDEX/TNT/UPS/EMS/CHINA POST MAIL) as per clients request.






Our Services
  • We provide 18 months warranty for all Mypin products.
  • OEM / ODM service available to meet up to client's requirements
  • Any questions, please mail or call us any time






Company Information





Main product:Panel Meter

                     Counter

                     Weighing indicator

                     Temperature/Humidity Controller

                     Current/Voltage/Power meter,various sensor indicator

                     Frequency / Tacho / Batch / Length /Linespeed Meter

                     Flow / Level /Pressure Controller

                     Proximity/ Photoelectrical Switch

                     Timer,Timer Relay

                     Sensor Controller

                     Signal adjustor

  They are widely used in industrial control and measurement field, such as machinery, electrical cabinet, power sub-station, industrial automation, etc.



  Additonally,OEM service,Design service offer, Buyer laber offer.
