NBDT-1800 Industrial Online Multi-parameter Water Quality Analyzer On-line water quality detection system

Feedback Ratings
  • 1-4 Sets
    $3,332.00
    $4,760.00
  • 5-9 Sets
    $2,485.00
    $3,550.00
  • >=10 Sets
    $1,330.00
    $1,900.00
30% OFF Discount ends in : : :
Quantity:
- + Sets available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Contact Supplier
Samples - $4,750.00 /Set, 1 Set (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangxi, China (Mainland)
Brand Name:
nobotech
Weight:
10, 60kg
After-sales Service Provided:
Video technical support, Online support
Warranty:
1 Year
Product Name:
Multi-parameter water quality analyzer
Application:
Industry Water Treatment
Power supply:
220V 50HZ
Resolution:
-2.00~16.00PH,-1999~1999mV (ORP),0~20.00 mg/L
Dimensions:
500*1560*830mm
Measuring Range:
±0.02PH,±1mv,±0.5%FS

Packaging & Delivery

Selling Units:
Single item
Single package size:
1600X900X550 cm
Single gross weight:
15.0 kg
Package Type:
carton
Lead Time :
Quantity(Set) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Product Description

              Multi-parameter is widely used in environmental protection, waste water treatment, cultivation, food processing, printing, metallurgy, pharmacy, fermentation, chemical industry and tap water. It is designed for continuous detection of multiple parameters in liquid.

Detailed Images

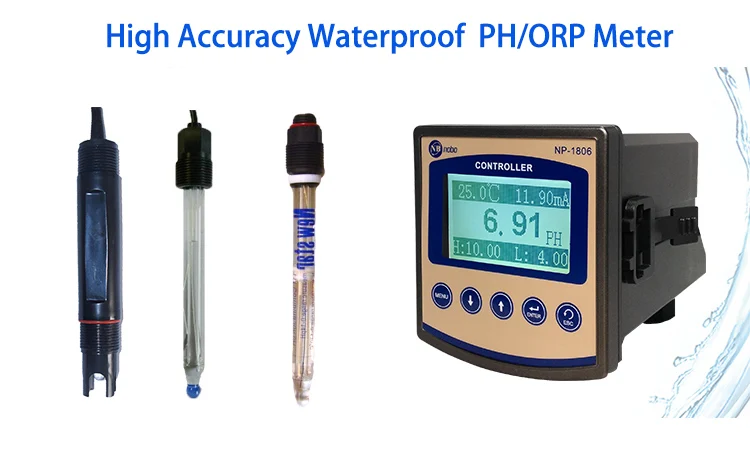

PH/ORP
◇Range of conductivity
-2.00~16.00PH,-1999~1999mV (ORP),-10~130.0℃
◇Resolution
0.01PH,1mV,0.1℃
◇Accuracy
±0.02 PH,±1mV,±0.3℃
◇Stability
≤0.01pH/24h
◇Temperature compensation function
(0~99.9℃)
DO (Dissolved Oxygen)
◇Range of DO
0 ~ 20.00 mg/L,compensation: 0~60℃
◇Resolution
0.0 1mg/L
◇Accuracy
±0.5%FS
Conductivity
◇Range of conductivity
0 ~ 20.00 mS/cm,compensation: 0~60℃
◇Resolution
0.0 01 mS/cm
◇Accuracy
±2%FS
Residual Chlorine
◇Range of residual chlorine
0 ~ 20.00 mg/L,compensation: 0~60℃
◇Resolution
0.0 1mg/L
◇Accuracy
±1%FS
Turbidity
◇Range of turbidity
Flow-through: 1-10,0-20,0-100 ,0-200NTU
◇Throw-in
0-500,0-2000 ,0~4000NTU
◇Resolution
0.01%
◇Accuracy
±1.0%FS
◇Repeatability
±1.0%
Ozone
◇Range of ozone
0 ~ 20.00 mg/L,temperature compensation: 0~60℃
◇Resolution
0.0 1mg/L
◇Accuracy
±1%FS
Suspended Solids
◇Range of suspended solids
activated sludge: 0 ~2000mg/L
◇Resolution
0.01%
◇Accuracy
±1.0%FS
◇Repeatability
±1.0%
Sludge Concentration
◇Range of sludge concentration
Activated sludge:0 ~30g/L ,Silicon dioxide: 0~30 g/L
◇Resolution
0.01%
◇Accuracy
±1.0%FS
◇Repeatability
±1.0%
Main Features
◇Multi- parameters of PH, ORP, dissolved oxygen, conductivity, salinity, residual chlorine, ozone, turbidity, suspended solids and sludge concentration will be measured at the same time. Including temperature, there are 5 parameters in all.
◇Automatic or manual temperature compensation function.
◇(Optional) Communicating function : using optoelectronic isolation technology with RS - 485 communication interface (MODBUS protocol compatible), and it can be switched to  RS-232.
◇(Optional) Data collection and processing by our company's gathering software.
◇2-way current output (4-20mA), 2-way temperature detection.
◇Automatic identify standard liquid and recoverable  factory setting.
◇Watchdog:make sure the meter does not  go dead.
◇Power off  protection>10 years.
◇Protection Grade:IP65 (waterproof, dust-proof and damp-proof).
Other Products
Our Company

           Nanning Nobo Instrument Co., Ltd. is a leading high-tech enterprise for about 10 years ,which includes design , research & development , production , sales and service . We are focus on researching and developing intelligent water quality analysis instrument .Such as , PH/ORP meter , conductivity meter , dissolved oxygen meter , residual chlorin meter , dissolved ozone meter , ion meter , turbidity meter , salinity meter , sludge concentration meter ect.
           We will apply the Internet cloud service technology and offer the solution of internet of things system .Such as , multi-parameter water quality monitoring network system , smart city , smart agriculture and so on
            If you have any request pls don't hesitate to contact us , OEM and customized are available ! We sincerely hope to cooperation with you !

Email : noboyamina @gmail.com
Mobile :+86-18776934002
Tel.:+86-0771-3812343ext 803
Web.: www.nobowisd.com     www.nobotech.com

Packing & Delivery
Product Name: Online Multi-parameter Water Quality Analyzer
Brand Name: NOBOTECH
Model Number: NBDT-1800
Place of Origin:Nanning, China
Delivery Time: 3 to 4 weeks after payment
Why Chooes US

1.Our company was established in 2009 with many years of experience make us excellence and professional.

2.We have our own factory with strong R&D center and QA team which can totally make sure the quality .

3. We have a completed after-sale service .

4. High quality! competitive price! Quick response! Excellent service experience!

FAQ

Q: How do you guarantee the quality?
A: Firstly, we have our own factory with strong R&D center and QA team which can totally make sure the quality of every single product. Secondly, we have a completed after-sale service .

Q: Is OEM available?
A: Yes, all goods can be customized according to your requirements, including packing, LOGO print, etc.

Q: Can it buy only 1 set of the meter?
A: Yes. No matter how many products you buy, we are grateful all along.

Q: How to deliver the goods for trial order or small order?
A : At customer's request ,we prefer to choose international express, such as DHL, EMS.TNT.Fedex.
