Nano touch foil multi touch foil

Feedback Ratings
  • 1-49 Pieces
    $78.00
  • >=50 Pieces
    $73.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Customization:
Customized logo (Min. Order: 10 Pieces)
Customized packaging (Min. Order: 10 Pieces)
Contact Supplier
Samples - $80.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Products Status:
Stock, Used
Screen Size:
10.1"-32", Customized
Type:
Capacitive
Interface Type:
USB
Brand Name:
Touch Planet
Place of Origin:
Jiangsu, China (Mainland)
Product name:
Nano touch foil multi touch foil
Touch points:
12
Operating System:
Win7/Win8/Android/Linux
Interface:
USB 2.0(full-speed)
Application:
Industrial Application
Warranty:
1 Year
Certificates:
CE ISO FCC RoHS
Characteristics:
High stability, low cost
Size:
Customizing

Packaging & Delivery

Selling Units:
Single item
Single package size:
14X14X84 cm
Single gross weight:
3.0 kg
Picture Example:
package-img
Lead Time :
Quantity(Piece) 1 - 30 >30
Est. Time(days) 7 To be negotiated
Video Description
Product Description

Projected Cpapacitive Multi-Touch Foils

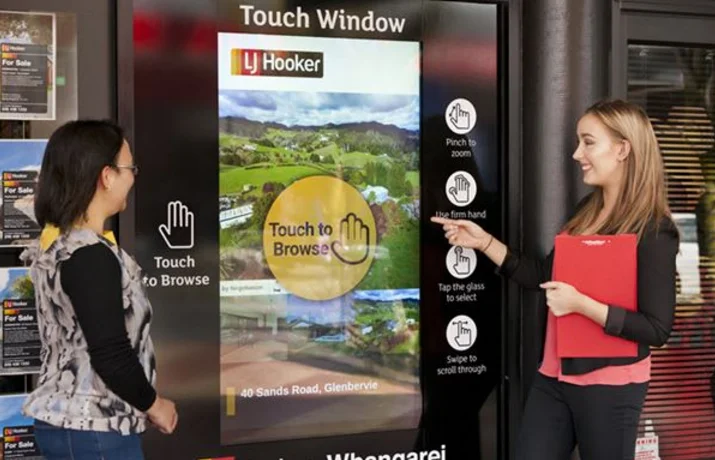

Transforms any glass/acrylic panel or store window into an interactive touch screen display. Ideal for integration within the gaming/vending industry, digital signage and table top applications

Features

*Light weight, suitable to be laminated to glass, acrylic or photographic film.
*Transparent, no frame.
*Accurate positioning
*No mechanical or pressure-sensitive elements, durable and stable
*Not sensitive to outer light, the change of light would not affect.
*Premium quality transparent multi-touch foils (up to 40 touch points)
*Simple & quick to install – removable & reusable cling liner
*Multi touch function – glass up to 12mm thick
*High resolution controller (up to 256 wire)
*1 year comprehensive warranty
*Includes full installation kit – software, controller board & cable
.

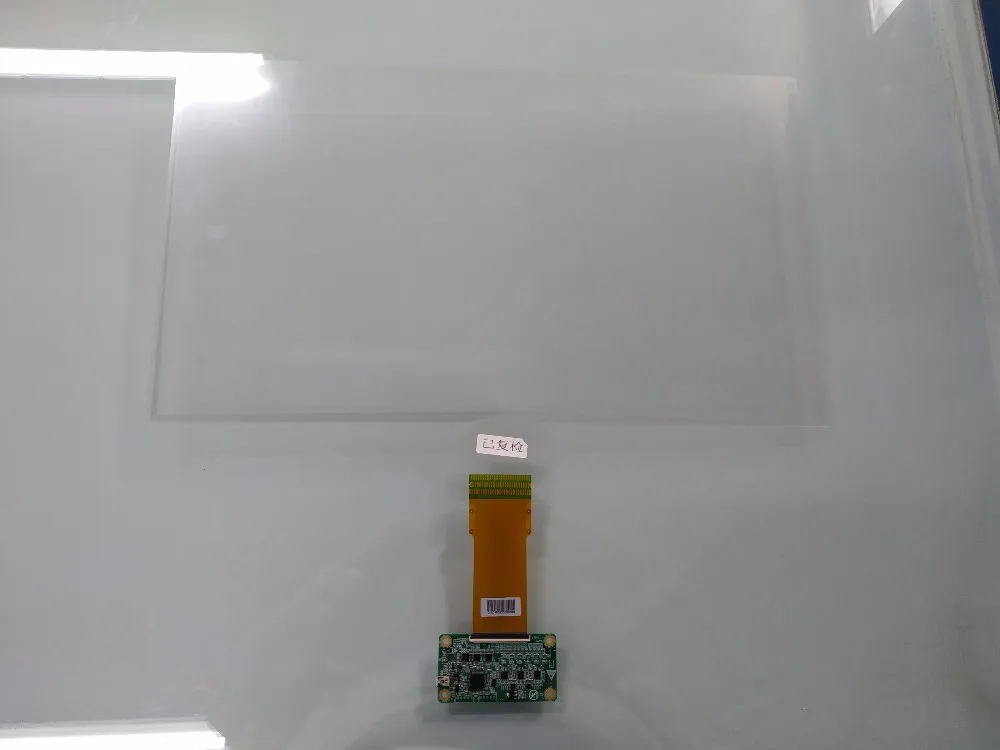

Detailed Images
Specification
Parameteres
Item

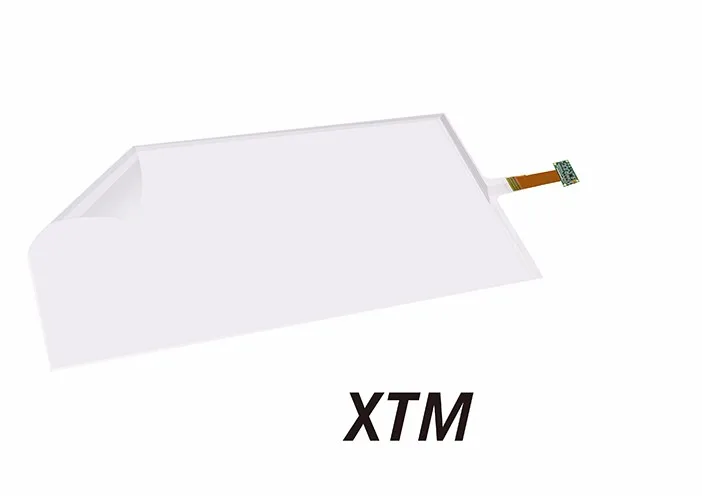

Technical specification for XT series projected capacitive touch foil
Series
XTM
XTA
XTB
XTC
Touch points
12
20
30
40
Sizes
10.1''-32''
42''~ 65''
55''-86''
86''-200''
Deviation
≤0.5mm
≤0.5mm
≤0.5mm
≤0.5mm
Sensor
TX : 24(MAX) RX : 48(MAX)
TX : 56(MAX) RX : 96(MAX)
TX80 RX142
TX136
RX240
FPS
130
120
120
Power Consumption
1W
0.5W
1.15W
Driver
No need
Windows
Win7/8/8.1/10
Andriod
Kernel3.10 or higher
Linux
Kernel3.10 or higher
Interface
USB2.0,UART
Power supply
USB(5V+/-5%DC)
Customize
Customizable
Waterproof
YES
Calibration
Software calibration
Certificates
CE,ilac-MRA,CNAS,CAL,CMA,FCC,ROHS,ISO
Packing list
touch foil*1 , controller*1 , USB line*1
Thickness
≤200um
Transmittance
>93%
Voltage
5V
Transmission
USB2.0
Transmit distance
≤50m (Add USB signal amplifier, etc.)
Safe distance

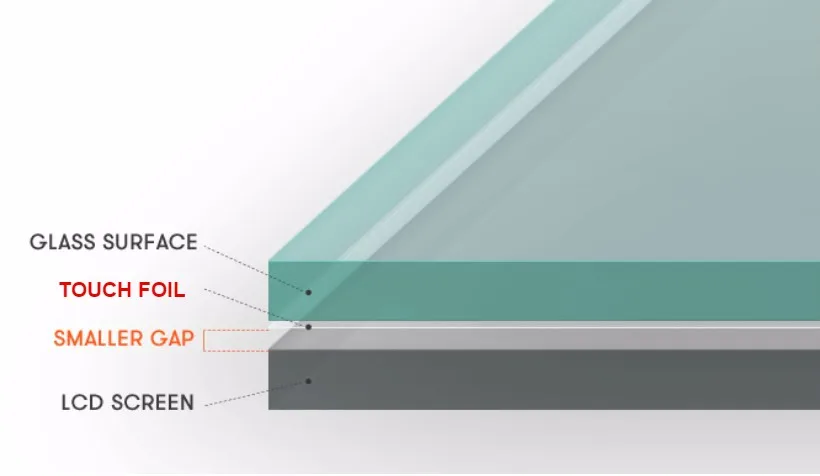

2mm(Distance beteween LCD& foil)
Operating Temperature
-20℃ ~ 70℃
Storage temperature
-20℃ ~ 80℃
Ambient lightness
Full-angle anti-glare illumination
Touch gesture
Click,Drag,Zoom,Rotate
Sensing range
≤10mm

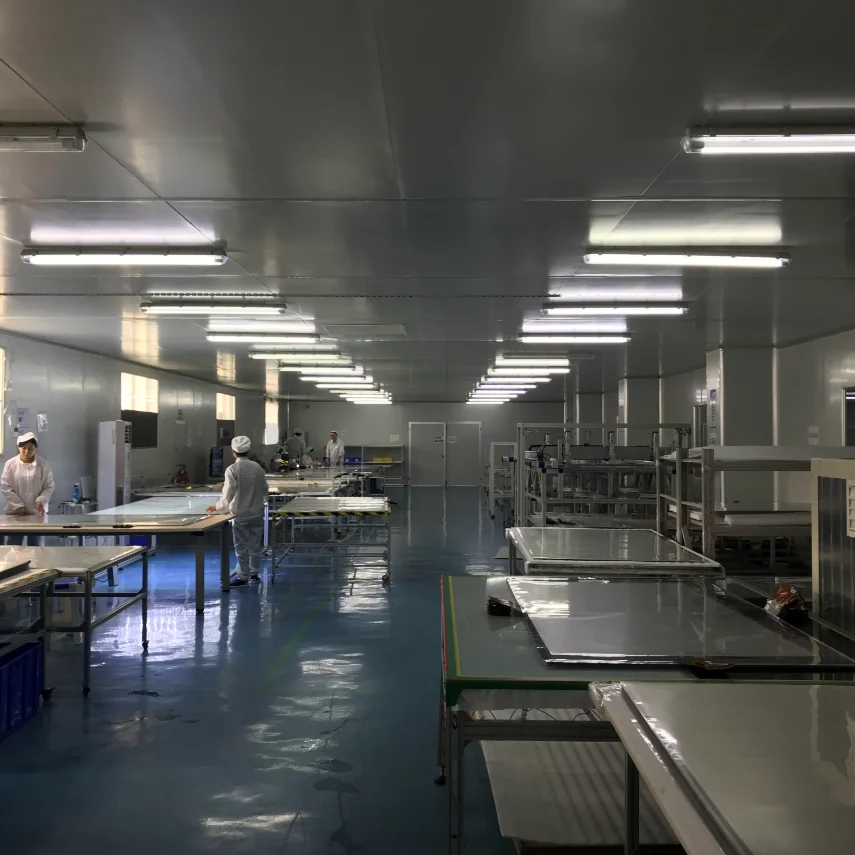

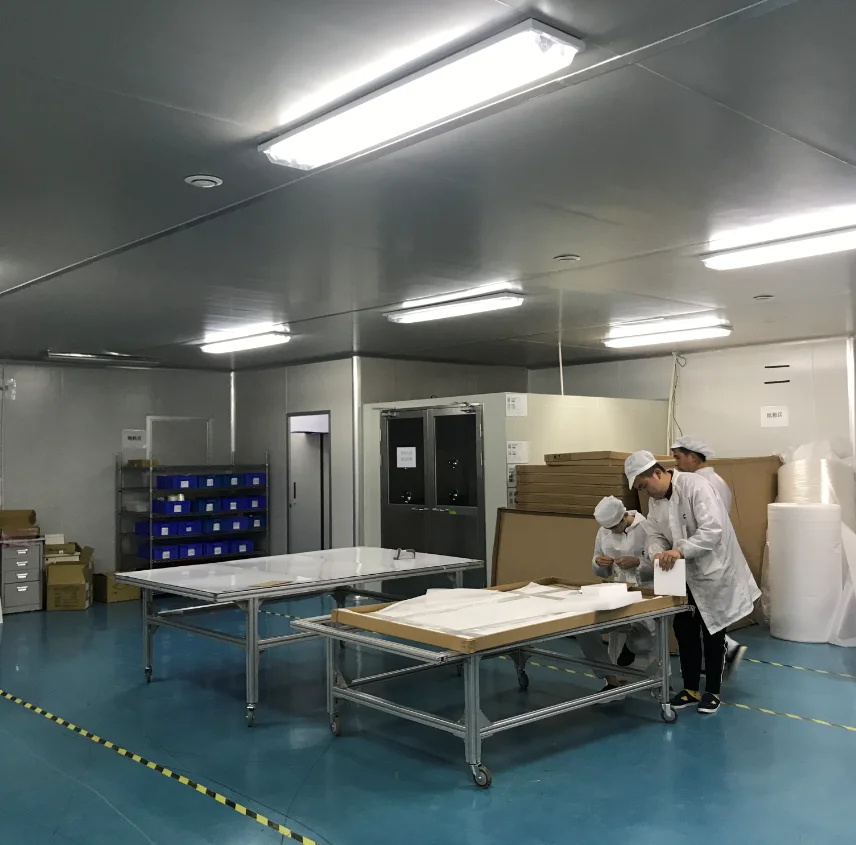

Our Company
Touch Explorer Photoelectric Co., Ltd is Wholly owned subsidiary of SuZhou TouchPlanet Techonology Co.,ltd.

What we do!?
1.Capacitive moultitouch foil.
Transforms any glass or store window into an interactive touch screen display. Ideal for integration within the gaming/vending industry, education,entertainment,meeting,digital signage and table top application.
Size:10''-180''.

2.Control circuit board.
Our independently developed controller board for all sizes of touch foils.Maximum of touch points can reach 40. With advantage of 30% higher speed than others.

Why choose us!?
We are new member of Alibaba.but we have done quite long and well in touch foil fields.
1.Self developed priting machine with high accuracy and low cost.
2.Raw material import from Japan and Germany.
3.Customise any big size as your requirement.
4.Capacity of 400sets per day.(eg.86'')
5.Easy to debug within 1 minute.
6.Multi touch functionality (40 touch points) is supported on laminate or toughened glass up to 12mm thick.

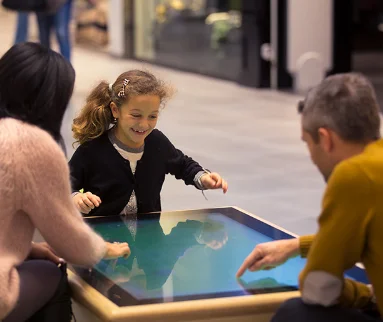

Application
