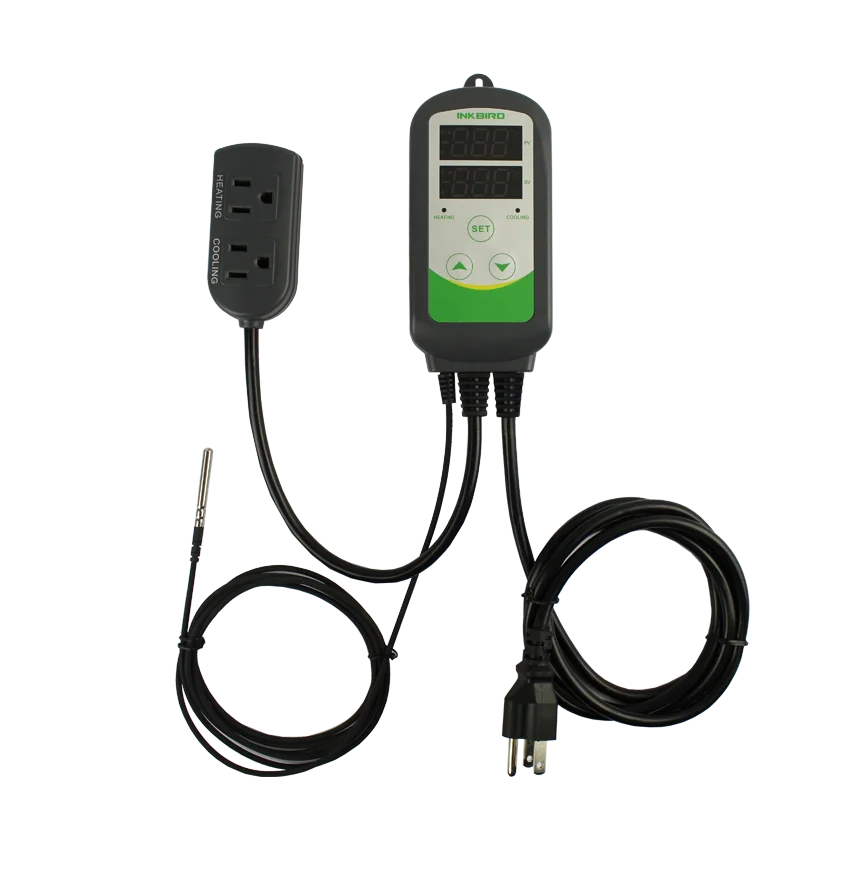

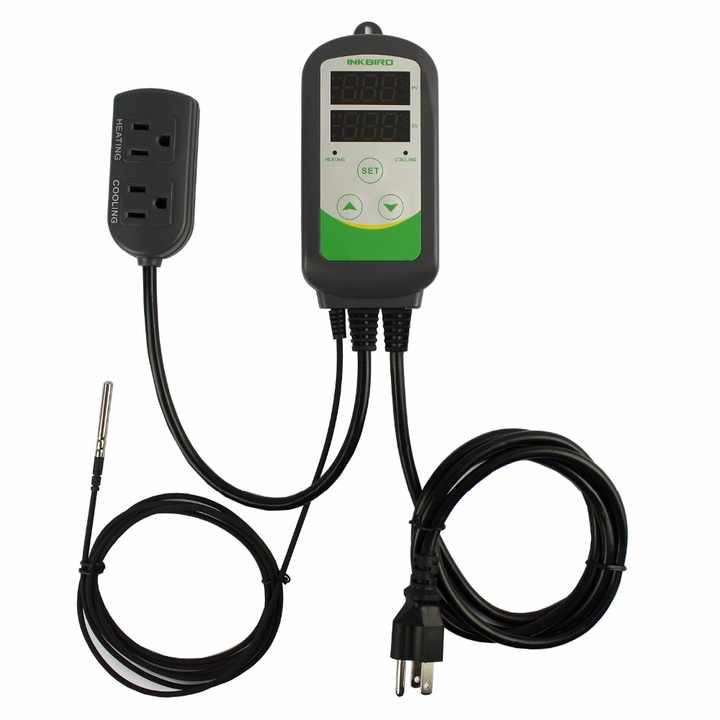

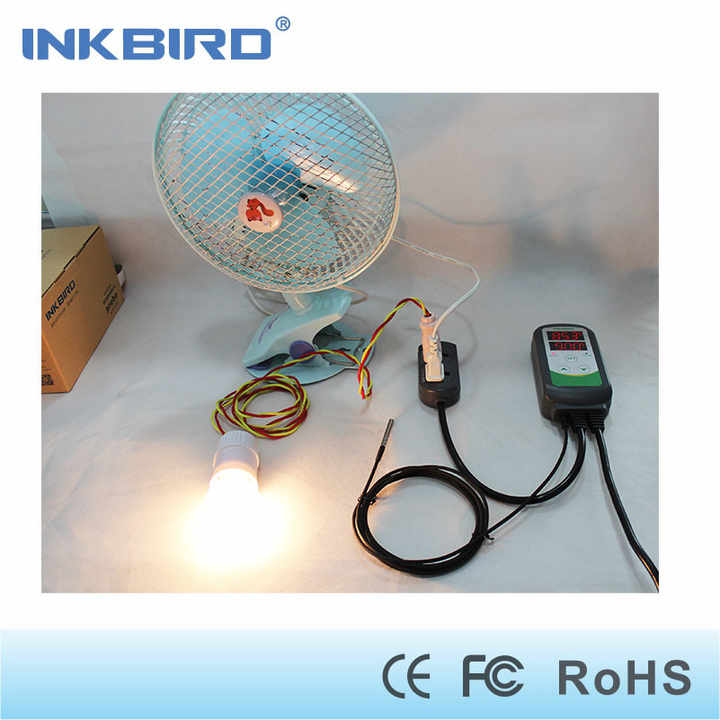

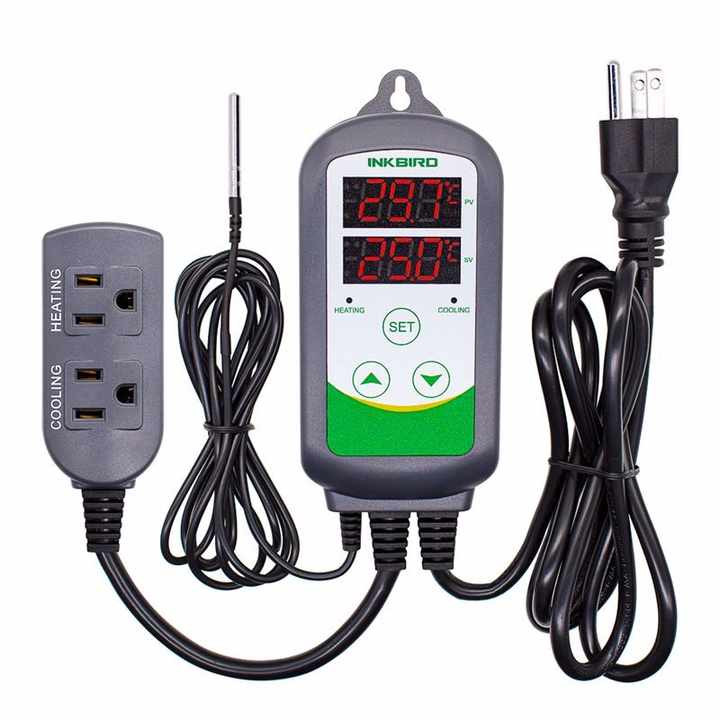

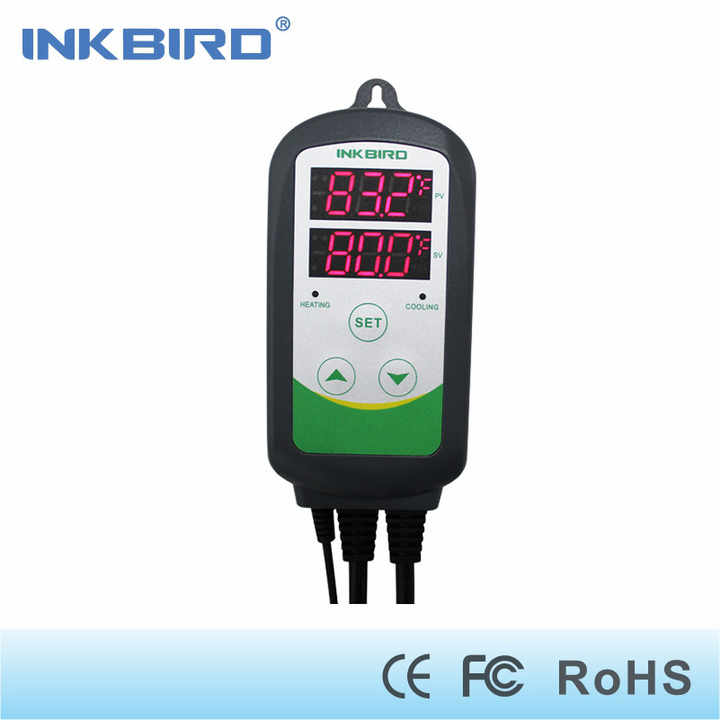

ITC-308 temperature controller is a dual-relay, plug-n-play outlet digital thermostat, which can be used for heating and cooling simultaneously by connecting to the heater element and the refrigerator.
This product has Plug and Play design with dual relay, be able to connect with refrigeration and heating equipment easily to realize ideal temperature control. It’s equipped with dual LED display, and offers display options of Centigrade and Fahrenheit, enabling more humanized temperature control. With large output power 1,200W (110V) /2,200W (220V), it’s suitable for most applications.
ITC-308 is designed with compressor delay protection for refrigeration, high and low temperature alarm, and sensor fault alarm, which makes the temperature controller more safe and reliable. Functions such as temperature calibration, separately set differential for refrigeration and heating, enable more accurate temperature control.
* Plug and play design, easy to use; * Dual relay output, be able to connect with refrigeration and heating equipment at the same time; * Support reading with Centigrade or Fahrenheit unit; * Maximum output load: 1200W(110V) / 2200W(220V); * Dual display window, be able to display measured temperature and set temperature at the same time; * Temperature calibration; * Compressor delay protection for refrigeration control; * High and low temperature alarms are available; * Over-temperature and sensor fault alarm; * Heating/cooling differential function could be set separately for refrigeration and heating to protect temperature controller from violent change.
Temperature Control Range : -50~99 °C / -58~210 ° F
Temperature Control Mode :On/Off Control, Heating and Cooling
Input Power: 100 ~240VAC, 50Hz/60Hz
Temperature Control Output: Max. 10A, 100V ~240V AC
Buzzer Alarm: High and Low Temperature Alarm
Sensor Type: NTC sensor (Including)
Sensor Length: 2m / 6.56ft
Input Power Cable Length: 1.5m (5ft)
Output Power Cable Length: 30cm (1ft)
Dimension Body: 140x68x33mm (5.5x2.7x1.3inch)
Ambient Temperature: -30~ 75 ° C / -22~ 167 ° F
Storage Temperature: -20~ 60 ° C / -4~ 140 ° F
Humidity 20~85% (No Condensate)
Warranty: 1 Year

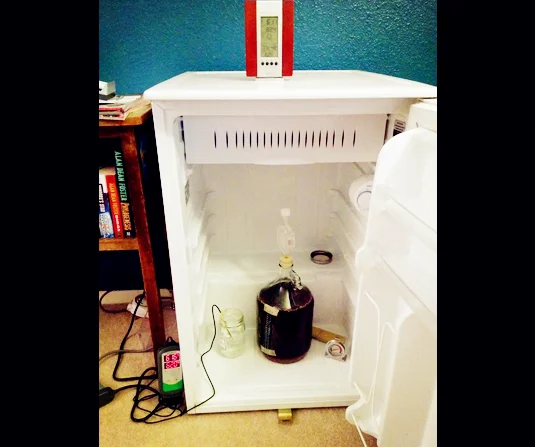

The ITC-308 can be mainly used to control temperature during fermentation process of beer and wine brewing, also widely used in home brewing, aquarium, pet breeding, hatching, egg incubotor, barbecue, boiler temperature control, geothermal temperature control, heating pump constant temperature cycle, strain culture fermentation, seed sprouting, sous vide, electric heating, electric oven, over-temperature protection and automatic temperature control system of all kinds of electrical equipment, etc.

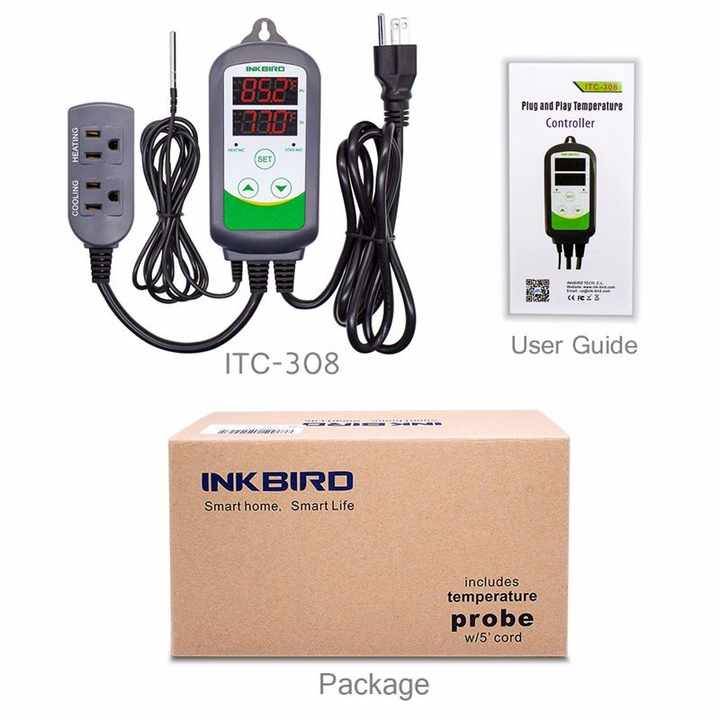

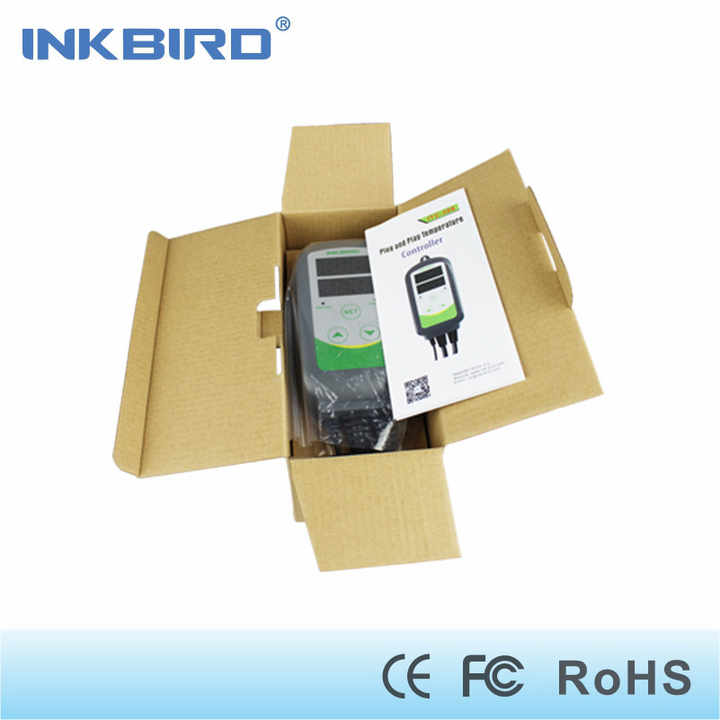

* 1x ITC-308 temperature controller; * 1x Manual

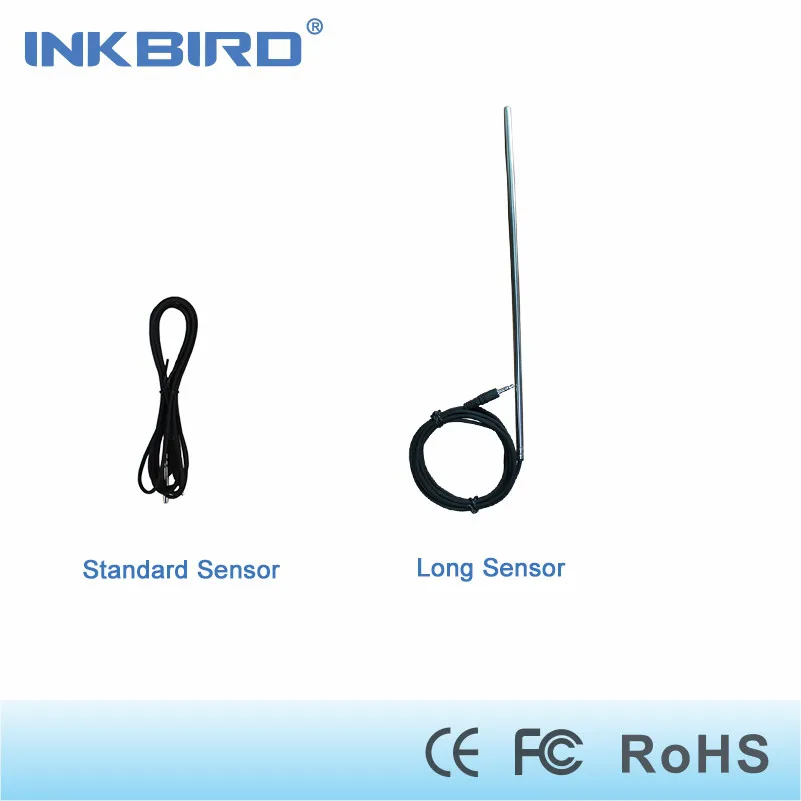

Note: This listing sensor's probe dimension is 50mm x 6mm. If you want 12" probe sensor, you can search on Amazon and buy one by ASIN: B01A6DIPFM or ASIN: B01A51OLR6.
Q1. 1. Questions about the Sensor.
1.1 What’s the diameter of the sensor?
The tip part of the sensor (metal): Diameter: 6mm, Length: 50mm;
The rest part (plastic): Diameter: 3.2mm, Length: 2m;
Find details of the NTC sensor by looking the picture of ITC-308 attached.
1.2 Is the temperature sensor waterproof?
Yes, can be soaked in water or other liquid.
1.3 Can be replace into other type of sensor?
No, only the NTC sensor assorted.
1.4 What’s the range of temperature measured?
-50~99 ℃ / -58~210 ℉
