Newest Standard 1500V Solar MC4 Connector

Feedback Ratings
  • 50-9999 Pairs
    US $0.48
  • >=10000 Pairs
    US $0.36
Quantity:
- + Pairs available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
R&X
Model Number:
R5
Type:
Adapter
Application:
Solar power system
Gender:
Male and female
Is_customized:
Yes
Certificated:
TUV
Suitable cable cross sections:
2.5/4/6 sqmm
Waterproof:
IP 68
Contact material:
Copper tin plated

Packaging & Delivery

Selling Units:
Single item
Single package size:
10X5X5 cm
Single gross weight:
0.025 kg
Package Type:
50pairs/bag
Lead Time :
Quantity(Pair) 1 - 1000 >1000
Est. Time(day) 5 To be negotiated
Video Description

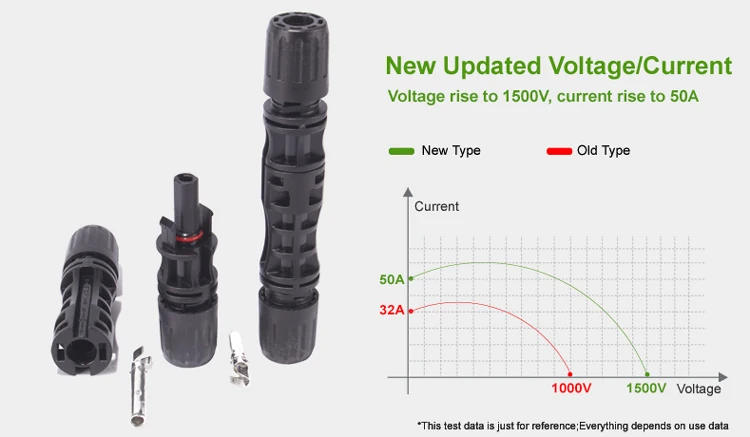

1500V DC Solar MC4 Connector By TUV Approval



Techincal Data

Rate voltage

1500V

Rated current

25A(2.5mm2) , 30A(4mm2) ,50A(6mm2)

Test voltage

6KV(50Hz)

Protect degree

IP68

Insulation material

PPO

Contact material

Copper ,tin plated

Operating temperature

-40°C~+90°C

Safe class

2

Flame class

UL94-V0

Contact resistance of plug connectors

≤5mΩ

Insertion force

≤50N

Withdraw force

≥50N

Suitable cable

2.5mm2/4mm2/6mm2(AWG14/12/10)

Locking system

Snap in

1500V .jpg





Description

1. Acc.to DIN V VDE V 0126-3/12.06,UL1703 standard.



2. Highly robustness,UV-Resistance,



3. Connector adopts touch and insertion of reed with inner-knob type.



4. Auto-lock equipment of male and female points enable connection more easy and reliable.



5. Popular figure suit most of field installation



6. Simple on-site processing



7. Accommodates PV cable with deferent insulation diameters



8. High current carrying capacity

1500V- .jpg



Assembly Instructions



1. During self assembly, parts and tools other than those stated by R&X are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.



2. For protection against electric shock, PV connectors must be isolated from the power supply while being assembled or disassembled.



3. The end product must provide protection from electric shock.



4. Unplugging under load: PV plug connections muct not be unplugged while under load. They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter. Plugging and unplugging while under voltage is permitted.



5. Disconnected connectors should be protected from dirt and water with sealing caps.



6. Plugged parts are watertight IP68

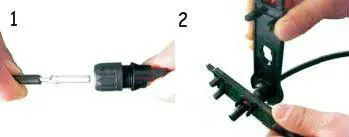

Assemble Solar Connector With Cable

1. Push the crimped contact into the socket resp. Plug insulator until it engages. Pull lightly on the lead to check that the metail part has engaged.

2. Screw on the cable gland, hand-tight, with the tools PV-STX,tightening torque about:2.2 Nm.

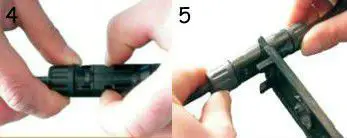

3. Mount the connector together until they engage. Check correct engagement by pulling on the coupling




4. Compress the two snap-in springs by hand or with the PV STX tool and separate the coupling

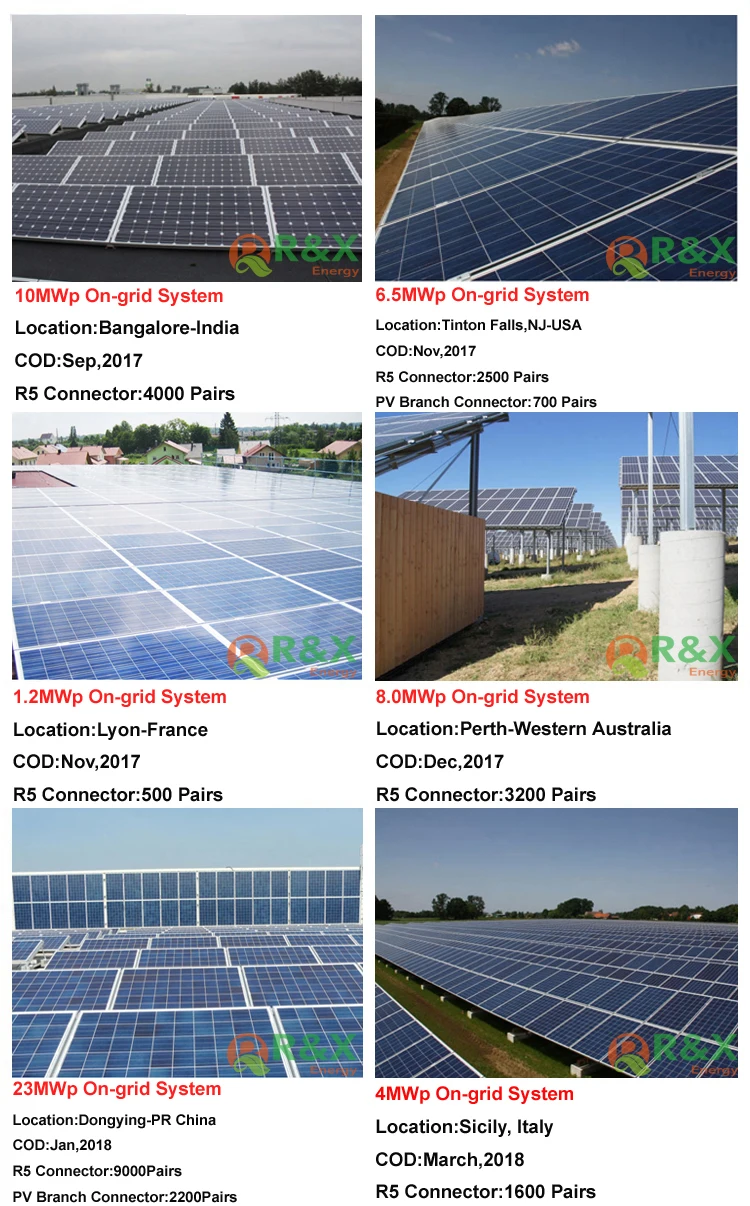

Our Project Case
