Niyakr Outdoor Rgb Full Color P10 Led Panel/P10 Led Display Module Wholesale Price

  • 1-49 Pieces
    $10.00
  • >=50 Pieces
    $9.82
Supplier Type:
Original manufacturer
Media Available:
Datasheet
$
- +
available
$
- +
available
EDA/CAD Models
$
- +
available
All 4 Options
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
8 day(s) after payment received
Samples: $10.00 /Piece, 1 Piece (Min. Order): Buy Samples
Contact Supplier
Samples - $10.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
NIYAKR
Model Number:
P10-1R1G1B
Application:
Outdoor LED Display
Color:
RGB full color
Panel Size:
160x160mm
Pixel Pitch:
10mm
LED type:
DIP
Pixel configuration:
1R1G1B
Module resolution:
16*16
Pixel density:
10000dots/m2
Brightness:
≥8500 nit
Waterproof:
IP65
Driving device:
1/4 scan
MTTF:
>10,000 hours
Lifespan:
100,000 hours
Certification:
CE,ROHS,FC,CCC

Packaging & Delivery

Selling Units:
Single item
Single package size:
20X20X10 cm
Single gross weight:
0.85 kg
Package Type:
1.Carton case. 2.Anti-shaking wooden case.
Lead Time :
Quantity(Pieces) 1 - 50 >50
Est. Time(days) 8 To be negotiated

Niyakr Outdoor Rgb Full Color P10 Led Panel/P10 Led Display Module Wholesale Price



P10 Outdoor RGB LED Display Moudle



Description

Technical parameter

Model

P10 Outdoor Full Color 1R1G1B 160mm*160mm LED Display Module

Unit module

Module size

160*160mm

Pixel pitch

10mm

Pixel density

10,000dots/m2

Pixel

configuration

1R1G1B

Led specification

Φ3

Pixel resolution

W:16dots*H:16dots

Cabinet

Dimension

960mm*960mm*140mm

Quantities of

 module

36pcs

Power supply

6pcs

Thermal

discharge

Fan*2pcs

Total weight

62kg

Best viewing

angle

10m

Temperature

Storage: -40°C~+85°C

Working: -40°C~+85°C

Thickness

14cm can adjustable

Remarks: cabinet size can changed, upon project need.

Power

Working voltage

AC220V/110V±10%

Average power

consumption

300-400W

Max. Power consumption

≤1000W/sqm

Current

≤20mA(single LED)

Control system

CPU

Pentium4 or above

Operating system

WIN98/2000/NT/XP/WIN7/WIN8

Control method

Synchronization

Main technical

parameter

Driving device

1/4scanning

Drive type

Constant Current driver IC

Refresh

frequency

≥400Hz

Grey scale/colors

256 levels of each color(R/G/B)/16.7M color

Brightness of

white balance

More than 8500cd/sqm

Brightness adjustment

256 levels of each color(R/G/B)by software

Operating ambient humidity

10%--95%

Video signal

PAL/NTSC

Control system

DVI display card+full color controller card

MTBF

≥10,000hours

Life span

≥100,000hours

Flatness

Tolerance of interpixel ≤0.3mm

Tolerance of modules clearance≤0.6mm

Power switch

Automatic switch

Communication

distance

Unshielded twisted pair net line transmission distance 100m, max transmission distance 200m.

Multi-mode Optic fiber transmission distance 500m;Single-mode optic fiber transmission distance 10KM

Software

LED media player



P10 outdoor full color led display module.jpg



P10 Full Color LED Display Module.jpg

p10 full color led module 20.jpg

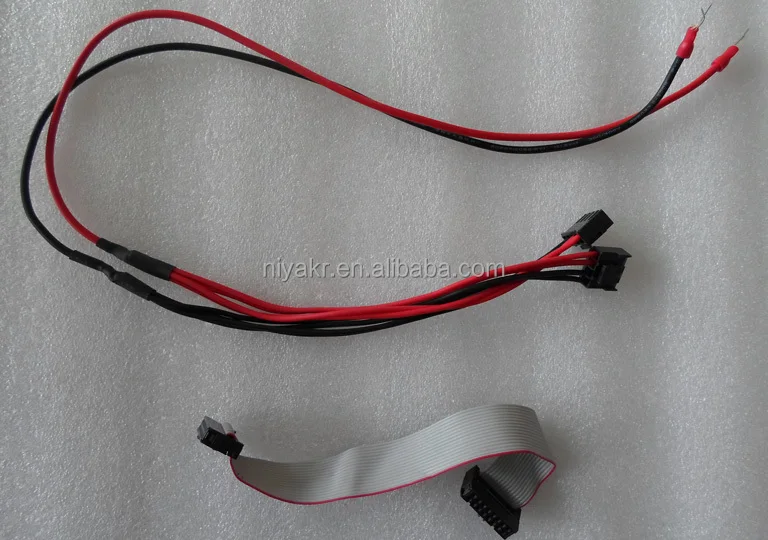

Data calbe and dc power cable



Shipping
1. FedEx/DHL/UPS/TNT , Door-to-Door;

2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;

3. Customers specifying freight forwarders or negotiable shipping methods!

4. Delivery Time: 2-5 days for samples; 6-25 days for batch goods.



Payment Terms

1. Payment: T/T, Western Union, PayPal.

2. MOQ: 1 Square Meter.

3. Warranty : 3 years



Why choose us?

1.We are a factory manufacturing led displays,best production capability ,best quality control,

   Best Service .

2.100% QC inspection Before Shippment.

3.CE/ROHS/UL/FC listed,competitve price.




  NIYAKR Certificates.jpg
