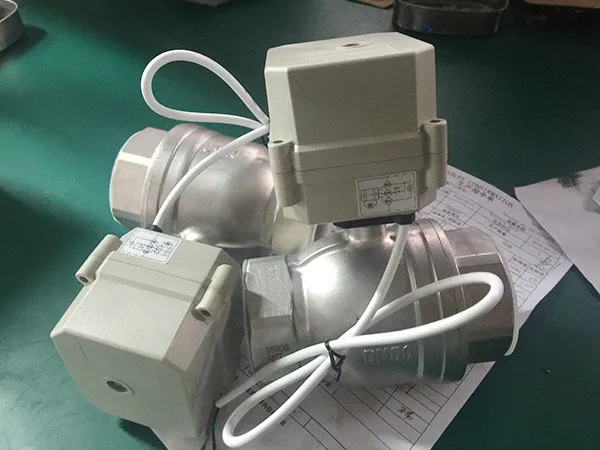

OEM DN40 1 1/2" inch 2 way AC/DC12/24/9-35V stainless steel electric control motorized ball valve normal close/open valve

Feedback Ratings
  • 1-199 Pieces
    US $76.00
  • 200-499 Pieces
    US $75.00
  • >=500 Pieces
    US $74.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Tonhe
Model Number:
A100-T40-S2-C
Application:
drinking water, Solar energy drain valve, high efficiency water-saving
Material:
stainless steel 304
Temperature of Media:
High Temperature
Pressure:
Max. 1.0 MPa
Power:
Electricity
Media:
Water Gas Oil
Port Size:
1 1/2" BSP or NPT
Structure:
Shutoff
Actuator:
Grey color, with indicator window
Working voltage:
AC/DC9-35V(the voltage from 9V to 35V is ok)
Wiring diagram:
CR202 with Normal Open/Closed
Sealing material:
PTFE and FKM
Actuator torque:
10N.M
Operating current:
Less than 150mA
Service life:
100000 times
Open/close time:
≤15S
cable length:
0.5 meter
Certificate:
EMC, LVD, ROHS, PICC, IP67
Standard or Nonstandard:
Standard

Packaging & Delivery

Selling Units:
Single item
Single package size:
15X10X20 cm
Single gross weight:
1.7 kg
Package Type:
39*34*20CM 10pcs/carton
Lead Time :
Quantity(Piece) 1 - 10 >10
Est. Time(day) 5 To be negotiated

Business philosophy

                            —— Sincerity , Quality assurance, Create

                            —— Good Customer service

 TONHE is a OEM and exporter of mini motorized shut off ball valve, proportional ball valve, wireless remote electric valve, and water leak alarm system, which are approved EMC,LVD,ROHS and SS304 valves passed NSF61-G certificated.



OEM 2 way 1.5" inch ball valve AC110V-220V Normal closed/open DN40 motorized stainless steel ball valve For Drinking Water


Please confirm the detail with yellow marked as follows:
1.CR202 wiring diagram with "spring return" function: Normal open or normal closed

2.Screw thread: BSP or NPT

1.When SW is CLOSED, the valve OPEN, the actuator automatically power off after in place.

2.When SW is OPEN, the valve CLOSED, the actuator automatically power off after in place.

3.Suitable Working Voltage: AC/DC9-35V (the voltage from 9V to 35V is ok)

4.Exceeding the working voltage is forbidden

Normal open: the valves will be auto open when the power is failure
Normal closed: the valves will be auto openclosed when the power is failure

For occasions

1 IC card water meter, heat meter.

2 Air-conditioning fan coil, fire sprinkler.
3 Solar energy drain valve, high efficiency water-saving.
4 Automatic control systems, university water system, small-scale industrial automation  equipment,  environmental protection





Package:

Packaging Details
