Different package at optional:
1. Retailing Package:Anti-static bag
2. Bulking Packing:30Pcs/Lot
3. Retailing Box package design according to your requirement( Order > 3000PCS)
1 - 500
501 - 1000
To be negotiated

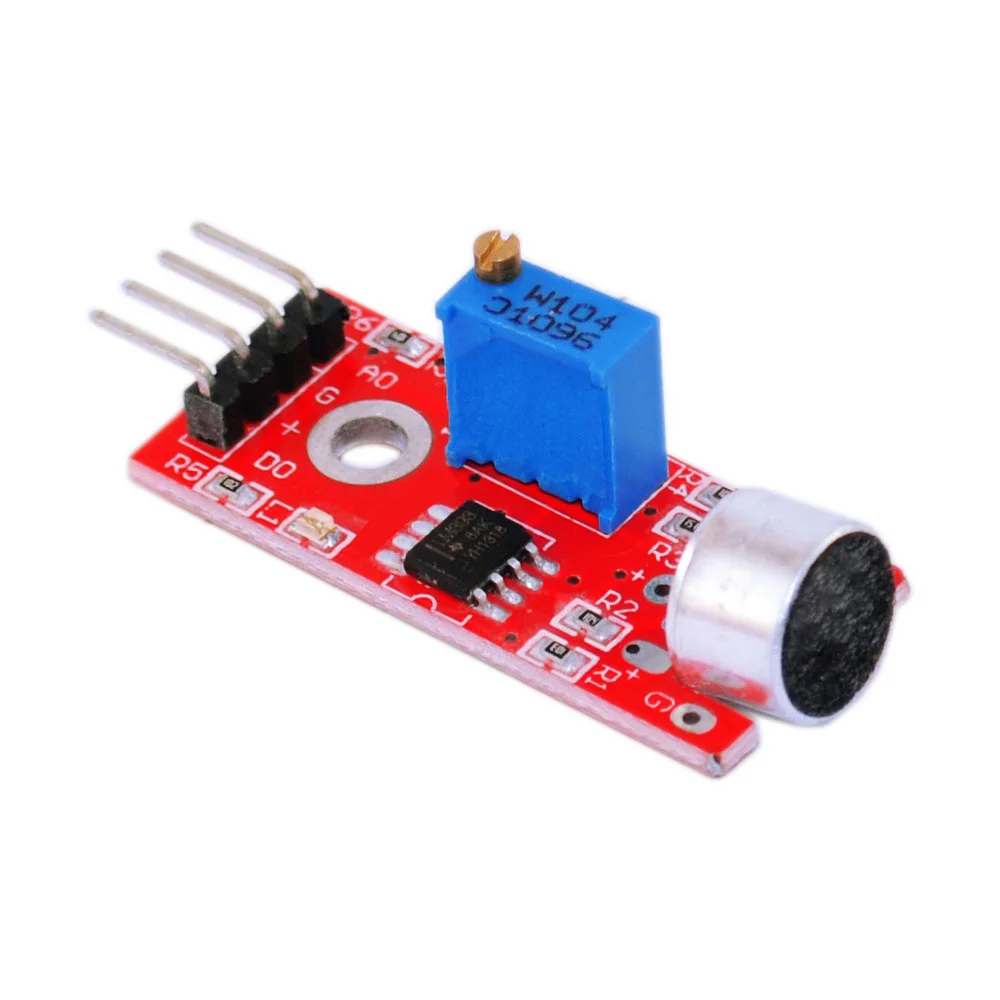

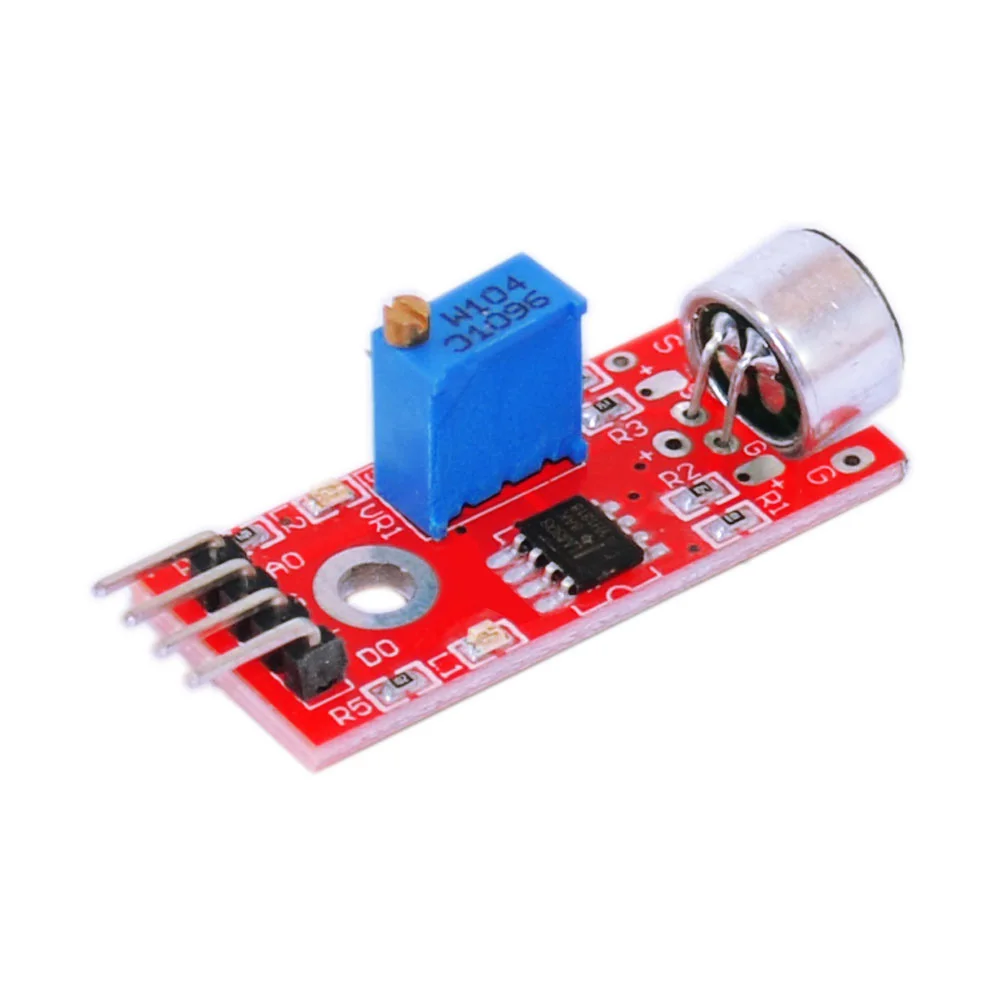

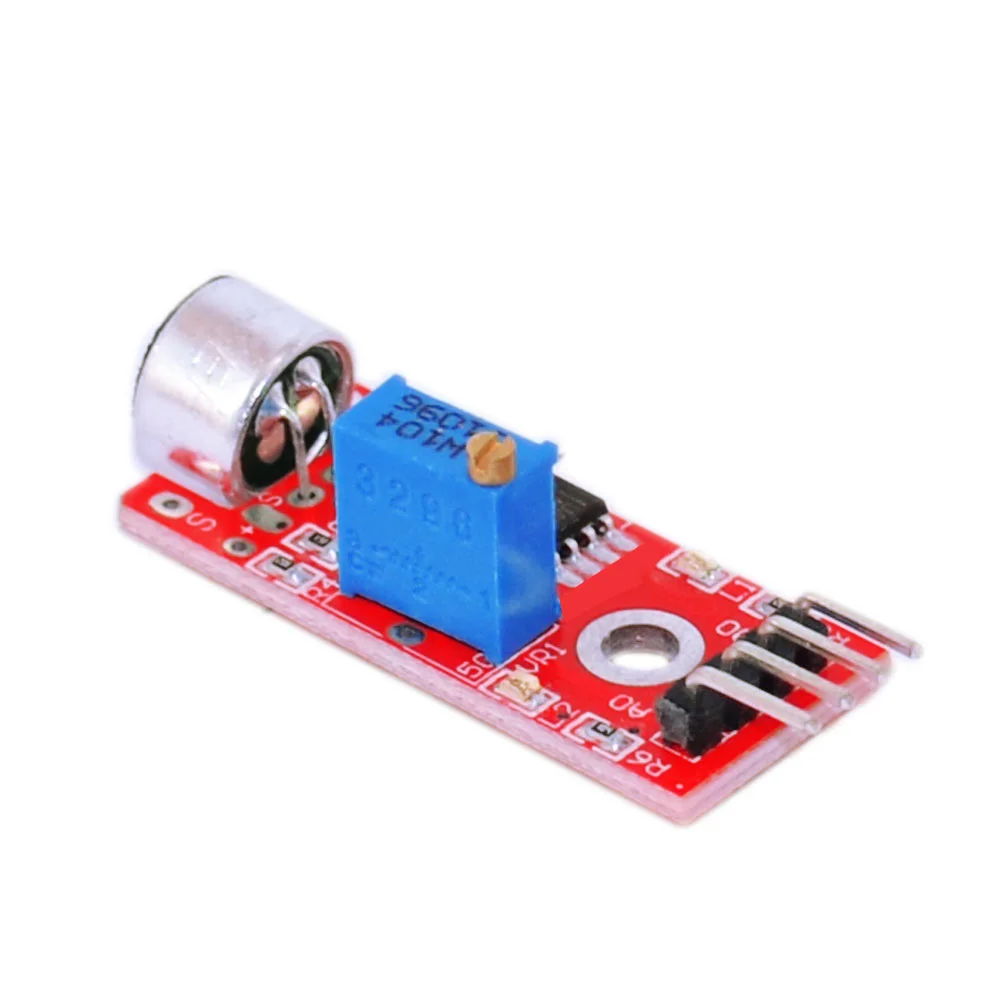

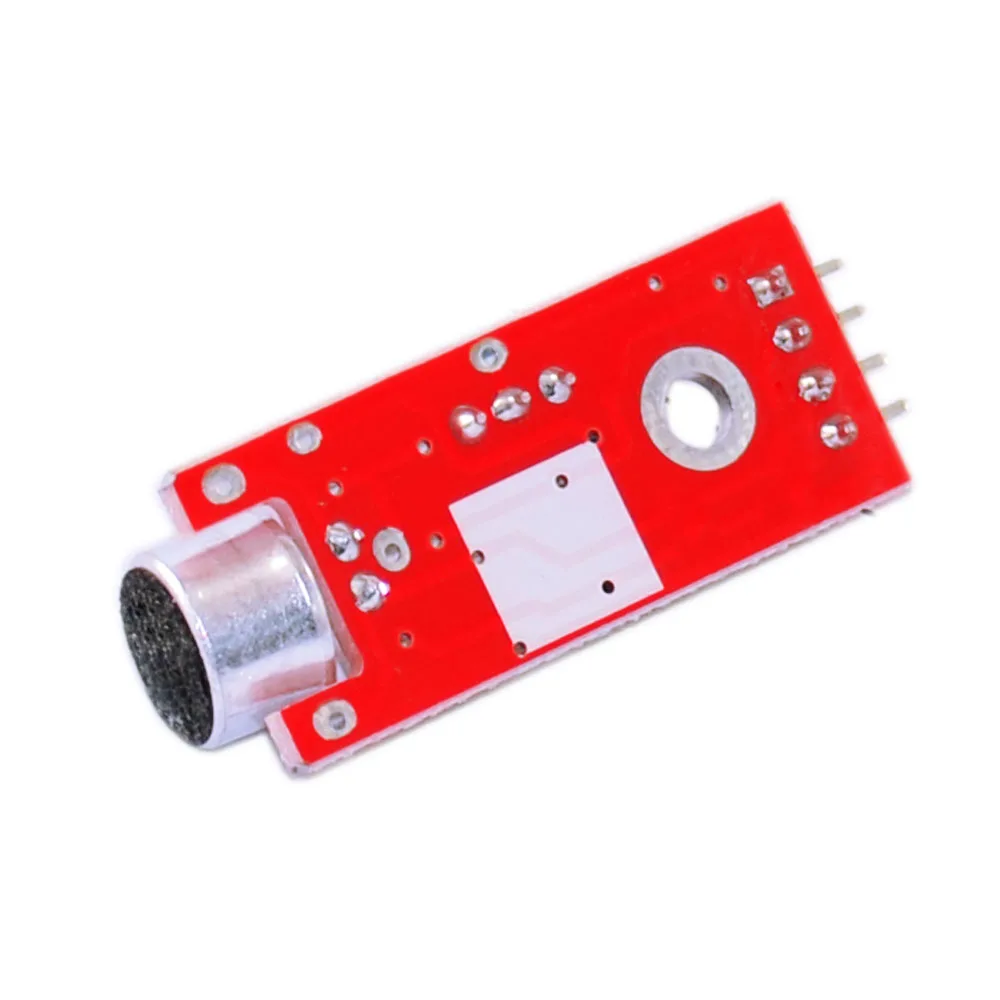

High Sensitivity Sound Microphone Sound module Voice recorder detector For Toys
This sound detection microphone sensor module is ideal for noise detection in alarm systems, home automation and other applications in which an event is triggered based upon the presence or absence of sound. The module features two outputs: DO is a digital output which goes high when sound is detected, and can be connected to a digital input of microcontroller. AO is an analog output that provides a real-time output voltage signal of the microphone. LED1 illuminates when power is applied to the module. LED2 illuminates when sound is detected (i.e. when DO goes high). The sound threshold to trigger DO is adjusted by the on-board potentiometer.
Power supply voltage: +5V Power On LED light: LED1 Electret Condenser Microphone (ECM) sensor AO = analog output provides a real-time output voltage signal of the microphone DO = Digital output, output goes high when the intensity of the sound reaches threshold Comparator Circuit: LM393 Comparator Output LED: LED2, on when sound reaches threshold Built in potentiometer can be used to adjust the DO threshold level Mounting screw hole size: 3mm Circuit Board Dimensions: 35mm x 15mm x 14mm (L x W x H, excluding connector and microphone) Operation: Pin + to +5VDC Pin - to Ground Pin AO to Microcontroller Analog Input (for analog program) Pin DO to Microcontroller Digital Input (for digital program) LED1 will illuminate when power is applied Turn potentiometer counter-clockwise until LED2 turns off. This is the sound threshold. Then adjust to the appropriate threshold for your application.
Okystar Technology Co., Ltd is subsidiary of Okystar Technology Group Co., Ltd, which holds 4 subsidiary companies and more than 1500 skilled workers,50 technicians.Okystar Tech Co.,Ltd was built in 2004.We mainly manufacture and export 3D Printer, Board&shield, sensor module, Smart Car Robot, Smart DOF Robot, Servo, DIY toys ,Science toys, Mainboard,etc.
After 15 years development, our company has grown into a large high-tech group corporation integrating industry, technology and trading. With electronic information industry as our main business, we keep being top 10 in the board, shield, sensor, modules for arduino.
Packaging and delivery
Normally, 1-5 workdays after payment;
Special requirement orders, delivery time is negotiable.
2.If the products can’t work after receiving it,what should I do?
We will replace new items for you at once, and respect your final decision for wrong goods.
3.If the products don’t meet my demand after I received it,can I return it?
You can return back to us, we will refund your full payment.
4.what is the warranty?
1-2 years warranty according to different products.
1-3 months to replace new items for free.
All products are tested strictly for 2-3 times before leaving factory. we have earned very good reputation in quality,Certified by the ISO9001.
