Oil Country Lathe CNC Pipe Threading Cutting Machine CK168

FOB Reference Price:Get Latest Price
$13,500.00 - $14,000.00 / Units | 1 Unit/Units Pipe Thread Cutting Pipe Threading Machine (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Max. Swing Diameter:
625mm
Type:
Horizontal
CNC or Not:
CNC
Automatic Grade:
Automatic
Place of Origin:
Shandong, China (Mainland)
Brand Name:
YZ CNC
Model Number:
CK168
Voltage:
3 Phase 380V/220V/415V
Power(W):
7.5kw
Dimension(L*W*H):
2650*1550*1700mm
Certification:
CE SGS
Name:
Oil Country Lathe CNC Pipe Threading Cutting Machine CK168
Max. swing over bed:
625mm
Color:
Custom-made
Function:
Pipe threading
Control system:
GSK SIEMENS FANUC
Warranty:
2 Years
Chuck:
3-jaw Chuck
Keyword:
Pipe threading lathe
Turret Type:
4-station vertical electric tool post
Spindle bore:
160mm
Weight:
3200kg
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
80 Unit/Units per Month Pipe Thread Cutting Pipe Threading Machine
Packaging & Delivery
Packaging Details
Oil Country Lathe Pipe Thread Cutting CNC Pipe Threading Machine:
Exporting standard package, water proof, anti-rust and fumigation-free.
Port
Qingdao/Shanghai/Ningbo/Guangzhou
Lead Time :
Shipping within 20 days after receiving payment.
Video Description
Product Description
SPECIFICATIONS FOR OIL COUNTRY LATHE CNC PIPE THREADING CUTTING MACHINE CK168
1
Max. turning length
mm
1000
2
Max. swing over bed
mm
640
3
Spindle bore
mm
172
4
Max. outside diameter of pipe
mm
168
5
Bed rail width
mm
495
6
Max. swing over pallet
mm
410
7
Range of spindle speed
r/min
20~800
8
Servo main motor power
kw
11
9
Chuck diameter
mm
400
10
Max. distance across the dual chuck
mm
1290
11
Tool post
4 station electric tool post
12
Tool section size
mm
25x25
13
Tailstock quill diameter
mm
75
14
Tailstock quill stroke
mm
150
15
Machine size
mm
3000x1600x1900
16
Machine weight
kg
2600

Oil Country Lathe CNC Pipe Threading Cutting Machine CK168 Standard Configurations:

1) CNC system: GSK980TC3.
2) Front and rear three-jaw manual chuck.
3) Vertical four-station electric turret.
4) With tailstock.
5) Automatic lubrication system.
6) Turning cooling system.

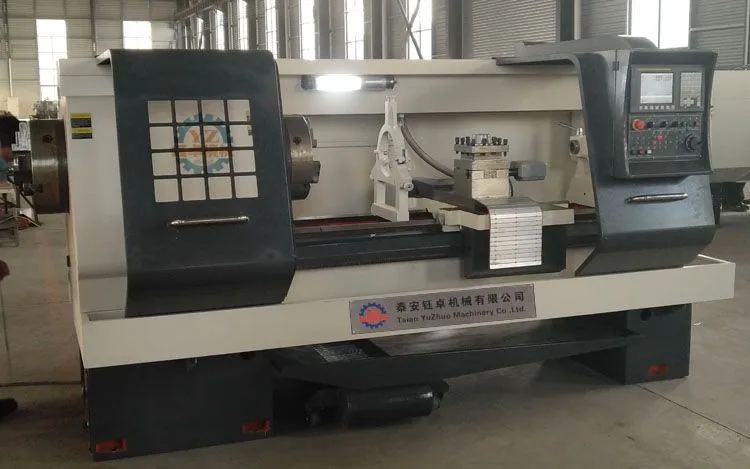

Detailed Images

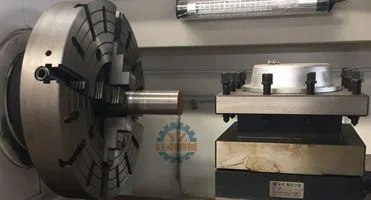

Big bore chuck with 3-jaws and 4 staiton electric tool post.

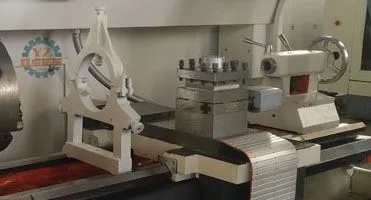

Tailstock and optional center rest.

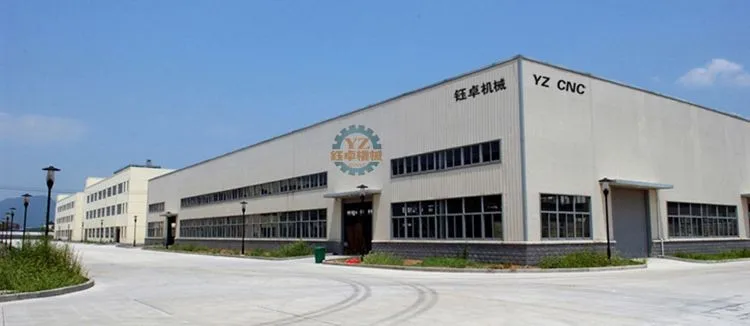

Our Company

Taian Yuzhuo Machinery Co., Ltd. ( or “YZ CNC” for short) is a professional manufacturing enterprise engaged in the research, development, production, sale and service of CNC machines. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.

Our main products are Wheel Repair CNC Lathe Machine, Vertical CNC Lathe Machine, Horizontal CNC Lathe Machine, Slant Bed CNC Lathe Machine, Universal Lathe Machine, Pipe Threading CNC Lathe Machine, CNC Milling Machine and CNC Vertical Machining center. All the above products have passed CE, SGS certificates.

Certifications
CE, SGS, Alibaba High-quality Supplier, Made-In-China Gold Supplier.

Our Customers

Our Service

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to install the machine, training how to use the machine.
* Engineers are available to service machinery overseas.
* Warranty is one year, we would offer the parts (quality problem) free of charge during this period.
Note: GSK, Servo driven, motor and transformer, warranty is 3 years.

Packing & Delivery

Oil Country Lathe CNC Pipe Threading Cutting Machine CK168:
Packaging Size: 3050x1650x2050mm
Weight: 3000kg
Packaging Details: Standard export package, custom suffocating free.

FAQ

Q1. How can I choose the most suitable machines ?
A: Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the best model for you.

Q2. What's the main products of your company?
A: We specialized in many kinds of CNC machines, such as Wheel Repair CNC Lathe Machine, Vertical CNC Lathe Machine, Horizontal CNC Lathe Machine, Slant Bed CNC Lathe Machine, Universal Lathe Machine, Pipe Threading CNC Lathe Machine, CNC Milling Machine and CNC Vertical Machining center and so on.

Q3. Where is the factory located? How can I visit there?
A: Our factory is located in Tai’an City, Shandong Province, China. With very convenient transportation access, you can come by airplane or by high speed railway. And warmly welcome you to visit us.

Q4. What is the Trade Terms?
A: FOB, CFR and CIF all acceptable.

Q5. What's the Payment Terms ?
A: 30% T/T initial payment as deposit, 70% T/T balance payment before shipment.

Q6. What's the MOQ?
A: MOQ is 1 set.
