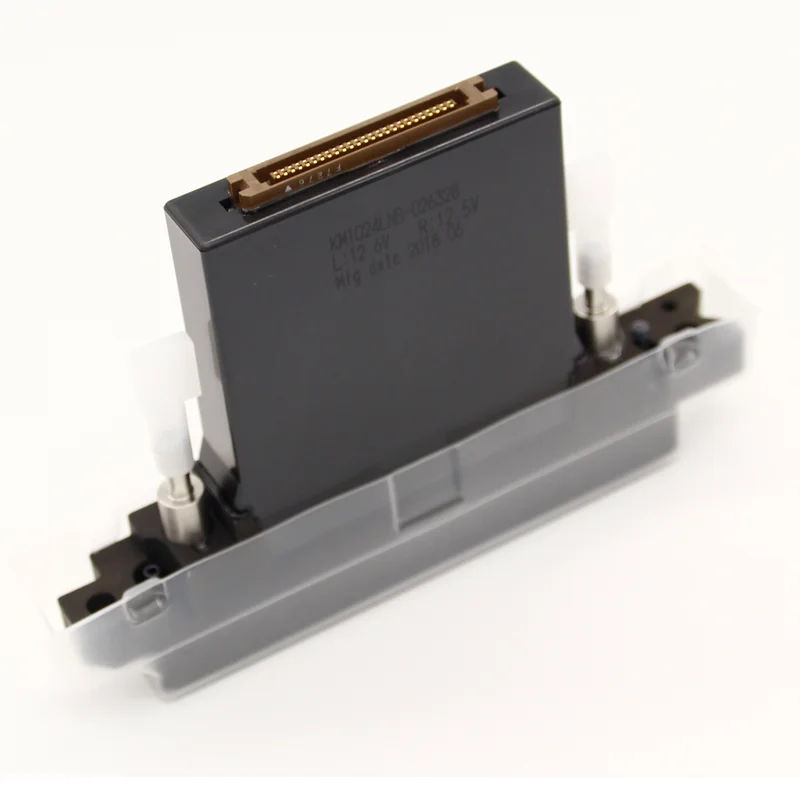

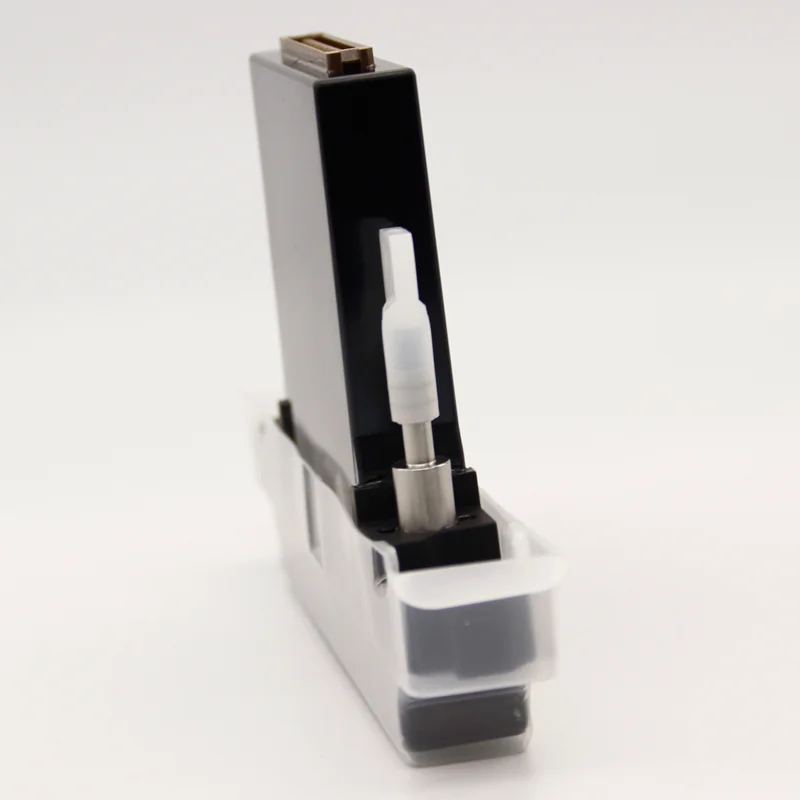

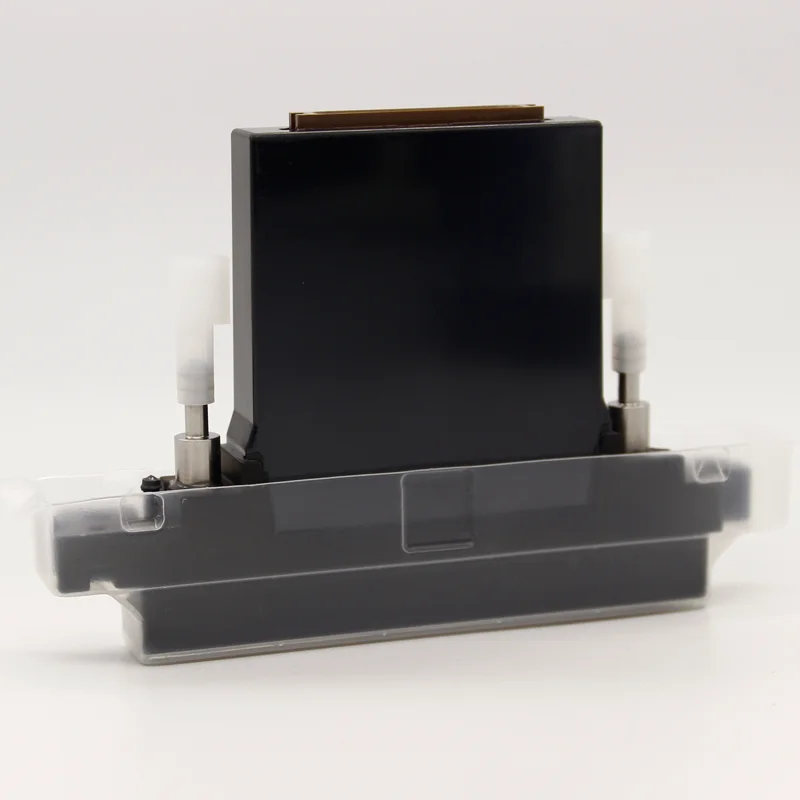

Original 100% new konica 1024 km1024 14pl printhead

FOB Reference Price:Get Latest Price
$1,313.00 - $1,373.00 / Pieces | 1 Piece/Pieces (Min. Order)
Model Number:
KM1024 14pl
Lead Time:
Quantity(Pieces) 1 - 20 >20
Est. Time(days) 3 Negotiable
Report Suspicious Activity
Quick Details
Printing Type:
Inkjet Printer
konoca printer,large format printer
Print Head
Applicable Industries:
Manufacturing Plant, Retail, Printing Shops, Advertising Company
Place of Origin:
Brand Name:
Product name:
Original 100% new konica 1024 km1024 14pl printhead
Oiginal and new
solvent printer,with konica 1024 head
Drop Size:
Type number:
KM1024 print head
Nozzle Width:
Max Frequency:
12.8 kHz
Shipping Ways:
1~2 Workdays
Supply Ability
Supply Ability:
500 Piece/Pieces per Month in stock,fast delivery
Packaging & Delivery
Packaging Details
packong carton
Lead Time :
Quantity(Pieces) 1 - 20 >20
Est. Time(days) 3 To be negotiated
Product Description

Original 100% new konica 1024 km1024 14pl printhead

Printhead Feature

Major improvement in productivity by use of 1024 multi-nozzles and realization of wide print width of 72mm
• Printhead power consumption is reduced by 50% through the use of a new, high efficiency piezo actuator.
• Increased grey-scale levels produce richer tones and more subtle gradients making the printhead even more attractive to existing and new print applications.
• The ultra-slim, space saving printhead shape improves print quality and allows more compact machine design

Product Display

KM1024 Series Of Parameters

Printhead Name
Piezo Drop on Demand (Shared wall 3 cycle)
180dpi × 2lines = 360dpi
Number of Nozzles
512nozzles × 2lines = 1024nozzles
Nozzle Pitch
70.5m (141m 2lines)
Drop Size
6 pl
14 pl
42 pl
Max Frequency
30.0 kHz
12.8 kHz
12.8 kHz
7.6 kHz
Printing Width
W131mm × D18mm × H89mm
Grey scale
8 levels
Iternal Heater
Solvent Ink
UV Ink

Product Maintenance

1.maintenance after completion of work
maintenance of the printer after finishing printing can be carried out by simple cleaning operation after finishing printing. The residual ink on the sprinkler head and surface and edge can be removed, and then the sprinkler head can be placed back in the ink stack for relevant maintenance such as sprinkler moisturization.

2.Maintenance of the printer is not used for a long time and idle is as follows:
1) Turn off the power supply related to the photo machine, remove the nozzle from the printer according to the correct method, and clean the residual ink stains;
2) Clean the sprinkler thoroughly with sprinkler cleaner, including the ink marks on the surface of the sprinkler.
3) Inject special nozzle maintenance agent into each ink column of the nozzle, such as nozzle cleaning liquid to clean the nozzle;
4) After cleaning the sprinkler head, wrap it with sealing film and place it well.

Kindly Reminder : If you are a user of piezoelectric photo machine, you must pay attention to the use and maintenance of piezoelectric nozzle, so that the photo machine always keeps the best printing status.

Our Service
1).Printhead : 100% original brand new.
2).24-hour inquiry & consulting support online Service.
3).Service in Spanish Portuguese Arabic and German available ect.
4).Ex-shipment test: 100% tested before package and shipmen.

Related Products

180dpi encoder strip

3 way solenoid valve

ink sub tank

Konica Solvenet ink

challenger Sk4 ink

Galaxy dx5 eco solvent ink

sponge cleaning stick

dc servo motor

konica 512i main board

Company Profile

Guangzhou Beisu Electronic Technology Co., Ltd

Guangzhou Beisu Electronic Technology Co., Ltd. set up at 2006, is a highly professional supplier for printer spare parts with competitive price in China.

Our main products including original printhead, ink pump, ink damper, solenoid valve, belt, ink filter, head board, main board, printhead cleaner, welding machine, cutting plotter ect.

With more than 12 years industry experience, our market covers more than 50 coutries, the mainly foreign markets are South America, Mid East, Africa, Southeast Asia, South Asia, Oceania...

Packing & Delivery

Payment Term

T/T or L/C, Western Union, Money Gram, PayPal, Credit Card, Alipay, WeChat payment... etc.

Shipping Term

We will arrange delivery within 24 hours after order confirmation. We will send you the tracking number immediately after the goods are sent out. The goods will arrive in your country in 3~7 days.
