PCB Multifunction Ruler Stocks Soldering Measuring Tool For Electronic Component

Feedback Ratings
  • 5-19 Pieces
    US $4.20
  • 20-99 Pieces
    US $3.90
  • 100-199 Pieces
    US $3.50
  • >=200 Pieces
    US $3.30
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
3 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Type:
Ruler
Brand Name:
ALSRobot
Model Number:
RB-11P069
Place of Origin:
Guangdong, China (Mainland)
Material:
PCB
Ruler Type:
Straight Ruler
Folded:
No
Product name:
PCB Multifunction Ruler
Usage:
mechanical measuring tools
Logo:
ALSRobot
Length:
20cm

Packaging & Delivery

Selling Units:
Single item
Single package size:
21X12X16 cm
Single gross weight:
0.3 kg
Package Type:
Standard Package
Lead Time :
Quantity(Piece) 1 - 100 >100
Est. Time(day) 3 To be negotiated

Description

PCB means printed circuit board, It is the support of electronic components, Electronic enthusiasts need a measuring tool which can be a collection of all necessary functions in the design process.

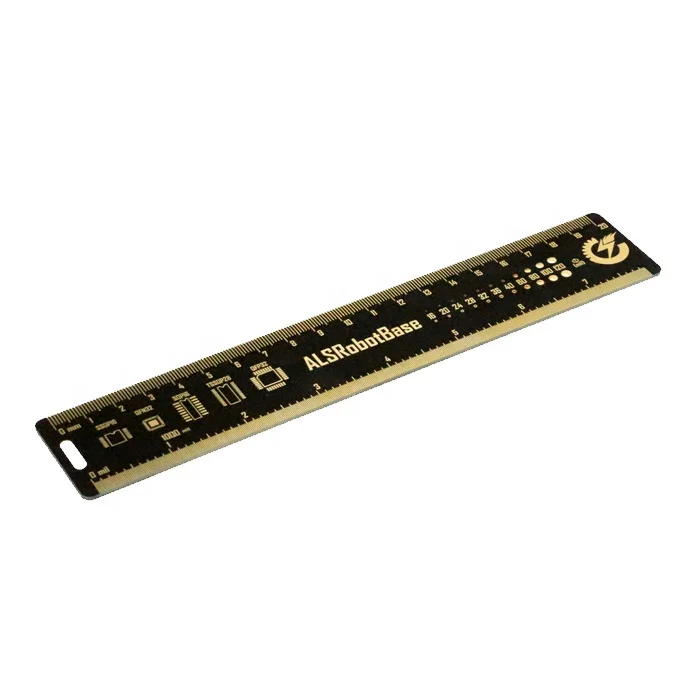

This Multi-Fonction PCB Ruler is producted by ALSRobot, In addition to measuring millimeter and inch size, It also integrates related information of PCB design, Such as protractor, device, IC lead pitch comparison table, resistance and capacitance SMD package, common reference hole diameter, width size reference. We printed all these info on gold-plated PCB FR-4.

Specifications

Positive Specification:

  • Measuring length: 20 cm
  • Measuring length: 7.8 inches

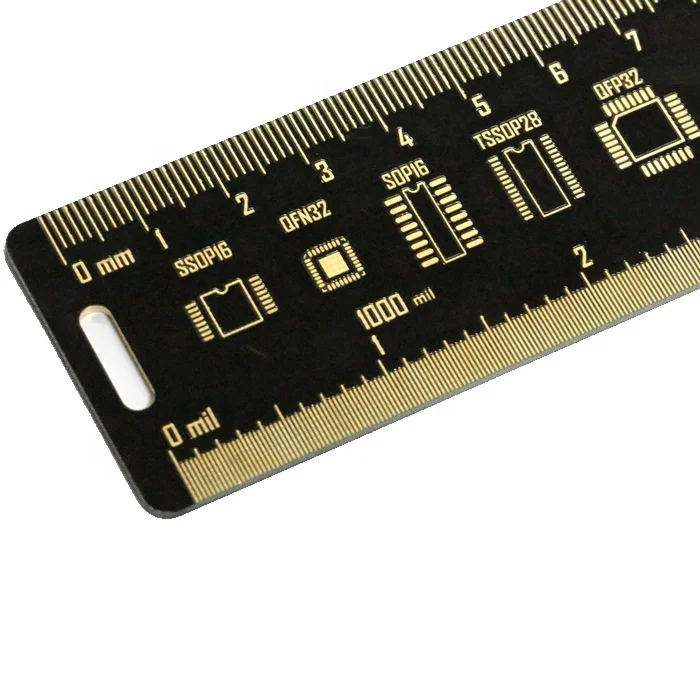

  • Common IC package: (1) SSOP16 (2) QFN32 (3) SOP16 (4) TSSOP2 (5) QFP32
  • Common Borehole Diameter Reference Ruler


Back Specification:

  • Common feature size reference (Unit: mil)
  • Common reference borehole diameter size (unit: mm)

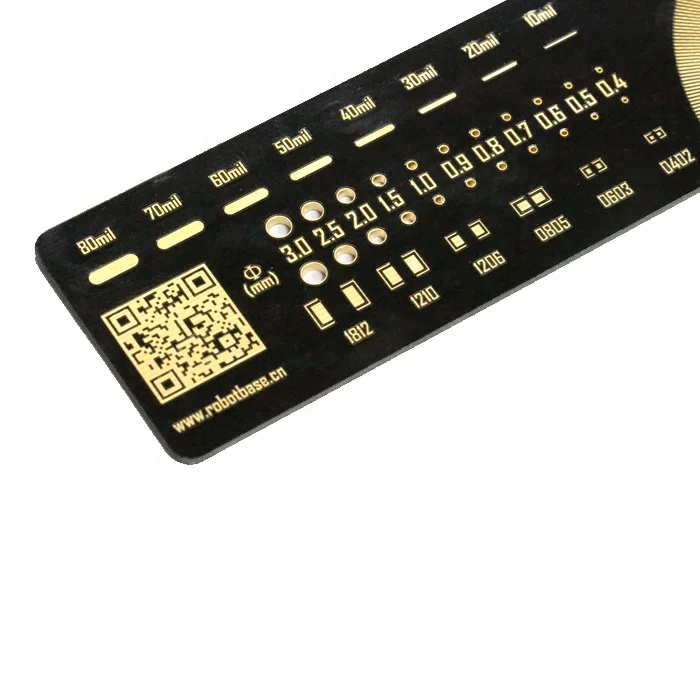

  • Popular resistance and capacitance SMD package: (1) 0402 (2) 0603 (3) 0805 (4) 1206 (5) 1210 (6) 1812

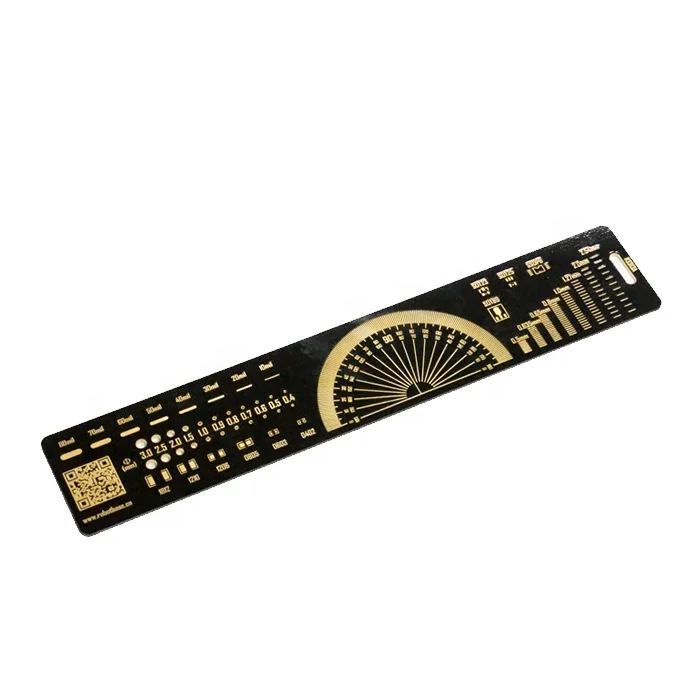

  • 180-degree angle measurement
  • Common MOS, invertertransistor package: (1) SOT23 (2) SOT89 (3) SOT25 (4) SSOP8
  • Devices, IC lead pitch comparison table: (1) 0.5mm (2) 0.635mm (3) 0.65mm (4) 0.8mm (5) 1.0mm (6) 1.27mm (7) 2.0mm (8) 2.54mm
