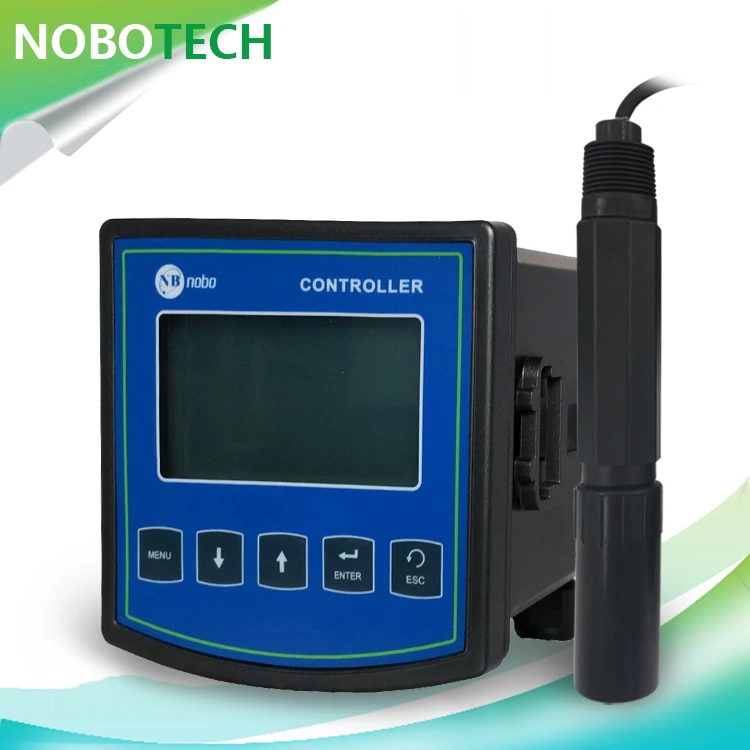

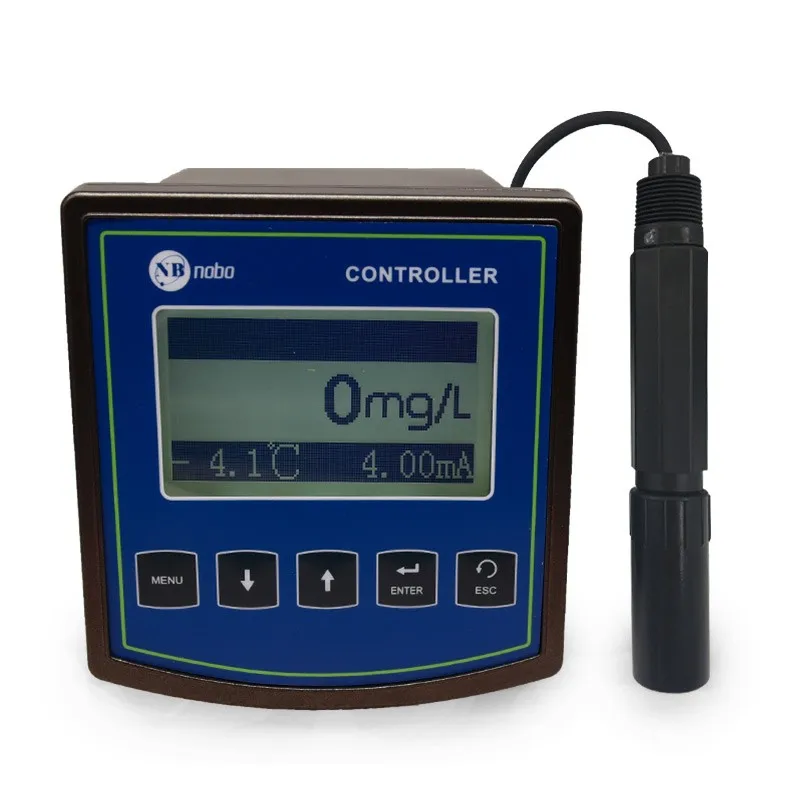

PCL-1080F On line calcium meter for wastewater treatment industry

Feedback Ratings
$1,192.00 / Set | 1 Set (Min. Order)
Quantity:
- + Sets available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangxi, China (Mainland)
Brand Name:
nobotech
Weight:
1.5, 0.9kg
After-sales Service Provided:
Video technical support, Online support
Warranty:
1 Year
Product name:
Online ion meter
Application:
industry water quality analysis
Measuring range:
0-20000mg/L ( ppm)
Working Voltage:
220VAC±10% 50/60HZ
Resolution:
0.01mg/L 0.1°C
Accuracy:
±3%,±0.5°C
Temperature compensation:
0-60°C
Dimension:
96*105*168mm
Hole Size:
92*92mm

Packaging & Delivery

Selling Units:
Single item
Single package size:
44X30X20 cm
Single gross weight:
0.9 kg
Package Type:
carton
Lead Time :
Quantity(Set) 1 - 100 >100
Est. Time(days) 15 To be negotiated
Product Description

          Fluorine /calcium /chlorine ion transmitting instrument is widely used in water plants, power plants, boiler water etc. It is designed for continuous detection of hardness value in liquid.

Detailed Images
Technical Parameters
◇Measuring Range:Water hardness 0-10000 mg/L(ppm),Temperature 0~60℃
◇Selective units: mg/L,mmol/L,mmol/L(Boiler)
=mmol/L(B) (Specified unit for industrial boiler water)
◇Resolution: 0.01mg/L, 0.1℃
◇Accuracy : ±3%, ±0.5℃
◇Automatic or manual   temperature compensation function: 0~60℃.
◇Control interface:Two groups of ON/OFF relay, divided into 2 points of high and low for alert control.
◇Analog output : 4~20mA
◇Relay:the relay lag value  can be set freely. Relay load: 3A 220VAC/24VDC
◇Operating conditions:environmental temperature of 0~60℃, relative humidity ≤90%
◇Working voltage: 220VAC10%,50/60Hz.
◇Dimention :96X105×168 mm
◇Hole size:92×92mm
◇Weight:0.9Kg
◇Protection Grade:IP65 (waterproof, dust-proof and damp-proof)
Main Features
◇Advanced water hardness ion-selective electrode technology (ISE) with high sensitivity, fast response and high stability. Easy to  maintain.
◇Multi-parameters showed at the same time:Water hardness value, temperature, output current, and alarm  of range ability etc.
◇Protection Grade:IP65 (waterproof, dust-proof and damp-proof).
◇Digital LCD display and English display interface.
◇(Optional) Communication function:with RS - 485 communication interface (MODBUS protocol compatible) .The corresponding hardness data of 4 ~ 20 mA can be set freely.
◇Analog output : 4~20mA
◇The relay lag value  can be set freely to avoid frequent operation of relay.
◇Watchdog:make sure the meter dose not go dead.
◇The main components imported from foreign famous brand.
◇Power off protection>10 years.
◇ABS plastic casing (waterproof, dust-proof and damp-proof).
Other Products
Our Company

       Nanning Nobo Instrument Co., Ltd. is a leading high-tech enterprise for about 10 years ,which includes design , research & development , production , sales and service . We are focus on researching and developing intelligent water quality analysis instrument .Such as , PH/ORP meter , conductivity meter , dissolved oxygen meter , residual chlorin meter , dissolved ozone meter , ion meter , turbidity meter , salinity meter , sludge concentration meter ect.

    We will apply the Internet cloud service technology and offer the solution of internet of things system .Such as , multi-parameter water quality monitoring network system , smart city , smart agriculture and so on
    If you have any request pls don't hesitate to contact us , OEM and customized are available ! We sincerely hope to cooperation with you !

Email : noboyamina @gmail.com

Mobile :+86-18776934002

Tel.:+86-18776934002

Web.: www.nobowisd.com www.nobotech.com






Packing & Delivery
Product Name: Fluorine  calcium chlorine ion trasmitting instrument
Brand Name: NOBOTECH
Model Number: PCL-1080FGC
Place of Origin: Nanning , China
Delivery Time: 3 to 4 weeks after payment
Why Chooes US

1.Our company was established in 2009 with many years of experience make us excellence and professional.

2.We have our own factory with strong R&D center and QA team which can totally make sure the quality .

3. We have a completed after-sale service .

4. High quality! competitive price! Quick response! Excellent service experience!

FAQ

Q: How do you guarantee the quality?
A: Firstly, we have our own factory with strong R&D center and QA team which can totally make sure the quality of every single product. Secondly, we have a completed after-sale service .

Q: Is OEM available?
A: Yes, all goods can be customized according to your requirements, including packing, LOGO print, etc.

Q: Can it buy only 1 set of the meter?
A: Yes. No matter how many products you buy, we are grateful all along.

Q: How to deliver the goods for trial order or small order?
A : At customer's request ,we prefer to choose international express, such as DHL, EMS.TNT.Fedex.
