PM2.5 sensor laser dust sensor anti-smog air quality detector for Arduino Programming

Feedback Ratings
  • 2-4 Sets
    US $28.99
  • 5-9 Sets
    US $28.40
  • 10-199 Sets
    US $27.55
  • >=200 Sets
    US $17.50
Quantity:
- + Sets available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
2 day(s) after payment received
Customization:
Customized logo (Min. Order:: 1000 Sets)
Customized packaging (Min. Order:: 1000 Sets)

More

Graphic customization (Min. Order:: 1000 Sets) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
ALSRobot
Model Number:
RB-02S185
Usage:
Air Sensor
Output:
Digital Sensor
Product name:
PM2.5 sensor
Application:
Air quality detector
Condition:
Orignal 100%
Weight:
110g

Packaging & Delivery

Selling Units:
Single item
Single package size:
15X9X11 cm
Single gross weight:
0.3 kg
Package Type:
Standard Package
Lead Time :
Quantity(Set) 1 - 100 >100
Est. Time(day) 2 To be negotiated

Description

Fine particulate matter, also known as fine particles, fine particles, PM2.5 .Fine particulate matter refers to particles in ambient air whose aerodynamic equivalent diameter is less than 2.5 microns.It can be suspended in the air for a long time, and the higher its concentration in the air, the more serious air pollution.The PM2.5 sensor is a digital general particulate matterconcentration sensor, which can be used to obtain the number of suspended particulate matter in the air of 0.3-10 microns per unit volume, namely the concentration of particulate matter, and output in the form of digital interface. Meanwhile, the mass data of each particle can also be output.The sensor can be embedded into various instruments or environmental
improvement equipment related to the concentration of suspended particulate matter in the air to provide timely and accurate concentration data.

Specifications

  • Item name: PM2.5 Sensor
  • Item Code: RB-02S185
  • Brand: ALSRobot
  • Place of origin: China
  • Fixed hole: M3*2
  • Interface type: 4P plug-in interface
  • Signal type: serial port signal
  • Indicator light: power indicator light
  • Working voltage: 5V
  • Working current: 120mA
  • Power requirement: power > 1W (current > 200mA)
  • Pin definition:
    + : power positive
    - : power supply negative pole
    TX: serial data sending end
    RX: serial data receiver
    SET: hibernation SET pin, 3.3v level.SET=1 module works in the continuous sampling mode. After
    each sampling, the module actively uploads the sampling data and the sampling response time is
    1S.SET=0 module enters low power standby mode.
    RST: module reset signal, low level reset is not used when the suspension or pull up, this pin
    user can not have to operate.
  • Connection line: 4P sensor connection line
  • Detection range: PM1.0, PM2.5, PM10, 0.3 exhaust m and above particles
  • Working temperature: - 10 ~ 60 ℃

pictures

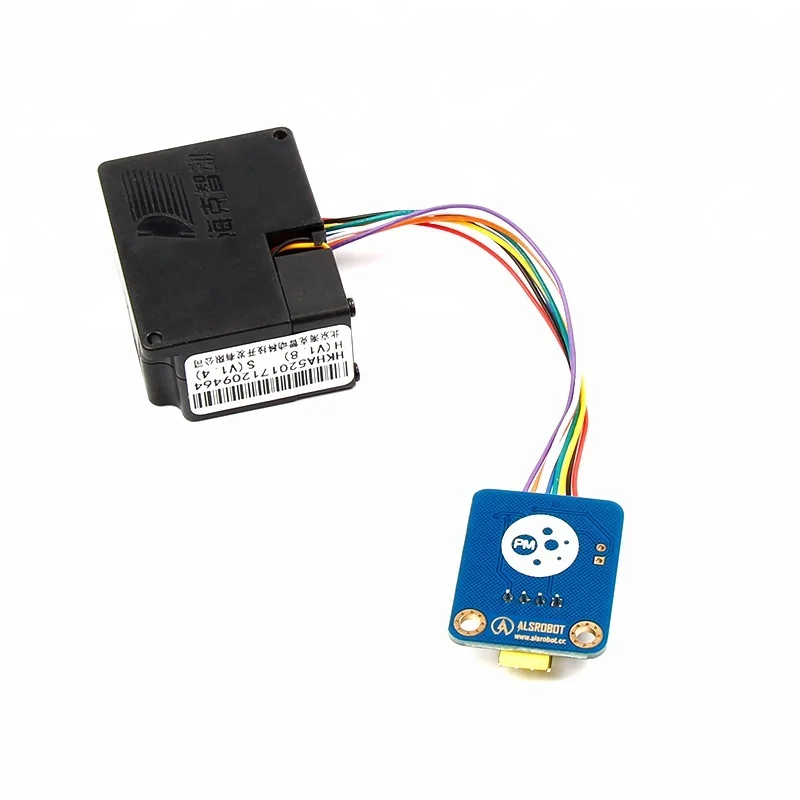

RB-02S185-PM2.5 Sensor(9)

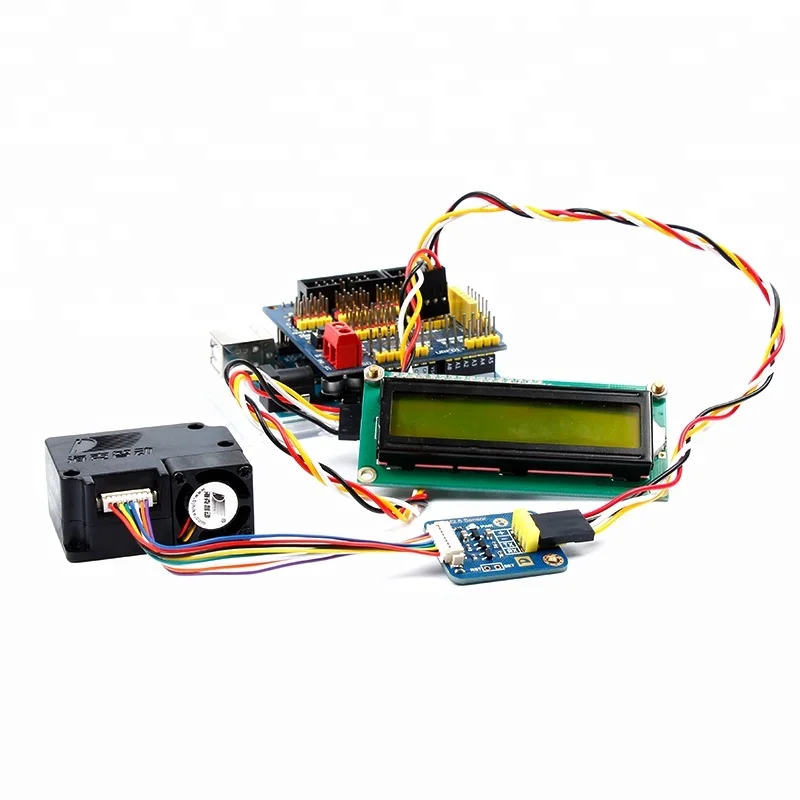

PM2.5  laser dust sensor RB-02S185-PM2.5 Sensor(5)

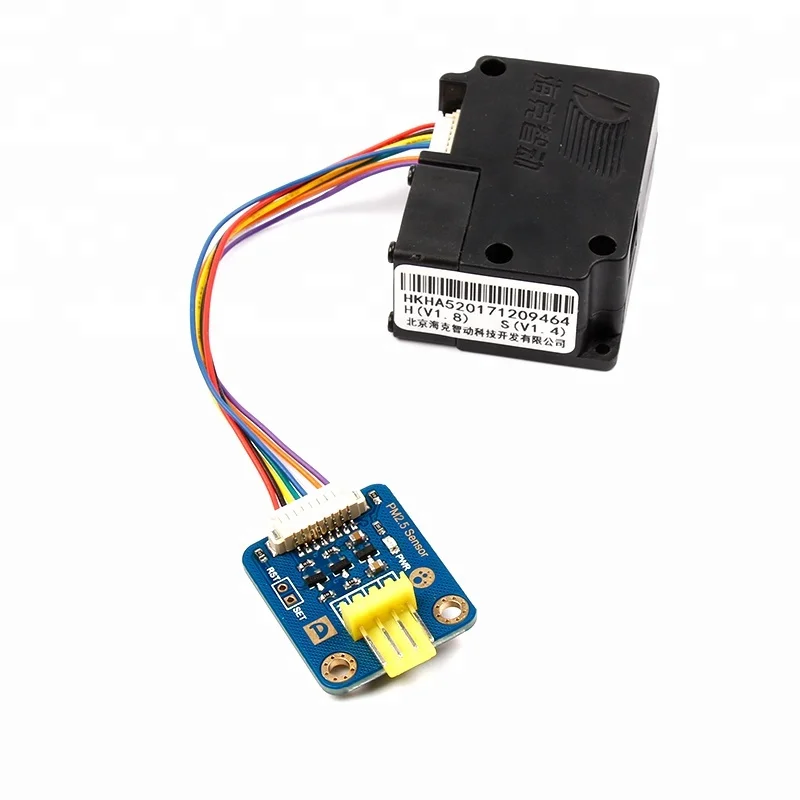

PM2.5  laser dust sensor RB-02S185-PM2.5 Sensor(7)

PM2.5  laser dust sensor RB-02S185-PM2.5 Sensor(8)

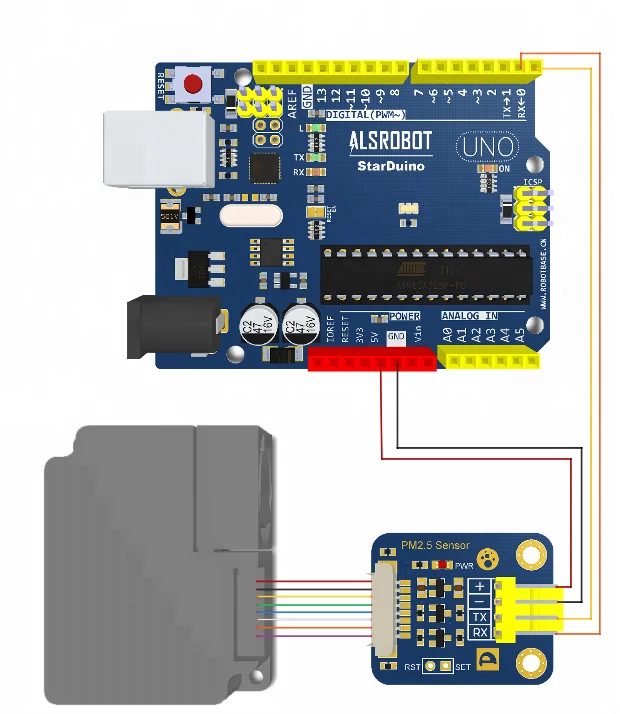

PM2.5  laser dust sensor  Connect to Arduino Uno R3 ControllerRB-02S185-PM2.5 Sensor(2)

Final Decsription
