PV Solar Cable 4mm2 / 6mm2 / 10mm2 / 16mm2 / 25mm2 For Solar Power System

Feedback Ratings
  • 100-999 Meters
    US $0.45
  • >=1000 Meters
    US $0.29
Quantity:
- + Meters available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
R&X
Model Number:
1x2.5/4/6/10/25/16/25/35sqmm
Insulation Material:
XLPE
Type:
High Voltage
Application:
Solar power system
Conductor Material:
Copper
Jacket:
XLPE
is_customized:
Yes
Color:
Black and red
Cable spec:
1x6mm2
Certification:
TUV&UL

Packaging & Delivery

Selling Units:
Single item
Single package size:
36X36X32 cm
Single gross weight:
35.0 kg
Package Type:
250m /roll, 2 rolls/ carton, N.W.: 34kg G.W.: 35kg 36x36x32cm, 0.04cbm.
Lead Time :
Quantity(Meter) 1 - 1000 >1000
Est. Time(day) 5 To be negotiated

Factory Price Solar PV Cable 2.5 / 4 / 6 / 10 / 16 / 25 / 35 mm2



Sample Purchase online: Click here





Techincal Data



Cross

Section

(mm²)

Conductor

Construction

(n/mm)

Conductor

Stranded

OD.(mm)

Insulation

Min.Wall

Thickness(mm)

Sheath

Min.Wall

Thickness(mm)

Cable

OD.(mm)

Conductor

Max.Resistance

AT20°C

/km)

Current

Araaing

Capacity AT

60°C(A)

1.5mm²

TXR30/0.25

1.58

0.67

0.73

4.90

13.3

30

2.5mm²

TXR50/0.25

2.02

0.67

0.73

5.45

7.98

41

4mm²

TXR56/0.30

2.60

0.67

0.73

6.10

4.95

55

6mm²

TXR84/0.30

3.42

0.8

0.80

7.20

3.30

70

10mm²

TXR142/0.30

4.56

0.9

0.90

9.00

1.91

98

16mm²

TXR228/0.30

5.60

1.00

0.90

10.20

1.21

132

25mm²

TXR361/0.30

6.95

1.19

0.92

12.00

0.780

176

35mm²

TXR276/0.40

8.74

1.20

1.00

13.80

0.554

218

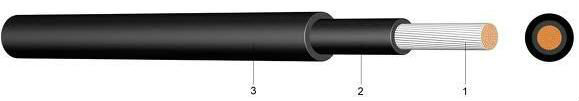

Drawing






Product Description

1.Rating:Voltage: 600/1000V  Temperature:-40°C-- 90°C



2. Description:

(1)Conductor:  Tinned annealed  copper



(2)Insulation:120°C  XLPE , black



(3)Jacket:120°C  XLPE , black or red



3.Marking:TÜV  2  PfG  1169  PV1-F  1×**mm2



4.Application: Specifically designed for connecting photovoltaic system components inside and

outside of building and equipment  with high mechanical requirements and extreme weather

conditions .For permanent installations.



5.General characteristics: Cable made of electron-beam cross-linked insulation and coating; high resistance against heat , cold, oil, abrasion, ozone,

UV and weather; with improved reaction in case of fire . low smoke, halogen free , flame free ,

flame retardant; flexible, easy to strip, very low space requirement,  extremely, extremely

mechanically robust, very long lifetime.














double core.jpg
