PVC heat shink film blowing machine

Feedback Ratings
  • 1-4 Sets
    US $20000.00
  • >=5 Sets
    US $19200.00
Quantity:
- + Sets available
0piecesselected, US $in total
View Details
Shipping:
Please confirm the quantity of the goods.
Overview
Quick Details
Condition:
New
Application:
Film
Plastic Processed:
PVC
Blow Moulding Type:
Extrusion Blow Moulding
Automatic:
No
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
SANBI
Model Number:
BT-600
Voltage:
380v,50hz three phase
Power(W):
37kw
Dimension(L*W*H):
5000x1500x3500mm
Weight:
2500kg
Certification:
CE, ISO, SGS
Warranty:
One Year Guarantee
After-sales Service Provided:
Engineers available to service machinery overseas
Name:
PVC film blowing machine
Model:
BT-600
Feature:
pvc heat shrink film blowing machine
Color:
White with blue
film width:
100-550mm
film thickness:
0.01-0.10mm
Max output:
20KG/H
Main motor:
15KW
Certificate:
CE,ISO9001:2000,SGS
Product Description

Product Application

PVC heat shrink film blowing  machine' adopts to revolve a mold head and changes the Pin adjust soon and automatic constant temperature control etc. item technique, the production come out of product petrochemistry good, the degree of thickness even degree, clarity of thin film, neat degree, constringency rate...etc. various quality index signs attain printing class the technique standard of the thin film.

  The machine's set organization tightly packed, the operation is easy, mainly from as follows part of constitute:Extrude machine, revolve a mold head, cool off breeze wreath, the first to lead, hot water box and already set set, the second lead(dynamoelectric ascend and descend), double the work accept a machine and extrude a machine electricity to control a cabinet and assist a machine electricity to control a cabinet.

Model
BT-600
Application
PVC Heat shrink film blowing machine
Suitable Material
PVC
Width range
550mm
Thickness
0.025—0.10mm
Screw diameter
50mm
Screw L/D Ratio
28:1 L/D
Screw/Barrel Material
38 CrMoAIA
Heater capacity
20kw
Driving Motor
15kw
Die Diameter
45-100mm
Air Ring Diameter
550mm
Max. Film Output
20kg/h
Take-up Roller Width
600mm
Take-up Motor
1.5kw
Machine dimension
7000*1500*3800mm
Weight
2000kg

Main Features

1) Providing the manual and installing drawing  ,easy in installation and maintation.

2) Adopting advanced world famous brand components in  electric parts and main parts like main motor ,inverter.

3) Equipping with second expanding device to make shrink rate much better.

4) 27 years manufacturing in film blowing machine very specialized company to make more stable and high qualitymachine .

Certifications
FAQ

1. Q: Are you Trading company or Factory?

      A:  Factory .

2. Q: Where is your company? How to visit your company?

      A:  We are in Ruian city ,zhejiang province,China .The nearest airport is wenzhou yongqiang airport ,the nearest railway station is Ruian railway station . Eg ,if you come from shanghai to wenzhou airport ,it takes about 1hours ,if by high train from shanghai to Ruian ,it takes about 4 hours.

3.  Q: When does your company buid ,and how many worker and company scale for it ?

       A: We are bulit in 1987 year ,have 29 years history in manufacturing film blowing machine ,bag making machine ,printing machine . We total have about 100 pc worker and our factory occupy 15000 Square meter .


4.  Q: How do your company control the quality ?

     A: Our company belief is QUALITY FIRST ,CUSTOMER FIRST. We control the machine quality from the beginning to ending .We gained CE,ISO9001;2000,SGS certificate.

Our Service


 Our Advantages:

1. ISO 9001:2000,  SGS, CE, Production Assessment, Gold Supplier certificated

2. With 20 pc National patents, for eg, SJ-GS1500 three layer film blowing machine with IBC,haul off rotary.

3. All machines will be examined and tested before delivery by  professional engineers (with more than 25 years machine experience)

4. Perfect after-sale system,    experienced technicians set up abroad.

5. Yearly Production Capacity -- 200-300 sets

6. Prompt Reply Within 12 Hours

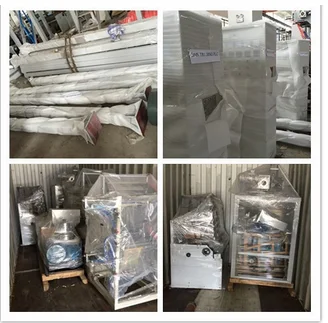

Packing & Delivery
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
