Package sewage wastewater treatment plant septic tank

FOB Reference Price:Get Latest Price
$1,443.26 - $7,771.40 / Units | 1 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Czech Republic
Brand Name:
ASIO
Model Number:
AS-VARIOCOMP K
Type:
K
Supply Ability
Supply Ability:
100 Unit/Units per Month
Packaging & Delivery
Packaging Details
As per agreement
Port
Hamburg
Lead Time :
14 days
Product Description

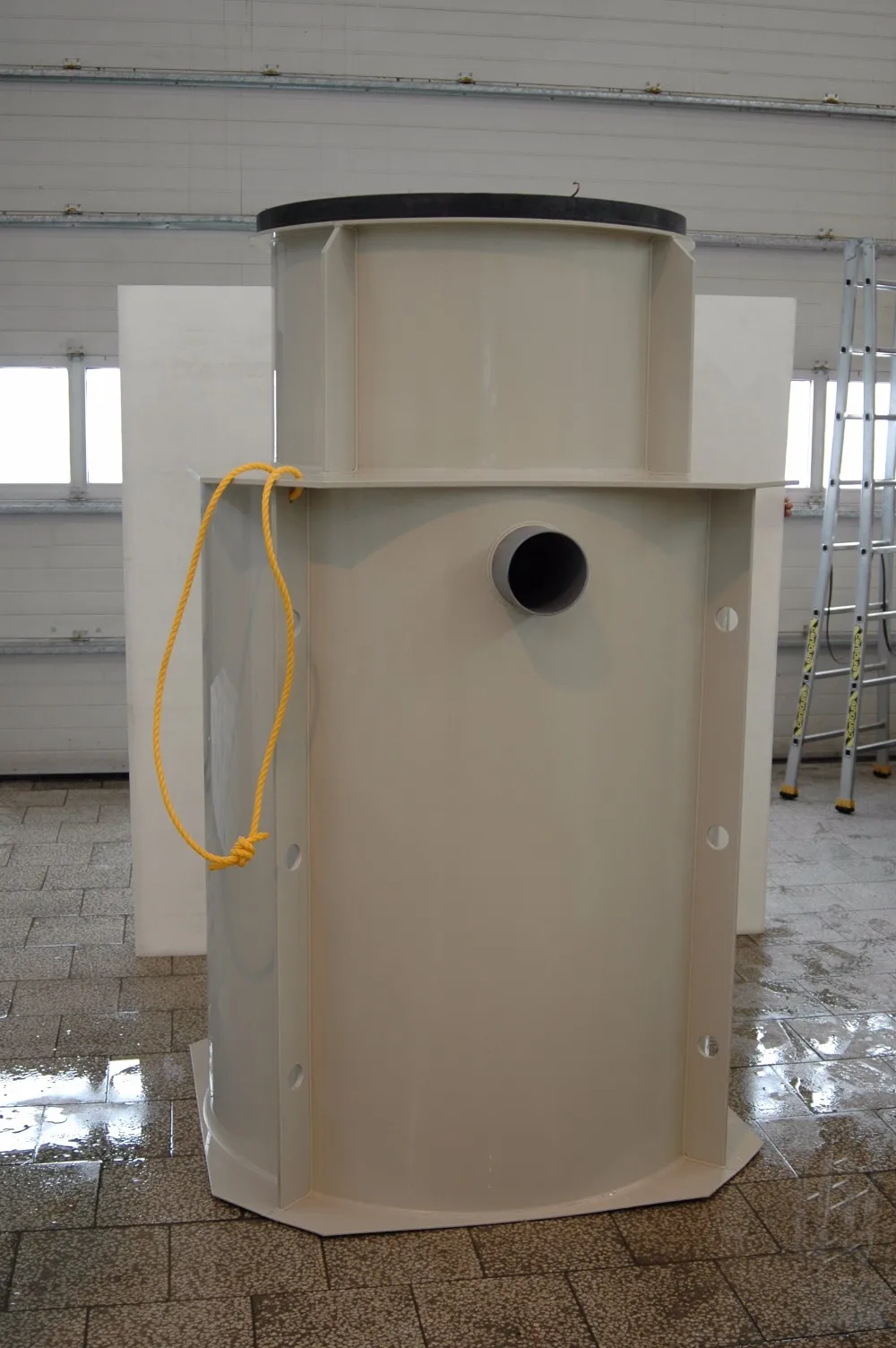

AS-VARIOCOMP K


For video and detailed information please see:
http://www.asio.cz/en/as-variocomp-k

A line of fully equipped domestic wastewater treatment plants designed for the treatment of sewage from single family homes. Based on a stable and reliable operation, the plant technology keeps energy consumption to a minimum. This technology uses aerobic biological processes that have been proven by long-term application in practice.

Advantages of the AS-VARIOcomp K Domestic Wastewater Treatment Plant (WWTP)

+Certification in accordance with EC legislation
+Low operating costs
+Complete delivery (everything included in the price, incl. extension and cover)

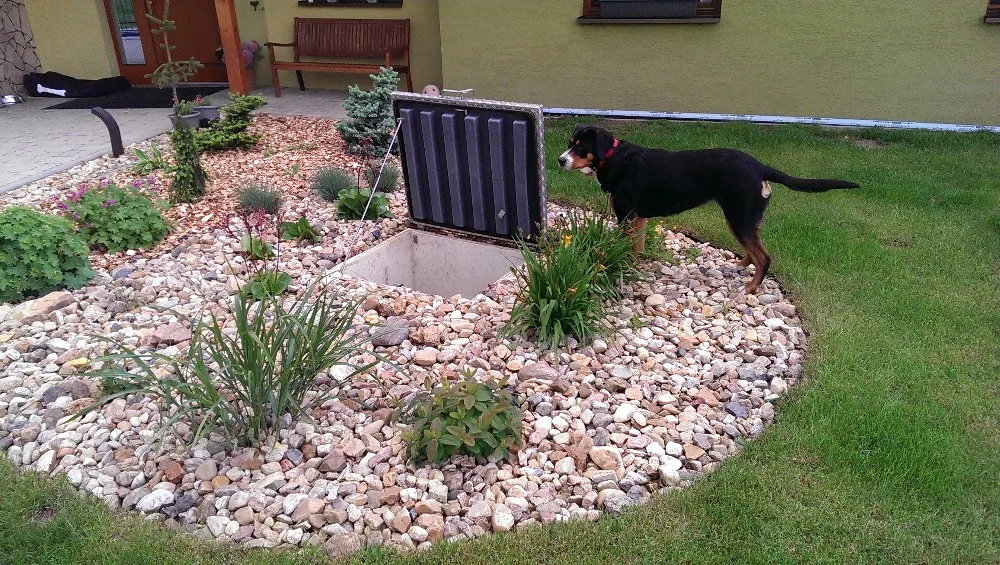

+Walk-on cover
+Easy operational handling and reliability
+Possibility of simple conversion from a conventional wastewater treatment plant (WWTP) to the ULTRA type, by the insertion of a membrane module
+If the ULTRA type is used, pre-treated water can be used as sanitary water



Description of the technology

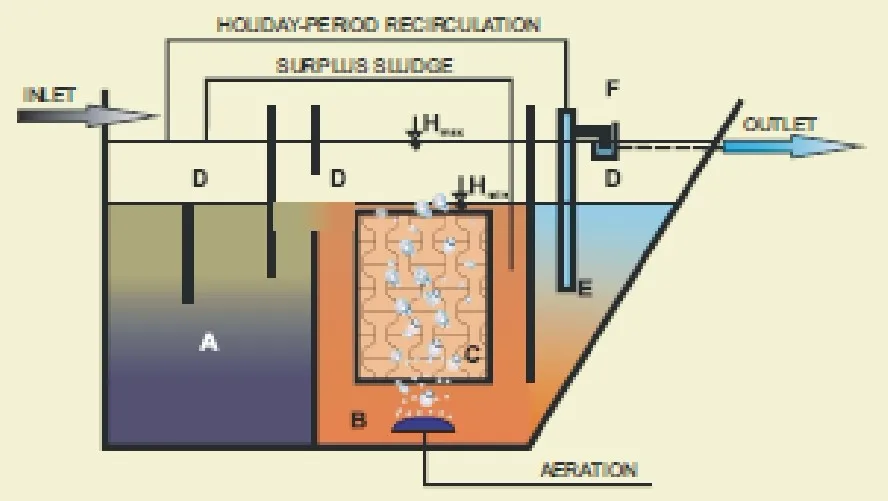

Wastewater flows to the settlement compartment (A) of the inlet part of the wastewater treatment plant (WWTP), where floating and sedimentable solids are removed, which are further subject to anaerobic degradation. From the settlement compartment, mechanically pre-treated water flows to the activation compartment (B) through an overflow. The activation compartment (B) is used for the biological treatment of wastewater. In its bottom part, this compartment is fitted with a fine-bubble aeration system into which air is forced by means of a blower and possibly a biomass support (C) to improve the process stability of an overloaded or partly loaded wastewater treatment plant (WWTP). An advantage of this design is the storage capacity (D) throughout the entire space of the treatment plant, which is designed to store wastewater and to ensure an even outflow of wastewater from the treatment plant. The activated mixture from the activation compartment flows to the vertical secondary settlement tank (E); from there, treated water is extracted with a mammoth pump (F) to the outlet trough. Excess aerobically stabilized sludge is extracted with a mammoth pump to the settlement and sludge compartment (A) as necessary.


Legend:


A - Settlement and sludge compartment
B - Activation compartment
C - Biomass support
D - Storage capacity
E - Secondary settlement compartment

F - Mammoth pump.

Note:

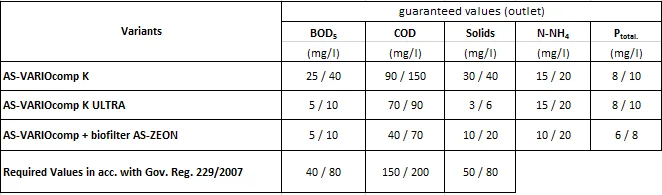

- Lower values than those presented in the table can be guaranteed after consultation with the technician for a particular location.
* see the Type Test Record
- If the wastewater treatment plant (WWTP) is individually equipped by the customer with a flocculation dosing device, a further reduction of the outlet values of individual parameters can be ensured, especially the elimination of P.
- the guaranteed parameter values correspond to the specific requirements of the Czech legislation, while the guarantees for other countries are specified and offered individually and/or upon request. In doing this, it is issued from the values measured in the type test according to EN 12566-3+A2.

Installation of wastewater treatment plants

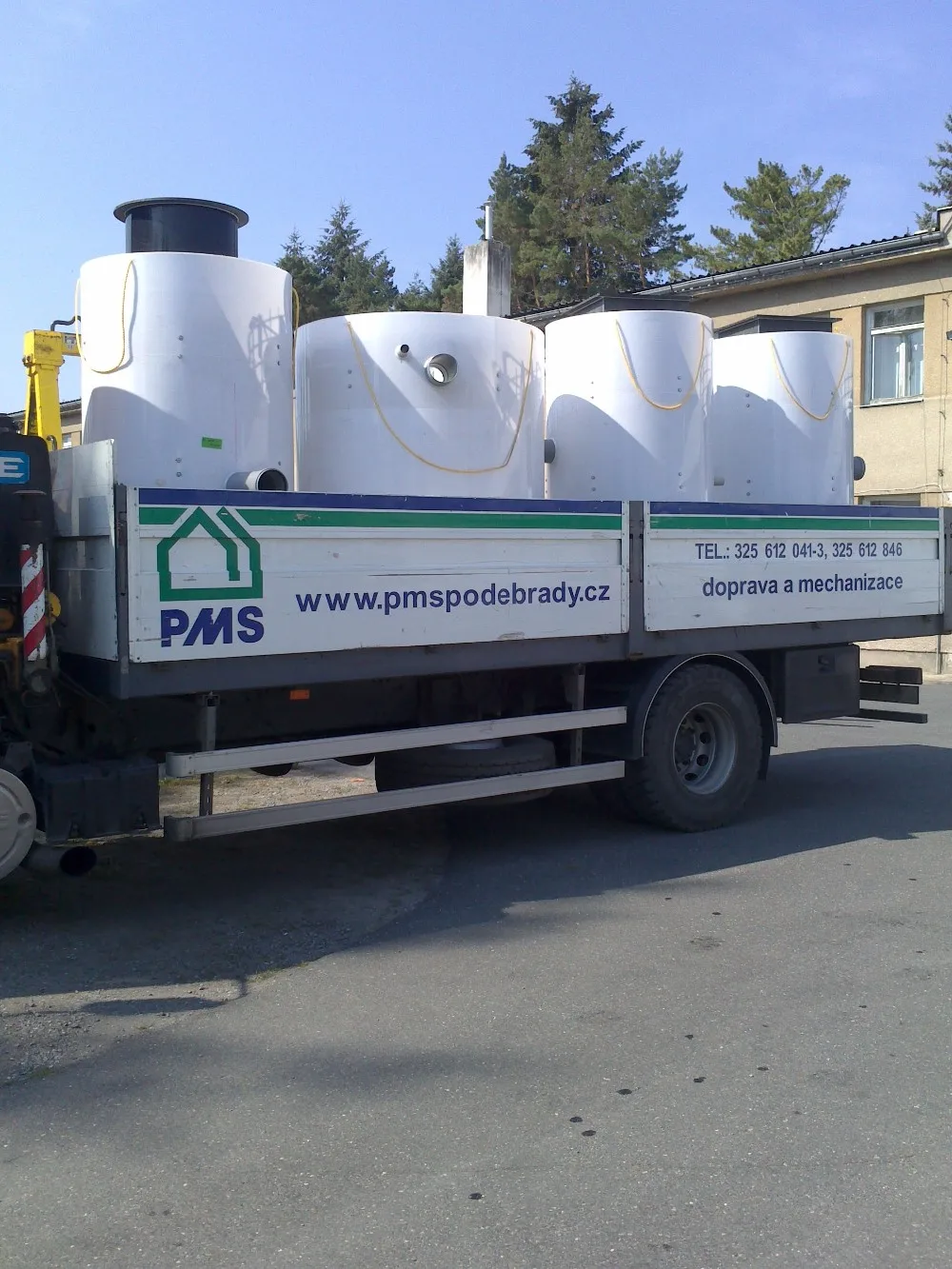

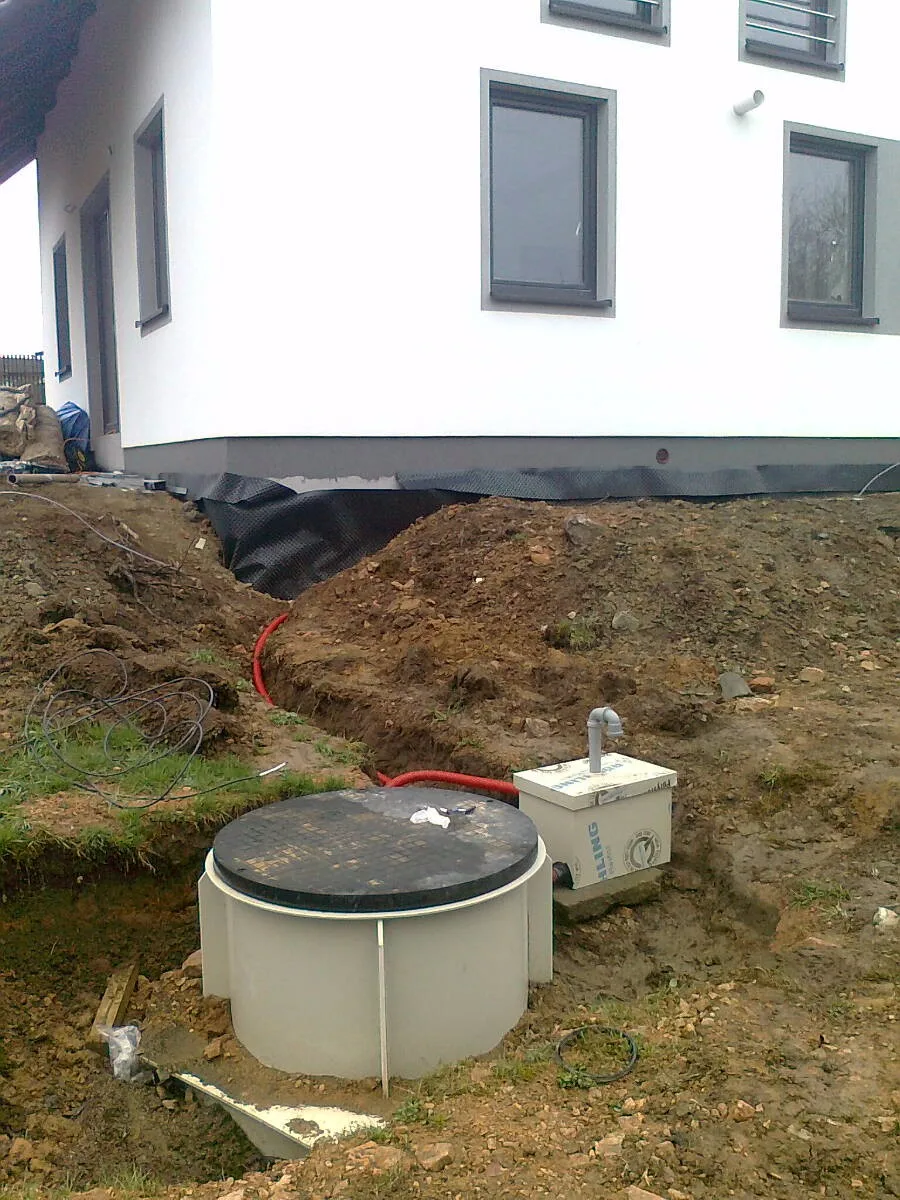

The wastewater treatment plant is installed in an excavation on a concrete slab base (there is no need to cement the plant at the sides), connected to the sewerage system by means of orifices, and the air line of a blower located outside the WWTP is connected to it. The blower is installed outside the treatment plant to extend its service life, as the environment inside the WWTP is very aggressive. The basic functions are pre-set by the manufacturer and the WWTP does not require any electric installation workexcept the connection of the blower to the mains. The wastewater treatment plant is put in operation by the supplier or an authorized service organization. Given their dimensions and weight, the 5 and 8 EO types can be transported on a car trailer and be placed in the excavation without the use of a crane. The wastewater treatment plant (WWTP) is equipped with an walk-on cover, ⌀ 950mm, as a standard feature.

Guarantee

Technology of the wastewater treatment plant (WWTP) - 24 months; plastic shaft - 5 years.
ASIO, spol. s r.o. is a holder of the ISO 9001:2000 quality certificate.
The AS-VARIOcomp treatment plant types conform to the latest European standards.

Static design

The structure of the tanks is designed using the calculation method of end elements, with the use of the NEXIS calculation program, for a service life of 25 years..

Sales and service centres

Detailed information about the products and provided services can be obtained from individual sales and service centres, representatives, or directly from the Sales Dept. of ASIO, spol. s r.o.

Documentation

Together with the purchase agreement, the customer will receive the Design and Installation Documentation. The customer will receive the remaining documentation concerning the wastewater treatment plant (WWTP) together with the guarantee certificate (Operations Diary, Operating Instructions, and Draft Operating Rules).

Services and products provided on request

-We will shift the outlet from the WWTP in any direction, free of charge, as requested by the customer
-Blower installation shaft
-Above-standard height of the extension
-Possibility to deliver a double-jacketed WWTP in the case of a low groundwater table
-Biomass support for the activation compartment (with the “K” type) - possibility of additional installation
-Possibility to select the colour of the WWTP cover

Detailed Images
About ASIO

ASIO, spol. s r.o. was established in 1993 as a Czech engineering supplies company with international operations. The company is involved in the development, production, and delivery of technologies for wastewater treatment, water treatment and air treatment. The wide range of water management products that it offers are employed in the treatment of wastewater from family houses, villages, towns, hospitals, and in various branches of industry.

ASIO, spol. s r.o. is a Czech company represented in 32 countries, through a wide network of subsidiaries and representatives. Besides its quality production base, it has built a network of sales and service centres not only in the Czech Republic, but also in a number of European countries. All these closely cooperating companies are associated in the ASIO Group, where the quality of sales and production is certified in the Quality Assurance System, in accordance with the ISO 9001:2009 a ISO 14001:2005. standards. In the development sphere, it cooperates with many academic institutions and universities, such as civil engineering and chemical technology universities.

ASIO, spol. s r.o. and its employees are members of various professional and sectoral associations (e.g., Czech Water Association - CzWA, Association of Manufacturers of Thermoplastic Structures - AVKT, Technical Standardization Commissions at UNMZ, etc.) that are involved in the preparation and amendment of Czech as well as European legislation.

The aim of the company is to provide comprehensive supplier services in the sphere of wastewater treatment, water treatment, and air treatment, offer modern, high-quality and reliable products complying with the requirements of European legislation; observe high environmental standards; and meet the customers’ requirements for “easy, quick, top-quality, and environmentally friendly” services.

For further information please visit us at www.asio.cz/en
