Pallet racking storage, rack upright roll forming machine

FOB Reference Price:Get Latest Price
$40,000.00 - $70,000.00 / Set | 1 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Type:
Steel Frame & Purlin Machine
Condition:
New
Work Pressure:
20Mpa
Production Capacity:
0-15m/min
Place of Origin:
Jiangsu, China
Brand Name:
GH
Model Number:
chain type
Voltage:
380V/50HZ 3Phase(as Customer's Request)
Power:
15kw
Dimension(L*W*H):
12000*1500*1200
Weight:
10T
Certification:
CE/ISO9001
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Raw materials:
Steel
Color:
Blue
Supply Ability
Supply Ability:
5 Set/Sets per Month
Packaging & Delivery
Packaging Details
suitable for sea shipping.
Port
shanghai
Lead Time :
50days
Product Description
                                                               steel shelf roll forming machine(Only for reference)
a、the structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and process as a whole after welding. it has the ability of strong loading and stable operation when running the machine.

b.all the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.

c、we adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .

d: it is very easy to install the equipment and suitable for producing in the factory.

e: the machine has features of low noise and high efficiency.

If you have your own special requirements,our machine can be also customized.

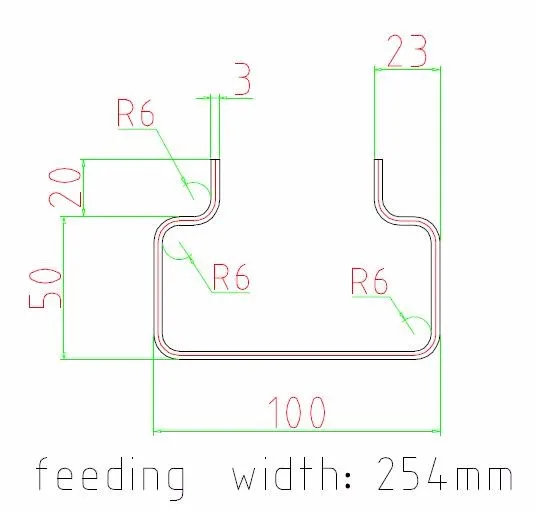

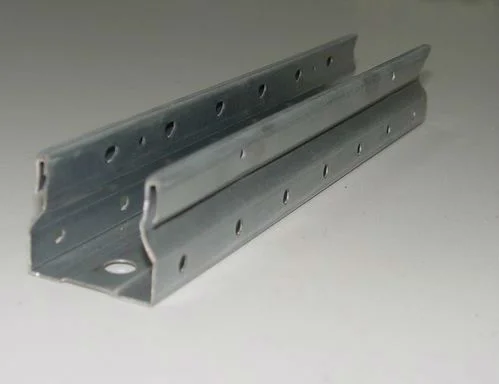

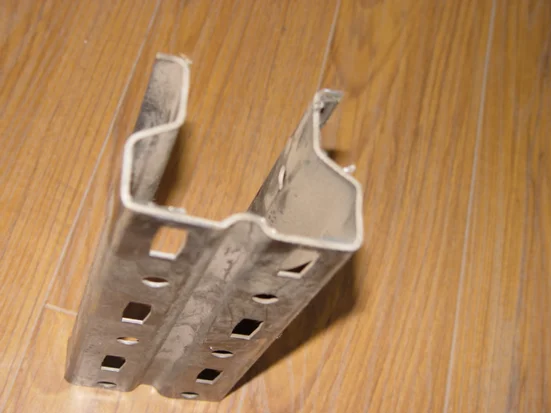

profile as following:
Whole machine:

Technological process

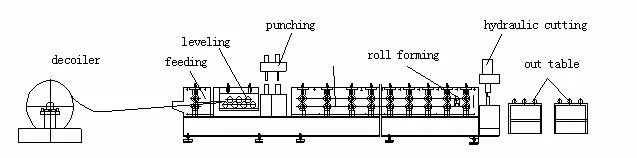

Uncoiling—Feeding—Leveling—punching1----punching2------Roll forming— Revising—-Cutting—Products

Detailed Images

5T manual decoiler:

Dimensions: 1700mm*1000mm*800mm
Width of feeding: 600mm
Capability: 3 Ton
Bound of expand &fight: 450mm—550mm
Mode of expand &fight: inner expand &fight by manual
Way of feeding: manual


Flattener:

Leveling station: 7 rollers ( up three rollers, down four rollers)

diameter of roller: 76mm

material of roller: ASTM1045, polished and coated with chrome HRC58-62°

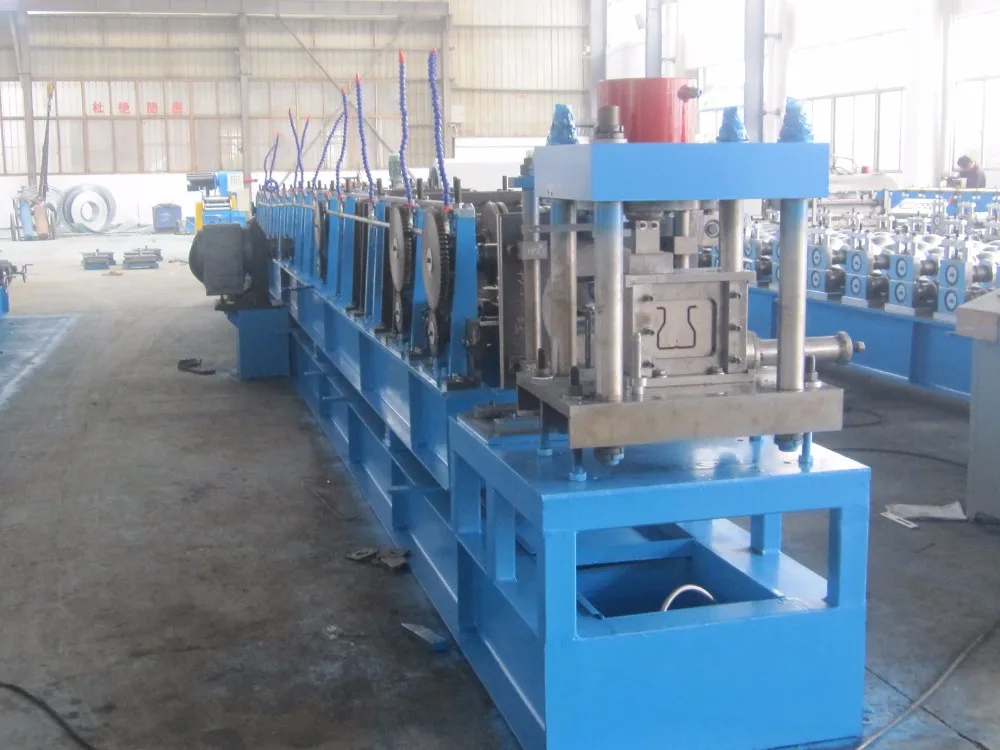

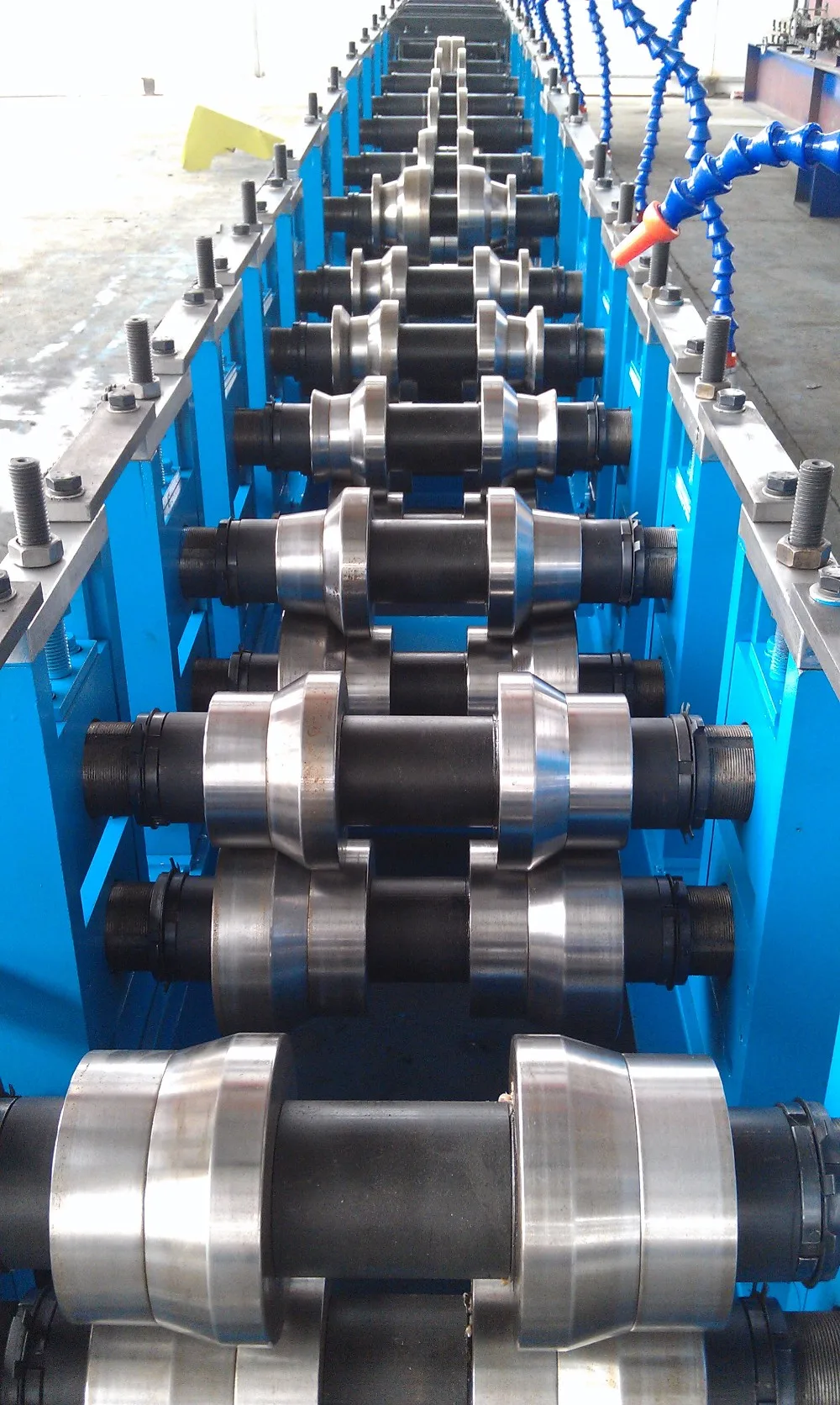

Forming section

1: Coil width: base on customer profile

2: working speed: 12m—15m/min (not include cutting)

3: roll station:

Roll forming: 20 stations

ASTM52100, polished and coated with chrome HRC58-62°

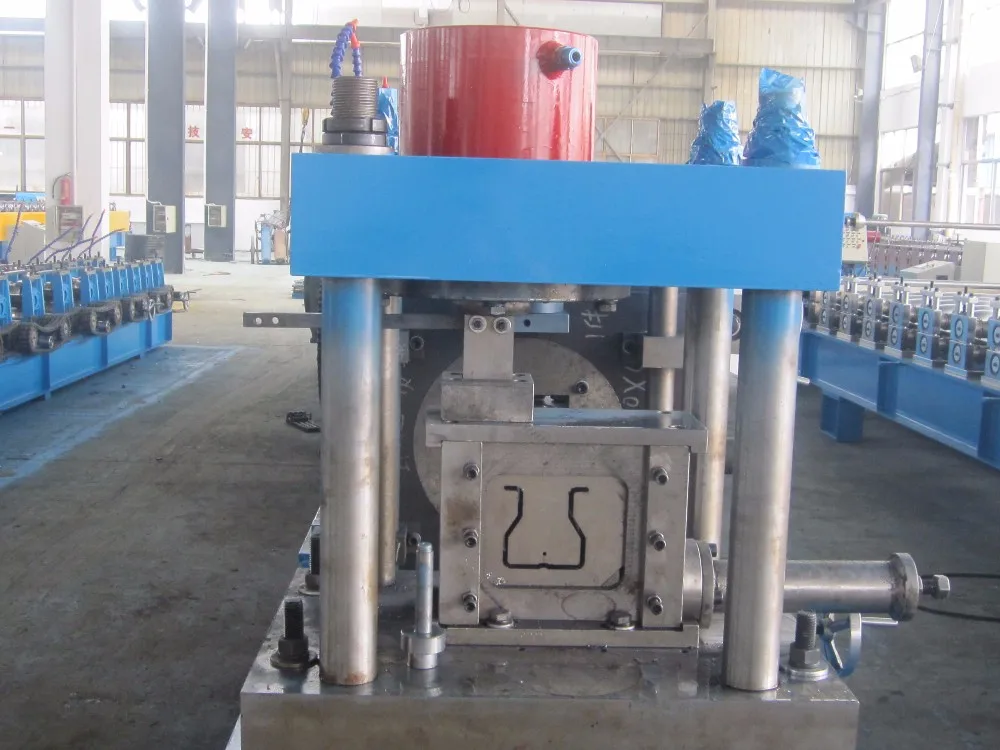

Punching

base on customer request this machine need two set of punching system

machine adopt hydraulic after cutting

punching mould: Cr12 HREC58-62°

punching distance is adjustable by computer

Post cutting :

Machine adopt hydraulic after cutting
Cutting after forming: Cut the sheet after roll forming to required length
Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.
Material of blade: D2with heat treatment total 3 cutters
Length measuring: Automatic length measuring
Tolerance of length: 3m +/- 1.5mm



out table:

Jointed by 60mm*40mm tube
Size: 2.0m long*0.8mwide*0.6-1mhigh
One out table with three support roller
Color: Blue
Quantity: 2 units


Hydraulic station:

Hydraulic power: 5.5kW
Working pressure: 20Mpa adjustable
Solenoid valve: 1 group
Hydraulic oil: 46# hydraulic oil
Color: Blue (or base on customer request)

Control carbinet:

1)Programmable setting of profile length and quantity
2)Automatic stopping of the equipment after completion of the cutting programme.
3)Operating system language: English and Chinese
4)Computer used to control length & quantity. Machine will automatically cut tolength and stop when required quantity is achieved
5)PLC brand: Panasonic
6)Frequency converter brand: Yaskawa, quantity: 1
7)Touch screen: Taiwan Weinview

Package&Delivery
Our Service

Enginer to test machine for clients.

Clents learning to check the products.


FAQ

 If any needs or questions, feel free to contact me please.
We would like to design the machine for you
Mob/WhatsApp: 008618551231440
WeChat: 243554222
