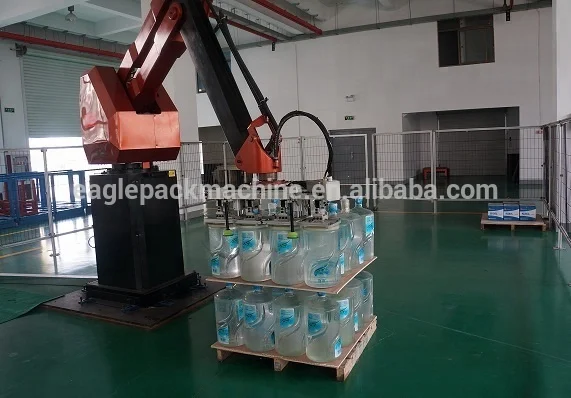

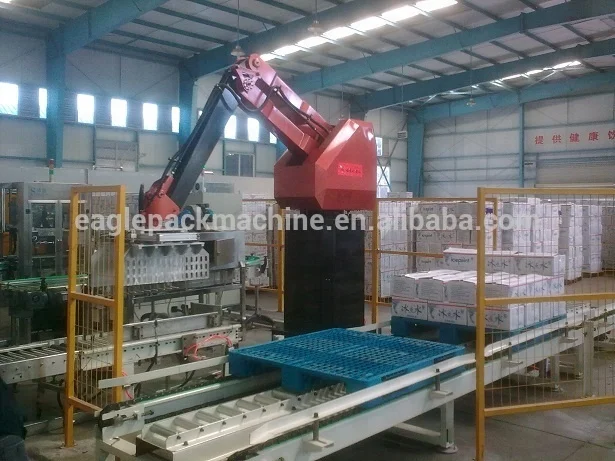

Palletizer robot (hefei eagle)

Feedback Ratings
US $38900.00 / Set | 1 Set (Min. Order)
Model Number:
XY-SR130
US $38900.0
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
50 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Type:
Packaging Line
Condition:
New
Application:
Beverage, Chemical, Food, Machinery & Hardware, Medical
Packaging Type:
Bags, Barrel, Bottles, Cans, Cartons
Packaging Material:
Plastic, Wood
Automatic Grade:
Automatic
Driven Type:
Pneumatic
Voltage:
380V,50HZ
Power:
3KW
Place of Origin:
Anhui, China (Mainland)
Brand Name:
eagle
Dimension(L*W*H):
1000*1000*3000
Weight:
200KG
Certification:
CE
After-sales Service Provided:
Engineers available to service machinery overseas
MATERIAL:
ALUMINIUM

Packaging & Delivery

Selling Units:
Single item
Single volume:
10 cm 3
Single gross weight:
800.0 kg
Package Type:
WOOD CASE
Lead Time :
Quantity(Set) 1 - 1 >1
Est. Time(day) 50 To be negotiated
Video Description

Function characteristics
1. Touch screen controller, easy use
2. Let linear motion come true, simplify control system
3. Simple structure, low failure rate and convenient maintenance
4. Few main parts and accessories, so maintenance cost low
5. Low power consumption, only 1/5 consumption of the same kind of mechanical stacker crane from other company

6. Only need a little floor space, floor utilization ratio is high
7. Diverse models, flexibly adapt various palletizing requirements
8. Flexible use method, can most handle six production lines
9. Manipulator finger style\so can work safely 10. Manipulator arm Lightsome strong, energy conservation and environmental protection
Technical parameters

  ModelXY-SR-130XY-SR-210
  Mechanical structure  Multiple joint robot
  Movement method
Cylinder coordinates type
Palletizing weight(contains machine tongs)120kg200kg
Designed palletizing capability850c/hr-1200c/hr1400c/hr-1600c/hr
Movement axleNormally 4jiont(the most can be 5jionts)
Movement scopeZ-Axis(vert)2100mm2300mm
R-Axis(long)1300mm1500mm
Axis(Turn)33 0 ·
∝ Axis(Wrist)33 0 ·
Machine tongs  pallet, finger, sucker and so on
  Palletizing memory ability(400 Normally 30kinds(the most can be 400kinds)
Teaching methodManual teaching/teaching support/teaching cancel(optional)
Power   (200V 3PH 50HZ)2KVA6.5KVA
Compressed air0.5Mpa0.5Mpa
Robot weight(don’ t contains tongs)800kg1150kg

 HTB1UFvjMVXXXXbmXVXXq6xXFXXXD.jpgHTB1ua1.MVXXXXcZaXXXq6xXFXXXY.jpgEagle Catalogue-3
