Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
PHOTEL
Model Number:
PT-60 3516
Power Supply:
-48VDC/220VAC
NMS:
Support
LOGO printing:
Support
Size:
3.5 U high 19inch
LED Alarm:
Support
STM-1:
up to64 ports
STM-4:
up to19 ports
STM-16:
up to 2 ports
E1:
up to 240 ports
Warranty:
Two years

Packaging & Delivery

Selling Units:
Single item
Single package size:
60X45X32 cm
Single gross weight:
13.0 kg
Package Type:
CARTON
Lead Time :
1
Product Description

PT-60 3516 SDH/MSTP/PCM/DXC/IPPBX All-in-one shelf

PT-60 3516 adopt 3.5U high and 19 inch rack. It integrated SDH, PCM (64K service), DXC, IPPBX in one shelf. it is deployed between the backbone network and access network, provides various service ports and high-capacity transmission capabilities.

PT-60 3516 can have the SDH ports as STM-64, STM-16,STM-4 and STM-1. For SDH application, it will have EOS and E1 cards. For PCM application, It will have the ports as FXS, FXO, 4WE&M, Hotline, RS232, FV35, ISDN, G.703. For PBX and IPPBX application, it will have IPS card. The IPS card can supports SS7, PRI, R2, V5.2 and SIP protocols.

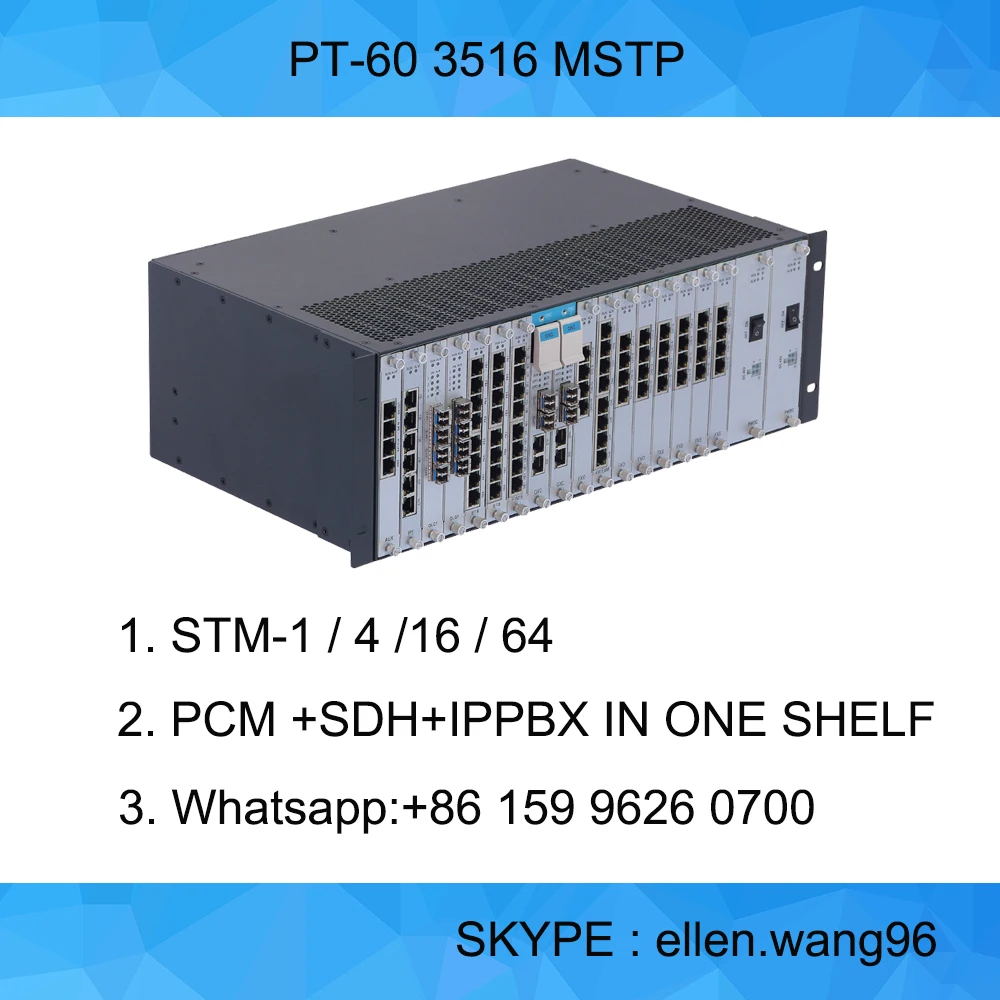

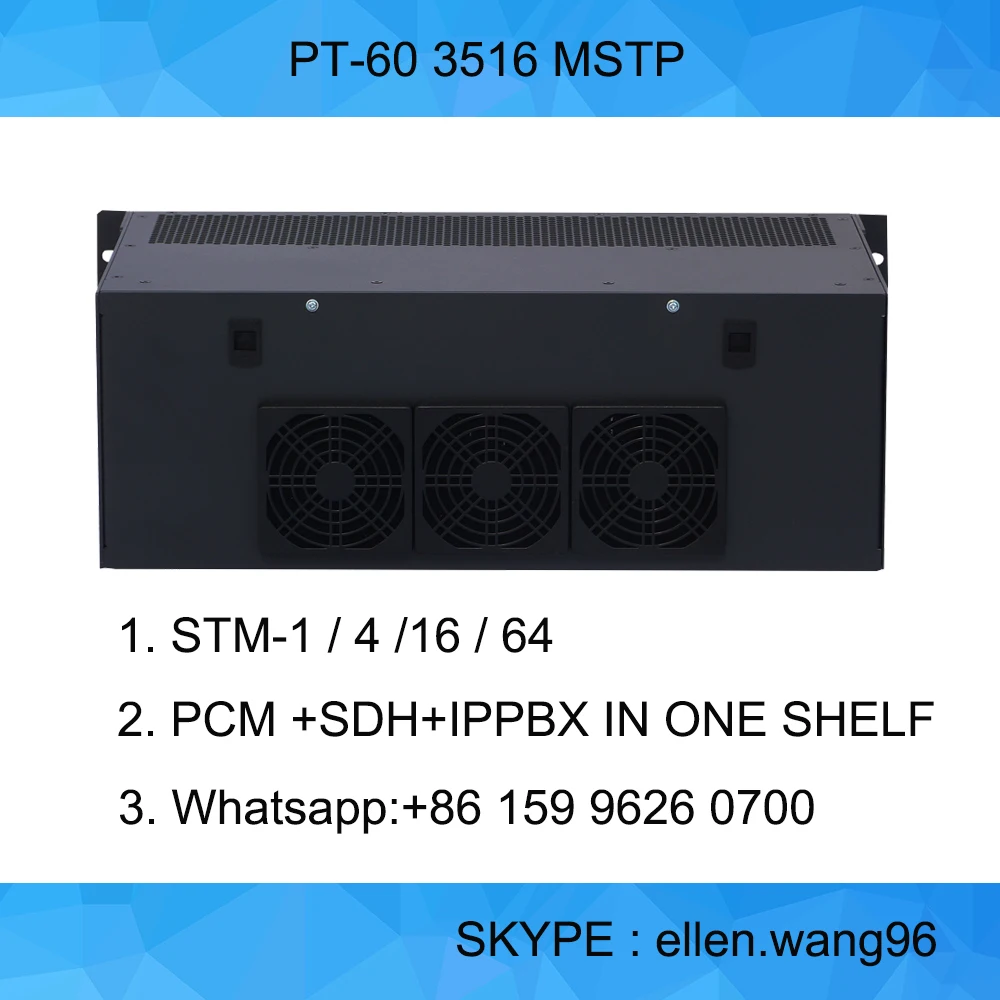

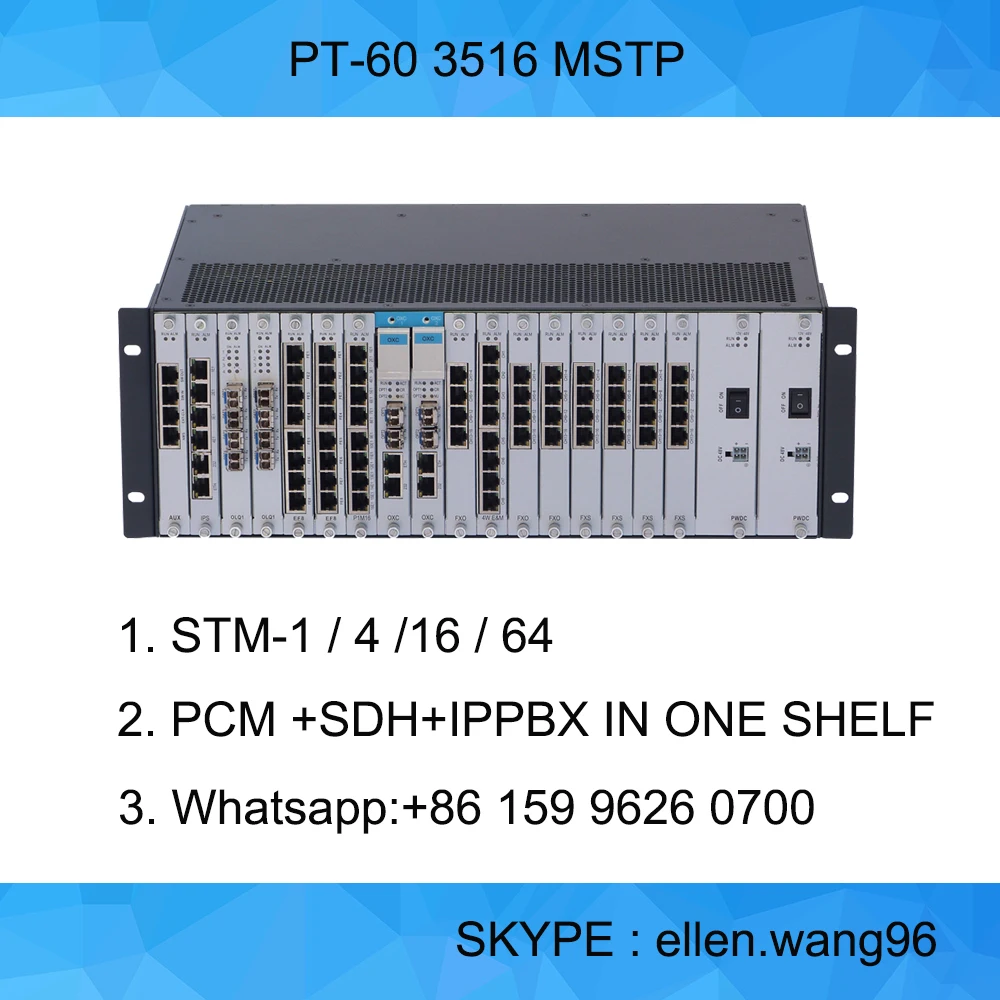

Detailed Images
Main features







System Maximum Access Capacity
2×10Gbit/s SDH Optical Port
4×2.5Gbit/s SDH Optical Port(I-16、S-16.1、L-16.1、L-16.2)
34×622Mbit/s SDH Optical Port(I-4、S-4.1、L-4.1、L-4.2)
64×155Mbit/s SDH Optical Port(I-1、S-1.1、L-1.1、L-1.2)
12×GE Electrical Port
120×FE Electrical Port
240×E1 Port
240×FXO Port(PBX Side)
240×FXS Port(Subscriber Side)
240×RS232 Port
120×4WE&M Port
120×V35 Port
4 Digital Trunk
200 SIP Trunk
200 SIP user
System cross connection capacity
192×192 VC4 high order cross-connection;
4032×4032 VC12 lower order cross-connection;
Network protection
1+1 MSP, SNCP
Equipment protection
Cross-connection matrix and clock unit 1+1 protection
Uplink and downlink interface card 1+1 protection
Power 1+1 protection
Related Products
Application

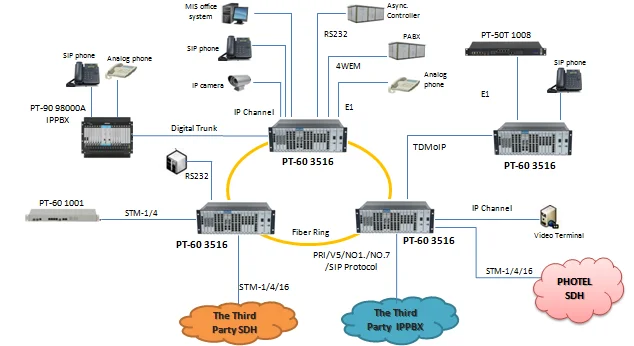

1.SDH network access

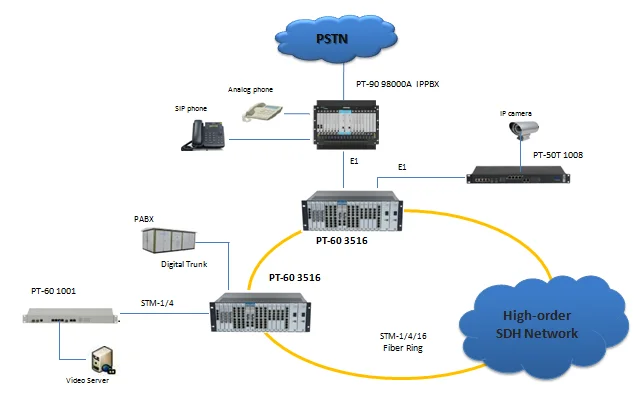

2. Ring topology
