Planetary 45:1 ratio gearbox reducer for marine diesel engine

FOB Reference Price:Get Latest Price
$66.00 - $98.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
LUNYEE
Model Number:
PLF080 series
Gearing Arrangement:
Planetary
Output Torque:
MAX. 1800N.M
Rated Power:
5W-2000W
Input Speed:
0RPM-5000RPM
Output Speed:
0RPM-14000RPM
IP:
IP65
Weight (kg):
0.4-45
Ratio:
3-1000
Assembly model:
Round flange type / Square flange type
application:
printing machine, packing machine, CNC tools, sweeping machine
Full load efficiency:
90%-98%
Operating temp:
-25°C-+90°C
Lubrication type:
Lifetime
Average life expectancy:
>20000h
Supply Ability
Supply Ability:
2000 Unit/Units per Month Planetary 45:1 ratio gearbox reducer for marine diesel engine
Packaging & Delivery
Packaging Details
1. standard Lunyee packing.
2. customized packing.
3. unmarked packing.
Port
Shanghai, Ningbo, Guangzhou
Lead Time :
7-8 days after payment
Product Description
Planetary 45:1 ratio gearbox reducer for marine diesel engine
Stage
Stage1
(i:3 4 5 6 7 10)
Stage2
(i:12 16 20 25 28 35 40 50 70)
Stage3
(I:64 80 100 125 140 175 200 350 400 500 700 1000)
A
B
A
B
A
B

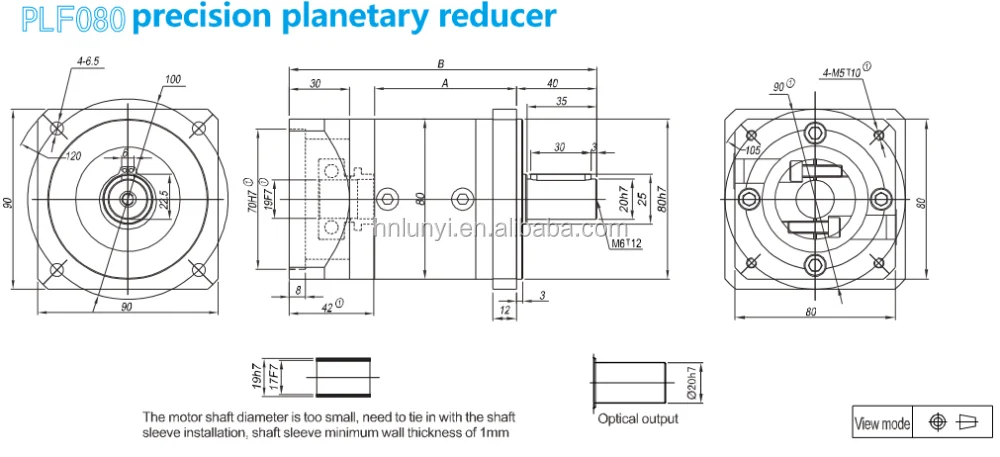

Length(mm)
71.0
153.5
94.5
177.5
117.5
201.5
Rated input speed(rpm)
3500
3500
3500
Maximum input speed(rpm)
6000
6000
6000
The maximum radial force(N)
1020
1270
1420
The maximum axial force(N)
850
1100
1250
No load torque(Nm)
about0.8
about 0.4
about 0.4
Efficiency withfull load(%)
96
94
90
Back lash(arcmin)
<12
<15
<18
Noise(Db)
≤62
≤62
≤62
Weight(Kg)
2.5
3.1
3.7
Average lifetime(h)
>20000
Torsional rigidity(Nm/arcmin)
7.5
Iubricant
Efficiency Iubrication
direction of rotation
The input and output to the same
Protection level
Lp65
Installation
arbitrarily
Ratio(i)
3
4
5
7
10
12
16
Rated output torque(Nm)
60.0
86.0
94.5
64.0
39.5
96.0
96.0
maximum output torque(Nm)
120.0
172.0
189.0
128.0
79.0
192.0
192.0
Monment of inertial(Kgcm2)
0.4
0.309
0.291
0.283
0.4
0.309
0.291
Ratio(i)
20
25
28
35
40
50
70
Rated output torque(Nm)
96.0
105.5
96.0
105.5
96.0
105.5
71.5
maximum output torque(Nm)
192.0
211.0
192.0
211.0
192.0
211.0
143.0
Monment of inertial(Kgcm2)
0.291
0.285
0.285
0.283
0.283
0.283
0.283

Main Features of Planetary 45:1 ratio gearbox reducer

1. low backlash
2. high output torque-the industry's highest torque density
3. balanced motor pinion
4. high efficiency(up to 98%)
5. ratio 3:1 to 1000:1
6. low noise
7. operable in any mounting positions
8. lifetime lubrication

Brief introduction of planetary gearbox:
1. Gear box is installed on the main reducer shell of rear axle and the power output is directly meshed with driven gear of main reducer through angular gear shaft.
2. Gear box has two speed gears and a reverse.
3. Low speed gear can make vehicles more traction and climbing ability while high speed gear can ensure requirements of vehicles running speed.
4.Gear box can improve the vehicle speed rang, give the function of power and economy increase.
5. Gear box implements the reduced fuel consumption and low carbon effect.
6. Adding to the application of structure of automobile synchronizer gear shifting.
7. More comfort and reliability to operate.

Note : It's just the typical technical data for you reference, The specification such as voltage, speed, torque, shaft ,speed ratio can customized.

Appliciation

Planetary 45:1 ratio gearbox reducer for marine diesel engine

Be widely used for materials handing equipment, engineering machinery,metallurgy industry,mining industry,petrochemical industry, construction machinery,textile industry, medical apparatus and instruments, instrument and meter industry,automobile industry,marine industry,weapons industry, aerospace field,and so on.

Packing & Delivery
Our Service
1.Free maintenance within 12 months guarantee
2. Professional research and development team
3. Technical support for installation
4. Strict quality control system
5. Customize production

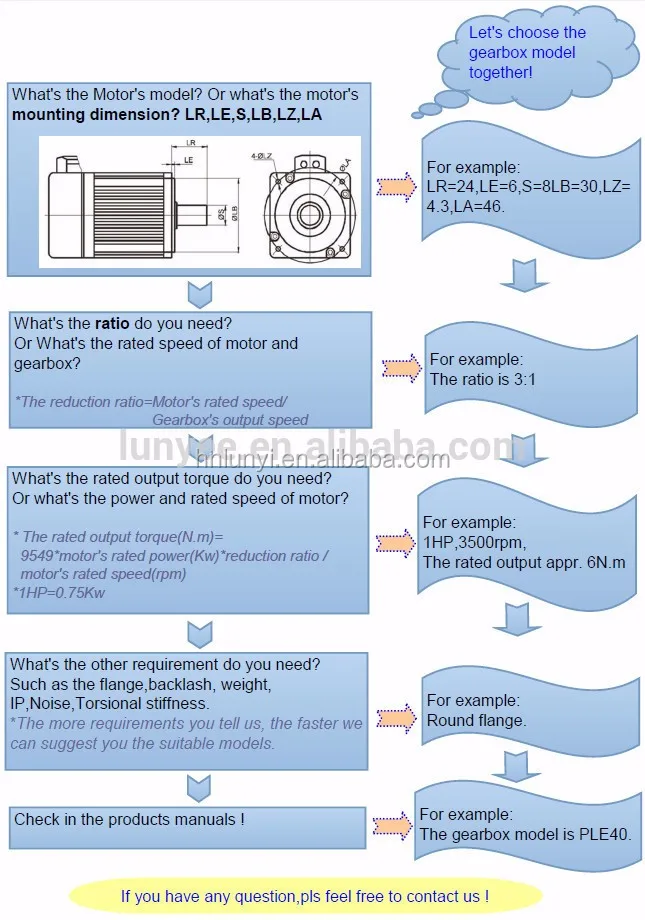

How to choose model
FAQ

1. Q: What's type of your company.
A: We are manufacturer.
2. Q: what should I provide when I choose gearbox/speed reducer?
A: 1) load condition
2) speed of rotation or speed ratio(combination with combine speed reducer can get extra low out putting rotational speed)
3) work circumstance(temperature, humidity,corrosion etc.)
4) space of installation
3. Q: How long dose it take to finish my order?
A: It depends on your quantity.
4. Q: How can i know the process of my order?
A: Detailed picture of the production process will be sent to you to confirm before shipping.
Consummation QC system makes it possible to offer you reliable quality
