Polycrystalline solar panel 270w high efficient solar panel

Feedback Ratings
  • 4-7 Pieces
    US $122.00
  • 8-29 Pieces
    US $118.00
  • >=30 Pieces
    US $106.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
R&X
Model Number:
RX-SP270
Material:
Polycrystalline Silicon
Size:
1640*992*35mm
Number of Cells:
60
Max. Power:
270w

Packaging & Delivery

Selling Units:
Single item
Single package size:
164X100X35 cm
Single gross weight:
18.1 kg
Package Type:
by pallet
Lead Time :
Quantity(Piece) 1 - 20 >20
Est. Time(day) 5 To be negotiated

 Polycrystalline solar panel 270w high efficient solar panel



Technical Data



Module type

RX-270SP

Rated Power

270p

Tolerance 0~+3

0~+5W

Open Circuit Voltage (Voc)

38.1V

Short Circuit Current (Isc)

9.32A

Max. Power Voltage (Vm)

31.3V

Max. Power Current (Im)

8.63A

Temperature coefficients of Isc (%)

0.10/℃

Temperature coefficients of Voc (%)

-0.33/℃

Temperature coefficients of Pm (%)

-0.23/℃

Module Efficiency (%)

≥16.6%

FF (%)

 76.27%













Overall Characteristics



1. 60 Crystalline photovoltaic Cells per Module
2. Size:1640*992*35/40mm
3. Weight: 20kg
4. Glass 3.2mm tempered
5. EVA encapsulated
6. Glass Foil Sandwich Laminated
7. Sandblasting anodizing Aluminum frame
8. IEC 5400Pa tested
9. Hail up to 25mm diameter,80 Km/h tested
10. Temperature Range: -40 to +85°C
11. Nominal operating cell temperature (NOCT): 47°C









Electrical connection
1. Junction Box IP67
2. 3 Bypass Diodes, nominal current 20A
3. Solar Cable 4mm²900mm with MC connectors
4. Module connection max 1000 DC in series
5. Limiting reverse current IR=0.2A










Certificates
1. TUV IEC 61215
2. TUV IEC 61730-01/02
3. CE
4. ISO 9001:2015
5. ISO 14001:2015

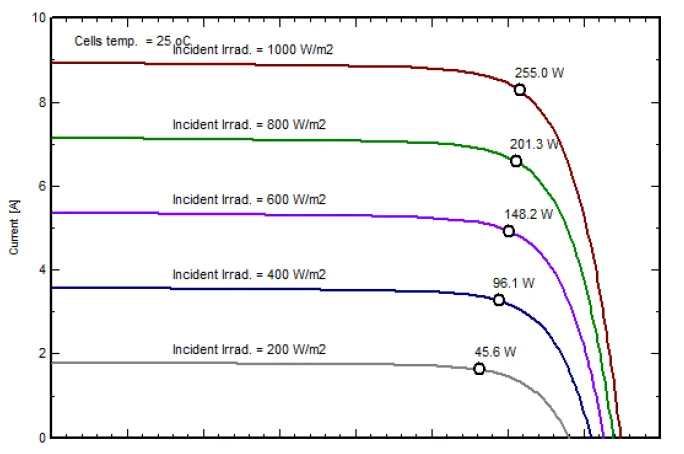

 Current vs Voltage Curve

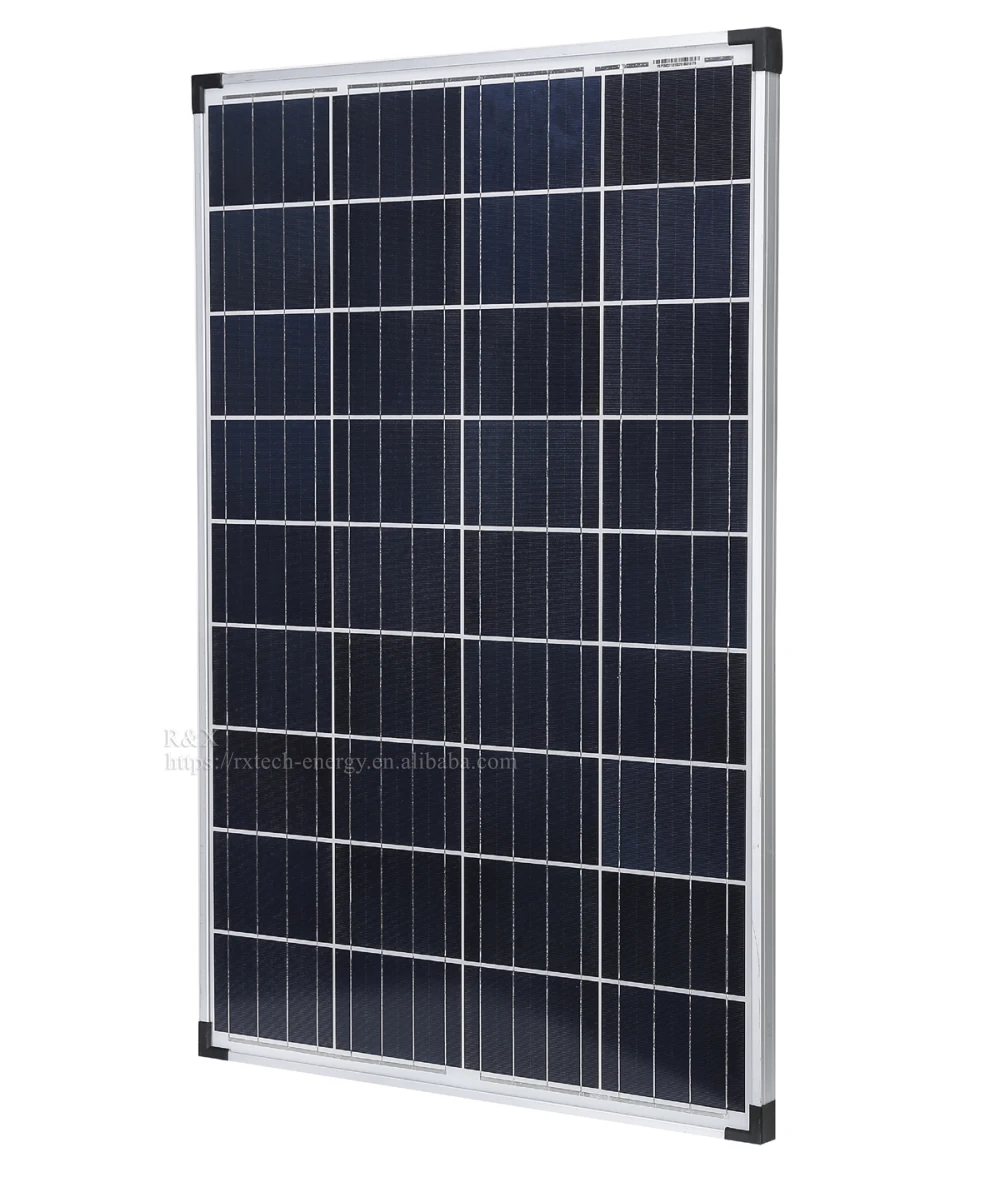

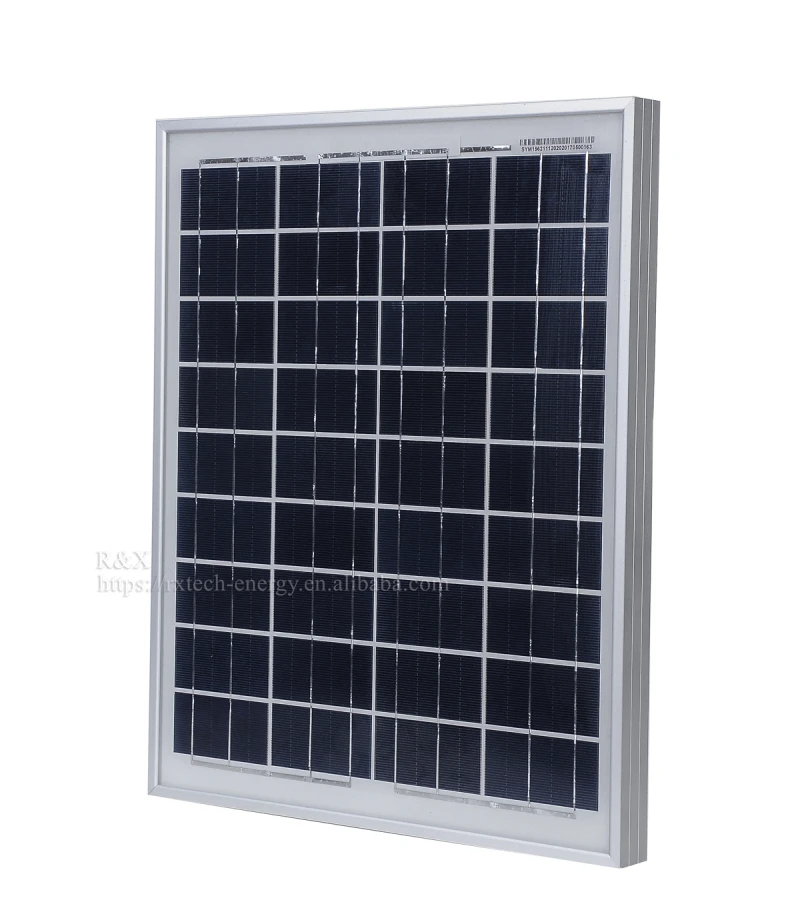

Photos
