Professional NEXEDGE Portable Radio NX-340 digital two way radio

Feedback Ratings
  • 2-99 Pieces
    US $165.00
  • >=100 Pieces
    US $145.00
Color:
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
3 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Japan
Brand Name:
KENWOOD
Model Number:
NX-340
Type:
Handheld
Dimensions:
54*122*35.3mm
Frequency Range:
400-470MHZ,450-520MHZ
Storage Channel:
32
Talk Range:
5-10km
Color:
Black
Output Power:
5W / 1W (Max 5W)
Weight:
281g
Warranty:
12 Months
work Temperature:
-30°c-+60°c

Packaging & Delivery

Selling Units:
Single item
Single volume:
365 cm 3
Single gross weight:
0.8 kg
Package Type:
20PCS/CTN
Lead Time :
Quantity(Piece) 1 - 1000 >1000
Est. Time(day) 3 To be negotiated
Product Description

Professional NEXEDGE Portable Radio NX-340 digital two way radio

Feature:

1.NXDN DIGITAL AIR INTERFACE

2.ENHANCED AUDIO QUALITY

3.ULTIMATE PERFORMANCE

4.ERGONOMIC DESIGN

5.32 CHANNELS / 2 ZONES

6.SWITCHABLE DIGITAL AND ANALOG DUAL MODES

7.6.25/12.5 kHz NXDN DIGITAL CHANNEL

8.NXDN CONVENTIONAL

9.NXDN TYPE-D DIGITAL TRUNKING*

10.HIGH SECURITY

11.GPS CONNECTIVITY

12.OTHER FEATURES

Specification:

GENERAL

Frequency Range Type 1 136-174 MHz 450-520 MHz
Type 2 400-470 MHz
Number of Channels 32
Zones 2
Max. Channels per Zone 16
Channel Spacing Analog 12.5/25* kHz
Digital 6.25/12.5* kHz
Operating Voltage 7.5V DC ± 20 %
Battery Life
5-5-90 during hi-power battery saver:
OFF/ON with KNB-45L (2000 mAh)
Approx. 10/12 hours
Operating Temperature Range -30 °C ~ +60 °C (-22 °F ~ +140 °F)
Frequency Stability ±2.0 ppm ±1.0 ppm
Antenna Impedance 50 Ω
Dimensions (W x H x D) With KNB-45L,
Projections Not Included 54 x 122 x 35.3 mm (2.13 x 4.8 x 1.39 in)
Weight (net) Radio only 165 g (5.8 oz)
With KNB-45L 281 g (9.9 oz)
FCC ID Type 1 ALH443700 ALH443800
Type 2 ALH443801

RECEIVER

Sensitivity Digital @ 6.25 kHz (3 % BER) 0.25 μV
Digital @ 12.5 kHz (3 % BER) 0.25 μV
Analog (12 dB SINAD) 0.25 μV
Selectivity Analog @ 12.5 kHz 60 dB
Analog @ 25 kHz 70 dB
Intermodulation Analog 70 dB
Spurious Response Analog 70 dB
Audio Distortion Less than 10 %
Audio Output 1 W / 12 Ω (Internal Speaker)
500 mW / 8 Ω (External Output)
TRANSMITTER
RF Power Output High / Low 5 W / 1 W
Spurious Response 70 dB
FM Hum & Noise Analog @ 12.5 kHz 40 dB
analog @ 25 kHz 45 dB
Audio Distortion Less than 10 %
Modulation 16K0F3E, 11K0F3E, 4K00F1E, 4K00F1D, 4K00F7W,
K00F2D, 8K30F1E, 8K30F1D, 8K3


(CTCSS) / (DCS)
CTCSS/DCS is a sub-audio signaling, which is used to avoid receiving the same non-related calls.
This plug for microphone,earphone and program cable

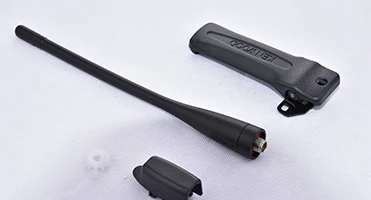

Belt clip to fix the battery
UHF antenna keep good singal
