Prototype Shield for Raspberry Pi B+ Controller Raspberry Pi 3

Feedback Ratings
US $6.50 / Piece |1 Piece (Min. Order)
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
3 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Alsrobot
Model Number:
RB-01C086
Product name:
Prototype Shield for Raspberry Pi B+ Controller
Item No:
RB-01C086
Application:
Raspberry Pi B+ Controller
Weight:
51g

Packaging & Delivery

Selling Units:
Single item
Single package size:
20X20X10 cm
Single gross weight:
0.5 KG
Package Type:
antistatic plastic bag standard box
Lead Time :
Quantity(Piece) 1 - 100 >100
Est. Time(day) 3 To be negotiated

Description

The Newest Prototype Shield for Raspberry Pi B+ is researched and produced by ALSRobot. This kind of  Raspberry Pi B+ Prototype Shield is using double-sided Gold-plated PCB processing technology, the motherboard golden circular pad for easy welding components,original binding SOP16 SMD.

Prototype Shield for Raspberry Pi B+ Controller is a prototype board that you can combine your raspberry pi B+ with other components, modules. As a prototype board, it also provides power and #25 Test Light. Besides, this product has a mini breadborad. Easily learning raspberry pi B+ preferred prototype extension plate.

Note: This Prototype Shield is not include Raspberry Pi B+

Specifications

  • SOP16 SMT
  • 1 x LED Indicator
  • 1 x #25 Test Light
  • Including a Mini Breadboard
  • Double-sided Gold-plated PCB

Packing List

  • 1 x Raspberry Pi Prototype Shield
  • 1 x Breadboard

pictures

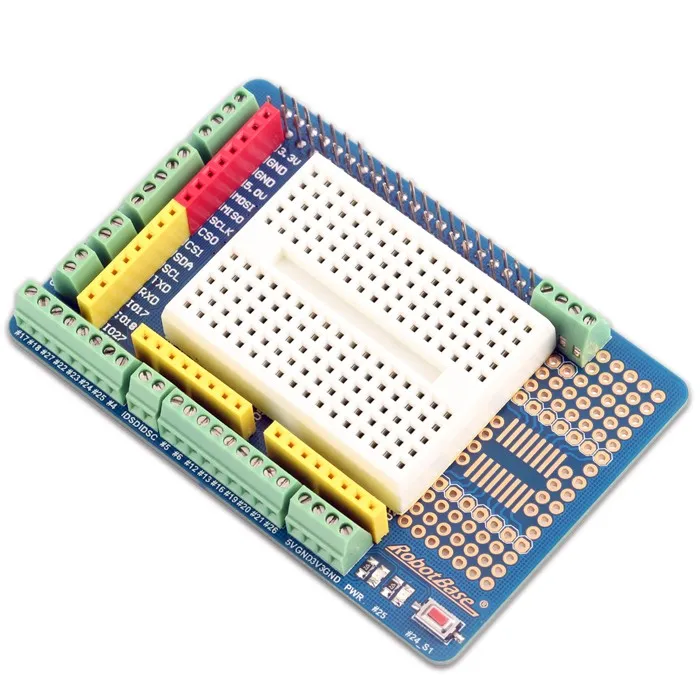

RB-01C086- Prototype Shield(1)

Prototype Shield for Raspberry Pi B+ Controller

RB-01C086- Prototype Shield(5)

Prototype Shield for Raspberry Pi B+ Controller-packing list

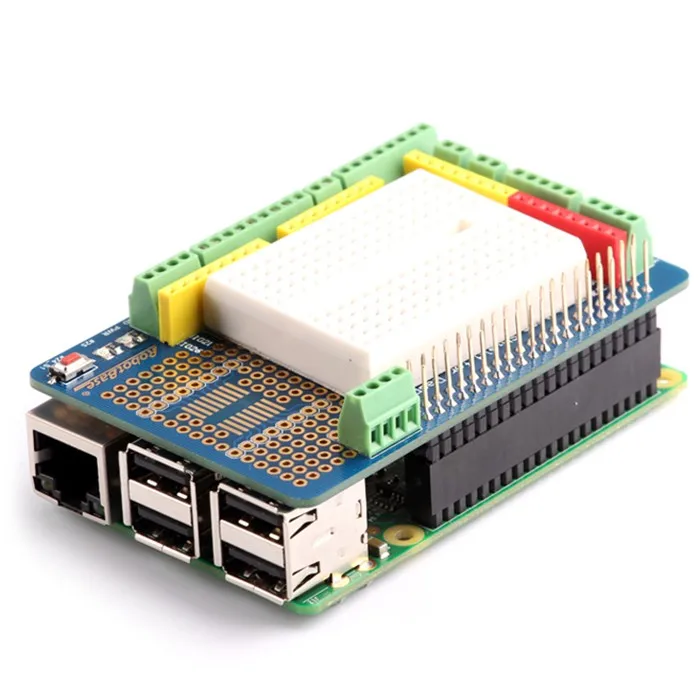

RB-01C086- Prototype Shield(3)

Prototype Shield for Raspberry Pi B+ Controller-Application

RB-01C086- Prototype Shield(4)

Prototype Shield for Raspberry Pi B+ Controller-Details

RB-01C086-Raspberry Pi 2-B+ Prototype Shield (1)

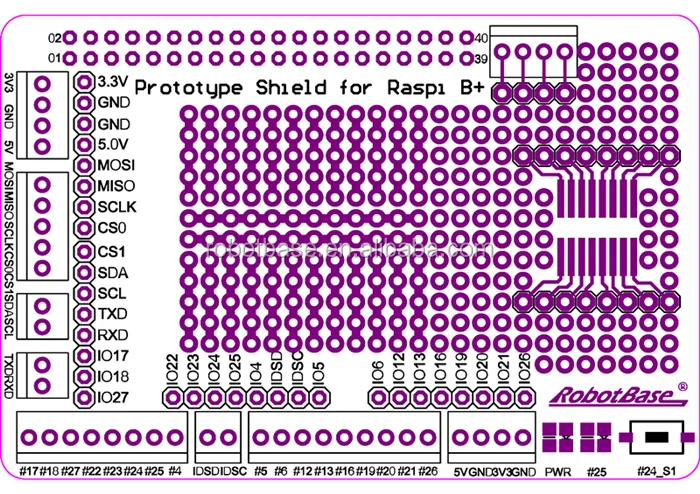

Prototype Shield for Raspberry Pi B+ Controller-Sketch map of interfaceRB-01C086- Prototype Shield(2)

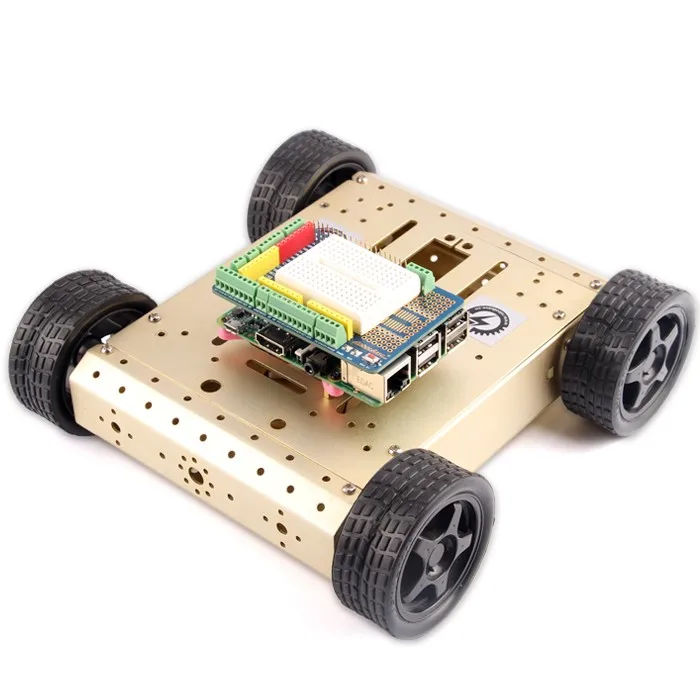

Prototype Shield for Raspberry Pi B+ Controller-Application for 4WD robot car
