QOTOM 4 LAN Mini ITX Motherboard Q1900G4-M with BayTail j1900 Processor and 4 Gigabit NIC, Quad Core Motherboard PFSense Router

  • 1-9 Pieces
    $104.00
  • 10-49 Pieces
    $102.00
  • >=50 Pieces
    $100.00
Model Number:
Q1900G4-M
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
2 day(s) after payment received
Contact Supplier
Samples - $104.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Ports:
Ethernet, SATA, USB 2.0, USB 3.0, VGA, WiFi, Bluetooth
CPU Type:
Intel
Chipset:
Intel j1900
Maximum Ram Capacity:
8GB
Products Status:
Stock
Application:
Desktop
Chipset Manufacturer:
Intel
Socket Type:
ONBOARD CPU
Form Factor:
Mini-ITX
Memory Type:
DDR3, SO-DIMM
Graphics Card Type:
Integrated
Hard Drive Interface:
SATA, mSATA
FSB / HT:
Quad core 2.0 GHz
Brand Name:
QOTOM
Place of Origin:
Guangdong, China
CPU:
Intel Celeron j1900 Processor
Warranty:
1 Year

Packaging & Delivery

Selling Units:
Single item
Single package size:
27X23X5 cm
Single gross weight:
0.5 kg
Package Type:
Shandard export packaging, SATA cable in box
Picture Example:
package-img
Lead Time :
Quantity(Piece) 1 - 30 31 - 50 51 - 100 >100
Est. Time(days) 2 3 4 To be negotiated
Product Description
TYPE
Description
Mechanical standard
Industrial Nano ITX Motherboard
120mm x 120mm
Processor
Intel Celeron Processor J1900 (2M Cache, quad core 2.0 GHz, up to 2.42 GHz)
With up to 10 W TDP
Memory
One 204-pin DDR3 SDRAM Small Outline (SO-DIMM) socket
Support DDR3L 1333/ 1600 MHz SO-DIMM 1.35V, Non-ECC
Support 8GB Max
Graphics
Intel HD Graphics
Display: VGA Display
1 x VGA (port)
LAN
4 x Intel I211-AT 1000M
Audio
Realtek ALC662 HD Audio Decoding controller
6 Channel Audio output
Line out + MIC IN Port
USB
3 x On-board USB 2.0
1 x On-board USB 3.0
1 x Pin interface USB 2.0
Storage
1 x SATA 3.0 (6Gb/s)
1 x Mini PCIE port
Expansion Port
1 x PCI E xpress Full-Mini Card connector (for mSATA SSD)
1 x PCI E xpress Half-Mini Card connector (for WIFI )
1 x SATA power connector
1 x SATA 3.0 connector (6Gb/s)
1 x DDR3 SO-DIMM socket
1 x SIM Slot
1 x Automatically Boot Jumper
Front Panel
1 x Power Button
1 x Power LED
1 x VGA Connector
1 x USB 3.0 ports
3 x USB 2.0 ports
Black Panel
1 x DC in connector
1 x Power LED
1 x HDD LED
4 x RJ45 1000M ports
Power Supply
DC 12V
Working condition
Operation Temperature -10º-50ºC
Operation Humidity 10%-90% Relative Humidity,
Non-Condensing
Accessories
Cable for SATA HDD

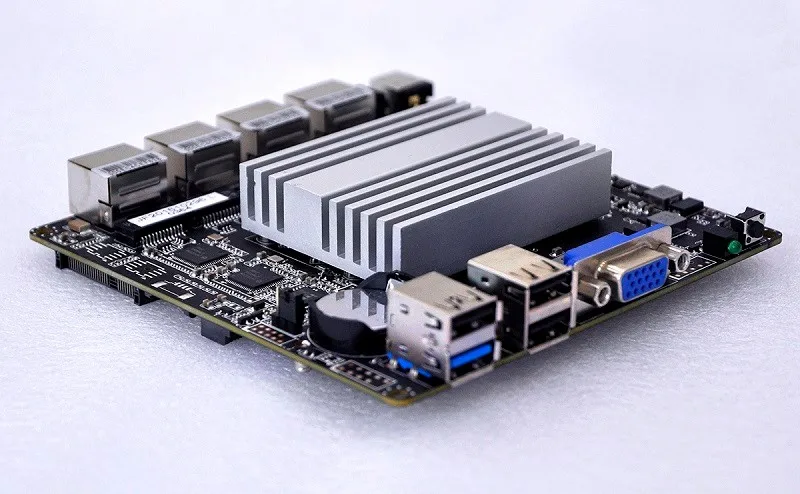

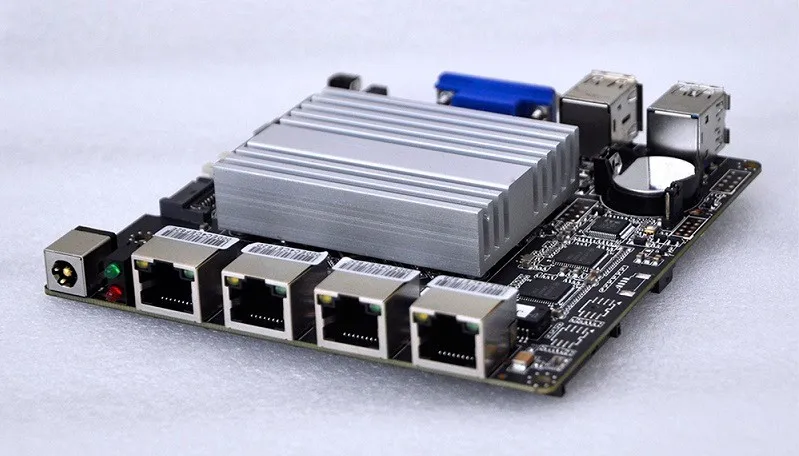

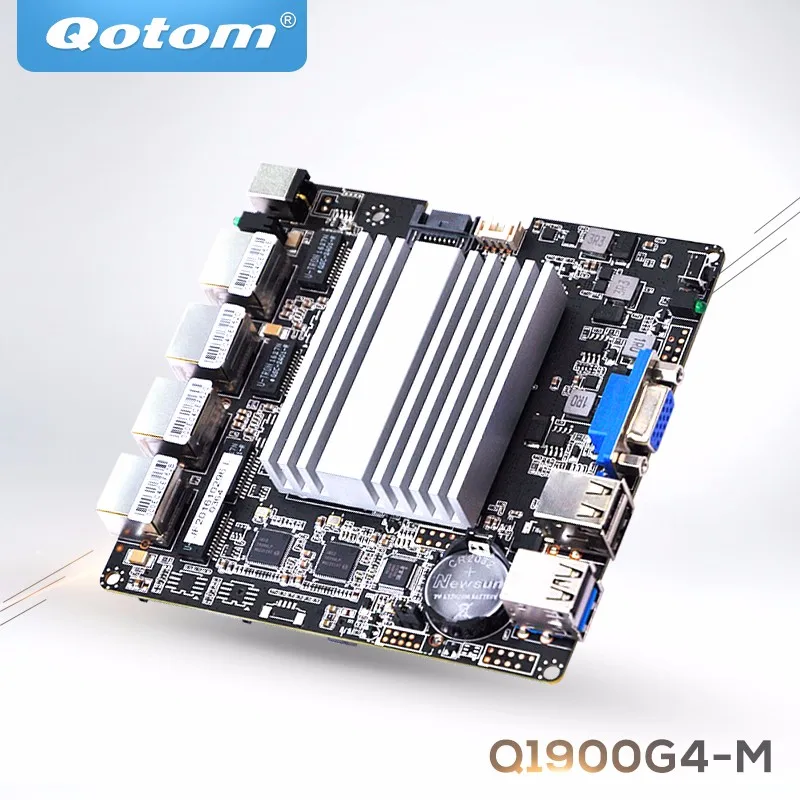

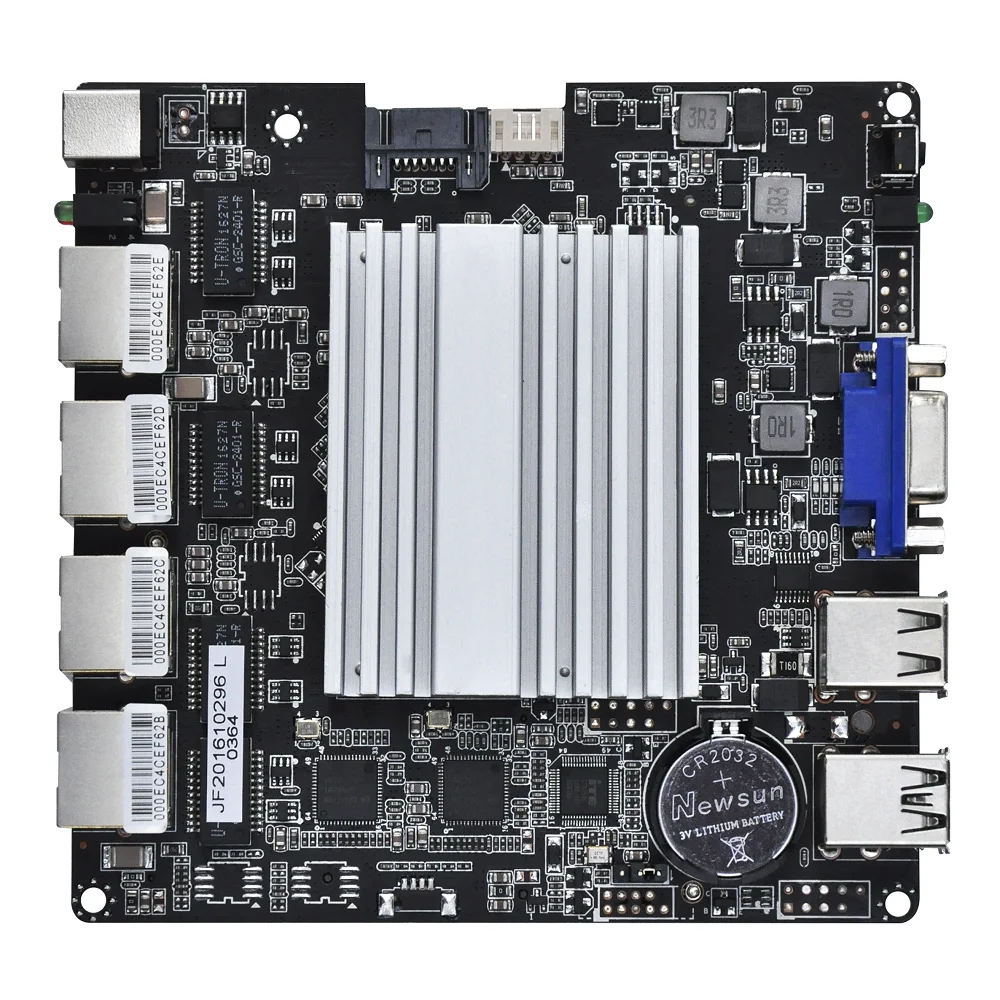

Detailed Images
Packing & Delivery
We have standard neutral packing box for samples

List:
1 x Motherboard Q1900G4-M
1 x SATA cable

Please contact us if you need motherboard User Manual or Windows drivers download link.

About the shipment, DHL/ FedEx express is faster but more expensive. If you choose cheaper Post, please wait patiently.
