Qotom Mini PC Q6XXP barebone system supports 7th 6th Gen processor (LGA1151) 4 Serial Ports

  • 1-49 Pieces
    $148.00
  • 50-99 Pieces
    $143.00
  • >=100 Pieces
    $141.00
Memory Capacity:
None
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
2 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Pieces)
Contact Supplier
Samples - $145.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Products Status:
Stock
Type:
Desktop, Mini PC
Screen Size:
No Monitor
Processor Brand:
Intel
Graphics Card Type:
Integrated Card
Display Type:
no monitor
Widescreen:
Yes
Optical Drive Type:
no
Processor Main Frequency:
no
Brand Name:
Qotom
Model Number:
Qotom-Q6XXP
Place of Origin:
Guangdong, China
Color:
Slaver
CPU:
NO
Size:
165*165*61mm(L*H*W)
Power Consumption:
By CPU
Warranty:
1 Year
Memory Capacity:
NO RAM
Hard Drive Capacity:
NO SSD

Packaging & Delivery

Selling Units:
Single item
Single package size:
27X23X10 cm
Single gross weight:
2.5 kg
Package Type:
Netual package box
Picture Example:
package-img
Lead Time :
Quantity(Piece) 1 - 1 2 - 50 51 - 100 >100
Est. Time(days) 2 5 7 To be negotiated
Product Description
Processor System
CPU
Supports Intel 7th & 6th Gen processor (LGA1151)
CPU TDP
35W/51W/65W(by CPU)
Memory
2 x DDR4 SO-DIMM Socket (Up to 32G, 2133MHz)
Chipset
Intel B150
Graphics
Intel HD Graphics (By CPU)
LAN Chipset

2 x Intel I211-AT Gigabit LAN
Audio
Realtek ALC662 HD Audio
Watch Dog
Yes

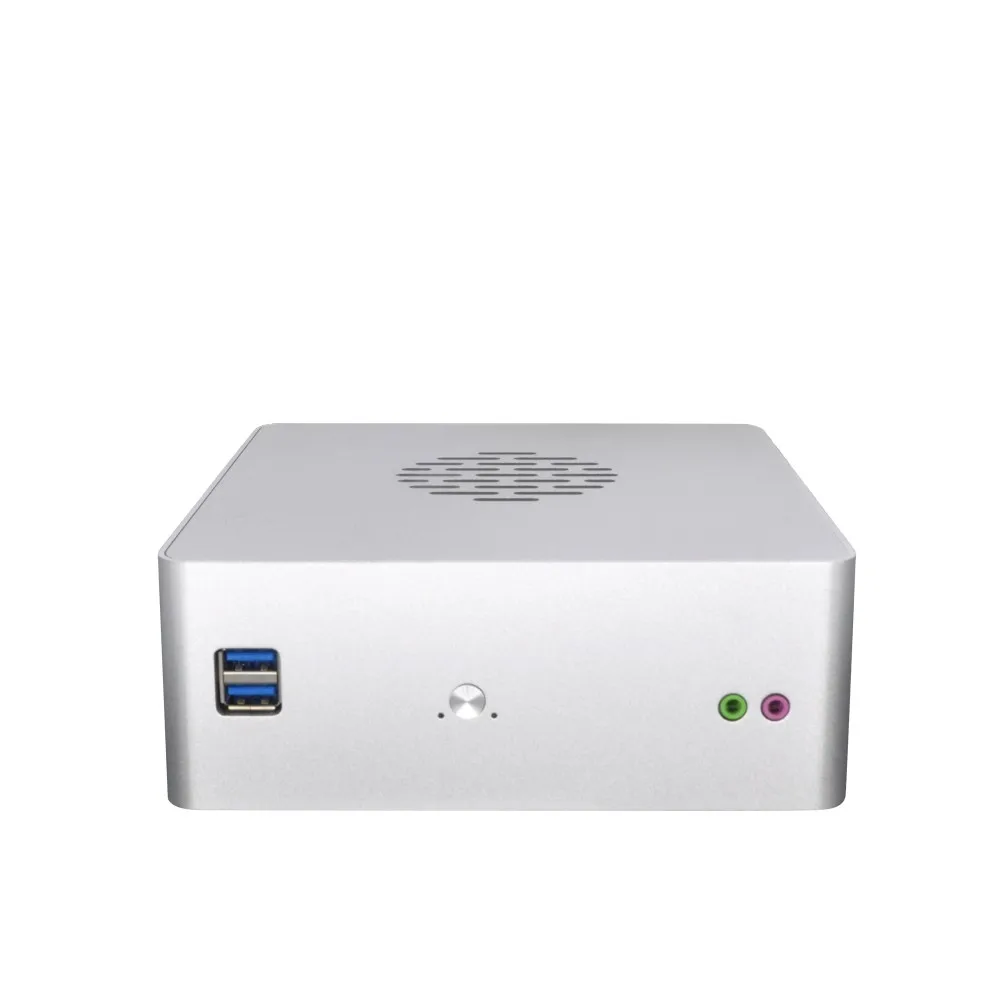

Front I/O
Power Button
1
USB
2 x USB 3.0
LED
1 x Power LED, 1 x HDD LED
Audio
2, (Mic-in, Line-out)

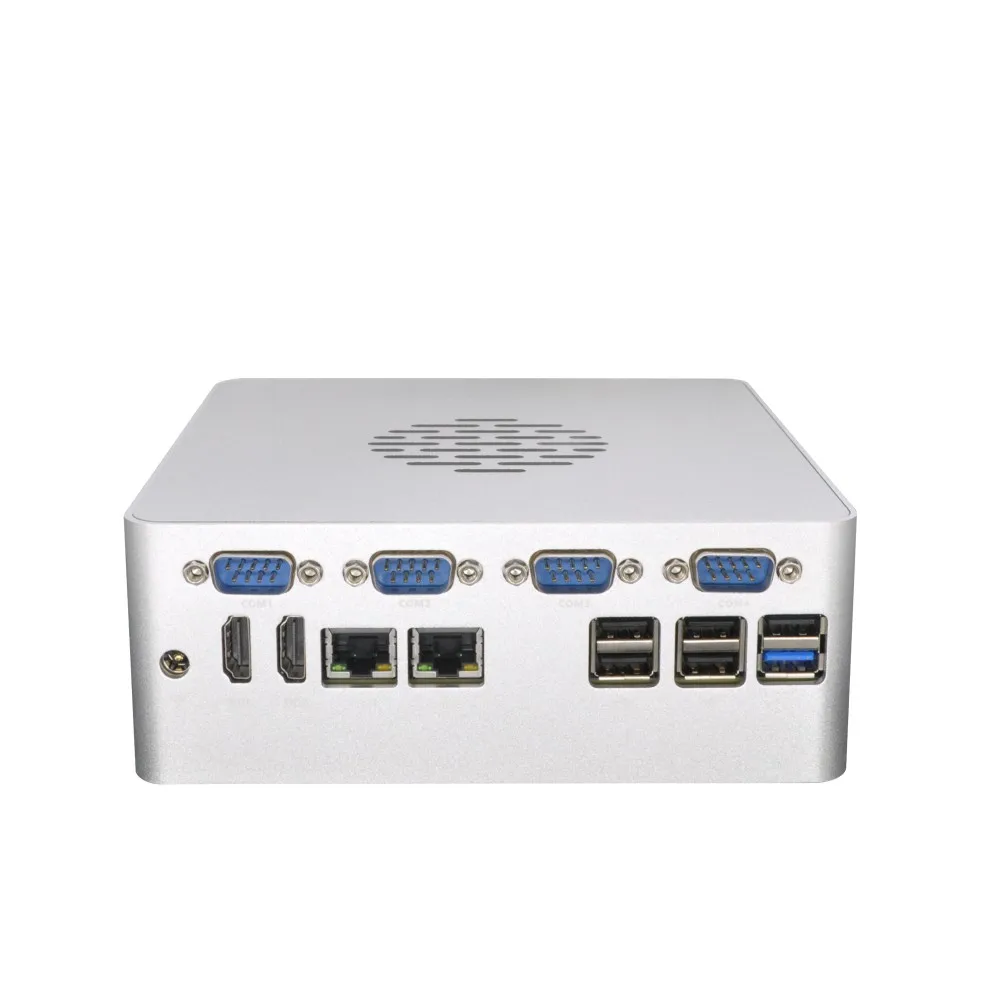

Rear I/O
Power
1 x DC Jack
Video Output
2 x HDMI
LAN
2 x RJ45 Port for Gigabit LAN
USB
1 x USB 2.0, 5 x USB 2.0
Serial Port
4 x RS-232, COM1/COM2 Supports 5V/12V
Storage
Type
1 x 2.5-inch HDD/SSD
1 x M key M.2 for SSD (Type: 2260, 2280mm)
OS Support
OS
6th Windows 7, Windows 8, Windows 10, Linux
7th Windows 10, Linux
Usually we pre-install windows 10 for testing, we don't provide windows licence.
If you need other systerm, we can pre-install for you before delivery.
Expansion
M.2
1, M key M.2 for SSD (Type: 2260, 2280mm)
1, E key M.2 for WI-FI (Type: 2230mm)
Mini-PCIe
1, Full-length for 3G/4G,
SIM Card Slot
1
Automatically Boot Jumper
1
VGA
1 (Optional)
GPIO
1 x 2.0 Pitch Header
RS-485
2 x RS-485 (Optional)
DC-in
Header (Optional)
Power Requirement
Power Adapter
12V,3A/5A
DC Jack
5.5mm, 2.5mm
Environmental
Operating Temp
0°C~50°C
Non-Operating Temp
-20°C~80°C
Humidity
10%~90%
Mechanical
Material
Aluminum
Dimension
165 x 165 x 61mm
Weight
2.5kg
Mounting
VESA Mounting Bracket
Packaging Dimension
261 x 218 x 92mm
Kensington Lock
No
Cooling Mode
Fan
Product Model
CPU
Q600P
NO CPU(barebone system, Pls buy CPU locally. Please note that CPU Socket supports FCLGA1151. )
Q610P
Intel Celeron G3900 Processor, Dual core 2.8 GHz
CPU spec: https://ark.intel.com/products/90741
Q615P
Intel Celeron G3930 Processor, Dual core 2.9 GHz
CPU spec:https://ark.intel.com/products/97452
Q620P
Intel Pentium G4400 Processor, Dual core 3.3 GHz
CPU spec:https://ark.intel.com/products/88179
Q625P
Intel Pentium G4560 Processor, Dual core 3.3 GHz
CPU spec:https://ark.intel.com/products/88179
Q630P
Intel Core i3-6100 Processor, Dual core 3.7 GHz
CPU spec: https://ark.intel.com/products/88180
Q635P
Intel Core i3-7100 Processor, Dual core 3.9 GHz
CPU spec:https://ark.intel.com/products/95442
Q650P
Intel Core i5-6400 Processor, Quad core 2.7 GHz, up to 3.3 GHz
CPU spec:https://ark.intel.com/products/88185
Q655P
Intel Core i5-7400 Processor, Quad core 3.3 GHz, up to 3.5 GHz
CPU spec: https://ark.intel.com/products/97147

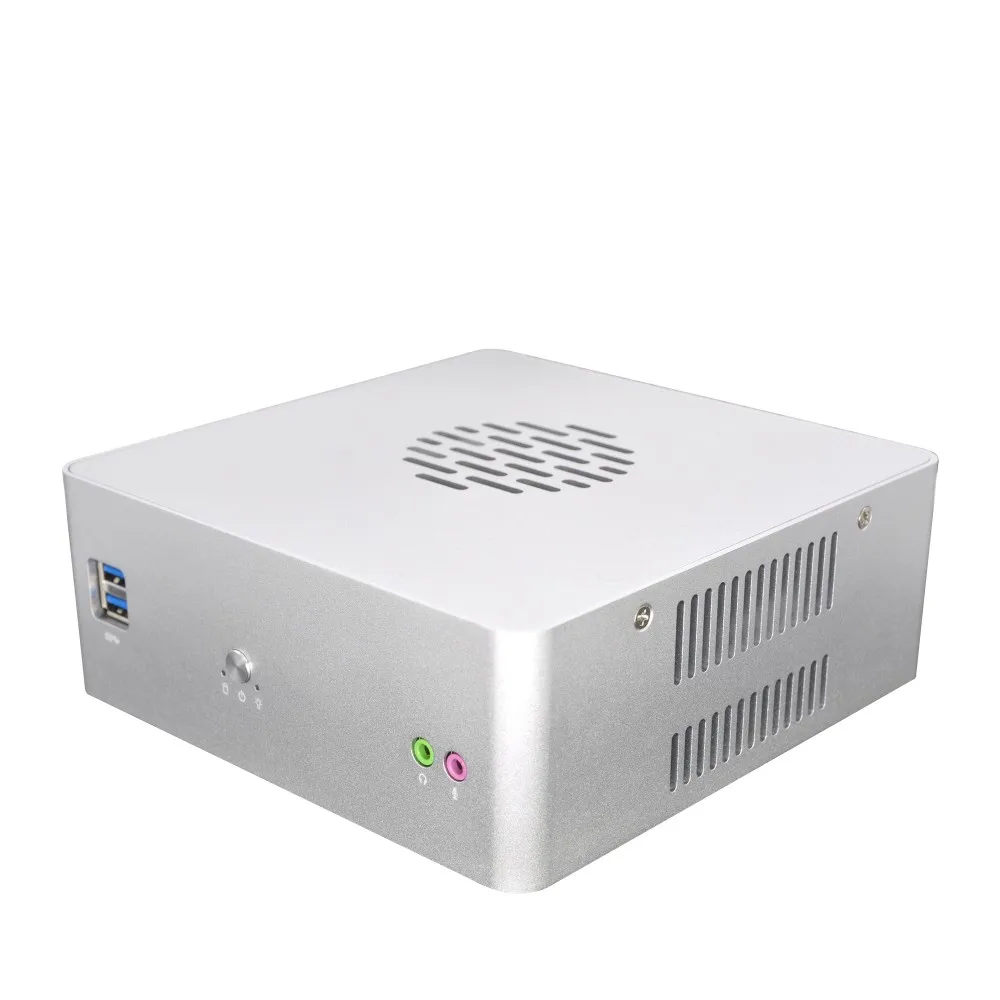

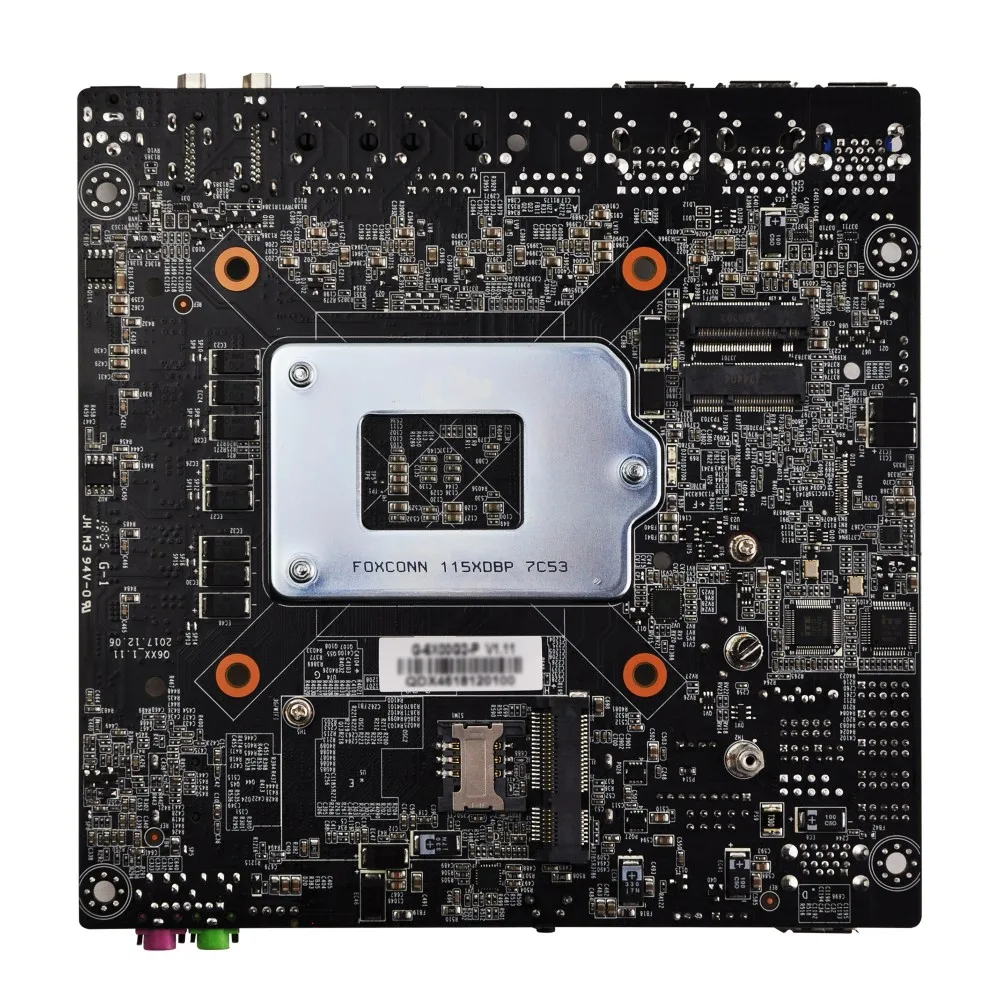

Detailed Image

it's a small, low-cost, low-power computer

The computer is also designed to be easy to disassemble so you can add memory, storage, or other hardware.

It has an all-aluminium alloy chassis with a convection cooling system that doesn't require any fans

BIOS

Press"delete" Key, you can enter the BIOS, Press "F11"  boot from USB .

BIOS are able to configure for Auto startup after Power interruption.
BIOS supports specific time startup.

Application Field

Advantages: Wide application: Bought this little guy as a functional server connect with tons of computers at the same time.
You may also find it at house,bedroom, theatre ,and school and so on.
The pocket
size may help you save space compared to others such as the tower one.

As it takes low power consumption,work in deep silence, you may find it very eco-friendly.

Our Company

With years of export experience along with excellent quality, advanced services and competitive prices, Qotom has won numerous customers' trust and support.With years of export experience along with excellent quality, advanced services and competitive prices, Qotom has won numerous customers' trust and support.

Contact Us
Packing & Delivery


What's in the Package box?

1* mini pc
1* the holder
2* antenna (if you order wifi)
1* package box
1*12V 3A Power adapter and power plug.
There are 7 kinds of plug: European standard / British standard / Australian standard / American standard)


Delivery

Small Qty : FedEx,EMS,UPS Express Saver,TNT,DHL,UPS Expedited
Large Quantity : Air / Sea
Lead Time : 1~3 days for sample order, 15 working days for mass order.

PAYMENT

1.T/T, Moneygram, paypal and Western Union are acceptable and optional. If you 'd like other payment terms, contact us, pls!
2. Full payment must be made within 7 days after placing the order. If not, the order will be invalid and canceld by the system.
3. Make sure all the detailed buyer information have been correctly and completely filled in.

WARRANTY

1.For all the mini pcs you bought from us, we provide a full one-year warranty.
2.We assure you that all the mini pc and accessories have been tested before delivery.
3.If the products do not work well, contact us, pls! We will try to figure out workable solutions with our professional team.

FAQ

Q1. What's your MOQ?
A:The MOQ will be 1 sets for each order.


Q2: What's the lead time?
A: It will be 1-2 days for samples and 2-12 days for bulk order, depends on your required.


Q3. Can I print my logo on the mini computer?
A:Yes, we can print your logo on the Qotom mini computers /package box by silk print , as you required. MOQ:50 pcs


Q4:Can your device work 24h*7 days? And what about the temperature range it can operate in?
A:Yes, our computers can work 24h* 7 days. The working temperature is -10°-55°.


Q4. Can you provide OEM/ODM service?
A:Sure, you can customized the package box, housing(outer shell), interface port, GPS module,3G/4G module and the function of motherboard as you want,the unit price will be different depends on the specification, please contact us Qotom group for more details !


Q5: Can I arrange the shipment by myself ? I have forwarder in China.
A: No problem, we can delivery in China for free. Please inform your forwarder that our products have lithium metal battery on motherboard, that is very important.


Q6: What mode of transport you can choose?
A: DHL,Fedex,UPS, air & sea transportation. Or your freight forwarders.


Q7: How does your factory do related quality control?
A: Quality is top priority. We firstly check the motherboard quality after manufacturing, secondly check the computer before storage in warehouse and thirdly check before shipping out.


Q8: Will it be very hot since the mini computer CPU is fan-less?
A: Qotom fan-less mini pc are using Aluminum alloy case to help CPU heat releasing, even though it is fan-less, it won't be very hot. Normally the temperature range of mini pc is -5-40 degree.


Q9: Possible using 220v AC power?
A: Power supply is an international supply - 120/240 Vac at 50/60 Hz.

Q10: Are you a factory or trading company?
A10: We are the professional consumer electronics manufacturer which located in SHENZHEN, China
