Qotom Q150P 2 ethernet Fanless Mini PC with quad core J3160 Barebone Mini PC Desktop Mini Computer

$130.00 - $183.00 / Case | 1 Case (Min. Order)
Memory Capacity:
2gb 4GB 8GB
Hard Drive Capacity:
256GB 128GB 64GB 32GB 16GB
Color:
$163.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
Qotom
Model Number:
Q150P
Products Status:
New, Stock
Warranty(Year):
1-year
Certification:
ce
Use:
For Business
Plugs Type:
US, AU, UK, EU
Hard Drive Type:
SSD
Operating System:
Linux, Win XP,Win7,Win8,Win10,Linux
Graphics Card Chipset:
Integrated Card
HDD Rotation Speed:
SSD
Mouse & Keyboard:
No
Processor Core:
Quad Core
Processor Series:
Intel Celeron
Video Memory:
2 GB
After-sales Service:
Return and Replacement
CPU:
Celeron J3160 quad-core 1.6 GHz
Memory Capacity:
support DDR3 DIMM Memory
Hard Disk:
support SSD MSATA - support HDD (2.5 inch SATA HDD )
WIFI:
optional
Application:
router, firewall, proxy, WiFi access point, VPN DHCP/ DNS Server, etc.
Dimension:
155*127*48mm
Color:
Black
Graphics Card:
Intel HD Graphics
Processor Type:
intel Celeron
Video Card:
Intel HD Graphics

Packaging & Delivery

Selling Units:
Single item
Single package size:
26X23X9 cm
Single gross weight:
2.000 kg
Package Type:
the standarded export carton
Picture Example:
package-img
Lead Time :
Quantity(Cases) 1 - 100 >100
Est. Time(days) 7 To be negotiated

Qotom Q150P 2 ethernet Fanless Mini PC with quad core J3160 Barebone Mini PC Desktop Mini Computer

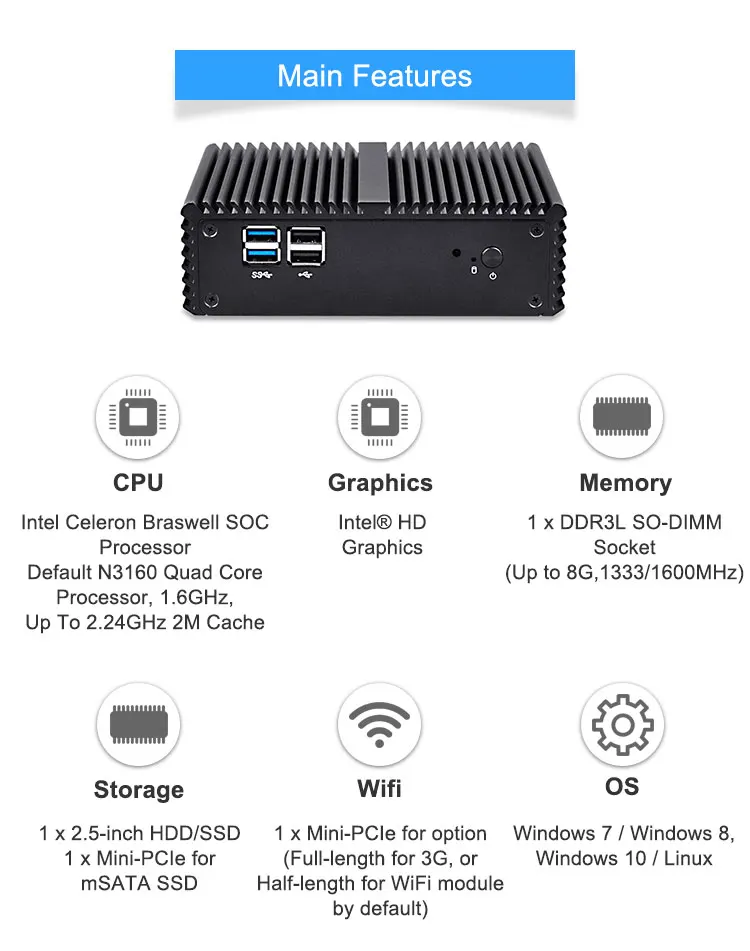

Detailed Images
Dimension
155 x 127 x 48mm (be able to support Msata SSD and HDD )


Power Consumption
10w
Onboard CPU
Intel Celeron Processor J3160 quad-core 1.6 GHz,Up to 2.24 GHz
Memory
 SO-DIMMs Support DDR3L 1333/1600 MHz,1.35V 1 x DDR3 DIMM Memory Slot ,Max. 8GB
Hard Disk
SSD MSATA - support HDD (2.5 inch SATA HDD )
Onboard VGA
intel HD Graphics
Onboard LAN
2*  rj45 Ports
Realtek RTL8111E 10/100/1000
WiFi / Bluetooth
optional
Audio Solution
Realtek ALC662 6-Channel HD Audio
Front-Panel Connectors
 • power on/off button
• Power LED
• 2 x USB 2.0 Ports
• 2 x USB 3.0 Ports





Internal   Connectors
• 1 x Minipcie port (for mSATA SSD)
• 1 x Minipcie port (for WIFI/BLUETOOTH/3G/4G Module)
• 1 x DDR3 DIMM Memory Slot
• 1 x GPIO header
• 1 x SIM card Slot
• 1 x SATA Port
• 1 x SATA power header
• 1 x Front panel header
• 1 x Front panel audio header
• 1 x Front panel USB header
• 1 x Automatically boot jumper
Rear-Panel Connectors
 • 1×DV 12V DC input
• 2 x HD Video Connectors
• 2 x RJ-45 Ports
• 2 x USB 3.0 Ports
• 1 x Speak Out Connector
• 1 x Mic In Connector
• 1 × VGA port
• 1 × COM port
