Qotom Q550X Intel Core i5-6200U AES-NI 2 Gigabit LAN 6 RS232 RS485 3 Display Fanless Mini PC

  • 1-49 Pieces
    $345.00
  • 50-99 Pieces
    $340.00
  • >=100 Pieces
    $337.00
Memory Capacity:
4g
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
1 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Pieces)
Customized packaging (Min. Order: 500 Pieces)
Contact Supplier
Samples - $341.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Products Status:
Stock
Type:
Desktop, i5 MIni PC
Screen Size:
No Monitor
Processor Brand:
Intel
Graphics Card Type:
Integrated Card
Display Type:
no monitor
Widescreen:
Yes
Optical Drive Type:
no
Processor Main Frequency:
2.3GHZ
Brand Name:
Qotom
Model Number:
Qotom-Q550X
Place of Origin:
Guangdong, China
Color:
Black
CPU:
Intel Core i5-6200U Processor 3M Cache, up to 2.8GHz
Size:
187*111*50mm(L*H*W)
Power Consumption:
15W
Warranty:
1 Year
Memory Capacity:
8G DDR4 RAM
Hard Drive Capacity:
128G Msata SSD

Packaging & Delivery

Selling Units:
Single item
Single package size:
27X23X9 cm
Single gross weight:
1.75 kg
Package Type:
Netual package box
Picture Example:
package-img
Lead Time :
Quantity(Piece) 1 - 1 2 - 50 >50
Est. Time(days) 1 3 To be negotiated
Product Description
Size
187X111X50mm
Weight
1000g
Color
Black
Onboard CPU
Q555X:Intel Core i5-6200U 6th Gen Celeron Skylake Dual Core Processor, 2.3GHz, 3M Cache, up to 2.8GHz
Memory
1 x DDR4 SO-DIMM Socket (Up to 16G, 2133/2400MHz)
Storage
1 x 2.5-inch HDD/SSD
1 x M.2 2260/2280 for SSD
Onboard VGA
Q555X:Intel HD Graphics 520
LAN
2 x  Intel I211-AT Gigabit LAN
Wireless
Option (USB Protocol)                                                                                                            1 × M.2 2242 for WIFI
Bluetooth
Optional
SIM Card Slot
1
Mini-PCIe
1 × Full Size Mini-PCIe for 3G/4G
Automatically Boot Jumper
1
Video Output
2 x HDMI  1 x VGA
GPIO
1 x 2.0 Pitch Header
RS-485/RS-232
6 x RS-232 (COM3 can be set up as RS485 factory Setting)
Power Consumption
15W

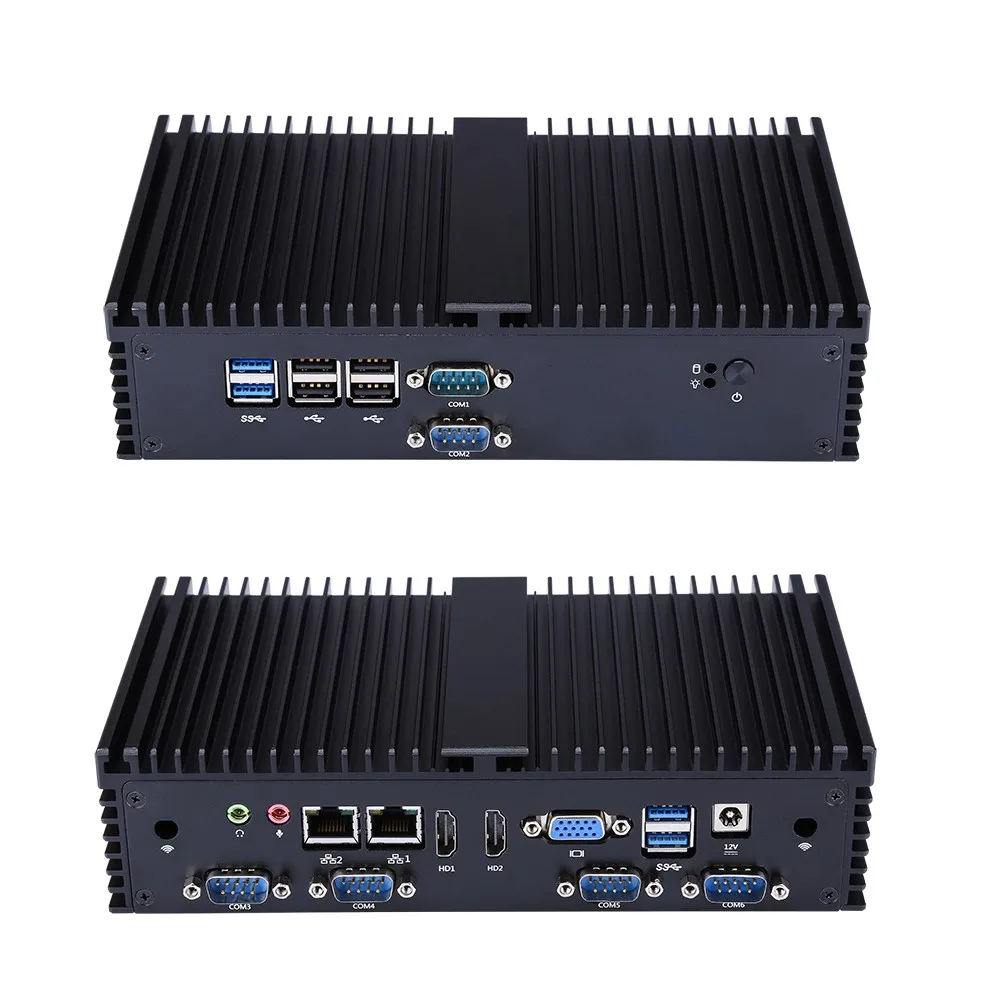

Front-Panel Connectors
• 1 × Power switch button ( Power LED/ HDD LED )
• 4 × USB 2.0 port
• 2 × USB 3.0 port
• 1 × COM port

Back-Panel Connectors
• 1 x DC 12V DC input
• 2 x Intel I211-AT Gigabit LAN
• 2 × USB 3.0 port
• 2 × HDMI port
• 1 × VGA port
• 4 x COM Port
• 1 x Speak Out Connector
• 1 x Mic In Connector
Operating System
- Support Windows 10 Linux etc.
Packing list
Mini Pc, Power adapter,VESA Mount Bracket ( 75mm x75mm )
Operating Temp
-10°C~50°C
Non-Operating Temp
-20°C~80°C
Humidity
10%~90%

it's a small, low-cost, low-power computer
The computer is also designed to be easy to disassemble so you can add memory, storage, or other hardware.
It has an all-aluminium alloy chassis with a convection cooling system that doesn't require any fans

Detailed Image

BIOS

Press"delete" Key, you can enter the BIOS, Press "F11"  boot from USB .

BIOS are able to configure for Auto startup after Power interruption.
BIOS supports specific time startup.

We provide OEM/ODM service according to your requirements, Customized / Printing Logo is acceptable, if you interested in it, pls contact Cherry Ni, we can talk details.

Product Systerm

Usually we pre-install windows 7 for testing, we don't provide windows licence.

If you need other systerm, we can pre-install for you before delivery.

Application Field

Advantages: Wide application: Bought this little guy as a functional server connect with tons of computers at the same time.
You may also find it at house,bedroom, theatre ,and school and so on.
The pocket
size may help you save space compared to others such as the tower one.

As it takes low power consumption,work in deep silence, you may find it very eco-friendly.

Our Company

With years of export experience along with excellent quality, advanced services and competitive prices, Qotom has won numerous customers' trust and support.With years of export experience along with excellent quality, advanced services and competitive prices, Qotom has won numerous customers' trust and support.

Contact Us
Packing & Delivery


What's in the Package box?

1* mini pc
1* the holder
2* antenna (if you order wifi)
1* package box
1*12V 5A Power adapter and power plug.
There are 7 kinds of plug: European standard / British standard / Australian standard / American standard)


Delivery

Small Qty : FedEx,EMS,UPS Express Saver,TNT,DHL,UPS Expedited
Large Quantity : Air / Sea
Lead Time : 1~3 days for sample order, 15 working days for mass order.

PAYMENT

1.T/T, Moneygram, paypal and Western Union are acceptable and optional. If you 'd like other payment terms, contact us, pls!
2. Full payment must be made within 7 days after placing the order. If not, the order will be invalid and canceld by the system.
3. Make sure all the detailed buyer information have been correctly and completely filled in.

WARRANTY

1.For all the mini pcs you bought from us, we provide a full one-year warranty.
2.We assure you that all the mini pc and accessories have been tested before delivery.
3.If the products do not work well, contact us, pls! We will try to figure out workable solutions with our professional team.

FAQ

Q1. What's your MOQ?
A:The MOQ will be 1 sets for each order.


Q2: What's the lead time?
A: It will be 1-2 days for samples and 2-12 days for bulk order, depends on your required.


Q3. Can I print my logo on the mini computer?
A:Yes, we can print your logo on the Qotom mini computers /package box by silk print , as you required. MOQ:50 pcs


Q4:Can your device work 24h*7 days? And what about the temperature range it can operate in?
A:Yes, our computers can work 24h* 7 days. The working temperature is -10°-55°.


Q4. Can you provide OEM/ODM service?
A:Sure, you can customized the package box, housing(outer shell), interface port, GPS module,3G/4G module and the function of motherboard as you want,the unit price will be different depends on the specification, please contact us Qotom group for more details !


Q5: Can I arrange the shipment by myself ? I have forwarder in China.
A: No problem, we can delivery in China for free. Please inform your forwarder that our products have lithium metal battery on motherboard, that is very important.


Q6: What mode of transport you can choose?
A: DHL,Fedex,UPS, air & sea transportation. Or your freight forwarders.


Q7: How does your factory do related quality control?
A: Quality is top priority. We firstly check the motherboard quality after manufacturing, secondly check the computer before storage in warehouse and thirdly check before shipping out.


Q8: Will it be very hot since the mini computer CPU is fan-less?
A: Qotom fan-less mini pc are using Aluminum alloy case to help CPU heat releasing, even though it is fan-less, it won't be very hot. Normally the temperature range of mini pc is -5-40 degree.


Q9: Possible using 220v AC power?
A: Power supply is an international supply - 120/240 Vac at 50/60 Hz.

Q10: Are you a factory or trading company?
A10: We are the professional consumer electronics manufacturer which located in SHENZHEN, China
