support SSD ( MSATA / SATA) - support HDD (2.5 inch SATA HDD )
148mm x 104mm
intel HD Graphics
Packaging & Delivery
Single package size:
Single gross weight:
the standarded export carton
1 - 100
To be negotiated
NANO Industrial Motherboard
120mm x 130mm
Intel Celeron Processor 2955u (2M Cache, 1.4 Ghz)
With up to 15 W TDP
AMI BIOS 64MBit BIOS
One 204-pin DDR3 SDRAM Small Outline (SO-DIMM) socket Support DDR3L 1333 MHz and DDR3L 1600 MHz SO-DIMM 1.35V Support 8GB Max
Intel HD Graphics Display: LVDS / 2 HD video ,Three Display
2 x RTL8111E 1000M
Realtek ALC662 HD Audio Decoding controller 6 Channel Audio output Line out + MIC IN Port
4 x COM ports
2 x On-board USB 2.0 4 x On-board USB 3.0 2 x Pin interface USB 2.0
1 x SATA 3.0 (6Gb/s) 1 x Mini PCIE port
1 x PCI E xpress Full-Mini Card connector ( for mSATA SSD )
1 x PCI E xpress Full-Mini Card connector ( for 3G/4G moudle )
1 x PCI E xpress Half-Mini Card connector ( for WIFI and Bluetooth )
1 x SIM port (optional)
1 x SATA power connector
1 x SATA 3.0 connector (6Gb/s)
1 x DDR3 SO-DIMM socket
1 x Front panel header
4 x Serial port headers
1 x LVDS header
1 x GPIO header
1 x Automatically boot jumper
2 x USB 2.0 header
1 x Audio header
1 x Push button for Power ON/OFF
1 x Power LED
2 x USB 3.0 ports
2 x USB 2.0 ports
1 x DC in connector
2 x HD video Connectors
2 x RJ45 1000M ports
2 x USB 3.0 Ports
1 x Mic in port
1 x Speaker out port
Operation Temperature -10º-50ºC
Operation Humidity 10%-90% Relative Humidity,

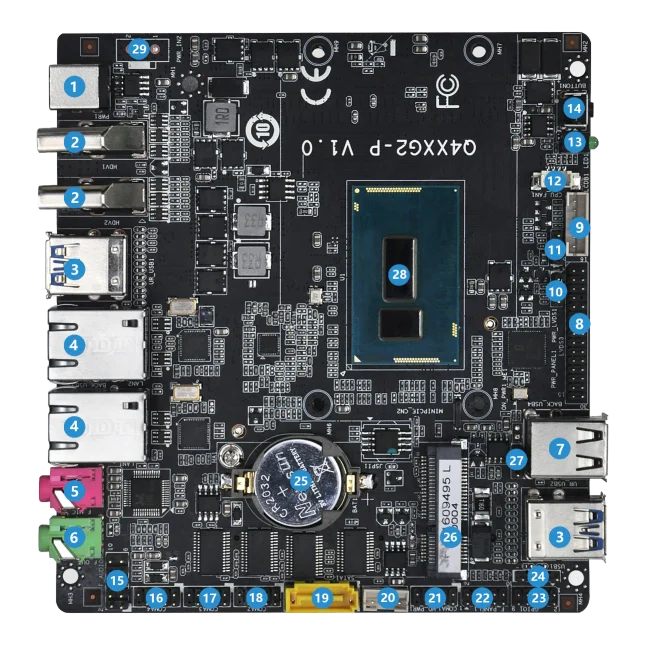

Cable for SATA HDD
12V DC in connector
HD video connector
4 * USB 3.0 ports
MIC: Connect to outside microphone
(Line out): Connect to outside audio device
2 * USB 2.0 ports
CPU fan header
Front panel audio header
Serial port expansion header (COM4)
Serial port expansion header (COM3)
Serial port expansion header (COM2)
SATA power connector
Serial port expansion header (COM1)
Front panel header
Front panel USB 2.0 header

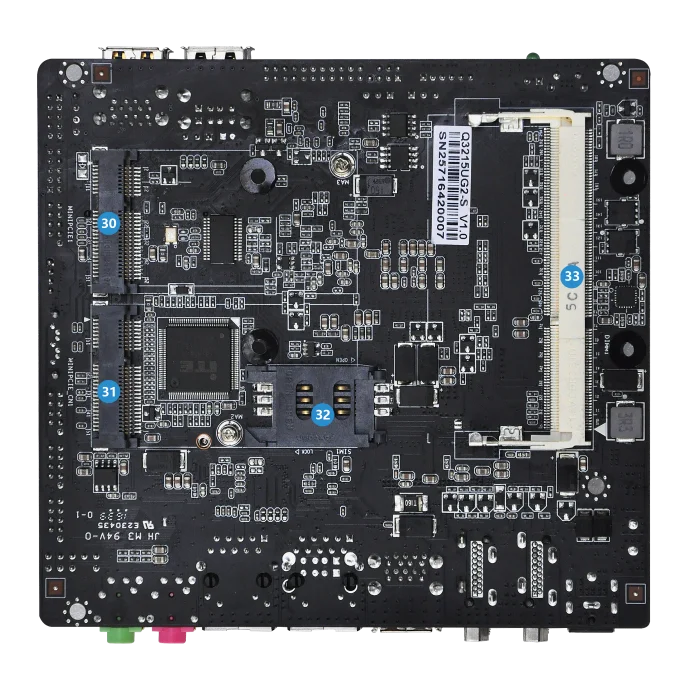

Mini PCI Express connector for 3G module
Automatically boot jumper
Processor (Support Haswell/Broadwell )
DC in header (optional)
Mini PCI Express connector for MSATA SSD
Mini PCI Express connector for WIFI,Bluetooth module
SIM card socket
DDR3L SO-DIMM socket
mainboard for "6S" desktop: Special: Can install 2.5'' HDD and Msata SSD at the same time. Stable: Intel Celeron J1900 Quad Core +Haswell structure+ Intel HD Graphics+Fanless, be able to work 24hours per day small: tiny size and smart design ,easily put. Smooth: blue-ray and Ultra HD streams, full HD resolution Strong: only 10W, very economical,High performance,long time working industries, car repair shops,school,bank,anywhere computer exists. Service:All the mini pc and accessories have been tested before delivery.
functional mini pc
Office work: Office, skype, yahoo, outlook and all other office requirement support and runs perfect
Design work: Photoshop, CoreIDRAW, Dreamweaver, IIIustrator, Flash, Indesign and others
Game playing: support most online games and PC games, like Warcraft, Counter-Strike (CS), support 3D games but this is integrated graphic not independent cards, so don't play very high grade 3D games.
Entertainment: support blu ray 1080P video play and others

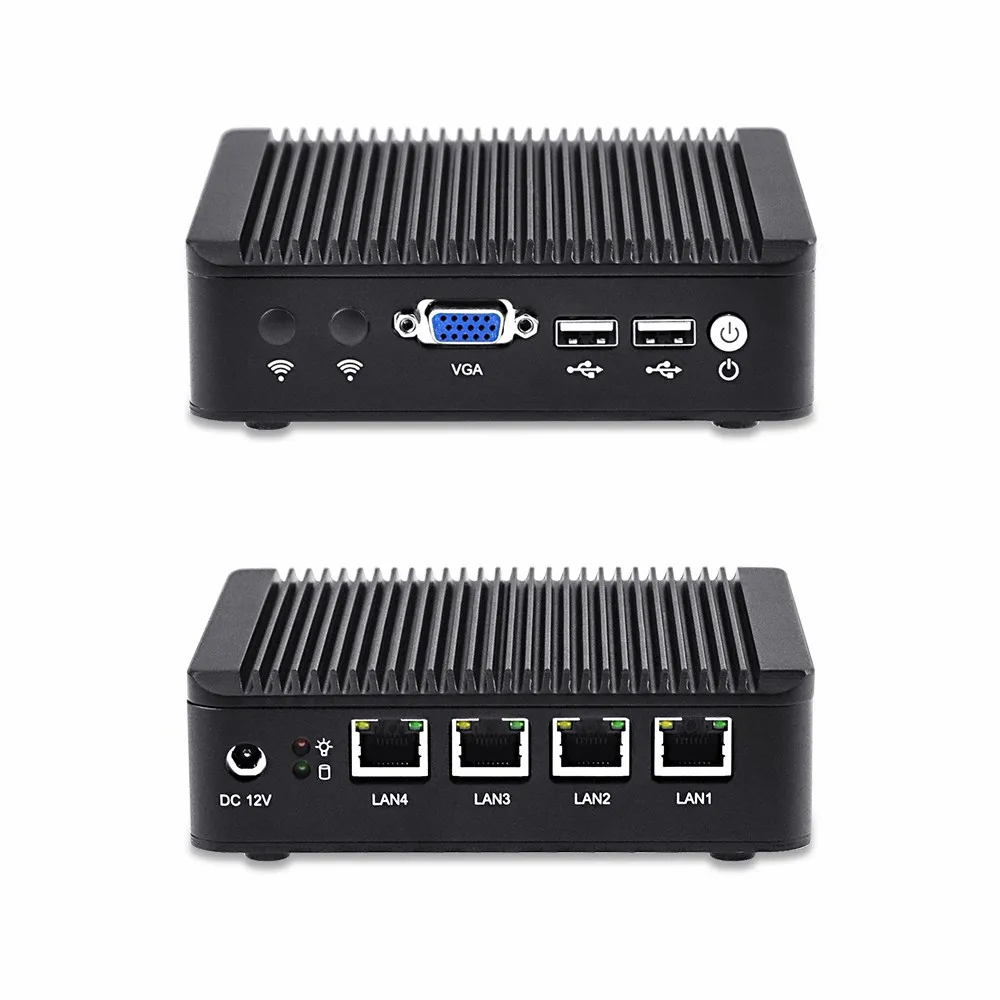

Intel celeron mini pc with 3215u processor 4 ethernet desktop
fanless mini pc with Celeron j1900 processor 4 serial ports
Intel celeron desktop computer
Celeron 3215U USB2.0 and USB3.0
Intel Celeron J1900 cpu 2 lan 4 USB fanless mini computer
Visit Our Factory
QOTOM Technology LTD.
In the early 2010, QOTOM Computer was founded in Shenzhen. It is a Mini PC manufacturing corporation. We provide OEM service and owns customers all over the world .After these years rapid growth, Qotom corporation has become a rapid growth corporation in the mini ITX field, and has contributed a lot to the leading and promotion of mini PC’s development with production and sales over 3 million pcs/year.Semi-Automatic machine makes the mass production possible. We nowadays have an extremely professional team.
One year warranty
All the mini pc and accessories have been tested before delivery.
The goods will be sent to you about 3 days arrives at destination.
The preloadded unactivated Windows 7 for test which have no license. If you want to change the os,pls contact me in time.Email or message is all acceptable.
Your immediate feedback will be highly appreciated. Thank you for your positive reply, we will try our best to meet your requirements.
We are not responsible for your import fees (duty and tax, VAT and others), but we can our best to help you avoid and solve We are not responsible for the delays due to the Customs clearance in your country.
Q: What's your MOQ? A: MOQ: 1 piece. We can give you a discount for your bulk order.
Q: Can you provide OEM service? A: Sure, you can choose RAM, storage, wifi and OS freely as you want, the unit price will be different depends on the configurations, please contact us to get the latest price!
Q: Can I print my logo on the mini computer? A: Yes, we can print your logo on the mini computer by silkprint, it is for free but based on the quantity. We also customize your label.
Q: What's the lead time? A: It will be 1-2 days for samples and 2-12 days for bulk order, depends on your required.
Q: Can I arrange the shipment by myself ? I have forwarder in China. A: No problem, we can delivery in China. Please inform your forwarder that our products have lithium metal battery on motherboard, that is very important.
