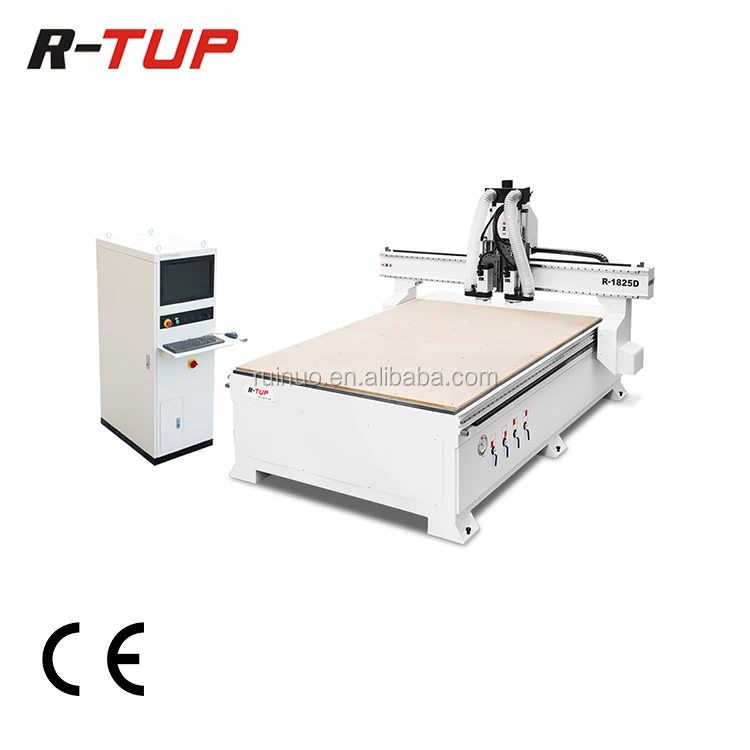

R-1825D 2pcs Spindles 1830*2500*180mm working range cnc woodworking router

$11,820.00 / Set | 1 Set (Min. Order)
Model Number:
R-1825D
$11,820.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Contact Supplier
Samples - $11,000.00 /Set, 1 Set (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Hotels, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Restaurant, Home Use, Retail, Printing Shops, Construction works , Energy & Mining, Advertising Company
Condition:
New
CNC or Not:
CNC
Place of Origin:
Guangdong, China
Brand Name:
R-TUP
Voltage:
AC380V/50Hz
Dimension(L*W*H):
2600x3000x2000mm
Certification:
CE/ISO
Power (kW):
6
Weight (KG):
1300
Warranty:
1 Year
After-sales Service Provided:
Field maintenance and repair service
Key Selling Points:
Automatic
Working area X*Y*Z:
1830x2500x180mm
Spindle power:
6KW+4.5kw
Spindle speed:
18000rpm/min
Max working speed:
25m/min
Net weight:
2000kg
Processing precision:
±0.1mm
Diameter of cutter:
3.175-16mm
Working coltage:
AC380V/50Hz
Weight:
1300kg
Power(W):
6kw+4.5kw

Packaging & Delivery

Selling Units:
Single item
Single package size:
3000X2600X2000 cm
Single gross weight:
2000.0 kg
Package Type:
R-1825D CNC Router Wood Carving Machine: Standard Package: Thick PE Foam inside , poly film outside
Picture Example:
package-img
package-img
Lead Time :
Quantity(Set) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Video Description
Product Description
NO.
Machinical Specifications
Parameter
1
Working range
X-axis:
1830mm
Y-axis:
2500mm
Z-axis:
200mm
2
Machine Precision
Processing  Precision
±0.1mm
Repeat positioning
±0.03mm
3
Machine Speed
Max.  Traverse Speed
75m/min
Max. working Speed
25m/min
4
machine structure

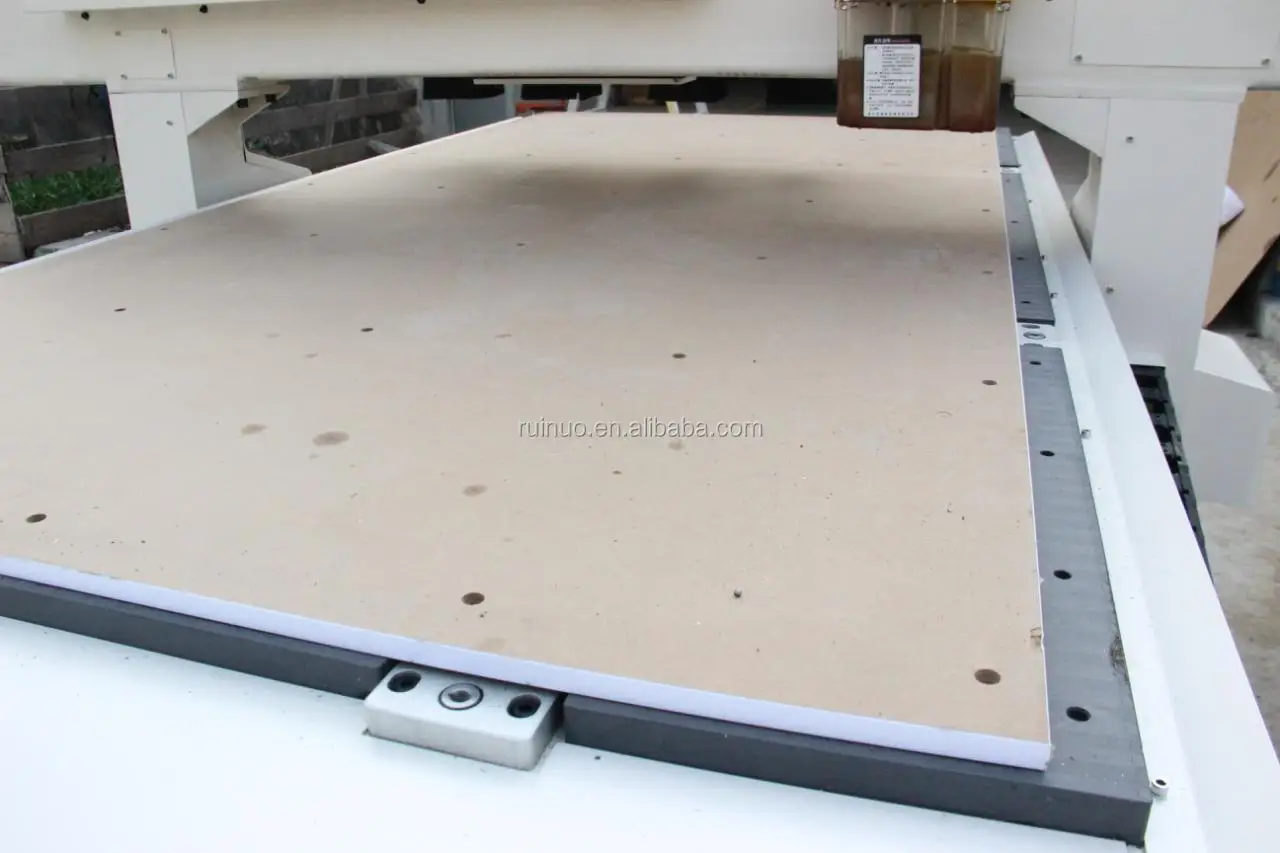

work  table
vacuum  worktable
   X/Y/Z axis
X/Y axis:Oblique  Rack Gear
Z axis:Ball Screw
5

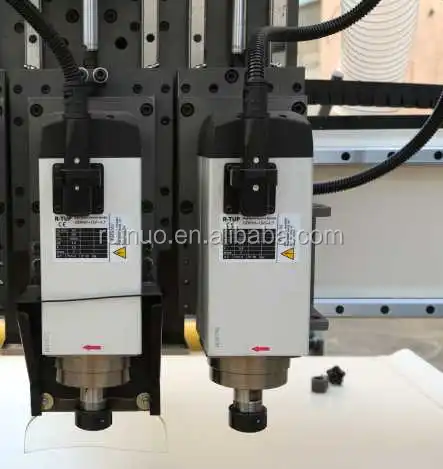

Main spindle
Quantity
2
Power
6KW+4.5KW air cooling
Rotating speed
18000  rpm
6
Drive system
servo motor and driver
7
Vacuum pump
Working  principle
water
Quantity
1
Power
7.5kw
Suction flow rate
160  m³/h
8
control  system
Weihong computer control system with computer
9
position device
3 pcs on   bottom-left
10
Dust collector
3 kw dust collector,  air volume 4000m³/h, 1roll dust pipe
11
Power supply
Voltage: 380V, 3-phase, Frequency: 50 Hz
12
Software
Jdpaint, powermill, Artcam, Alphacam, Type 3,  etc.
   CAD/CAM software compatible, identify G code, *.NC.
13
Packing size
L*W*H 3000*2100*2000mm
14
Net weight
2000KG
Production Process
Package&Shipping
About RUINUO
EIHIBITION
FAQ

1. What kinds of processing can the CNC router do?

A: The CNC Router can be used in cutting, milling, grinding, planning, drilling, engraving etc., especially for
abnormal shape's cutting.

2.What kinds of materials can the CNC router work on?

A: It can work on a lot of different materials besides kinds of wooden materials, such as acryl,
light guide, diffusion board, PVC, ABS PF, PE, PU, Fiber glass, man-made stone, compact grade
laminate board, Bakelite, aluminum profile, cooper plates etc.. For different materials, we have corresponding machines for choices.

3.Guarantee & After-sale Service

A..12 Months warranty under normal use and lifelong maintenance we supply
B..24 hours technical support by phone, email and other online contact.
C..Free training on machine operation, daily maintenance etc. in seller's factory.
D..We can send engineer go to overseas training

4.Delivery Time

Usually, for normal model, within 15 -20 days after get the deposit

5. Payment Terms

A.T/T in advance
B.L/C is allowed if the amount is big. Please issue the L/C draft for our configuration first.
C.Other kinds of payment we can consider if acceptable for us

 Dear, in order to recommend the best suitable machine with the best quality and price for you, please kindly contact me with below questions, our professional services will satisfy you!
1. what is you product?
2. what is the material of you product, and the size( length/width/thickness)?
3. what do you want to do on your product, cutting, drilling, milling, evgraving etc.?
4.what is the working area do you want?
5. do you have any other technical requirements? the more the better.
if you can provide some pictures of your products,that would be great!


Welcome to visit our factory, we can arrange pickup. our factory is located in Lunjiao town, Shunde District Foshan City,
1 hour drive from Guangzhou airport
30 minutes drive from Lecong international furniture town
20 minutes drive from Leliu furniture hardware town
40 minutes drive from
Foshan building material town
