RGB Serial Control Module for Arduino UNO R3 Controller Module

Feedback Ratings
  • 1-9 Pieces
    US $2.75
  • 10-49 Pieces
    US $2.55
  • >=50 Pieces
    US $2.20
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
2 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Alsrobot
Model Number:
RB-02S109
Product name:
RGB Serial Control Mould
Item NO:
RB-02S109
Input voltage:
5V
Output signal:
digital signals
Operating current:
20mA(single module)
Size:
35mm x 25mm
Weight:
4g

Packaging & Delivery

Selling Units:
Single item
Single package size:
20X20X10 cm
Single gross weight:
0.2 KG
Package Type:
anti-static bag standard box
Lead Time :
2
Video Description

Description

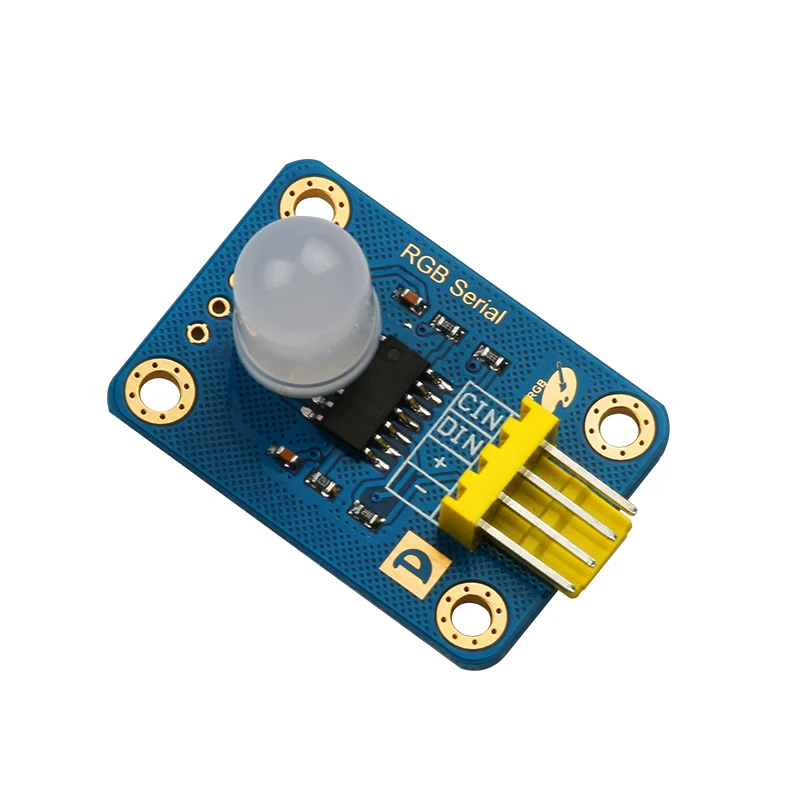

RGB Serial Conrol Mould from Alsrobot is the RGB mould based on P9813 full-color LED drive chip.It supports multiple modules to cascade through connection of output interface of the former module and input port of the after module, it can cascade maximum 1024 similar modules at the same time. Cooperating with Arduino UNO R3 and V5.0 expansion shield.RGB serial module is controlled by program to send full color light,multiple modules can be cascaded and simple cascading mode. It can meet the needs of different application scenarios, and has excellent decorative effect.In order to facilitate the cascade use of customers there is a 4 pin interface for free in the package,directly welding if you need to cascade.

Specifications

  • Item Name: RGB Serial Conrol Mould
  • Item NO.: RB-02S109
  • Input voltage: 5V
  • Interface type: two wire analog serial communication interface
  • Output signal:  digital signals
  • Operating current: 20mA(single module)
  • Maximum number of cascaded modules: 1024(Pay attention to whether the power supply meets the requirements of each module)
  • Size of fixed hole: 23mm x 18mm
  • Color configuration: red, green, blue, each color can be set 256 degrees of saturation
  • Size: 35mm x 25mm
  • Weight: 4g
  • Pin definition
    Input port
    -:GND
    +:VCC
    CIN:serial input clock line
    DIN:serial input data line

    Output Port
    -:GND
    +:VCC

pictures

RB-02S109-RGB-5

Exquisite workmanship,Superior quality

 .jpg
