RJ45 RS484 1D 2D Barcode Scanner Weigand TCP IP QR Code Reader Module For Turnstile Access Control

  • 1-10 Pieces
    $135.00
  • 11-50 Pieces
    $125.00
  • >=51 Pieces
    $100.00
Model Number:
RD4500R
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
3 day(s) after payment received
Customization:
Customized logo (Min. Order: 1000 Pieces)
Customized packaging (Min. Order: 1000 Pieces)

More

Graphic customization (Min. Order: 1000 Pieces) Less
Samples: $135.00 /Piece, 1 Piece (Min. Order): Buy Samples
Contact Supplier
Samples - $135.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Products Status:
Stock
Type:
Barcode Scanner, turnstile barcode reader
Scan Element Type:
CMOS
Colour Depth:
32 Bit
Interface Type:
USB, RS232
Max Paper Size:
A4 Size
Optical Resolution:
10mil
Scan Speed:
200decodes/sec(default)
Brand Name:
Rakinda
Place of Origin:
China
Depth of Scan Field:
40 mm ~ 235 mm
Supply Voltage:
DC 3.3±0.3V
Weight:
200g
Operate Temperature:
-10℃ to + 50℃
image sensor:
752 x 480 CMOS
scan window:
38.3mm*60.4mm
Processor:
IOTC 0370 CHIP
Ambient Light:
0 ~ 100,000 LUX
Power consumption:
1.75W(max)
Product Certification Verified
CE Certified.
RoHS Certified.

Packaging & Delivery

Selling Units:
Single item
Single package size:
15X15X15 cm
Single gross weight:
0.5 kg
Package Type:
barcode scanner+USB/RS232 Cable+ Power Adaptor(for RS232 only) RJ45 RS484 1D 2D Barcode Scanner Weigand TCP IP QR Code Reader Module For Turnstile Access Control
Lead Time :
Quantity(Piece) 1 - 10 >10
Est. Time(days) 3 To be negotiated
Video Description

RJ45 RS484 1D 2D Barcode Scanner Weigand TCP IP QR Code Reader Module For Turnstile Access Control

Product Description

 RD4500R fixed mount barcode scanner is designed primarily for such applications as electronic tickets/coupons, mobile marketing, mobile payment, kiosk, turnstile, and office automation, the series fixed mount barcode scanner is able to read barcodes on paper and mobile phones.


Compatible OS: Android, Windows, Linux
Projects: Turnstile, Kiosk, ATM, Payment Terminal, Ticketing Validator, etc.



Product Specification:

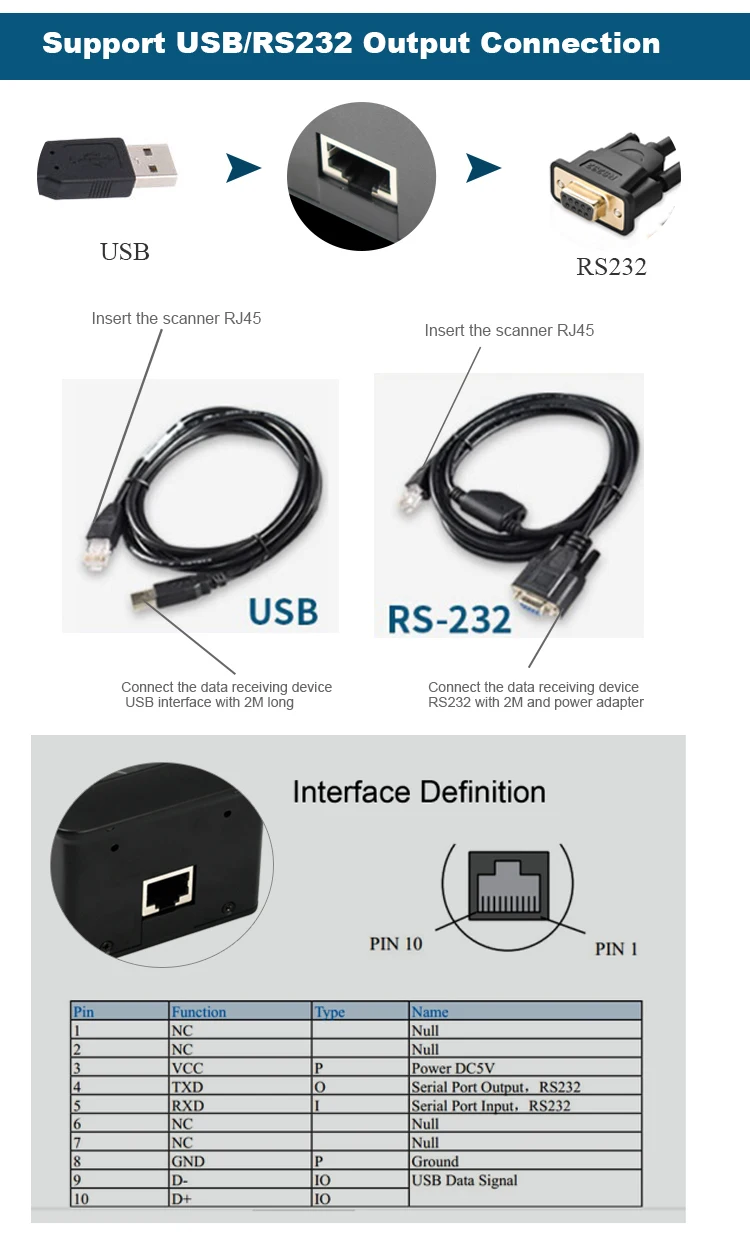

InterfaceRS232/ USB
Image Sensor752 x 480CMOS
Symbologies

2D: PDF417, Data Matrix, QR Code

1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN,
Codabar, Code 128, Code 93, ITF-6, ITF-14,
Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5,
Matrix 2 of 5, GS1 Databar (RSS-Expand,
RSS-Limited, RSS-14), Code 39, Code 11,
MSI-Plessey, Plessey

Precision10 mil

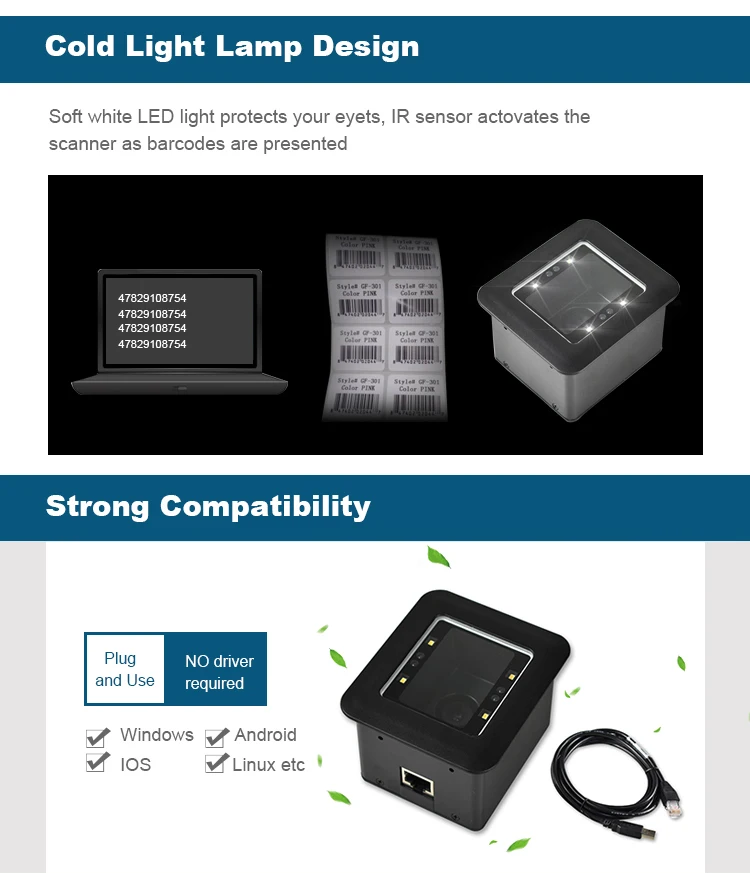

Light SourceWhite LED
Scan Window38.3mm*60.4mm
Depth of Field*40mm-430mm
Print Contrast Signal≥ 30%
Illumination0 ~ 100,000 LUX
Power Consumption1.75W (max)
Power AdaptorOutput: DC5V, 0.5A, Input: AC100~240V, 50~60Hz
Weight300g

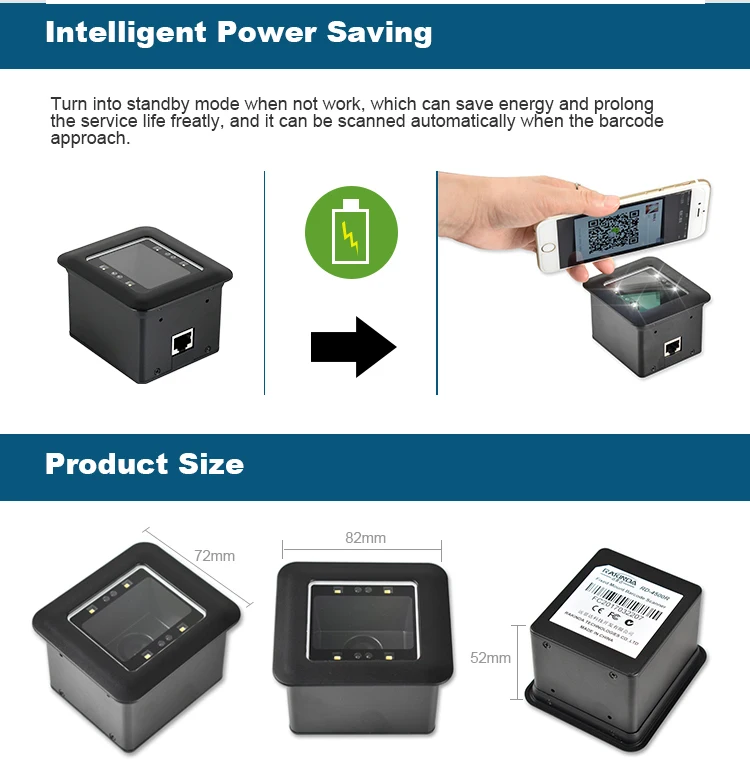

Dimensions82 mm(L) X 72mm (W) X 52mm(H)
NotificationBeep
CertificationFCC Part15 Class B, CE EMC Class B
Application Case:



RD4500R fixed mount barcode scanner is designed primarily for such applications as electronic tickets/coupons, mobile marketing, mobile payment, kiosk, turnstile, and office automation, the series fixed mount barcode scanner is able to read barcodes on paper and mobile phones.

Compatible OS: Android, Windows, Linux


Projects: Turnstile, Kiosk, ATM, Payment Terminal, Ticketing Validator, etc.

Related Products



5 Series of Fixed Mount 1d 2d Barcode Scanner:

We have scanner models in different size which could be installed flexiblely in various applications, if there is any product you are interested in for your projects, please click it for more details and Contact Us.

Company Information



Company Profile
Rakinda Technologies Co.,Ltd (The predecessor is Longview Tech Enterprise Co., Limited ) has been established since 2000, which has 6 branches in total, which are in Guangzhou, Shenzhen, Xiamen, Suzhou, Chengdu, Beijing and HongKong. "Rakinda" and "SCANMAX" are our two independent brands. Rakinda is also a leading worldwide Internet of Things solution provider, which is specialized in 1D/2D barcode identification technology (Embedded/Fixed Mount/Handheld/Desktop Barcode Scanner, Android PDA, Mobile POS, etc.) , radio frequency identification (UHF) technology and face recognition technology almost 20 years . We are oriented by customer demands , focus on development and innovation of intelligent systems and strive to provide most competitive IoT application solutions and services. Promoting people's lifestyle to be more intelligent is our infinite pursuit.



Independent R&D Center
Our Independent R&D Center keeps focusing on IoT design and manufacture, we have rich theoretical knowledge, practical experience, professional design and products manufacture ability, so as to meet all kinds of customers requirements. Through joint efforts of our team, we have been granted National High-tech Enterprise Award ,Software Product certificate and Software Enterprise certificate. At present, Rakinda has provided complete and mature solutions and technical support in these fields of access control, kiosk, turnstile, vending machine, smart retail, smart hotel, smart campus and smart medical treatment. So far we have won unanimous praise of the industry.



Our Services

Service Advantages


1.Professional service team, all-round one-to-one person follow-up.
2.Provide professional development kits to help customers solve various related software and hardware developing issues.
3.Two-year quality assurance, life-long maintenance and 24-hour service hotline guarantee the customers' interest.



We create a bright future with hand in hand and implement the business philosophy of customer first. Through continuous exploration and innovation, we aim to achieve win-win cooperation with customers in near future together!





Certification

Quality Advantages


1. The products are certified by CE of EU, FCC of USA and RoHS, and the quality is guaranteed.
2. Product components adopt international brand to ensure quality.
3. After 100% strict sampling inspection before products shipment, customers can take goods delivery with no worries at all.





Main Products

My Reviews
FAQ

Q1: Can I get some samples? Are they free?
A1: We support 1pc sample order. Samples should be paid.



Q2: How can I buy?
A2: We are trade assurance supplier at Alibaba. You can start online order directly. Or pls contact us first according to the contact info. We will send you proper link directly.



Q3: What is your payment method?
A3: We accept Alibaba online orders, PayPal ,T /T, LC, Western Union , MoneyGram.



Q4: How long is your warranty time?
A4: Our officially promised warranty time is two years after delivery.



Q5: Where can we download the user manual of the scanners?
A5: We will send by email after you get samples.



Q6: What's the lead time?
A6: For sample, it is typically within 3 days. For bulk order, it depends on quantity and model you order.



Q7: Can you provide OEM service?
A7: Yes. We need further discuss about details.



Q8: If I come across any problem during product using, where I can get the support ?
A8: We support you technically 24h/7.please send all your questions to us. and we will give the professional,patient,expliantion by email or call in time.



Q9: How do you ship the scanners usually?
A9: Since it is light and compact, we usually use DHL, UPS, Fedex, TNT and post air mail. We also can ship the goods by your shipping account or other express agent you provided.



Sincerely, wish we have the honour and chance to serve for you. I promise you will be satisfied with our products and services.

If there is anything we can do for you please feel free to let us know and contact us.

Thanks for your time and wish you have a nice day.
Best Regards
Rakinda
